Pressure Feedback Exhaust Sensor: Service and Repair
REMOVAL 1.
Disconnect the battery ground cable; refer to Battery.
2.

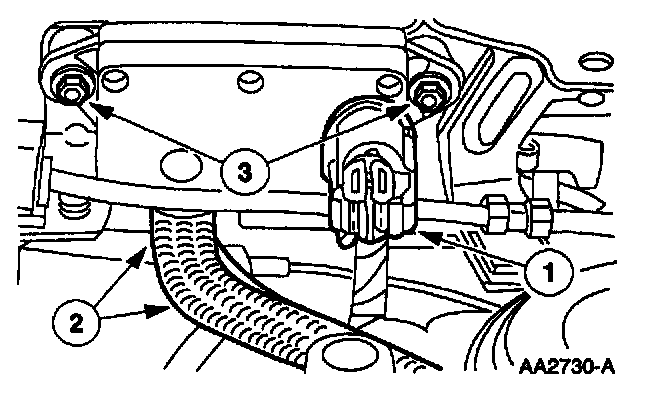

Remove the EGR transducer.
1
Disconnect the EGR transducer electrical connector.
2
Disconnect the two hoses.
3
Remove the two nuts and the EGR transducer.

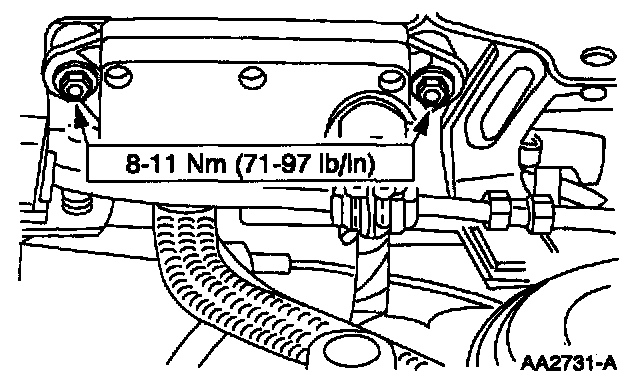

INSTALLATION 1.
Follow the removal procedure in reverse order.
