Fill Procedure
1.
Park the vehicle on level ground and apply the parking brake.
2.

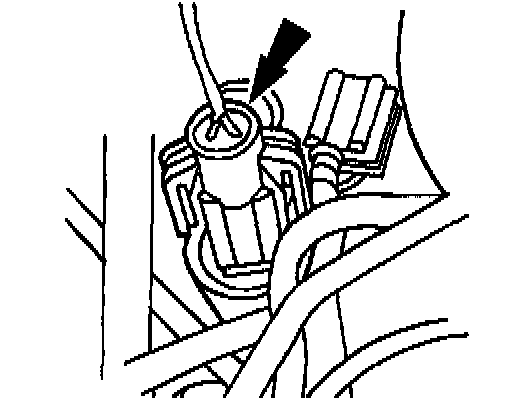

Disconnect the Vehicle Speed Sensor
(VSS) electrical connector.
3.

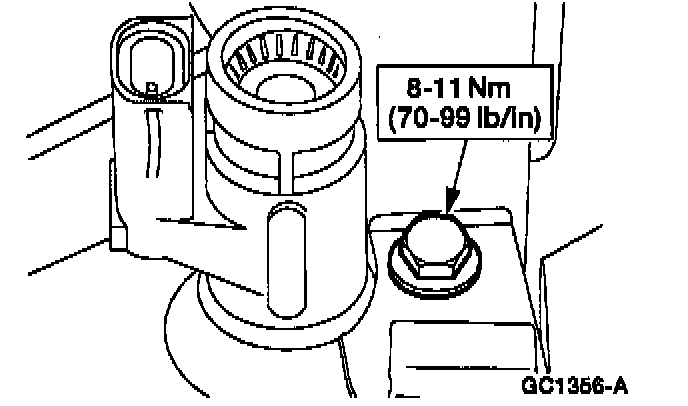

Remove the bolt and the VSS.
4.

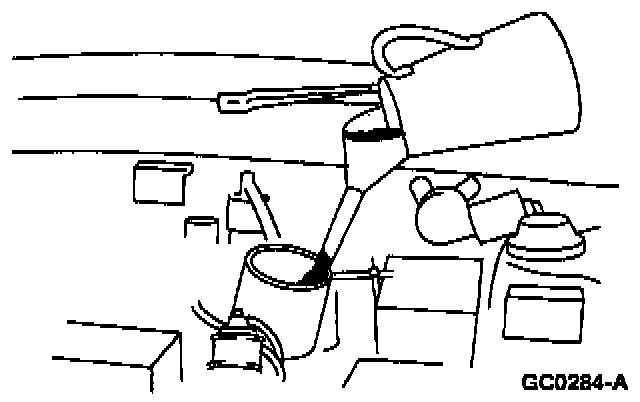

Place a funnel into the VSS hole.
5.

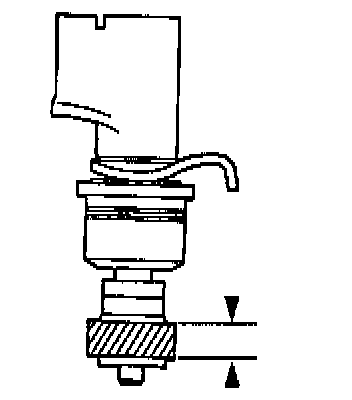

Add the specified transaxle fluid until the full level on the VSS is reached.
6.
Install the VSS and the bolt.
7.
Connect the VSS electrical connector.
