System Specifications

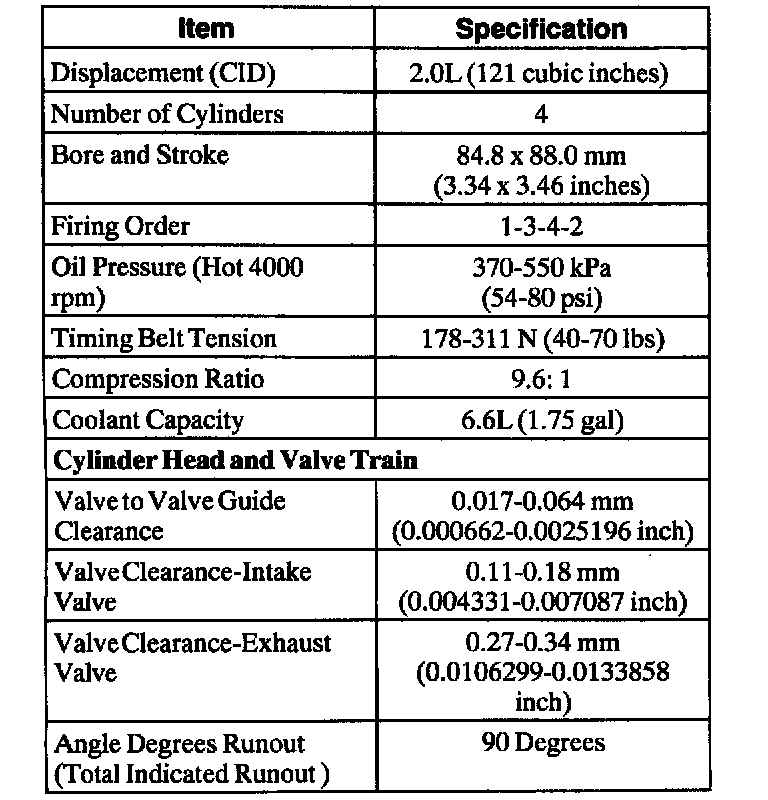

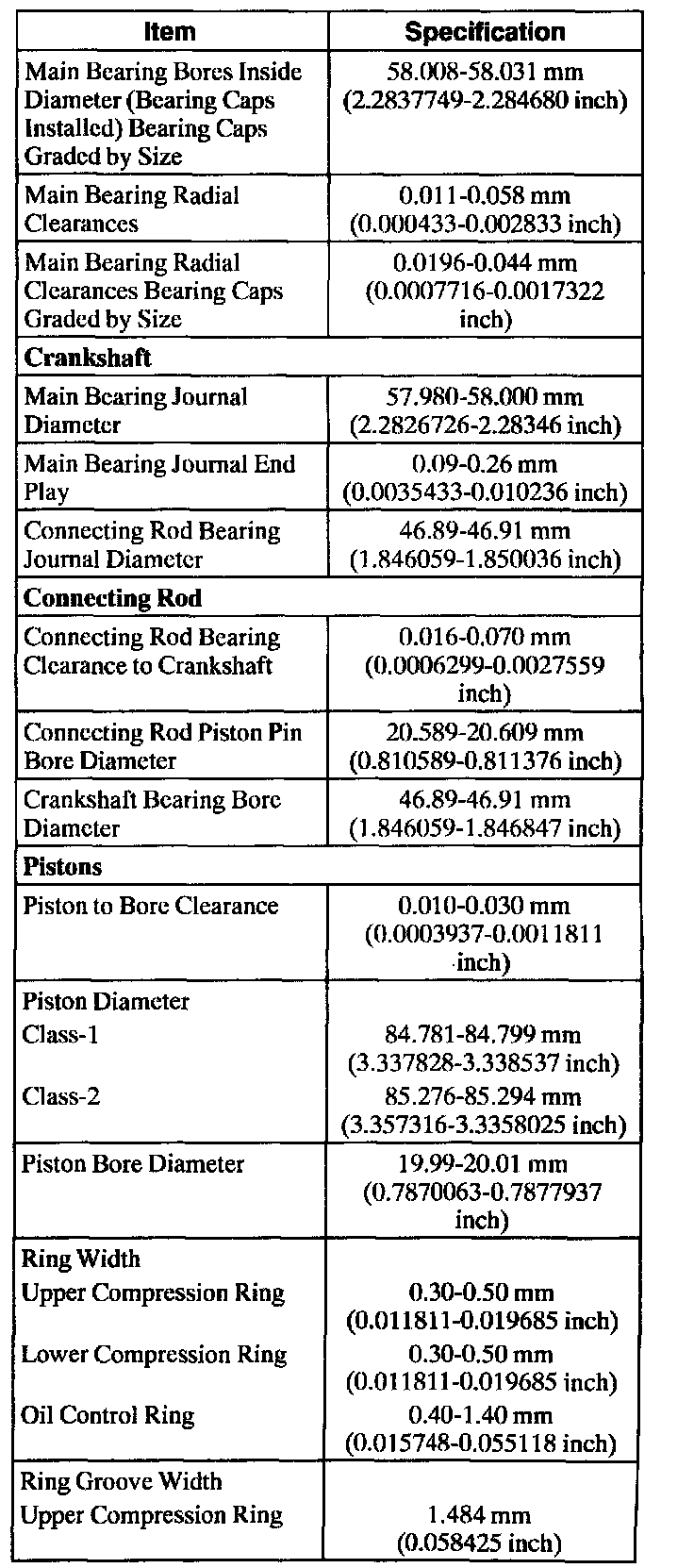

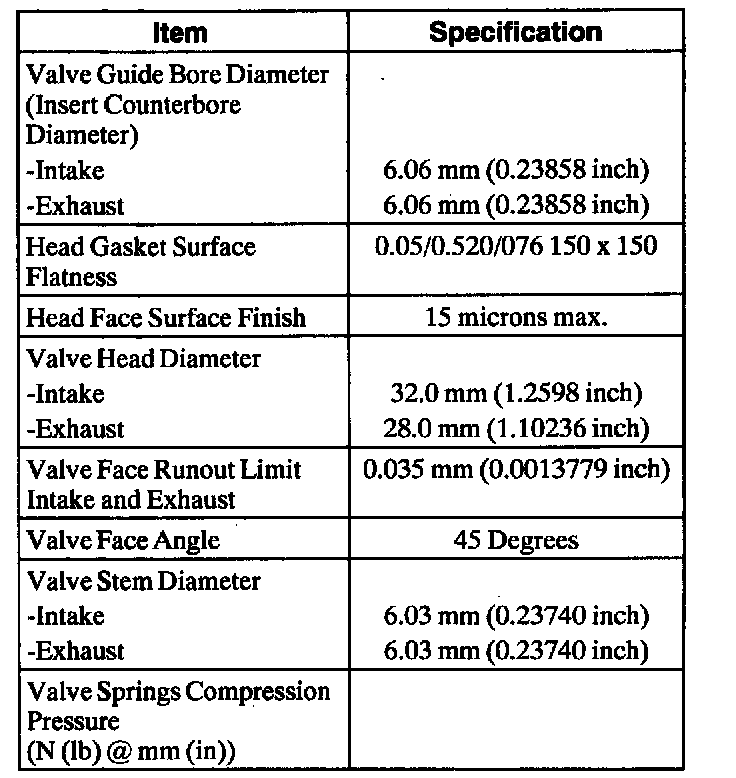

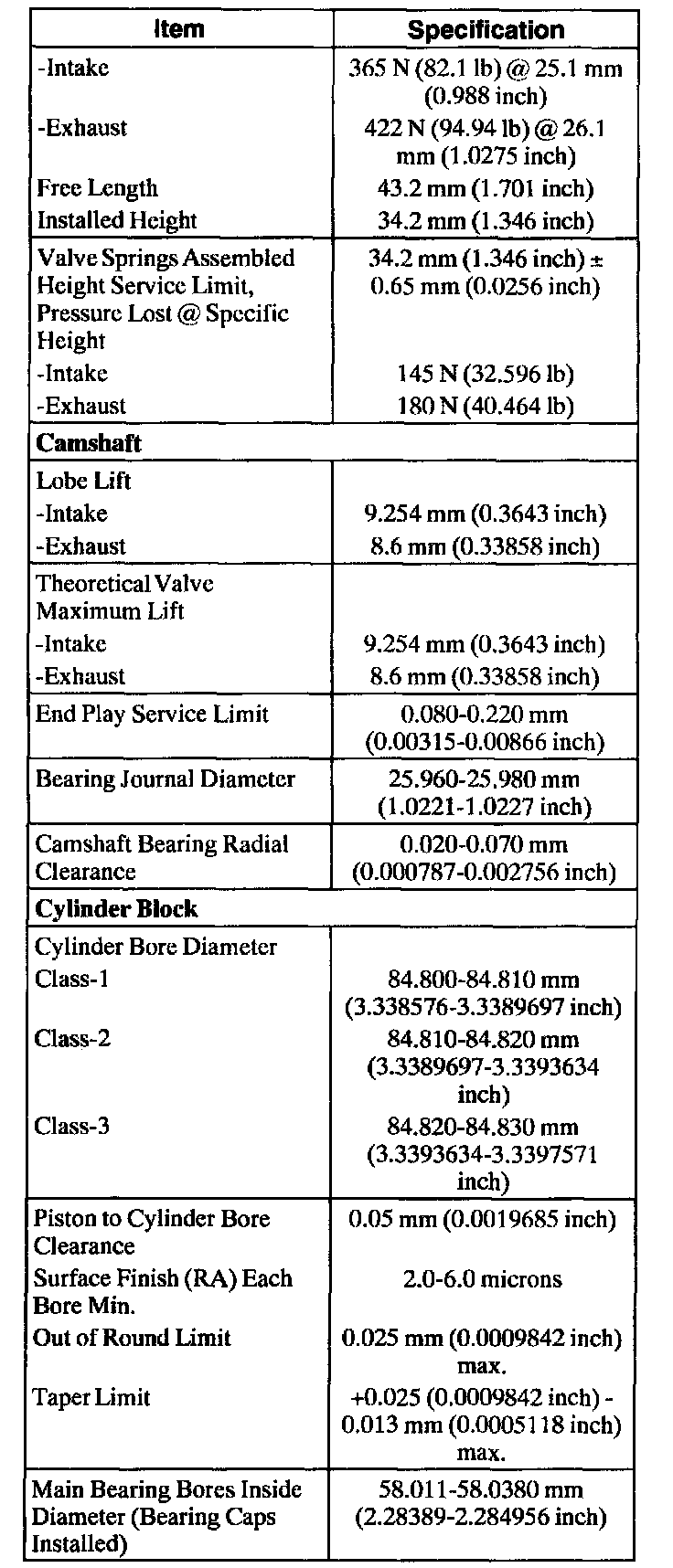

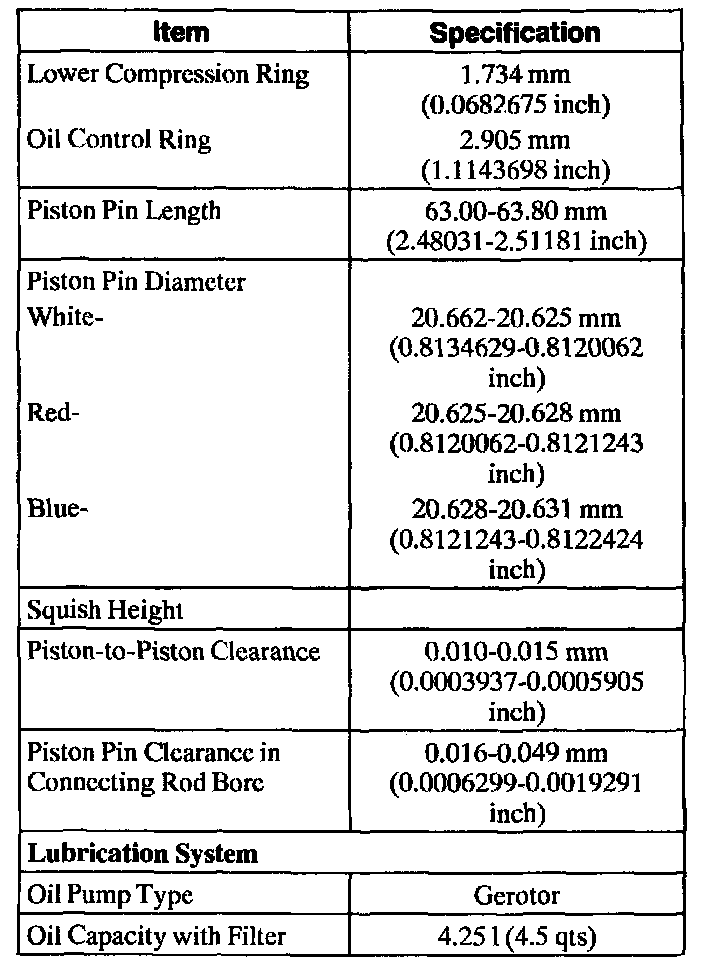

General Specifications


Tightening Specifications





CAUTION: Do not attempt to install the cylinder head assembly without assistance. Installation of the cylinder head assembly requires two people or possible injury may occur.

CAUTION: The bolts are torque-to-yield and must be replaced or engine damage may occur.

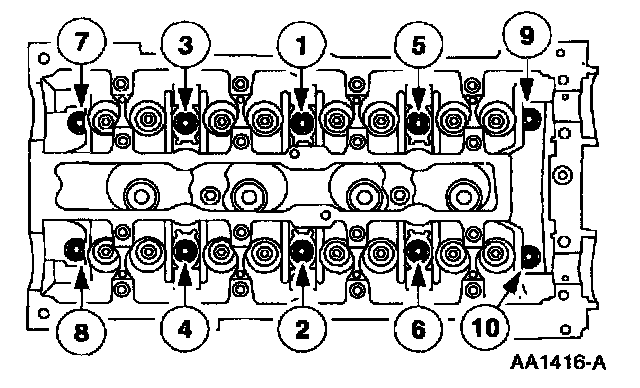

Tighten the bolts in three stages in sequence shown.
- Stage 1: Tighten the bolts to 15 - 25 Nm (12 - 18 ft. lbs.).
- Stage 2: Tighten the bolts to 35 - 45 Nm (26 - 33 ft. lbs.).
- Stage 3: Tighten the bolts an additional 105 degrees.
