Initial Inspection and Diagnostic Overview
1.
Verify the concern by running the engine.
2.
Check the
drive belt for correct routing.
V-Ribbed Belt With Cracks (Acceptable):

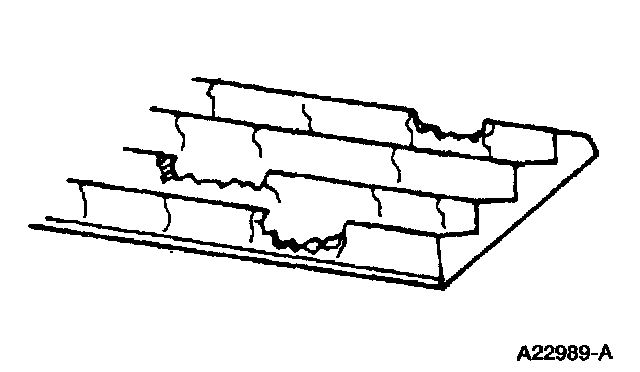

V-Ribbed Belt With Chunks Of Rib Missing (Not Acceptable):
3.
Inspect the
drive belt for chunking, fraying and wear. Refer to the illustrations.
