Electrical Diagrams

Diagram 24-1:

Central Junction Box
Fuse 2
Mass Air Flow Sensor
Powertrain Control Module

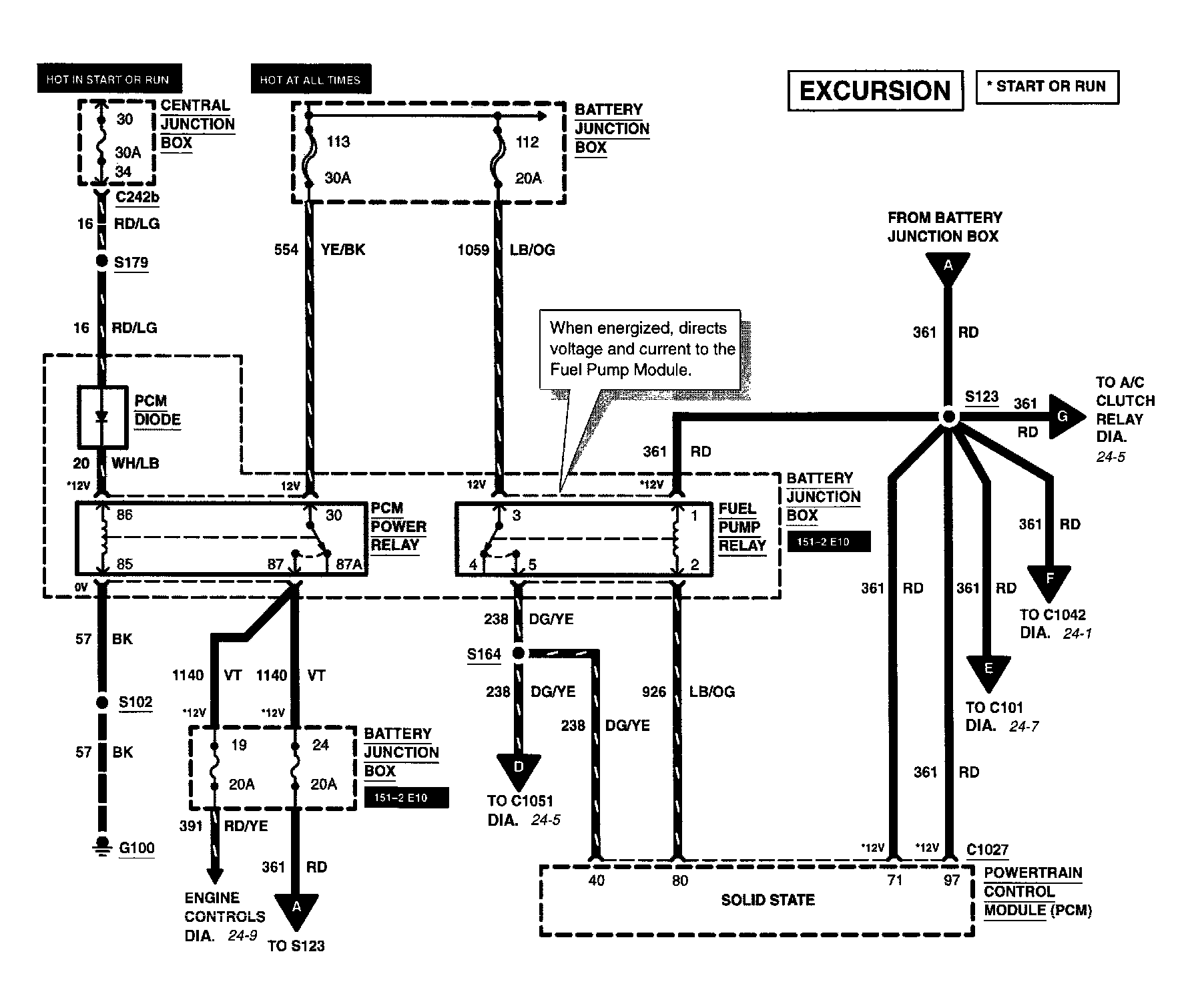

Diagram 24-3:

Battery Junction Box
Central Junction Box
Fuse 19
Fuse 24
Fuse 30
Fuse 112
Fuse 113

Diagram 24-5:

A/C Compressor Clutch Solenoid
Battery Junction Box
Fuel Tank Assembly
Fuse 6
Inertia Fuel Shutoff Switch

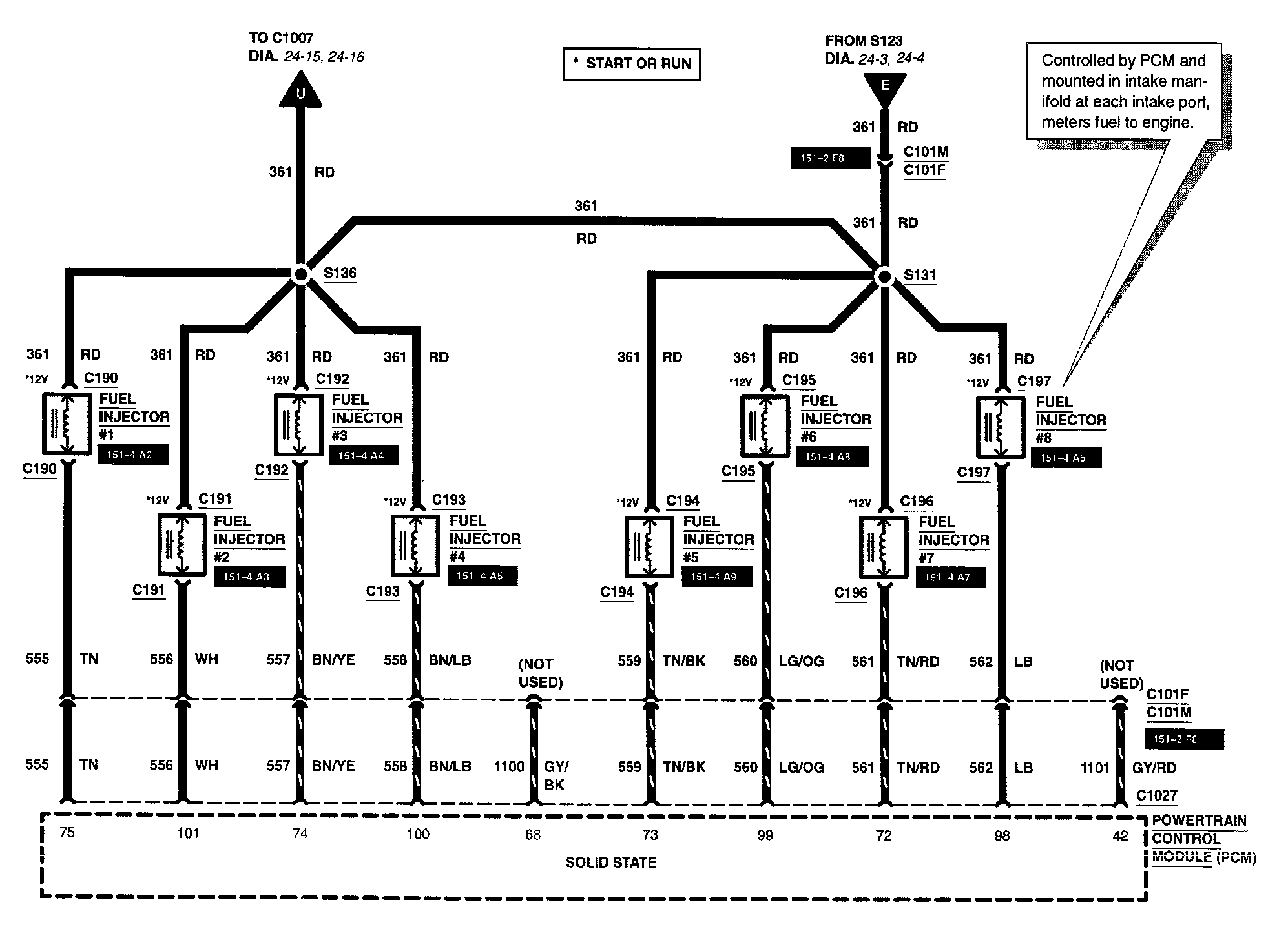

Diagram 24-7:

Diagram 24-8:

Central Junction Box
Fuse 30
Coil On Plug (COP) #1
Coil On Plug (COP) #2
Coil On Plug (COP) #3
Coil On Plug (COP) #4
Coil On Plug (COP) #5
Coil On Plug (COP) #6
Coil On Plug (COP) #7
Coil On Plug (COP) #8

Diagram 24-9:

Battery Junction Box
EGR Control Solenoid
Fuse 19
Heated Oxygen Sensor (HO2S) #11
Heated Oxygen Sensor (HO2S) #21

Diagram 24-11:

Diagram 24-13:

Cylinder Head Temperature (CHT) Sensor
Delta Pressure Feedback EGR (DPFE) Sensor
Powertrain Control Module (PCM)
Throttle Position Sensor

Diagram 24-15:

Crankshaft Position (CKP) Sensor
Knock Sensor (KS)
Camshaft Position (CMP) Sensor

Diagram 24-17:

Engine Coolant Temperature (ECT) Sensor
Instrument Cluster

Diagram 24-18:

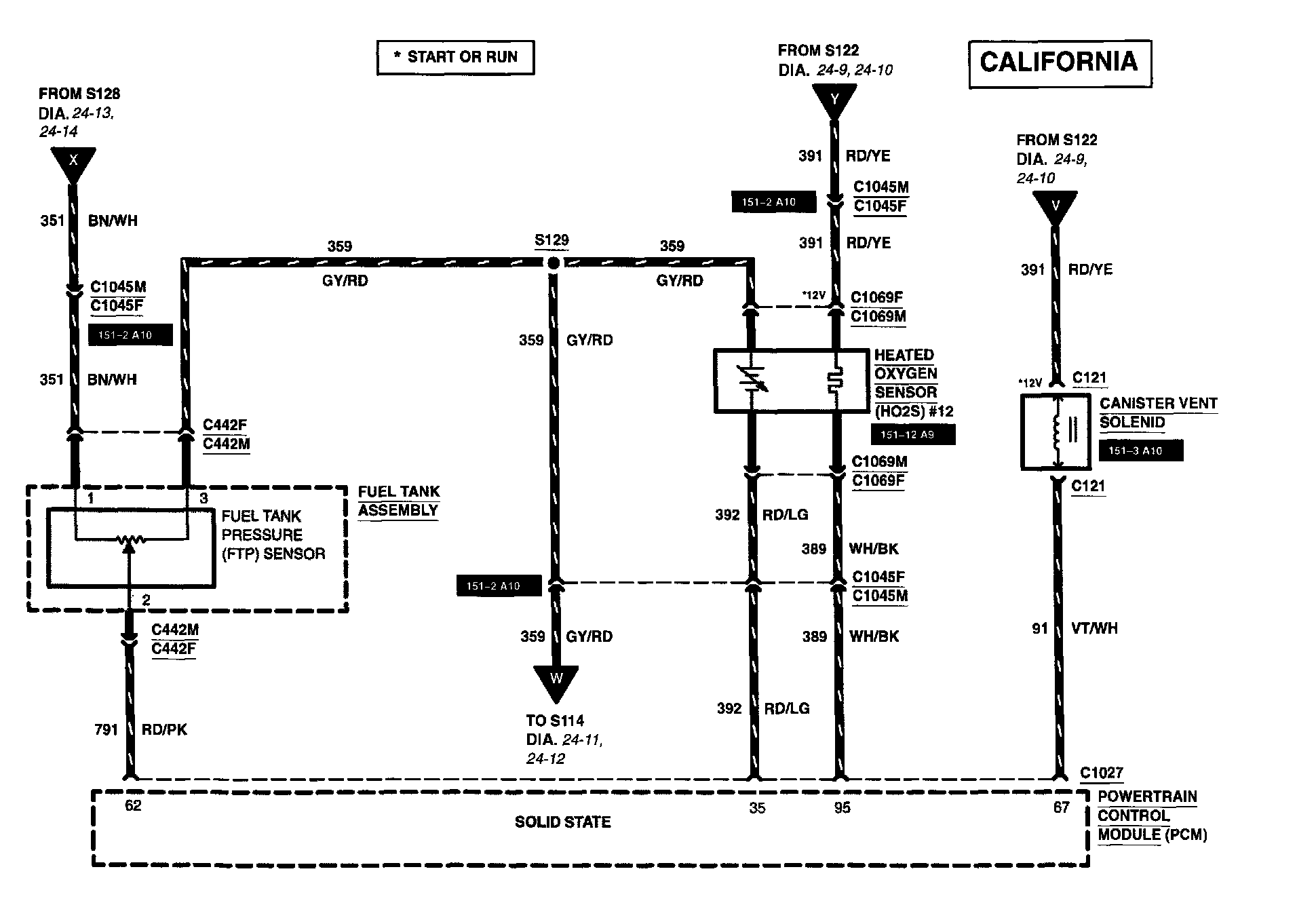

Diagram 24-19:

Canister Vent Solenoid
Fuel Tank Assembly
Heated Oxygen Sensor (HO2S) #12
