Exterior Mirror-Dual Arm
REMOVAL 1.
Remove the front door
trim panel 2.
Remove the rubber plugs and dust shield.
3.
Remove the front door speaker. Refer to Speaker.
4.

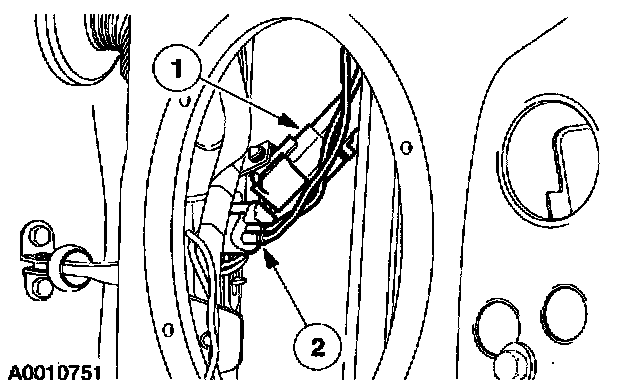

Disconnect the electrical connector(s).
1
Disconnect the power mirror connector.
2
Disconnect the heated mirror connector (if equipped).
5.
Remove the nuts and remove the outside rear view mirror.
INSTALLATION 1.
To install, reverse the removal procedure.
