Brake Pedal Assy: Service and Repair
Removal 1.
Disconnect the battery ground cable.
2.

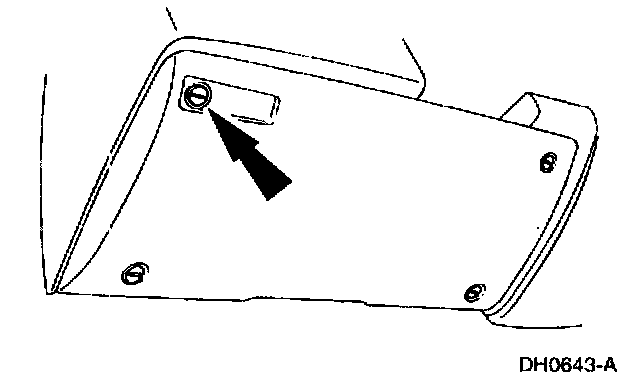

Remove the fuse panel cover.
3.

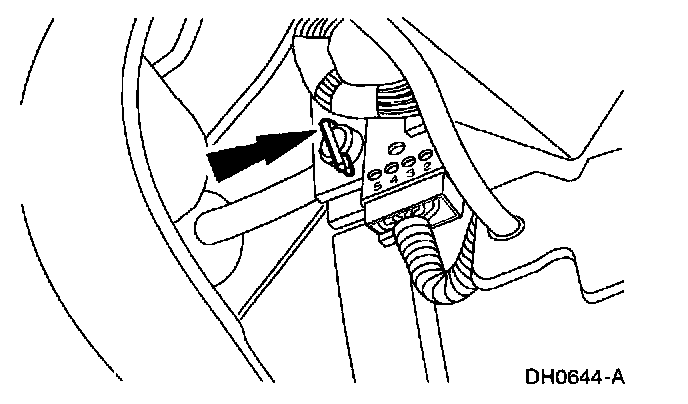

Remove the stoplight switch retaining pin.
4.

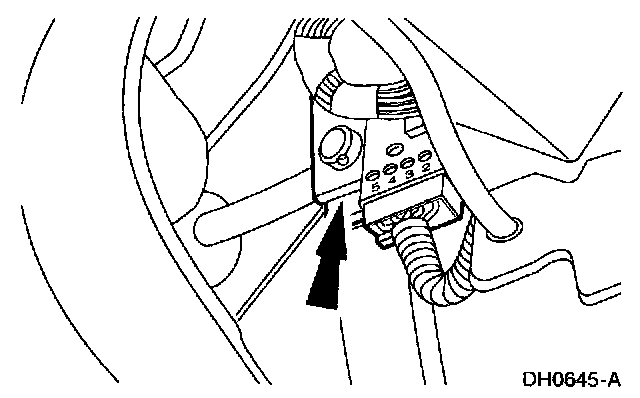

Slide the stoplight switch and booster push rod from the brake pedal pin.
5.

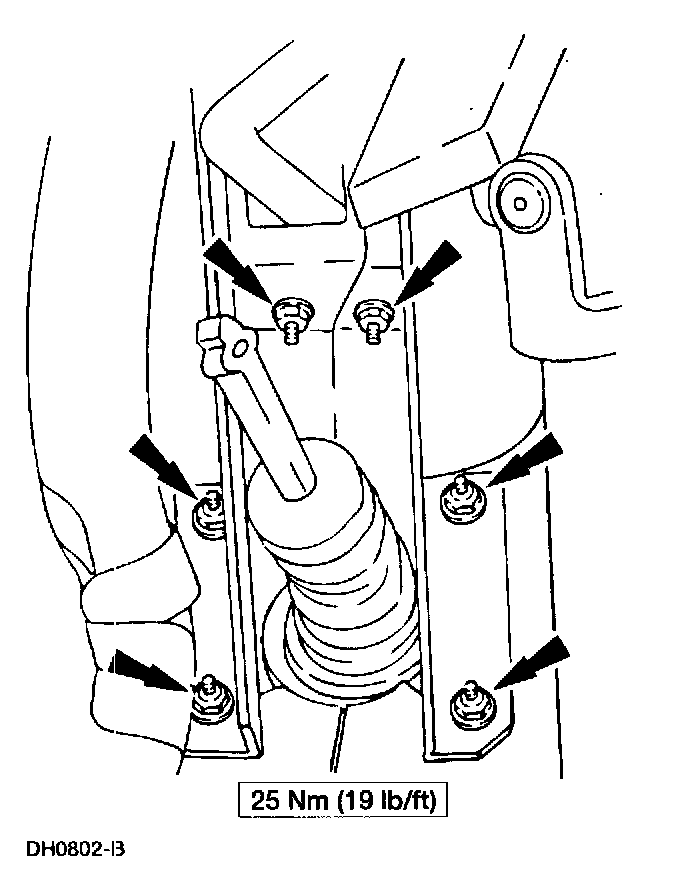

Remove the brake pedal bracket retaining nuts.
6.
Remove the brake pedal and bracket.
Installation 1.
Follow the removal procedure in reverse order.
