System Diagram

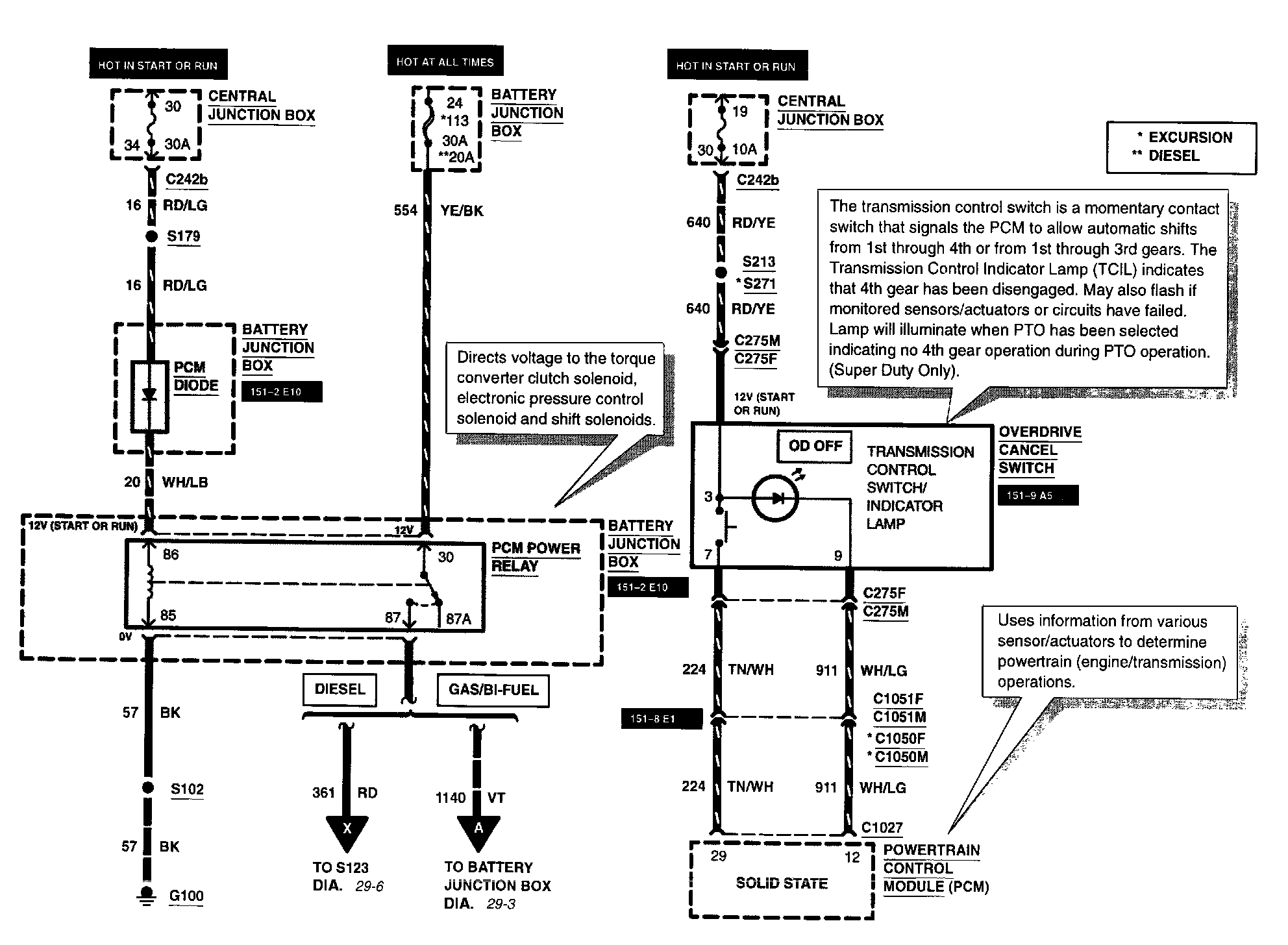

Diagram 29-1:
Battery Junction Box
Central Junction Box
Fuse 19
Fuse 24
Fuse 30
Overdrive Cancel Switch

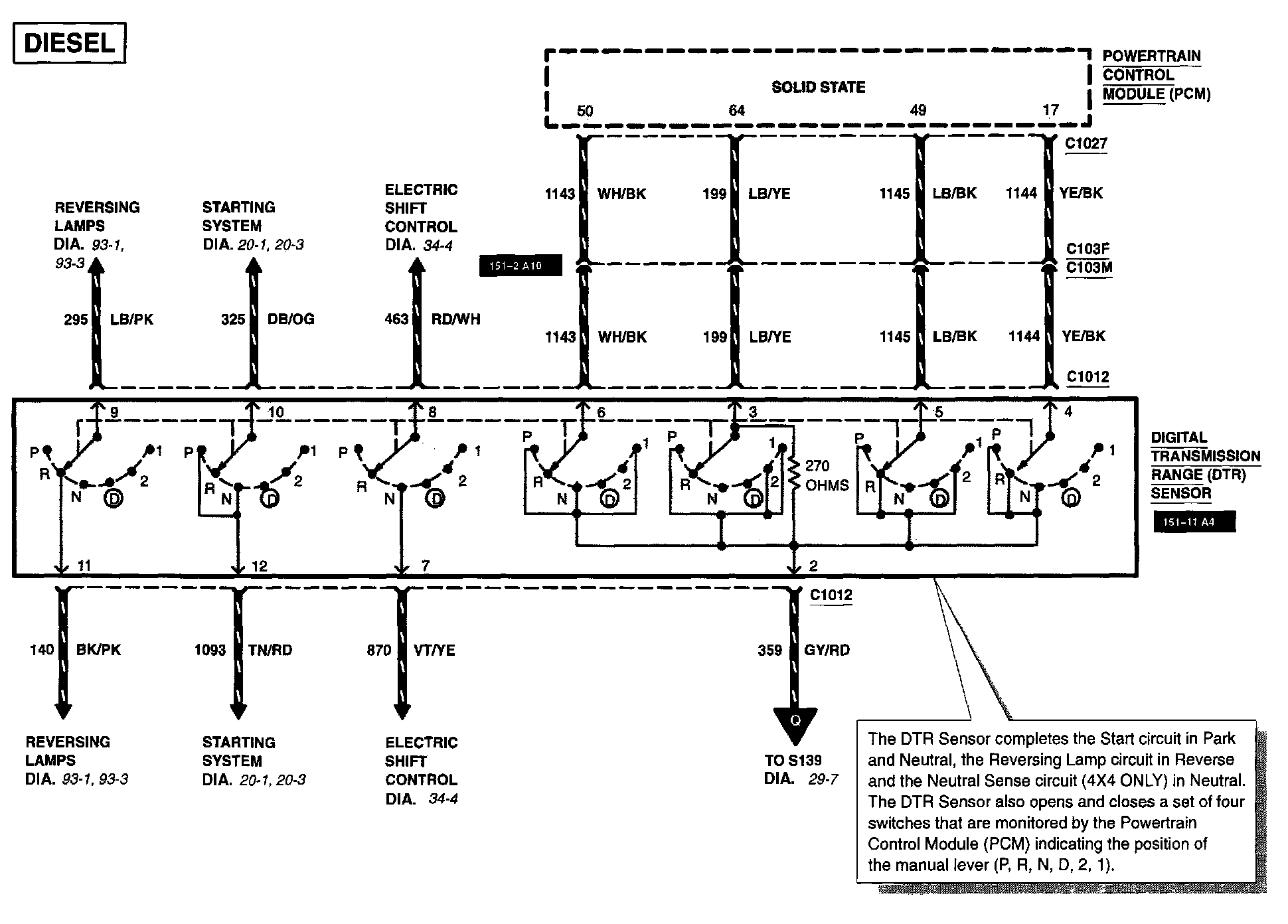

Diagram 29-5:
Digital Transmission Range (DTR) Sensor
Powertrain Control Module (PCM)

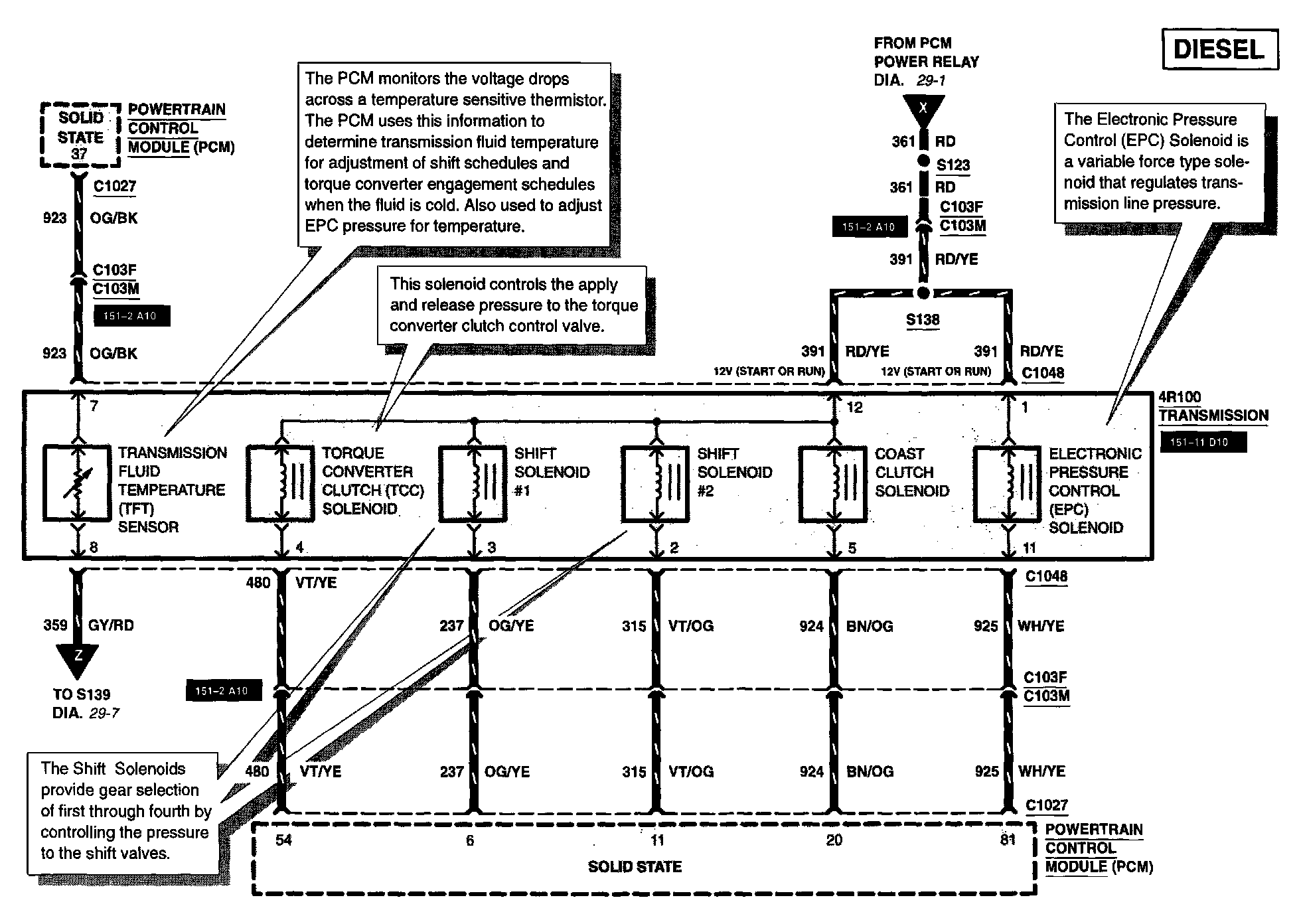

Diagram 29-6:
4R100 Transmission
Powertrain Control Module

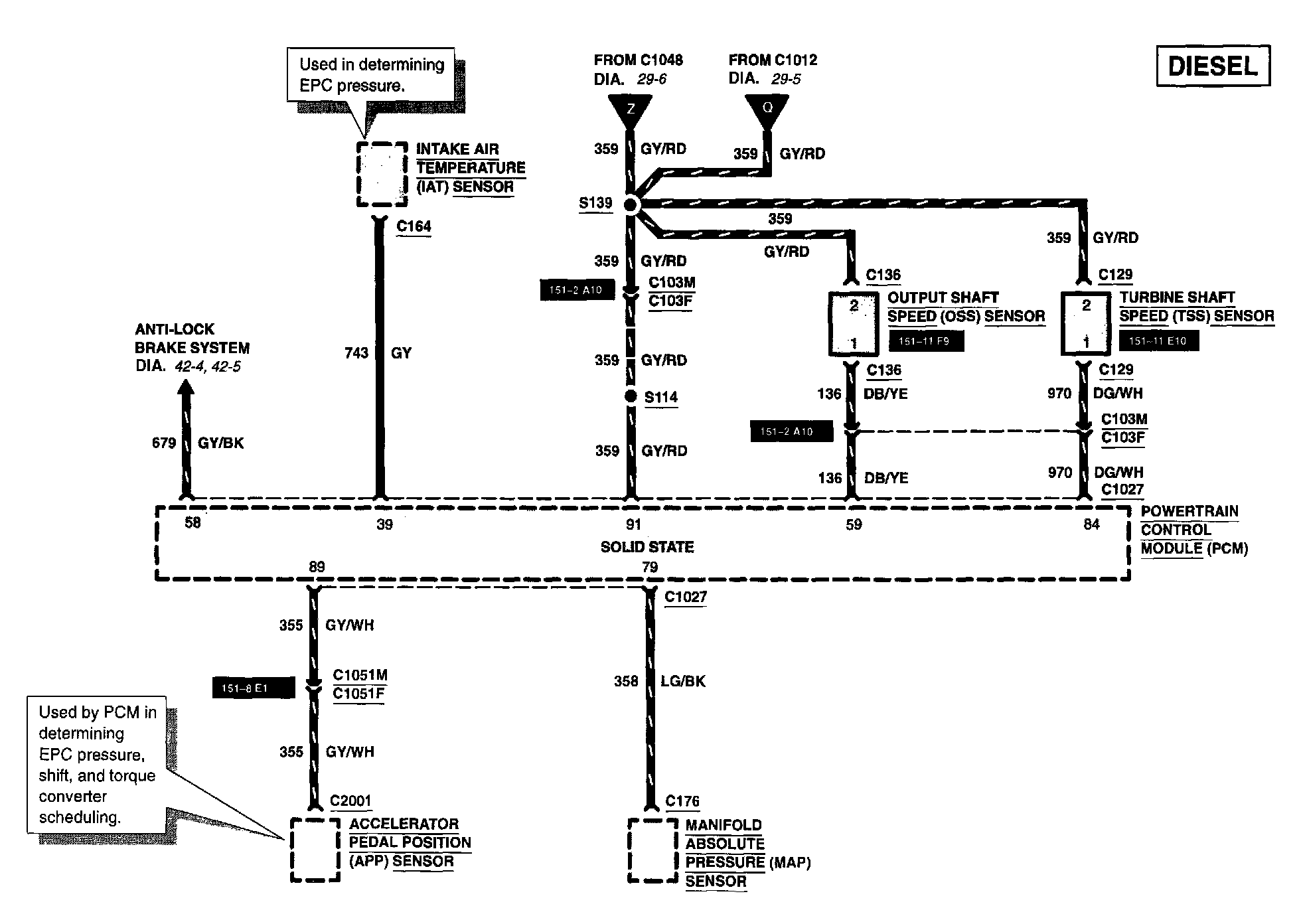

Diagram 29-7:
Intake Air Temperature (IAT) Sensor
Output Shaft Speed (OSS) SensorPowertrain Control Module (PCM)
Turbine Shaft Speed (TSS) Sensor
