General Module

Diagram 59-1:

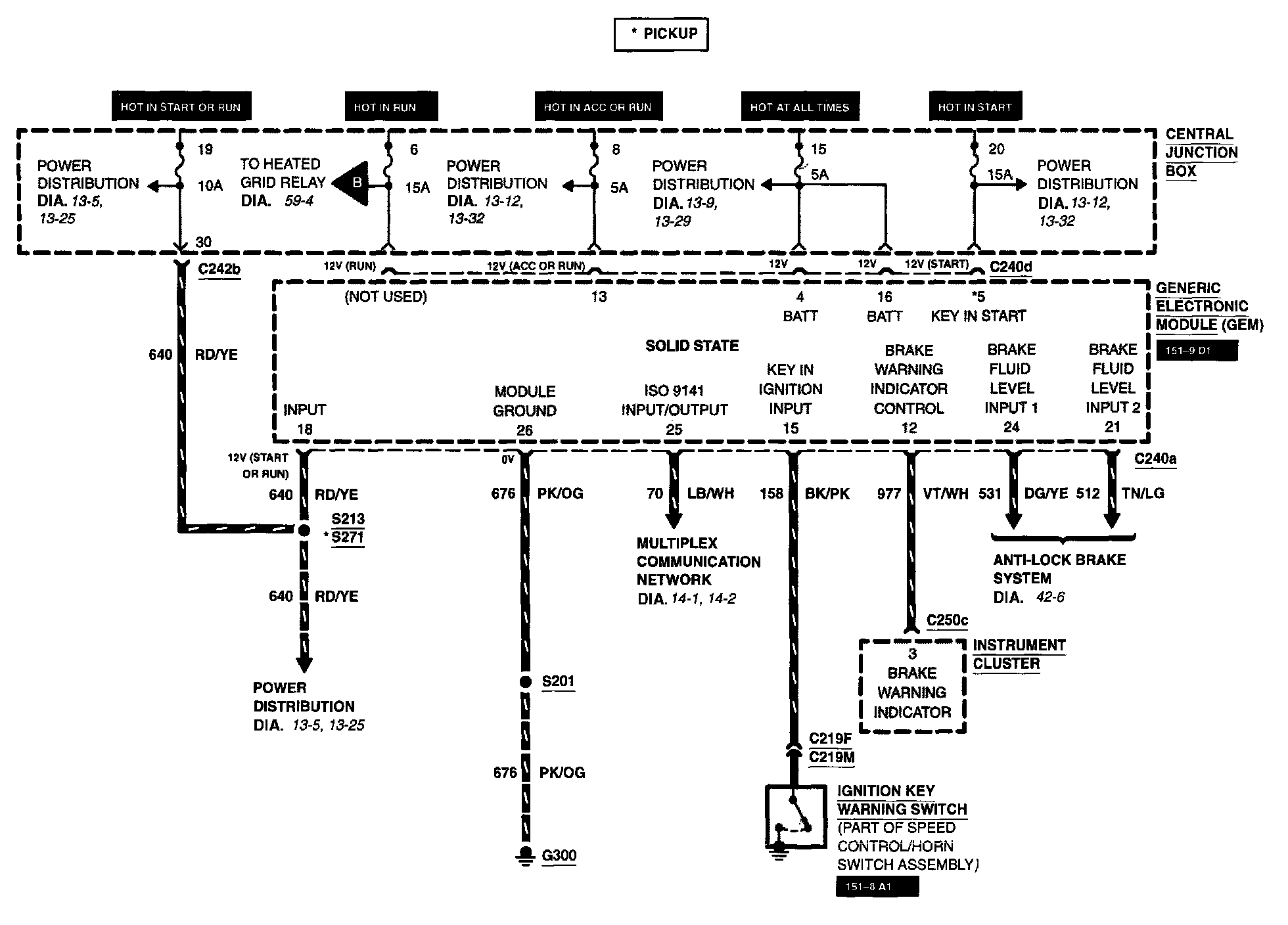

Central Junction Box
Fuse 6
Fuse 8
Fuse 15
Fuse 19
Fuse 20

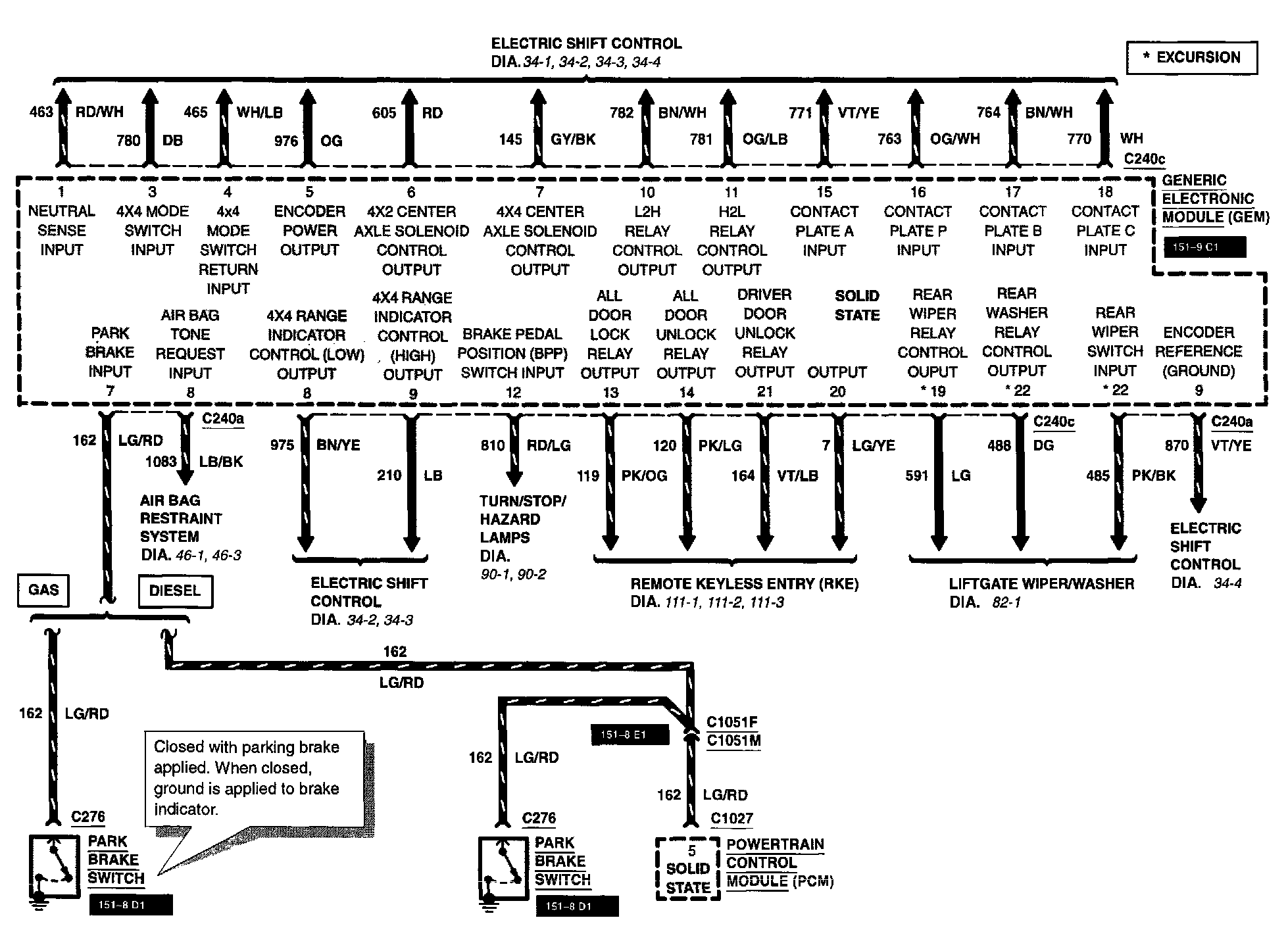

Generic Electronic Module (GEM)



Diagram 59-2:

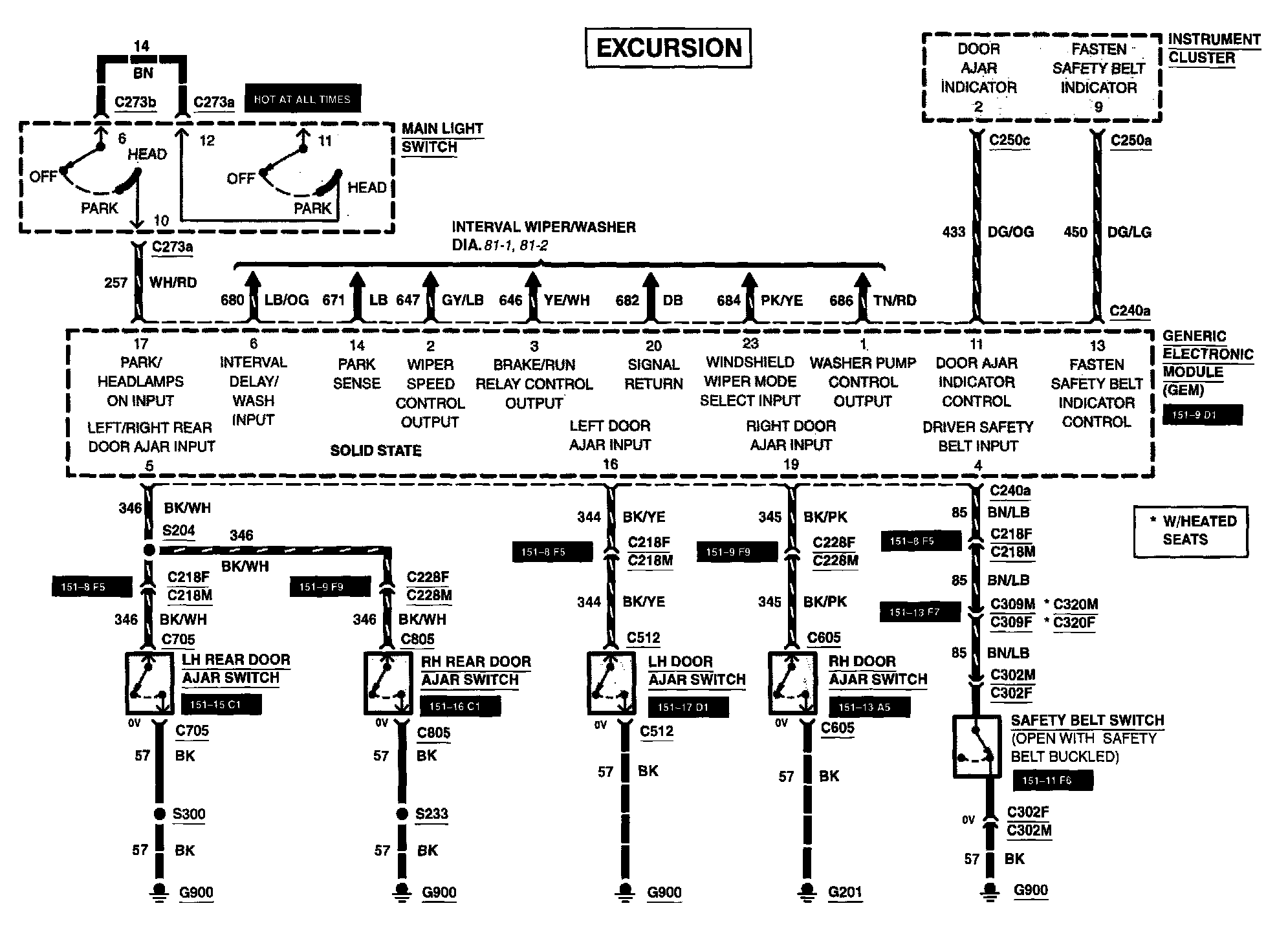

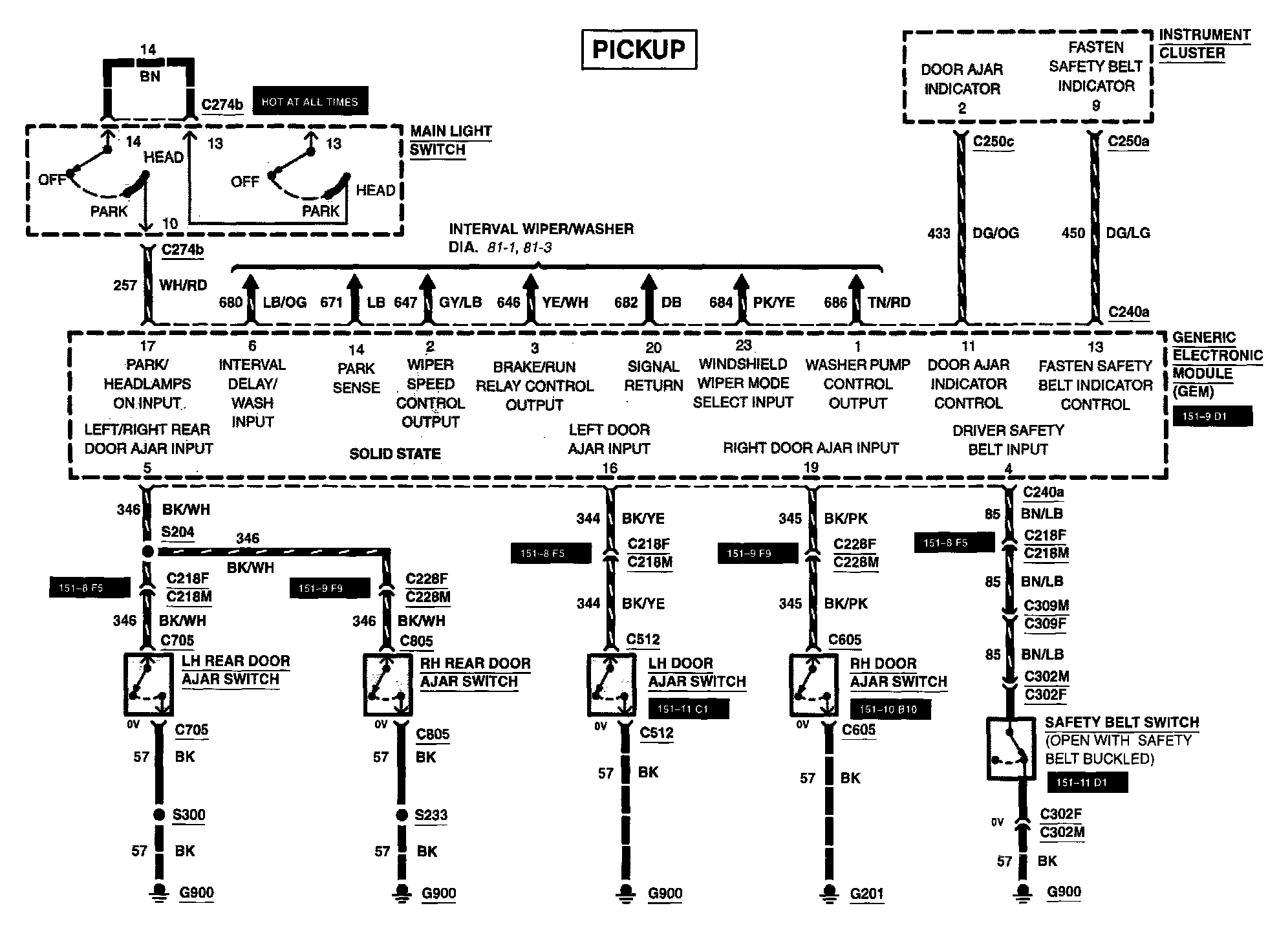

Generic Electronic Module (GEM)
Instrument Cluster
LH Door Ajar Switch
LH Rear Door Ajar Switch
Main Light Switch
RH Door Ajar Switch
RH Rear Door Ajar Switch
Safety Belt Switch



Diagram 59-3:







Battery Junction Box
Central Junction Box
Fuse 14
Fuse 105
Fuse 118



Diagram 59-4:

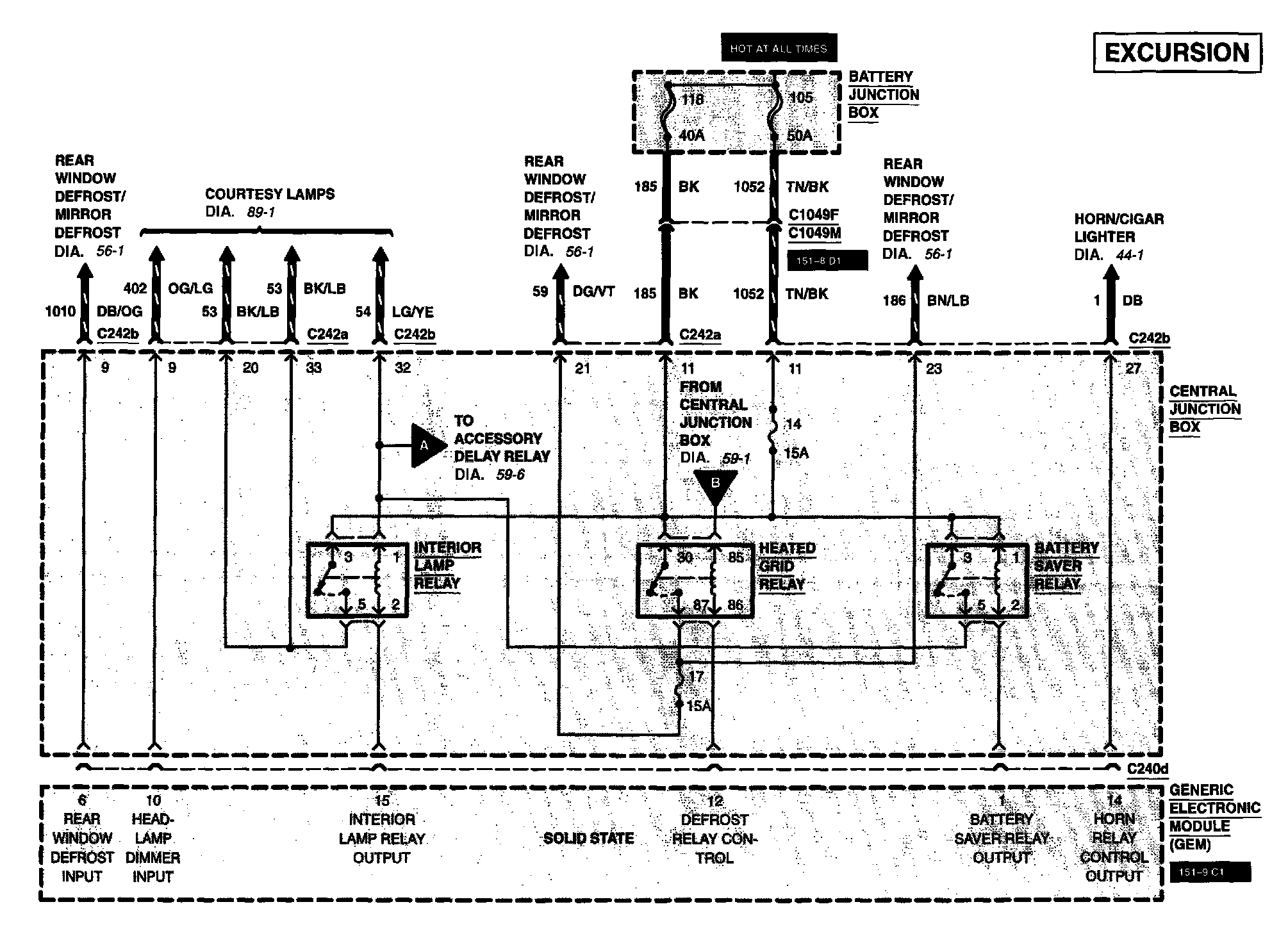

Battery Junction Box
Battery Saver Relay
Fuse 118
Fuse 105
Heated Grid Relay
Interior Lamp Relay



Diagram 59-6:

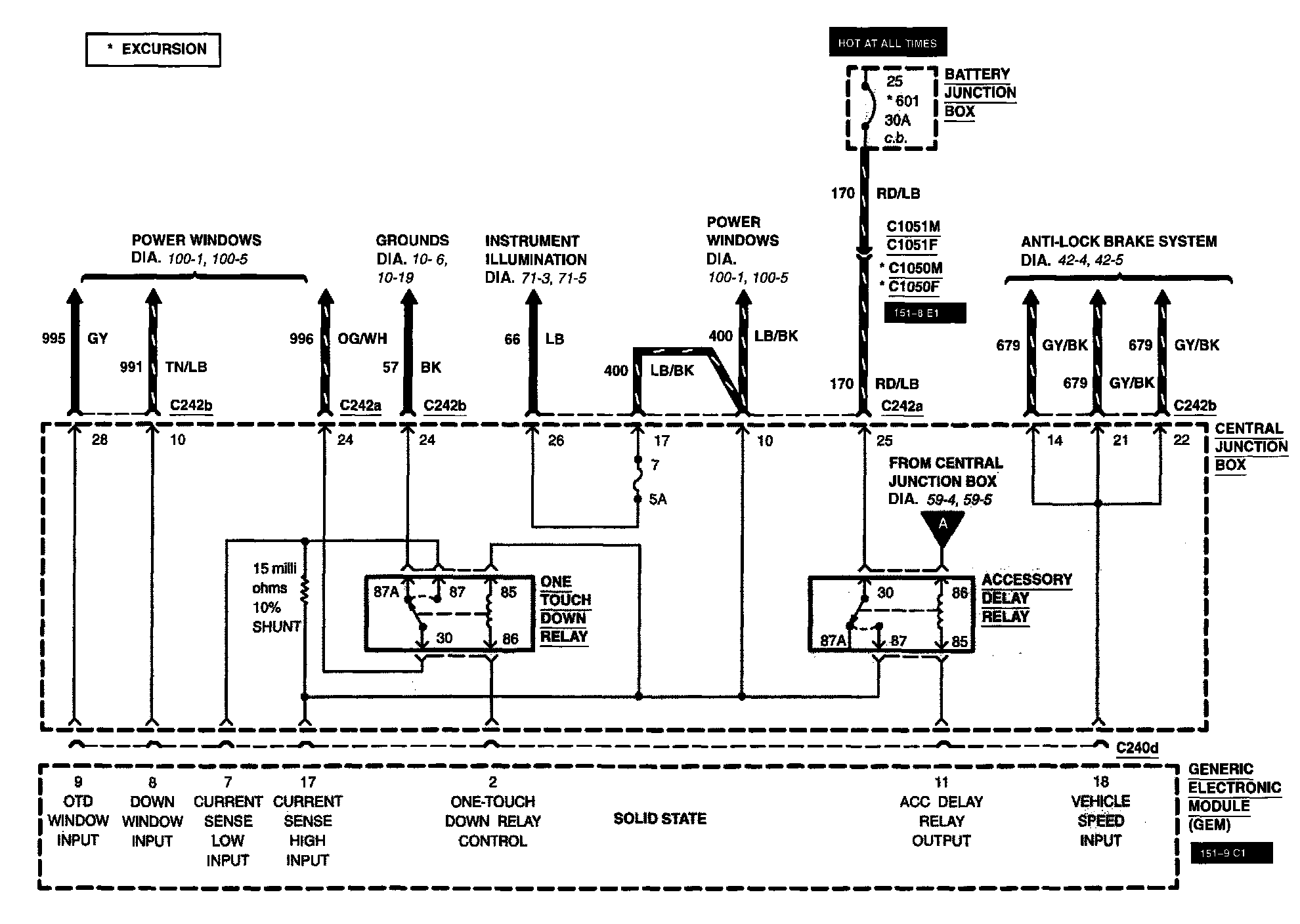

Battery Junction Box
Central Junction Box
Fuse 7
Fuse 25
Fuse 601



Diagram 59-7:







Generic Electronic Module



Diagram 59-8:

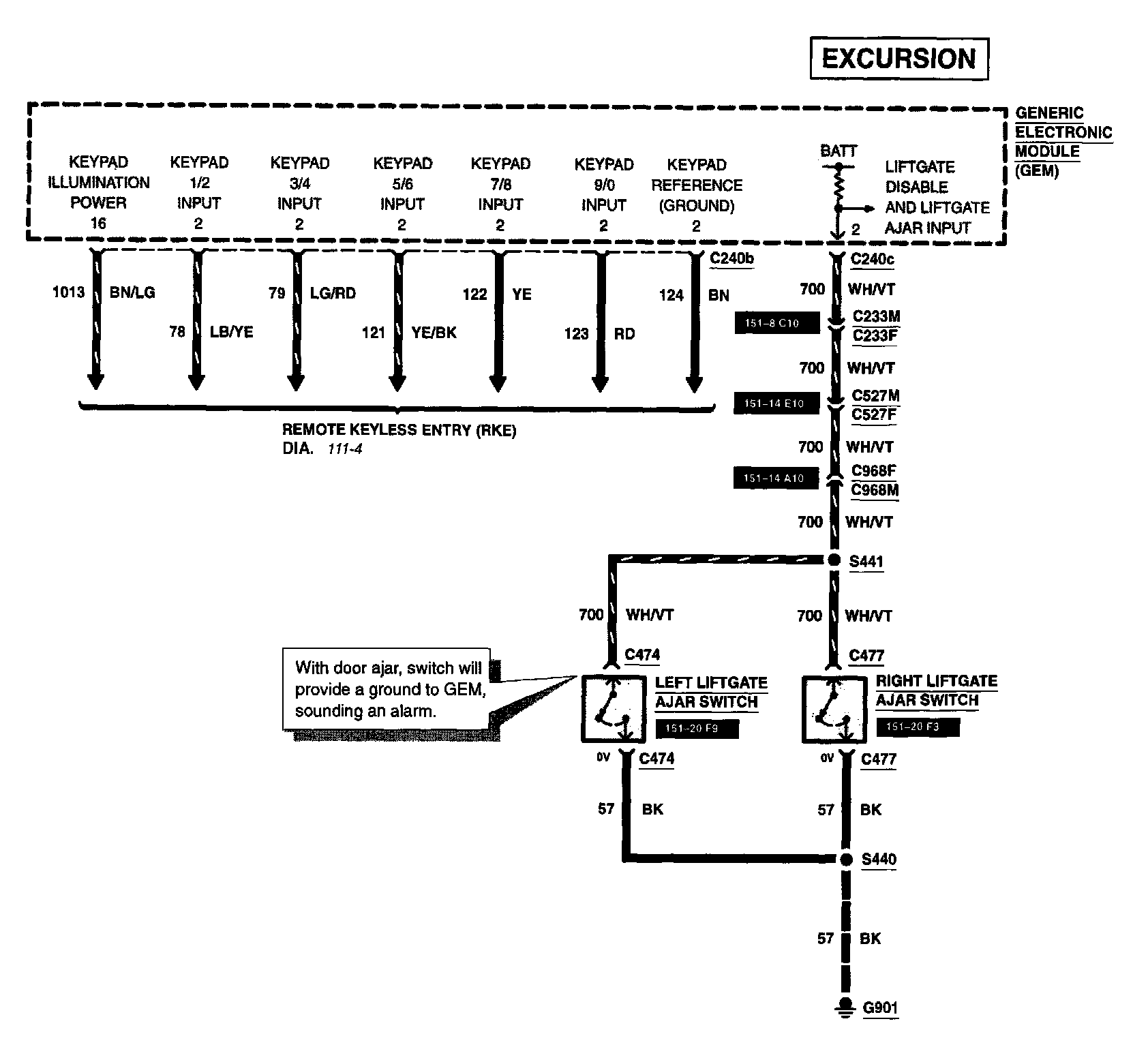

Generic Electronic Module (GEM)
Left Liftgate Ajar Switch
Right Liftgate Ajar Switch
