System Diagram

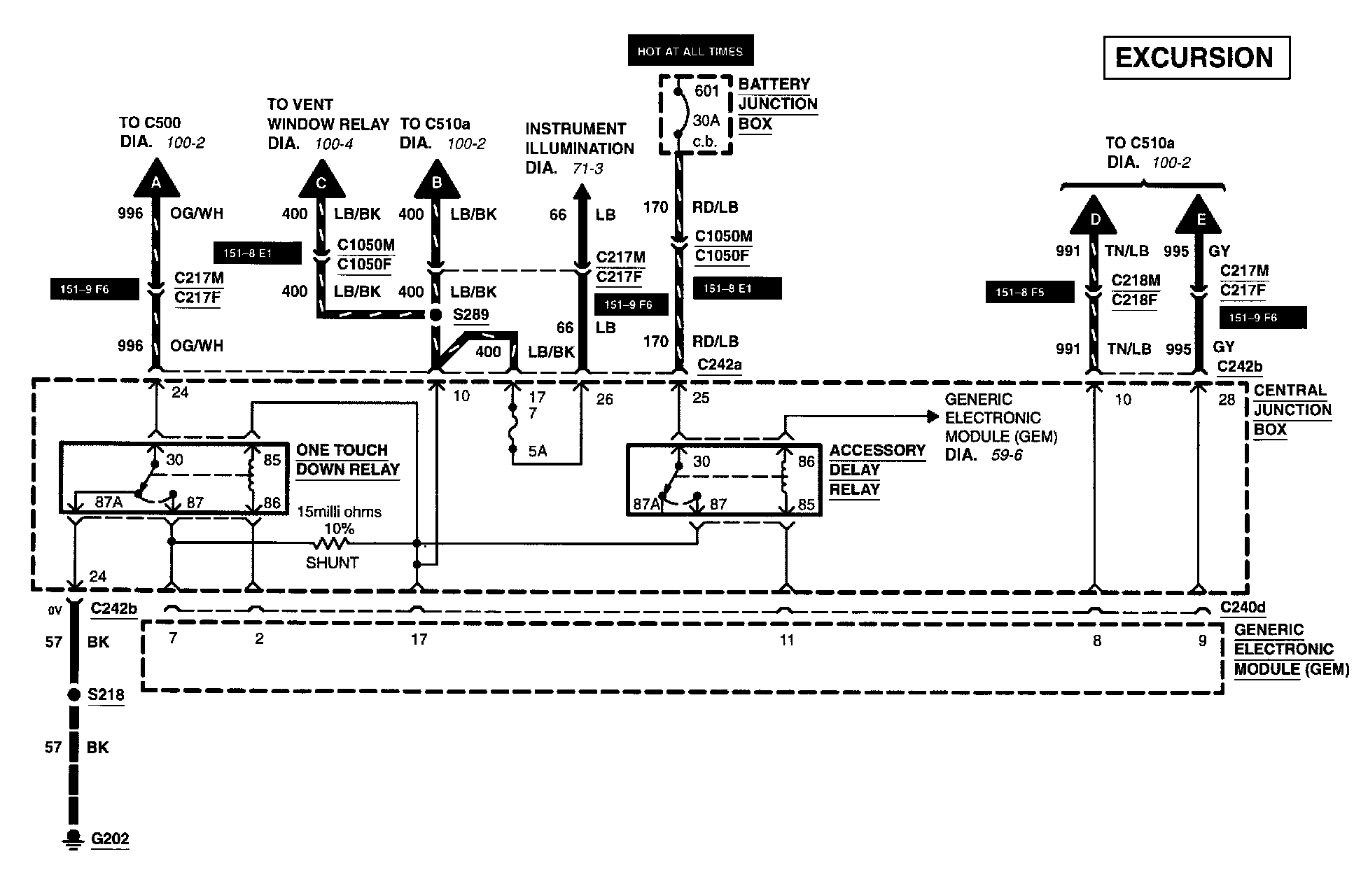

Diagram 100-1:
Battery Junction Box
Central Junction Box
Circuit Breaker 601
Fuse 7
Diagram 100-2:
Left Front Window Control Switch
Right Front Window Control Switch
Diagram 100-3:
Left Front Window Control Switch
Left Rear Window Control Switch
Right Rear Window Control Switch

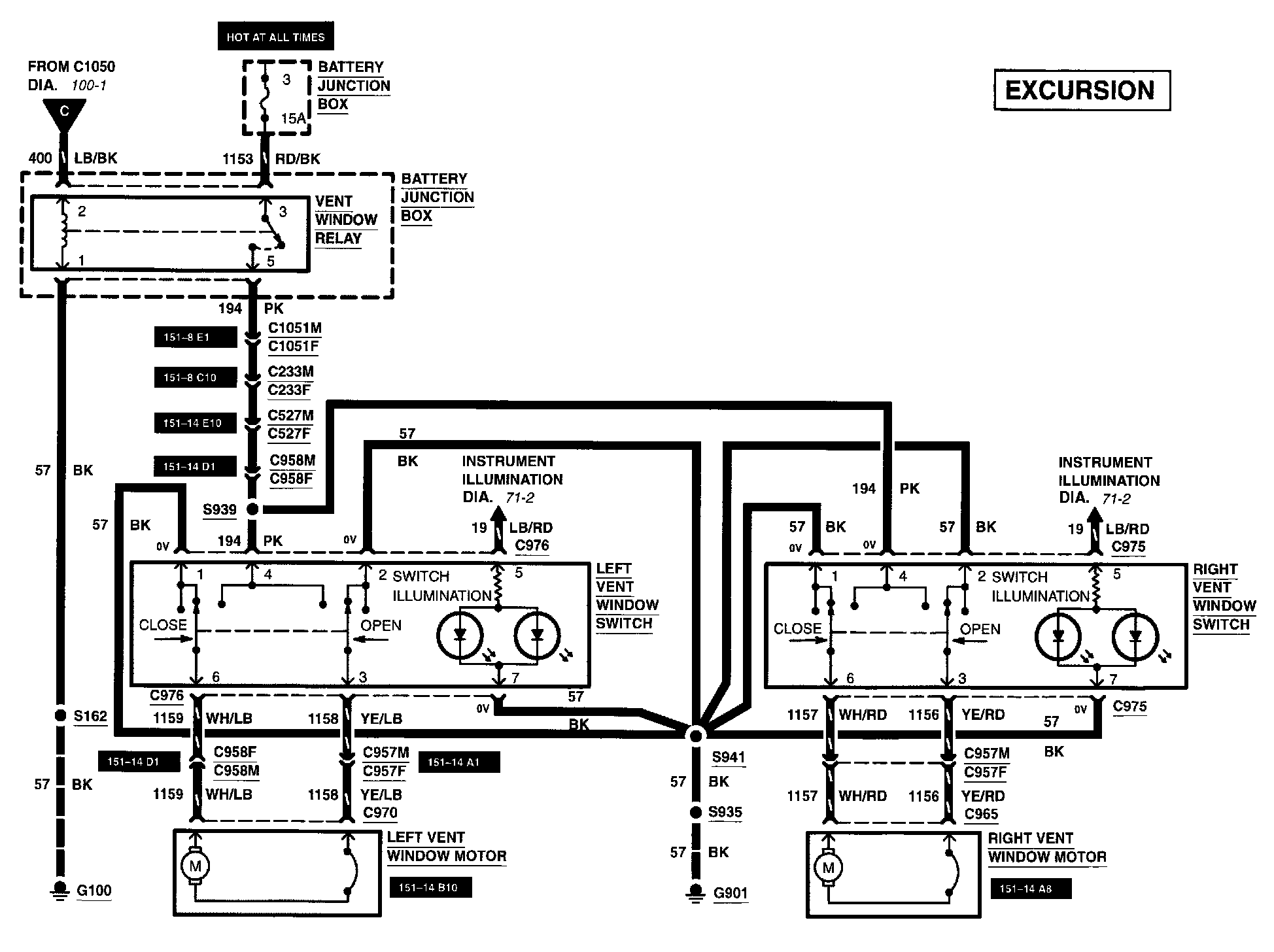

Diagram 100-4:
Battery Junction Box
Fuse 3
Left
Vent Window SwitchRight Vent Window Switch
