Main Control Valve Body - Solenoid Body Check

Disassembly

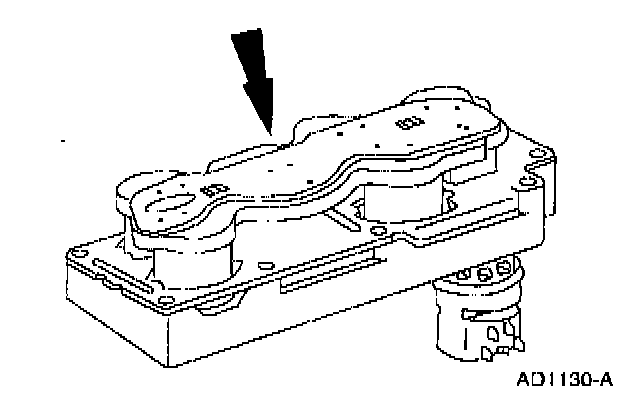

1. Clean and inspect the solenoid body.
- Check the connector pins for corrosion and possible bent condition.
- Inspect and test the shift solenoids: refer to Pinpoint Test A.
- Remove O-ring and discard.
- Install new O-ring and lubricate with petroleum jelly or equivalent.
