Front Output Shaft Speed Sensor

Removal
1. Remove the transfer case shift motor.

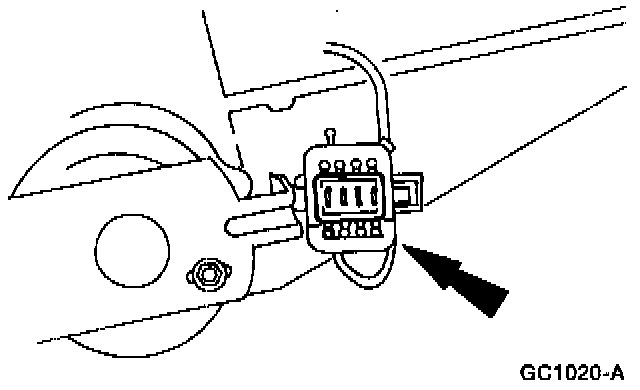

2. Remove the wire connector spacer and the front output shaft speed sensor wire pins from the electrical connector.
- Use the proper electrical connector pin remover.

3. Remove the front output shaft speed sensor.

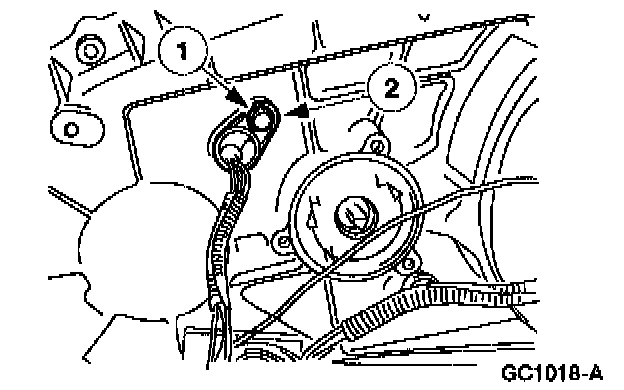

1 Remove the bolt.
2 Remove the front output shaft speed sensor.

Installation

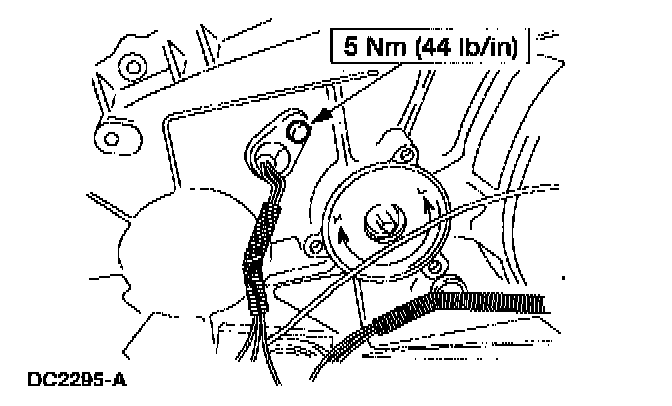

1. CAUTION: Make sure the sensor seats net against the boss.

To install, reverse the removal procedure.
