Cowl: Service and Repair

REMOVAL







1. Remove the windshield wiper pivot arms.
1 Remove the two covers.
2 Remove the two nuts.
3 Remove the windshield wiper pivot arms.
2. Raise and support the hood.







3. Remove the cowl grille seal.

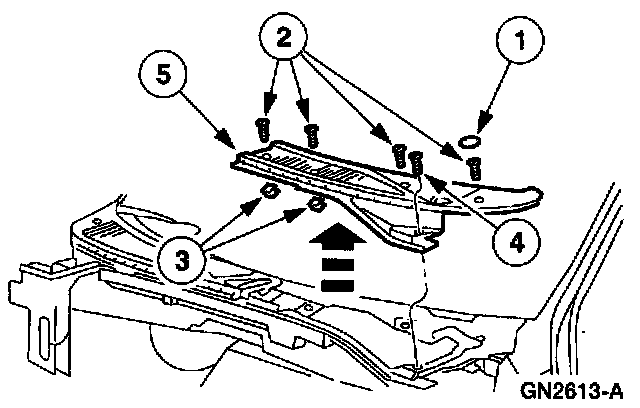

4. Remove the LH cowl grille.
1 Remove the screw cover.
2 Remove the screws.
3 Remove the clips.
4 Remove the pin-type retainer.
5 Remove the LH cowl grille.

NOTE: The two cowl grilles overlap at the center. The LH cowl grille must be removed first.

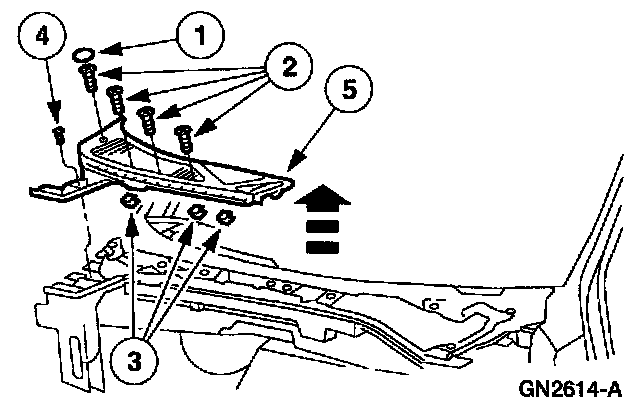

5. Remove the RH cowl grille.
1 Remove the screw cover.
2 Remove the screws.
3 Remove the clips.
4 Remove the pin-type retainer.
5 Remove the RH cowl grille.

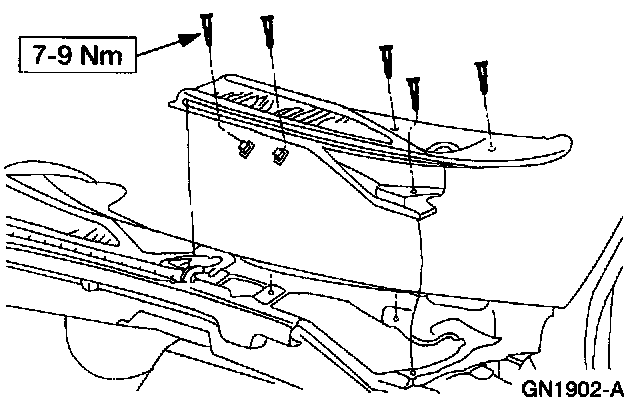

INSTALLATION

















1. To install, reverse the removal procedure.

NOTE: Adjust the windshield wiper arms.
