Bi Fuel System - Component Identification

Article No.
01-10-11

5/28/01

DRIVEABILITY - BI-FUEL COMPONENT
IDENTIFICATION CHART - BI-FUEL ENGINES ONLY

FORD:
1996-2000 CONTOUR
1994-2001 F-150, F-250 LD
1996-1999 E-250, E-350
1999-2001 SUPER DUTY F SERIES

ISSUE

This article is to serve as an aid to ensure correct ordering of major components by identifying component to vehicle application.

ACTION

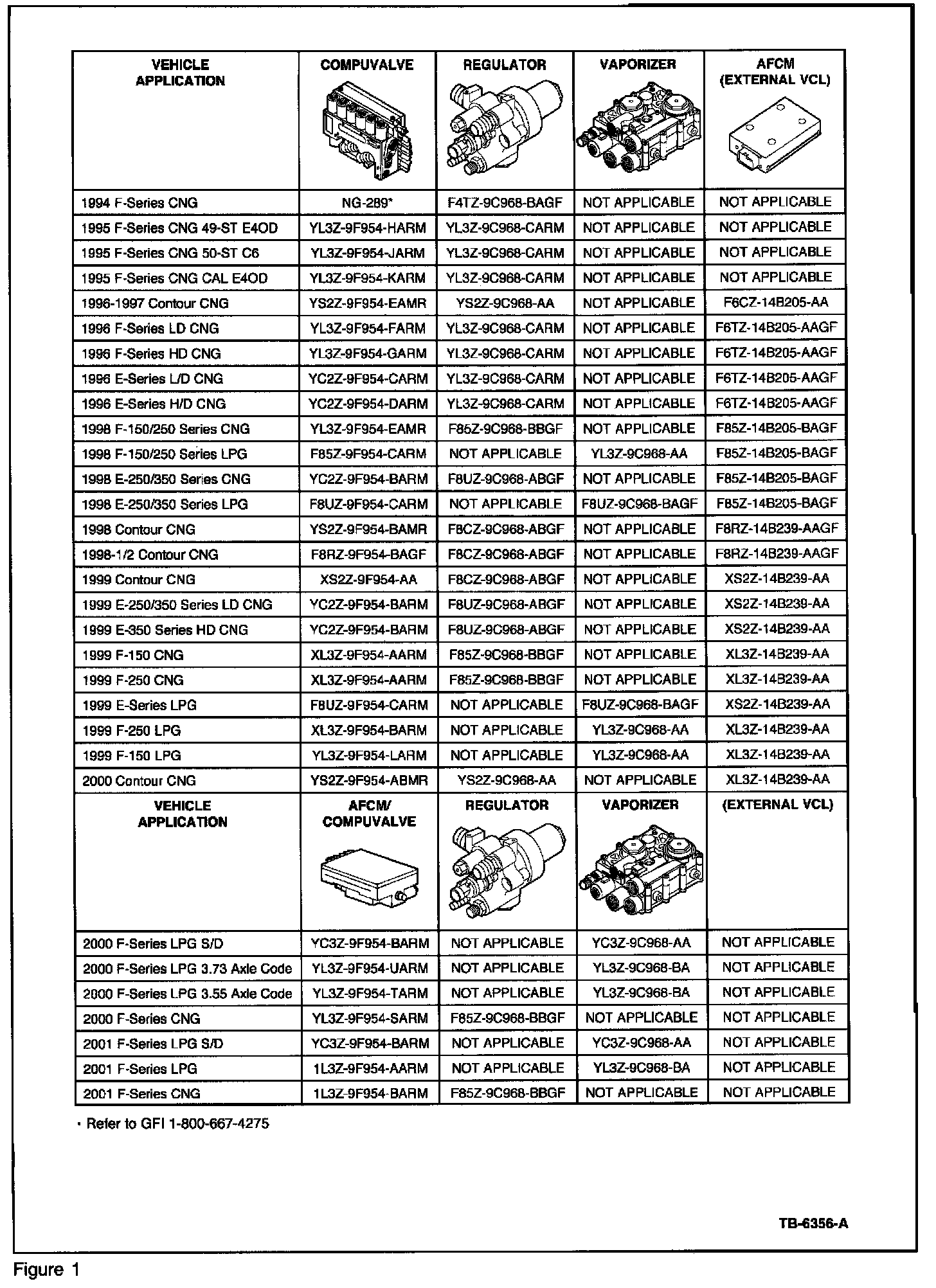

Refer to component chart (Figure 1) for bi-fuel major component identification and illustrations.

SERVICE INFORMATION

Refer to Figure 1 for bi-fuel component to vehicle application listings.

OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: IN FORMATION ONLY

OASIS CODES: 490000, 690000, 698298
