Front

1. NOTE: This operation should be carried out on a flat surface and in accordance with the manufacturers instructions for the particular wheel alignment equipment used.

Examine all suspension and steering components for signs of damage or wear.
2. Check and, if necessary, adjust the tire pressures to specification.
3. Make sure the vehicle is at curb weight and that the spare wheel, jack and vehicle tools are stowed in their designated positions. Additional items should be removed from the vehicle.
4. Bounce the vehicle to make sure that the suspension is in its normal resting position.
5. Check the toe setting using suitable wheel alignment equipment.

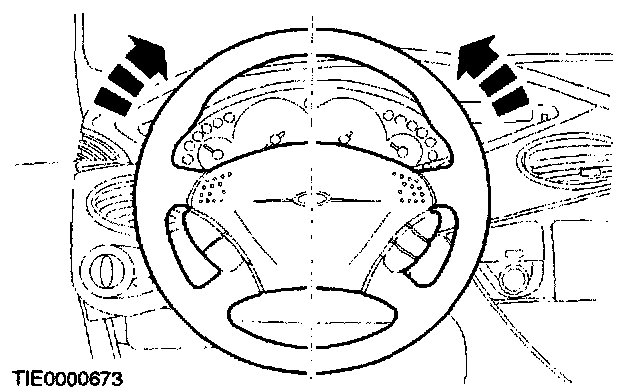

6. Center the steering wheel and lock in position by removing the key.

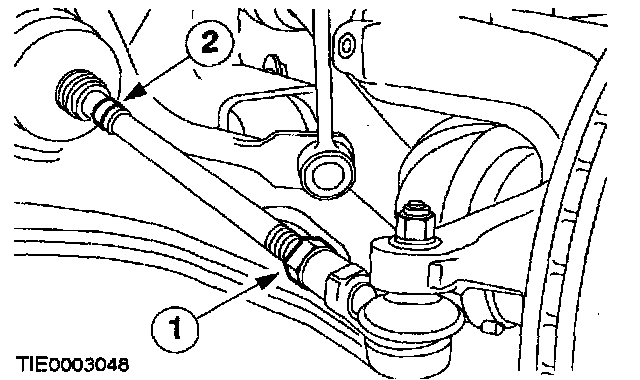

7. Loosen both tie-rod end locknuts.
1. Loosen the locknuts.
2. Remove the boot outer clamps.

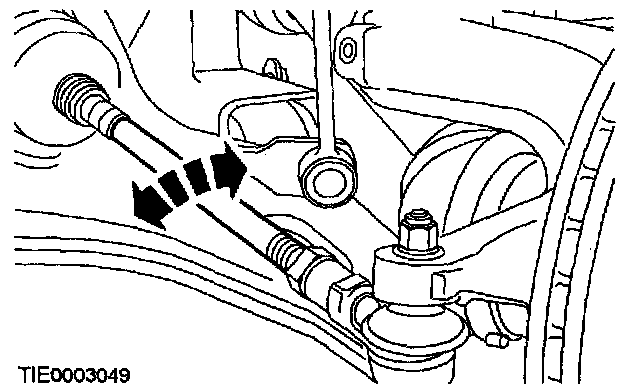

8. Rotate each tie-rod equally clockwise or counterclockwise to adjust the toe setting.

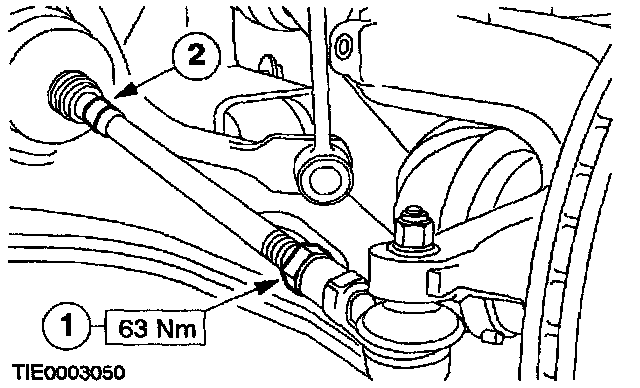

9. Tighten the tie-rod end locknuts and install the boot outer clamps.
1. Tighten the locknuts.
2. Install the boot outer clamps.
10. Check the toe setting.
