Cowl: Service and Repair
REMOVAL 1.

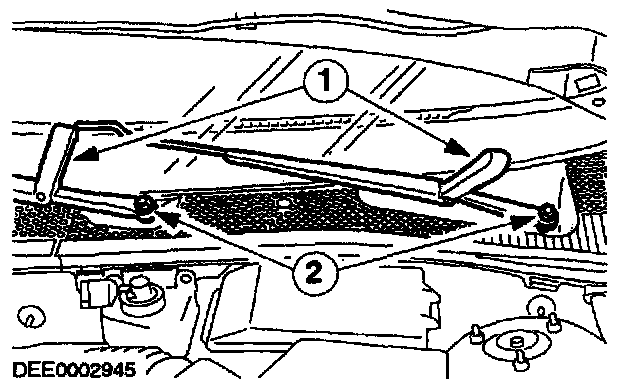

Detach the windshield wiper arms.
1
Remove the plastic covers.
2
Loosen the nuts.
^
Lift the wiper arms and release them from the taper by moving them to the side.
2.

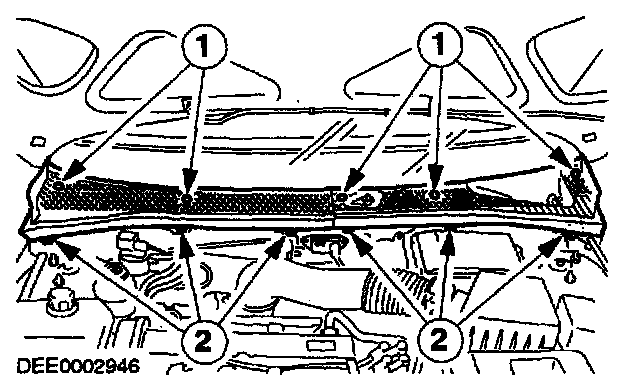

Remove the cowl top outer grille assembly (left-hand side first).
1
Remove the caps.
2
Remove the upper screws.

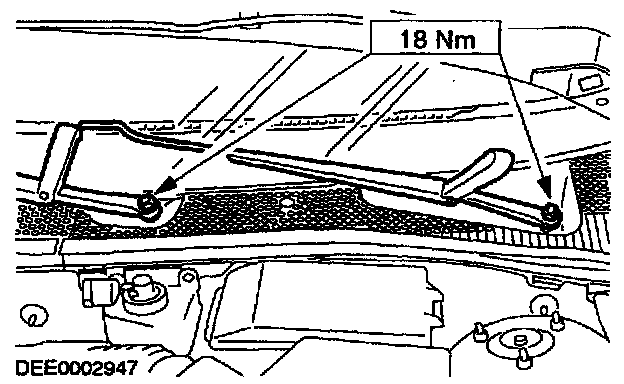

INSTALLATION 1.
To install, reverse the removal procedure.
