Central Junction Box (CJB)







ALLDATA Editor's Note: Ford identifies this one component by 2 different names. Users have reported success comparing these images to determine Application/ID or Location of Fuses and Relays with the Central Junction Box/Passenger Compartment Fuse Panel.

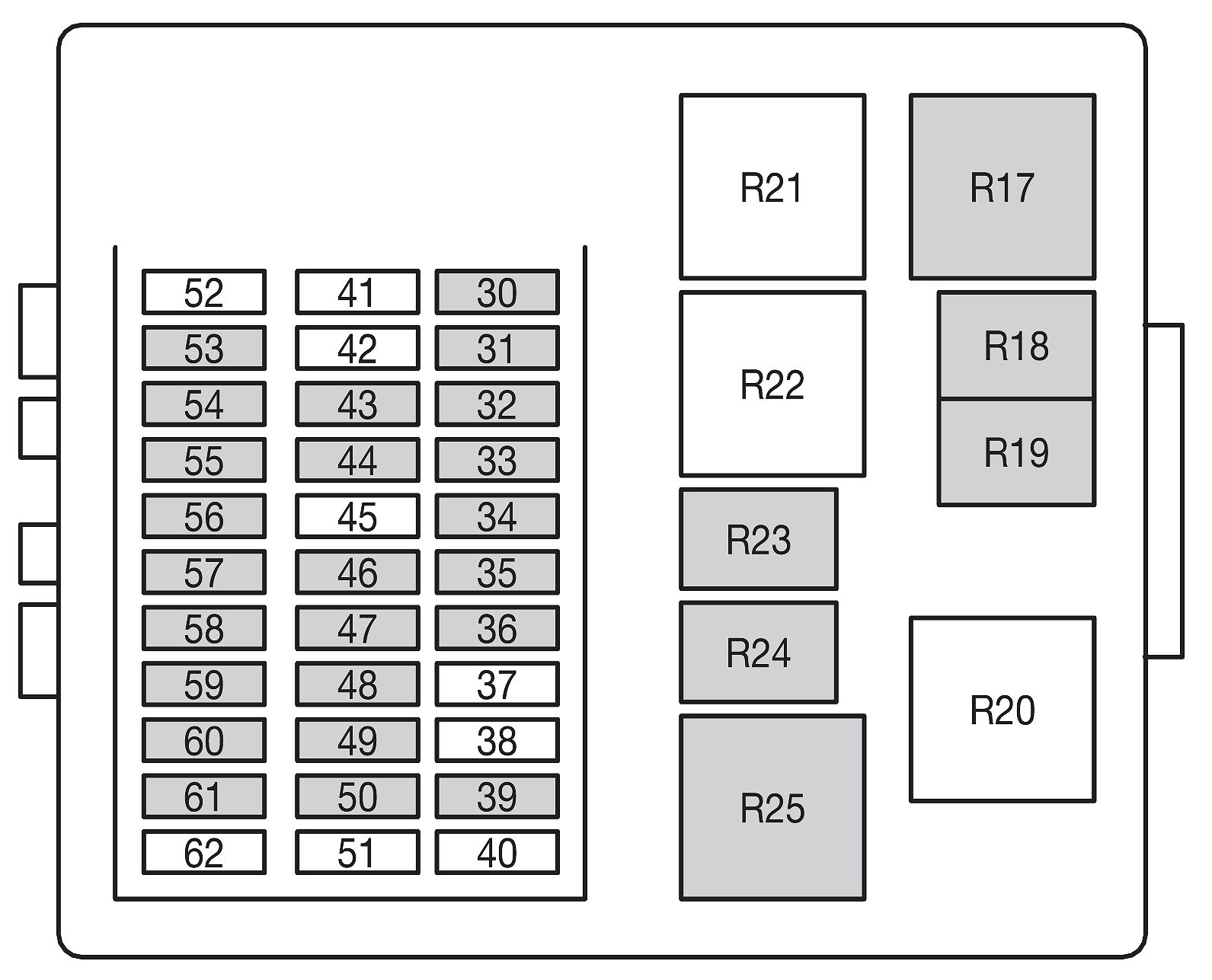

Central Junction Box (CJB), Top:

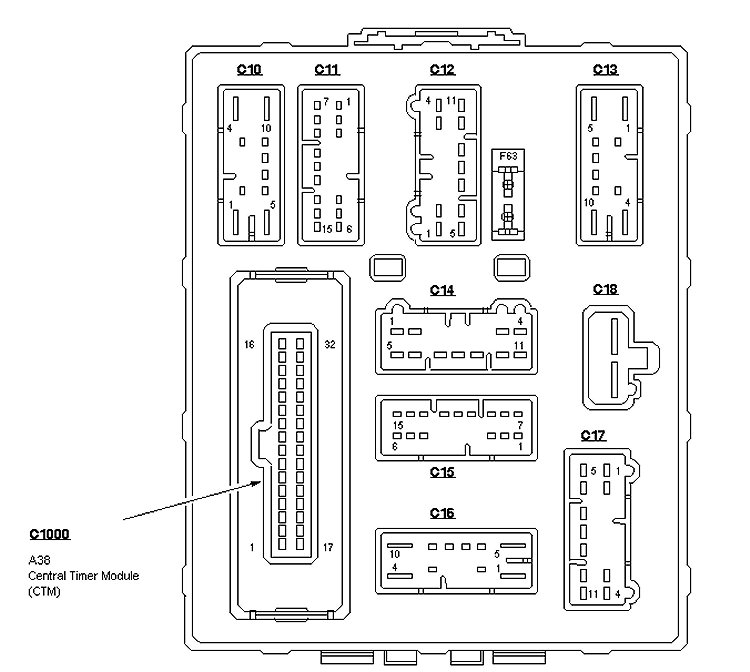

Central Junction Box (CJB), Rear:






Fuse F63 is located between C12 and C13
Back Side

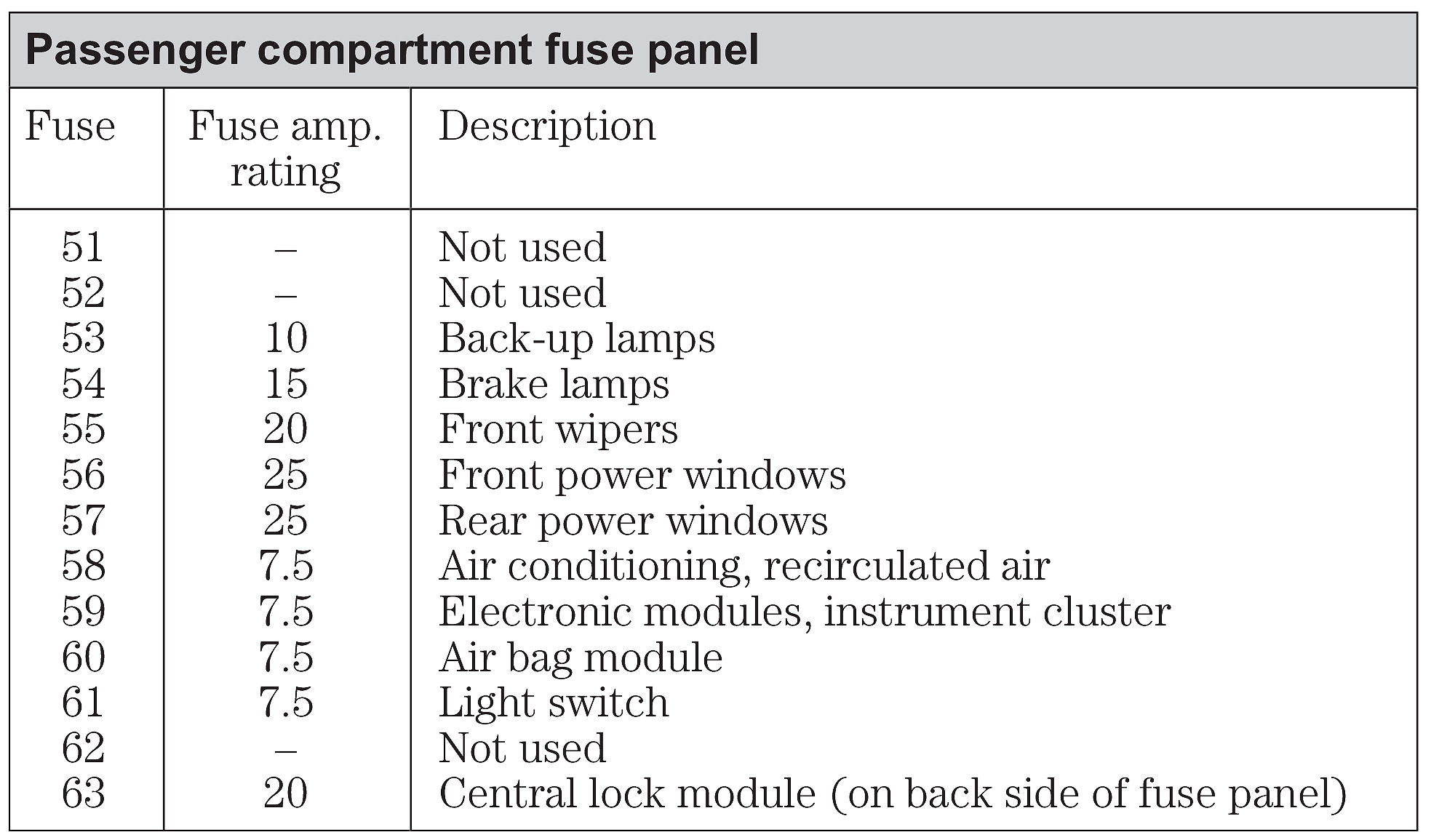

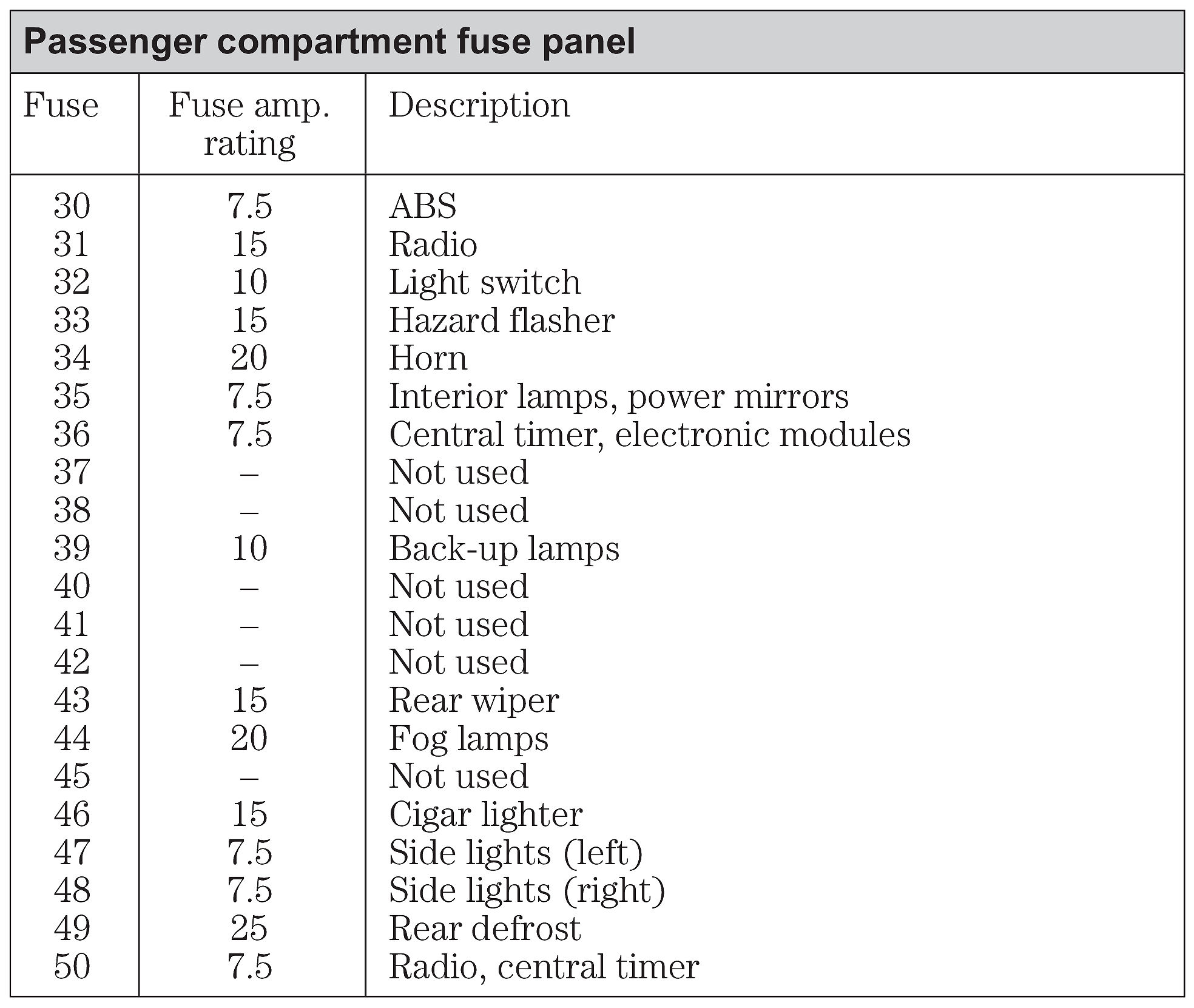

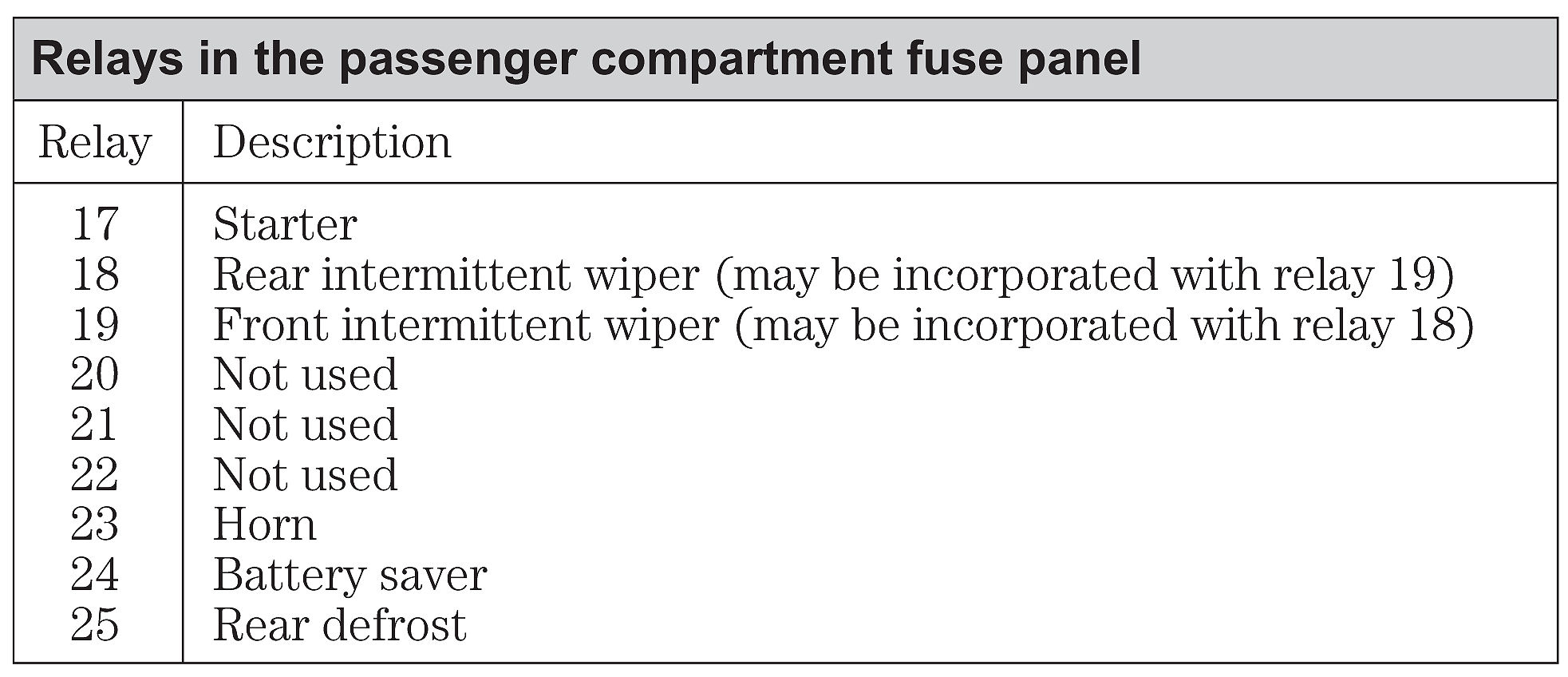

Passenger Compartment Fuse Panel:
