Heated Oxygen Sensor
REMOVAL 1.

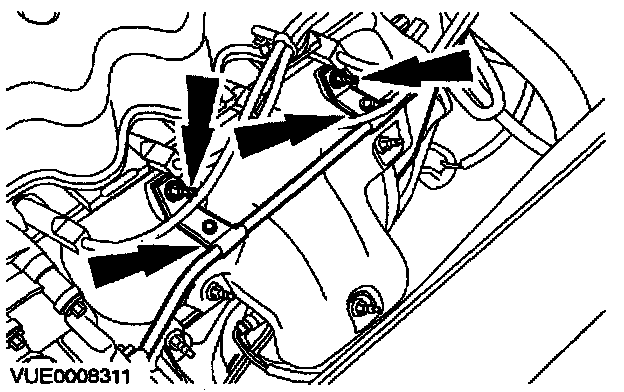

Remove the power steering pipe support brackets.
2.
Remove the exhaust manifold heatshield.
3.

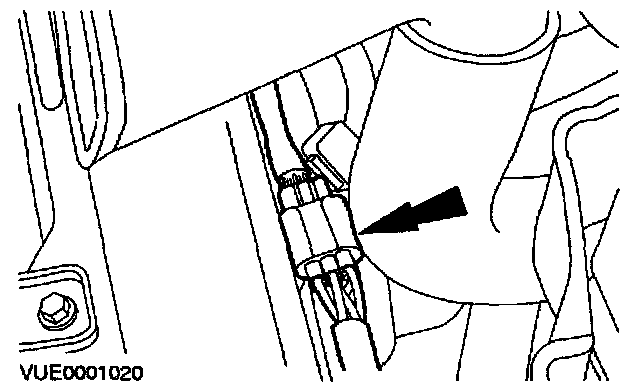

Disconnect the Heated Oxygen Sensor (
HO2S) electrical connector.
4.
Remove the HO2S.
INSTALLATION 1.
To install, reverse the removal procedure.
