Battery Tray
REMOVAL 1.
Remove the battery. For additional information, refer to Battery.
2.
Remove the battery tray.
1.
Remove the lower bolts.
2.
Remove the upper bolt.
^
Remove the battery tray.
NOTE: Remove the bolts in the sequence shown to avoid damaging the battery tray.
INSTALLATION 1.
To install, reverse the removal procedure.

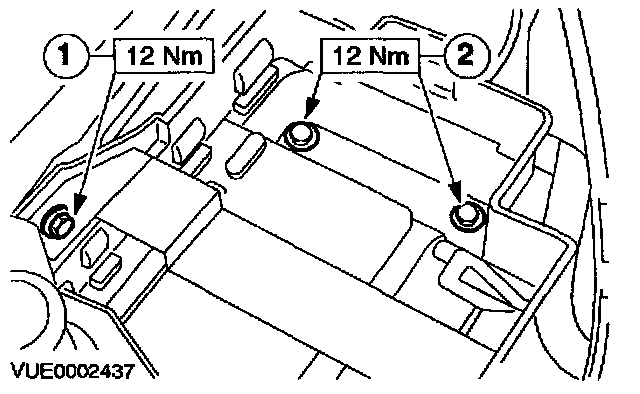

NOTE: Loosely install all bolts and tighten in the correct sequence.
