Starter Motor: Service and Repair
REMOVAL 1.
Remove the air cleaner outlet tube.
2.

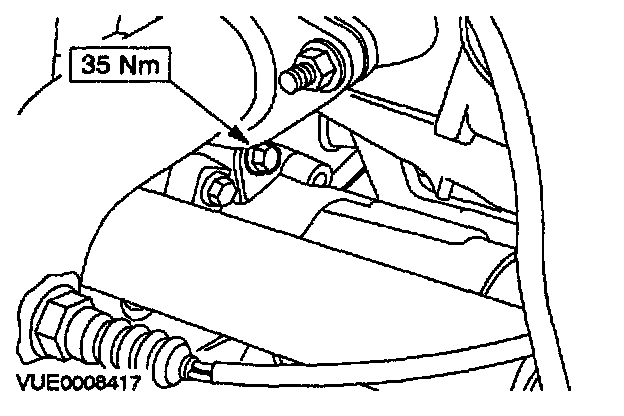

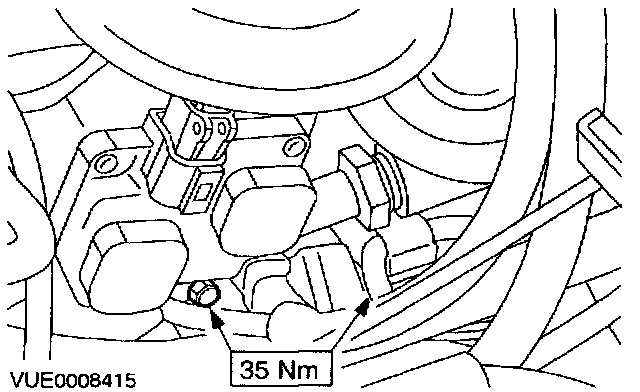

Remove the
starter motor bolts.
3.
Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.
4.

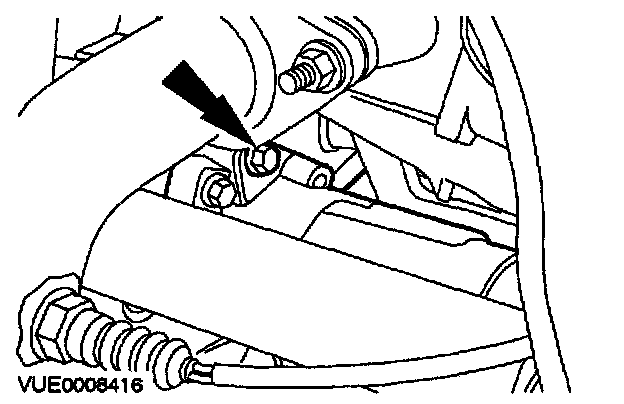

Disconnect the
starter motor electrical connector.
5.
Detach the
starter motor.
6.

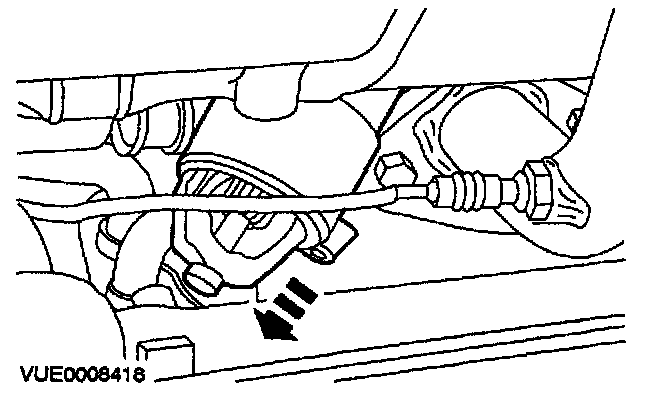

Remove the
starter motor.
INSTALLATION 1.
To install, reverse the removal procedure.
