Main Control Valve Body - Disassembly









Disassembly





1. Remove the solenoid body bolts and the solenoid body.





2. Remove and discard the solenoid body gaskets.





3. Remove and discard the seals.

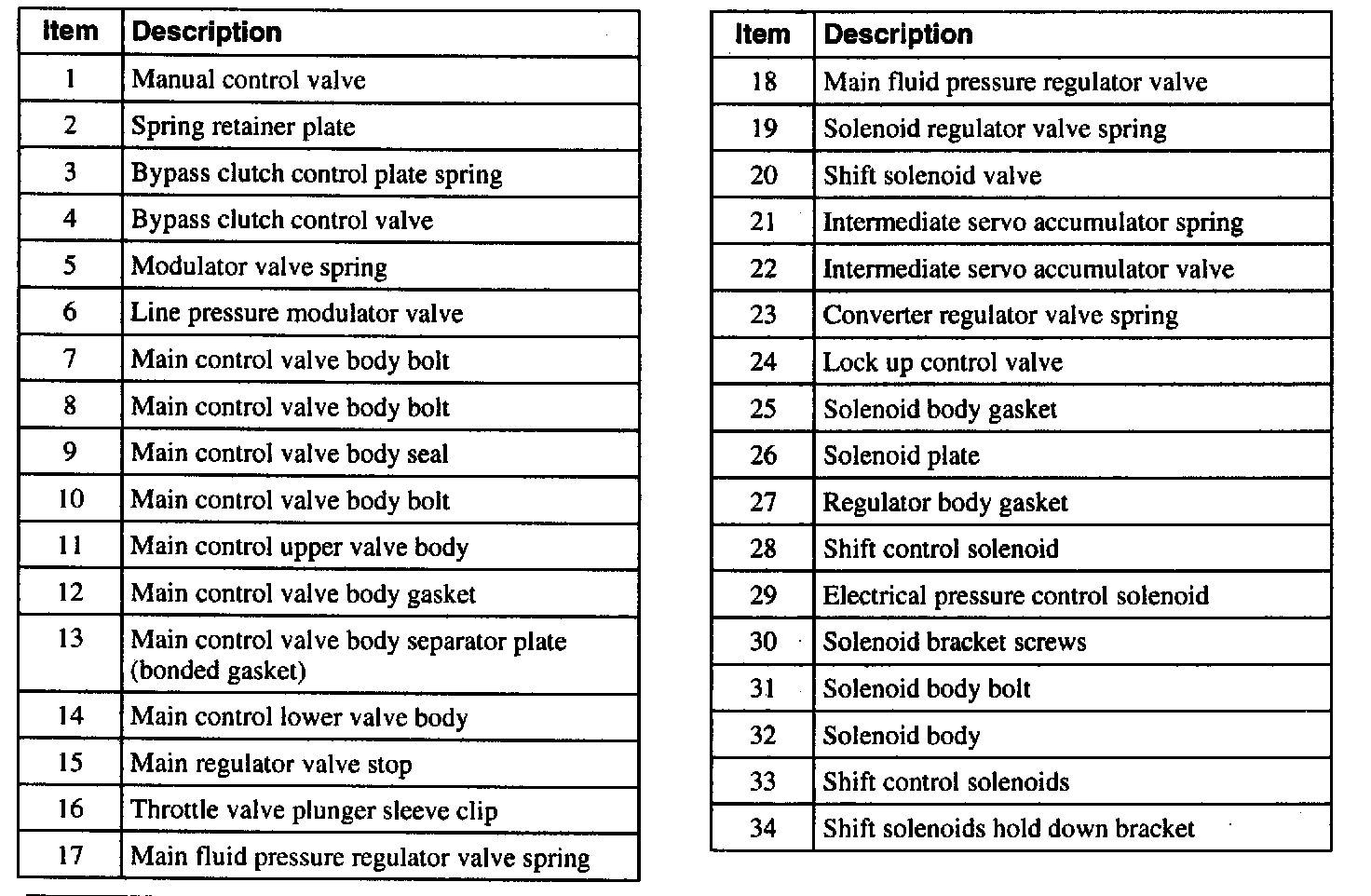

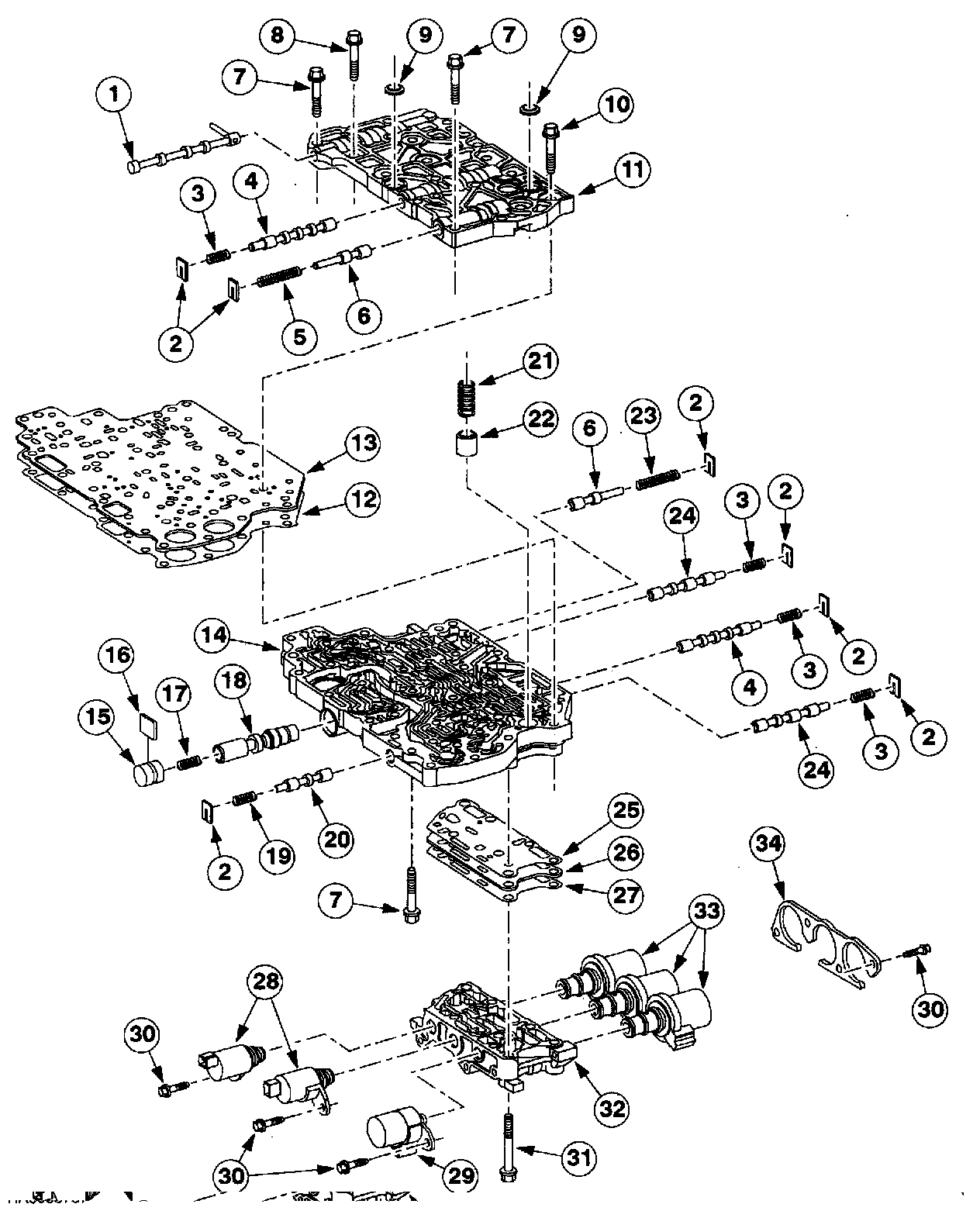

4. Disassemble the main control valve body.


Assembly





1. Inspect the main control valve body and install a new separator plate and gasket.





2. Assemble the upper and lower main control valve bodies and loosely install the bolts.





3. Assemble the solenoid body and install the bolts.





4. Install the remaining bolts.
