Transaxle Case

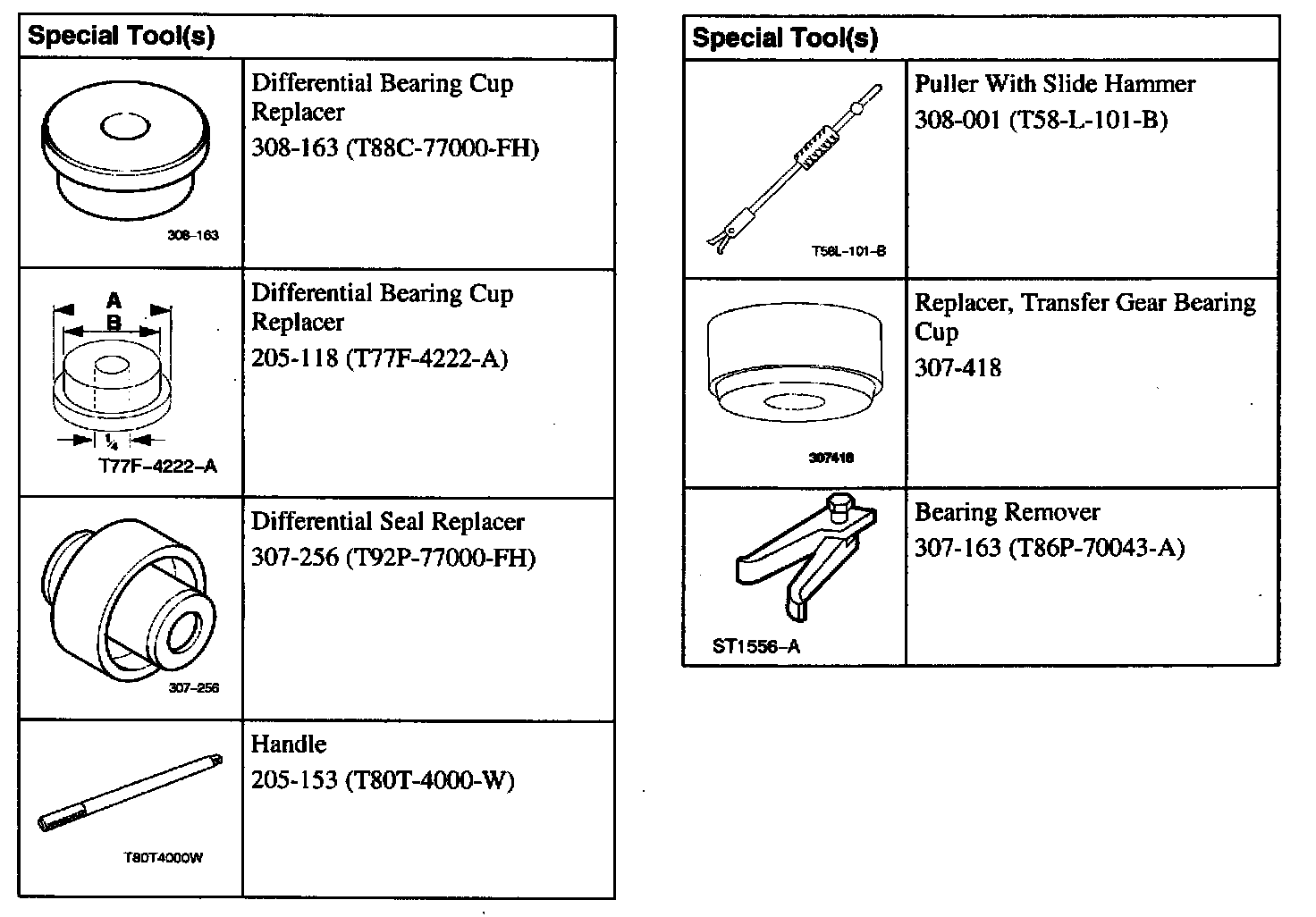

Special Tools:

Disassembly

1. NOTE: Left-hand side shown, right-hand side similar.





Remove the halfshaft seals.

2. NOTE: Left-hand side shown, right-hand side similar.





Using the special tools, remove the differential case bearing cups.





3. Using the special tools, remove the final drive input gear bearing cup.

4. NOTE: Left-hand side shown, right-hand side similar.





Using the special tool, remove the transfer shaft gear bearing cups.





5. Remove the funnel.
6. Rotate the transaxle 180 degrees.





7. Using the special tools, remove the final drive input gear bearing cup.

Assembly

1. NOTE: The converter housing side bearing cups for the transfer shaft bearing arid differential case bearing will be installed during the assembly of the transaxle.





Using the special tools, install the final drive input gear bearing cup.
2. Rotate the transaxle 180 degrees.





3. Install the funnel.





4. Using the special tools, install the left-hand side transfer shaft gear bearing cup.

5. NOTE: Left-hand side shown, right-hand side similar.





Using the special tools, install the final drive input gear bearing cup.





6. Using the special tools, install the left-hand side differential case bearing cup.

7. NOTE: Left-hand side shown, right-hand side similar.





Using the special tools, install the halfshaft seals.
