Seat Latch: Service and Repair

REMOVAL

NOTE: The power seat backrest adjuster assembly must be installed as a new unit. Repair of the power seat backrest adjuster assembly components is not acceptable and should not be attempted.

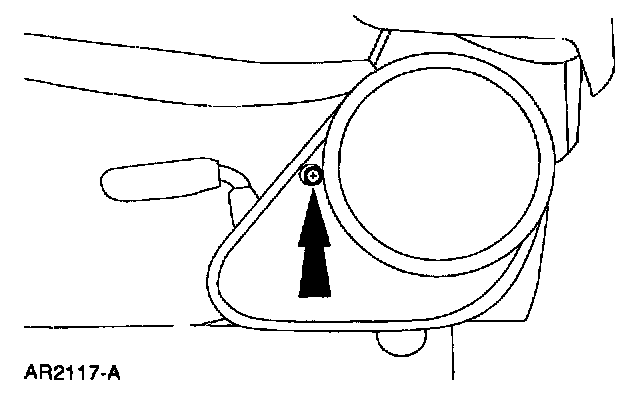

1. Remove the two screws and the seat backrest latch cover.







2. Remove the seat backrest latch handle knob.







3. Release the J-retainer.

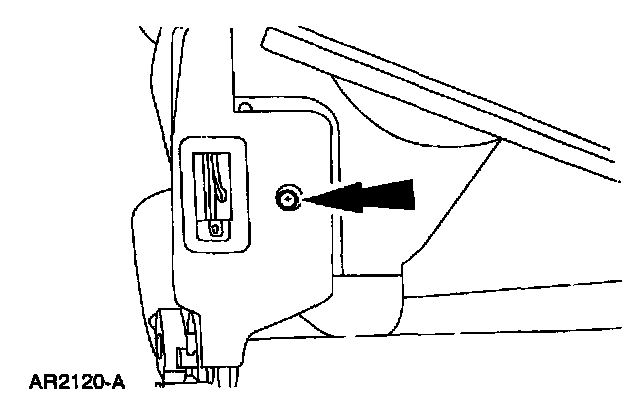

4. Remove the screw.







5. Remove the front seat backrest latch upper cover.

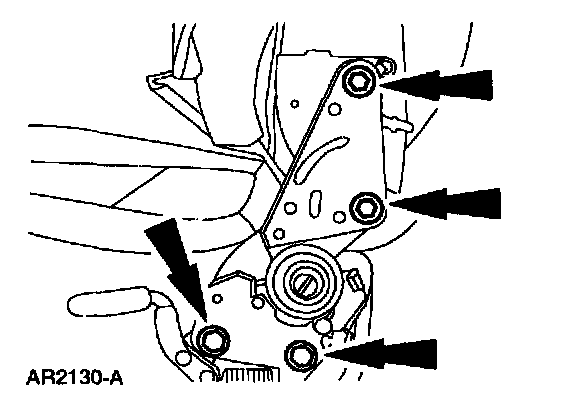

6. Remove the bolts and the seat backrest latch.

INSTALLATION

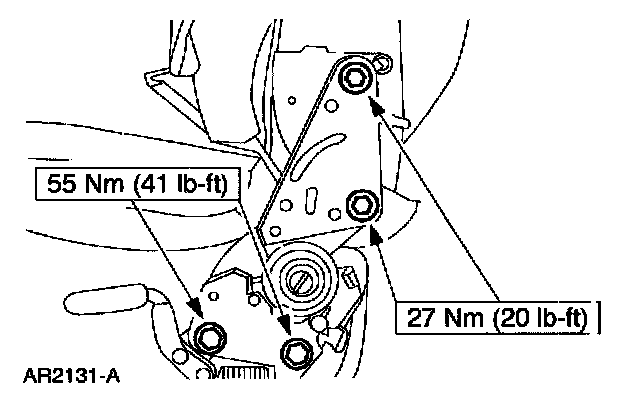

1. To install, reverse the removal procedure.
