Front Seat Backrest
REMOVAL 1.
Remove the seat. For additional information, refer to Front Power Seat.
2.
Remove the front seat backrest latch. For additional information, refer to Front Seat Backrest Latch.
3.

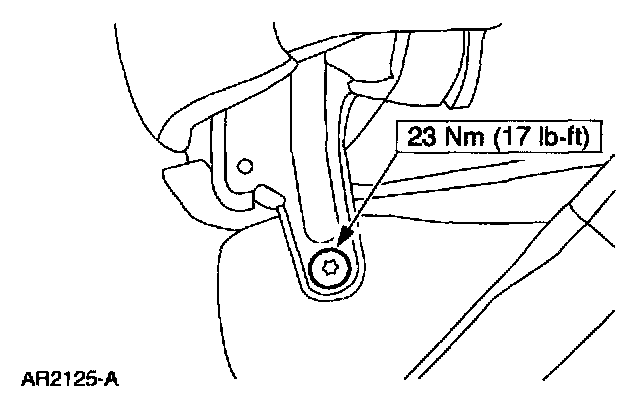

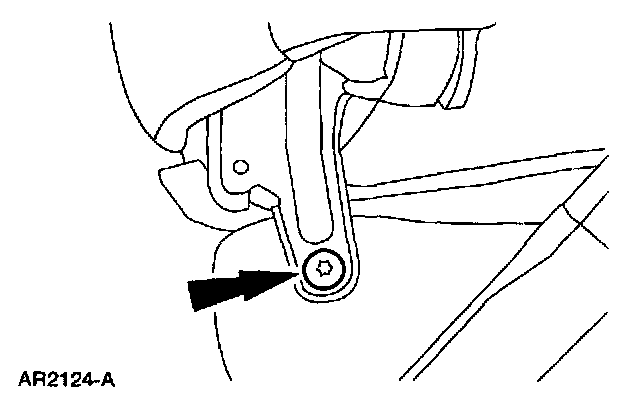

Remove the pivot bolt and seat backrest.
^
If equipped, disconnect the power lumbar support air hose.
INSTALLATION 1.
To install, reverse the removal procedure.
