Antilock Brakes / Traction Control Systems

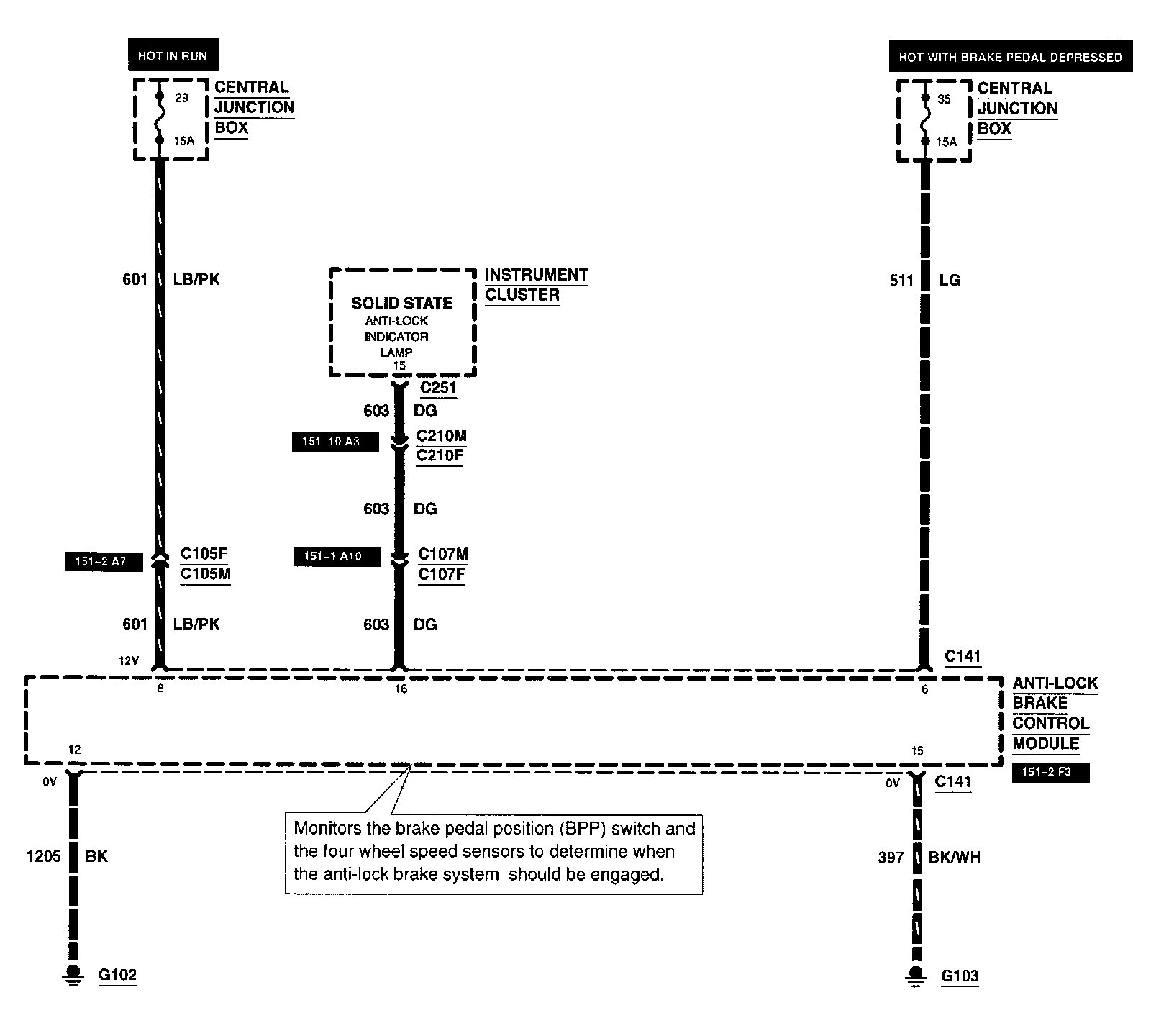

Diagram 42-1:







Anti-Lock Brake Control Module
Anti-Lock Brake Indicator Lamp
Central Junction Box
Fuse 29
Fuse 35
Instrument Cluster

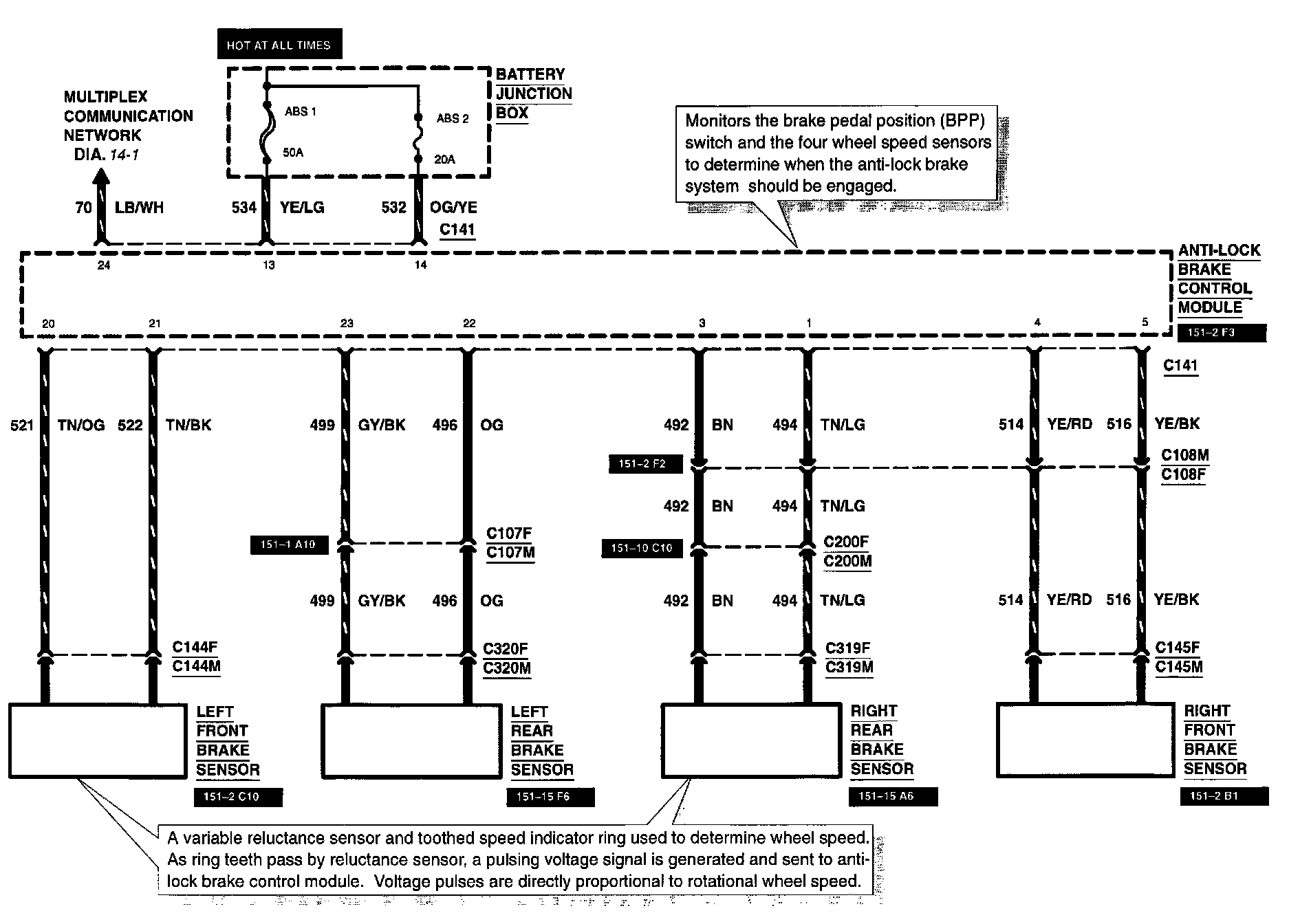

Diagram 42-2:







Anti-Lock Brake Control Module
Battery Junction Box
Fuse ABS 1
Fuse ABS 2
Left Front Brake Sensor
Left Rear Brake Sensor
Right Front Brake Sensor
Right Rear Brake Sensor



Diagram 42-3:







Anti-Lock Brake Control Module
Central Junction Box
Fuse 5
Fuse 37
Instrument Cluster
Traction Control Switch
