Wiper and Washer Systems: Adjustments

1. Cycle and park the windshield wipers.

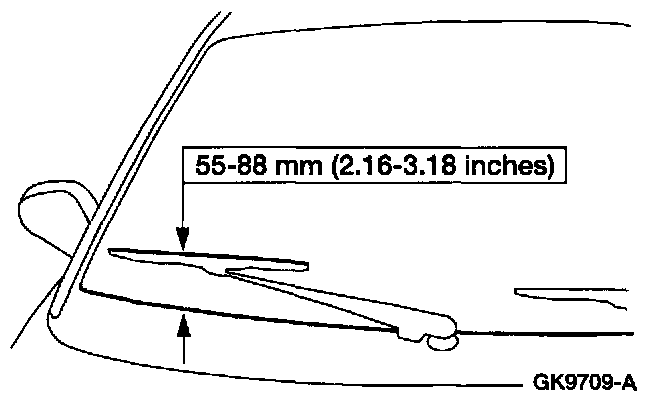

2. Verify that the distance between the center of the RH windshield wiper blade and the top edge of the cowl top vent panel is within specification.

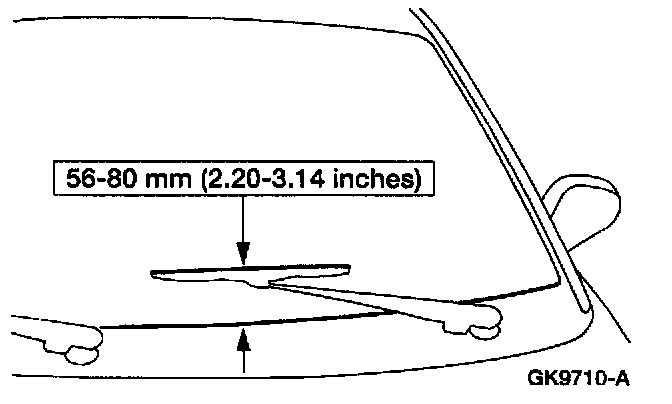

3. Verify that the distance between the center of the LH windshield wiper blade and the top edge of the cowl top vent panel is within specification.







4. If the distance is not within specification, remove the windshield wiper pivot arms and reposition to specification.
Remove the pivot arm.
1 Pull up on the pivot arm.
2 Pull out on the retainer tab and remove the pivot arm.
