Compressor Fitting HVAC: Service and Repair

REMOVAL
1. Remove the A/C compressor; refer to Compressor.







2. Disconnect the A/C manifold and tube from the suction accumulator/drier; refer to the Spring Lock Coupling Disconnect and Connect general procedure. Spring Lock Coupling Connect and Disconnect Procedure

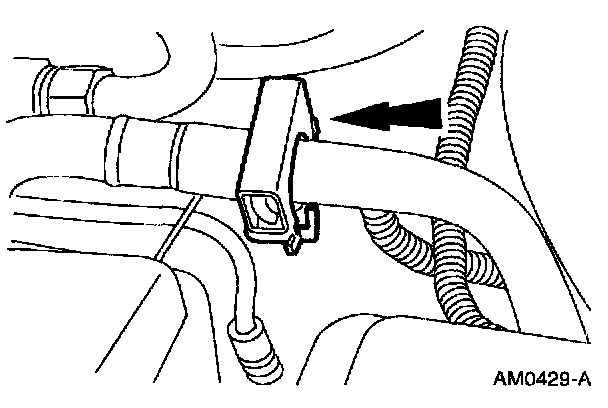

3. Disconnect the A/C manifold and tube from the A/C condenser core.

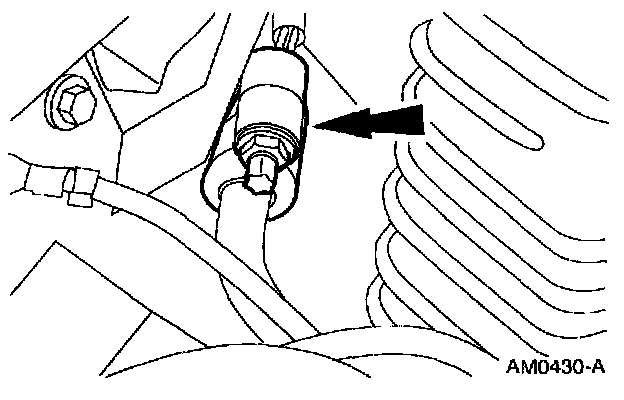

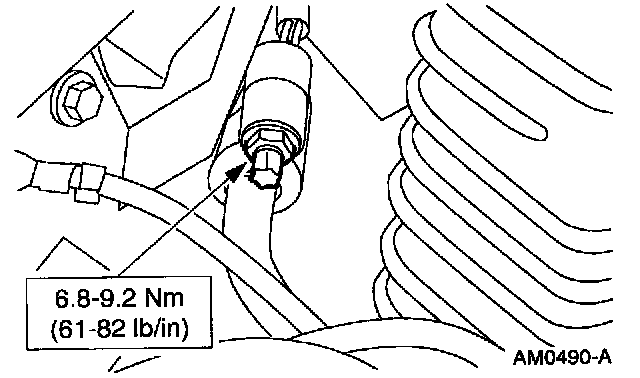

4. Disconnect the A/C pressure cut-off switch electrical connector.







5. Disconnect the fuel line spring lock coupling; refer to Fuel Delivery and Air Induction.

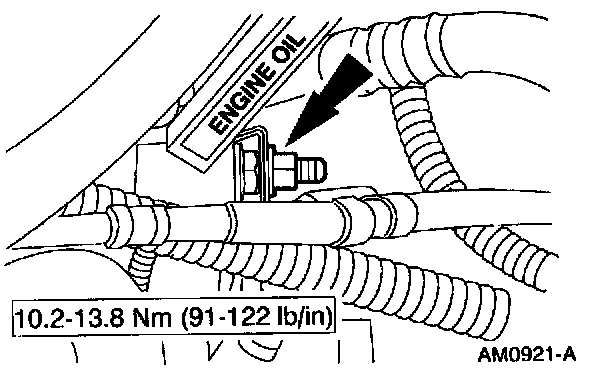

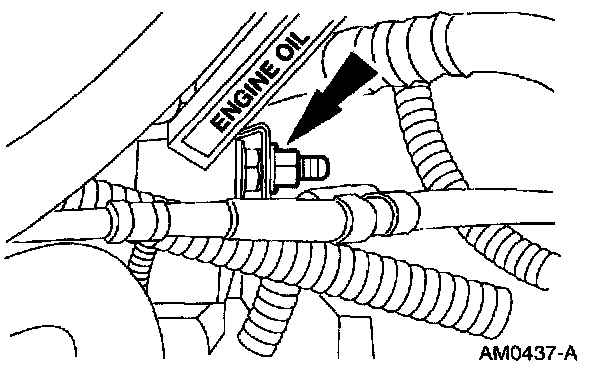

6. Remove the nut and reposition the bracket.

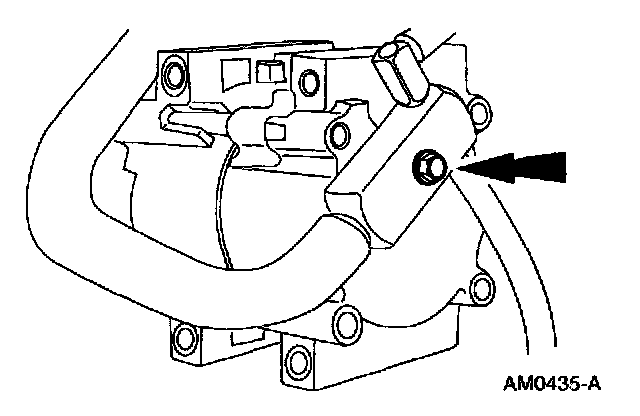

7. Remove the manifold retaining bolt and remove the A/C manifold and tube.

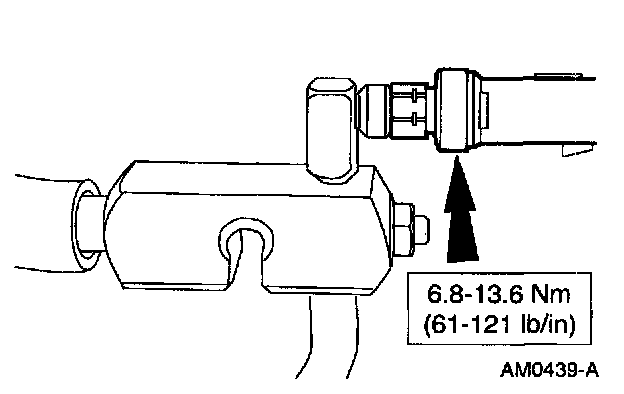

8. Remove the A/C pressure cut-off switch from the A/C manifold and tube.

INSTALLATION






















1. Follow the removal procedure in reverse order.
^ Lubricate the O-ring seal with Motorcraft YN-12c refrigerant oil or equivalent meeting Ford specification WSH-M1C231-B.

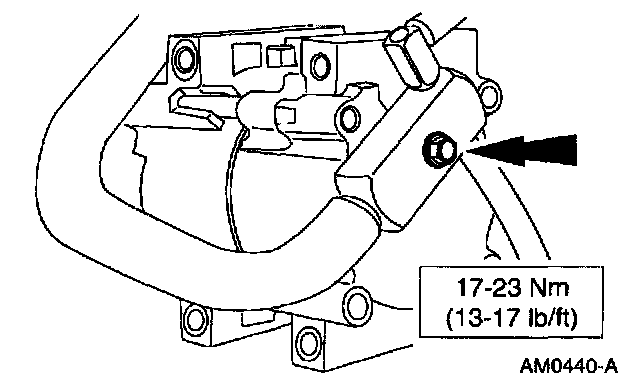

^ Apply Pipe Sealant With Teflon(R) D8AZ-19554-A or equivalent meeting Ford specifications WSK-M2G350-A2 and ESP-M18P7-A to the threads of the A/C manifold retaining bolt.
