Coolant Line/Hose: Service and Repair
Removal Note: The bypass tube and the lower radiator hose are a molded; one-piece assembly.
1.
Drain the coolant from the radiator.
2.

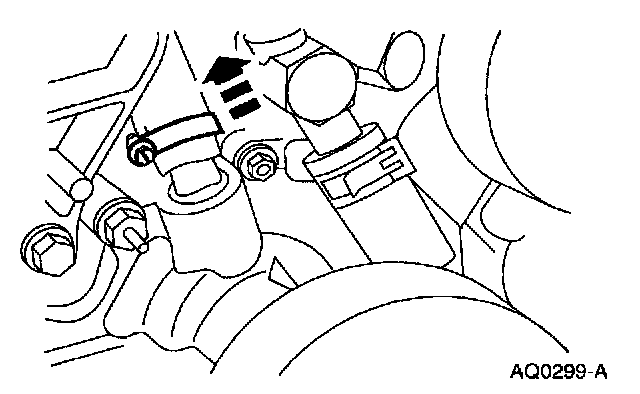

Remove the bypass hose from the water pump.
3.
Remove the lower radiator hose.
Installation 1.
To install, reverse the removal procedure.
