Passive Anti-Theft System (PATS) Module

REMOVAL
1. Remove the passenger side air bag module; refer to Air Bag Systems.

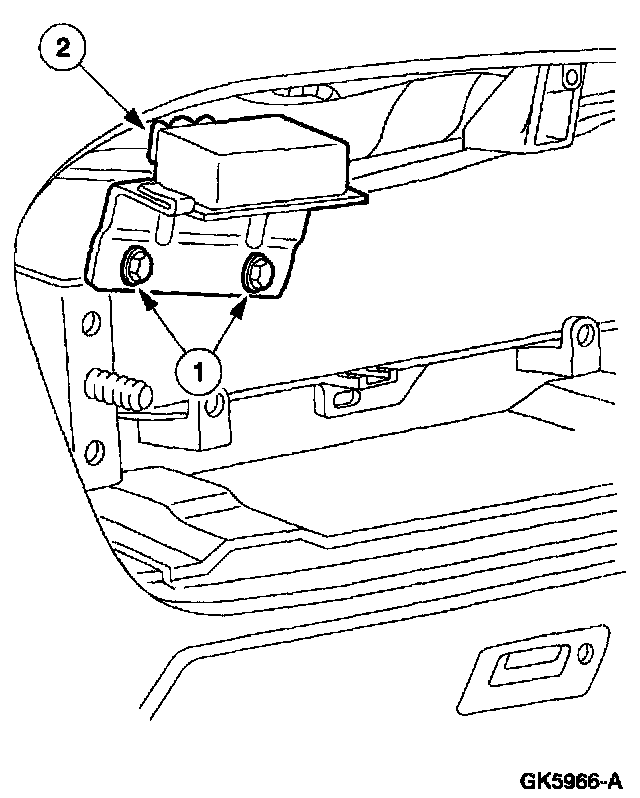

2. Remove the passive anti~theft system (PATS) module and bracket.
1 Remove the bolts.
2 Disconnect the electrical connector.







3. Release the retainer tabs and remove the PATS module from the bracket.

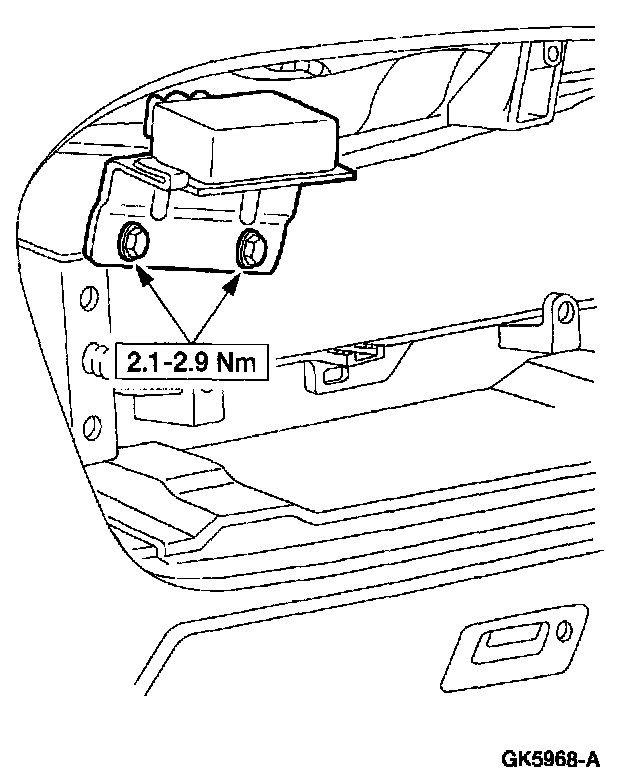

INSTALLATION







1. To install, reverse the removal procedure.

CAUTION: Once the new module is installed, it is necessary to configure the module. For additional information, refer to Module Communications Network.

NOTE:
^ Prior to starting the vehicle, check for PATS DTCs. Perform the appropriate pinpoint test.
^ When the PATS module is replaced, both ignition keys must be relearned and stored in memory. Insert each key in the ignition and turn to RUN for automatic programming.
