Pressure Cutoff Switch

REMOVAL
1. Raise and support the vehicle. Refer to Maintenance/Service and Repair.

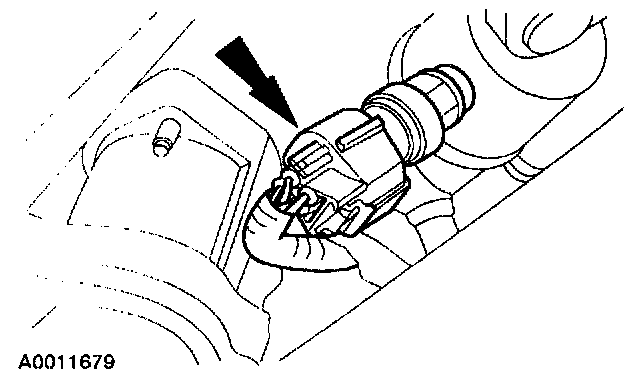

2. Disconnect the pressure cutoff switch electrical connector.
3. Remove the pressure cutoff switch. Remove and discard the O-ring seal.
- During installation, install a new O-ring seal lubricated with PAG Refrigerant Compressor Oil (R-134a Systems) F7AZ-19589-DA (Motorcraft YN-12-C), or equivalent meeting Ford specification WSH-M1C231-B.

INSTALLATION4
1. To install, reverse the removal procedure.
