Test AA: No Start - Gasoline

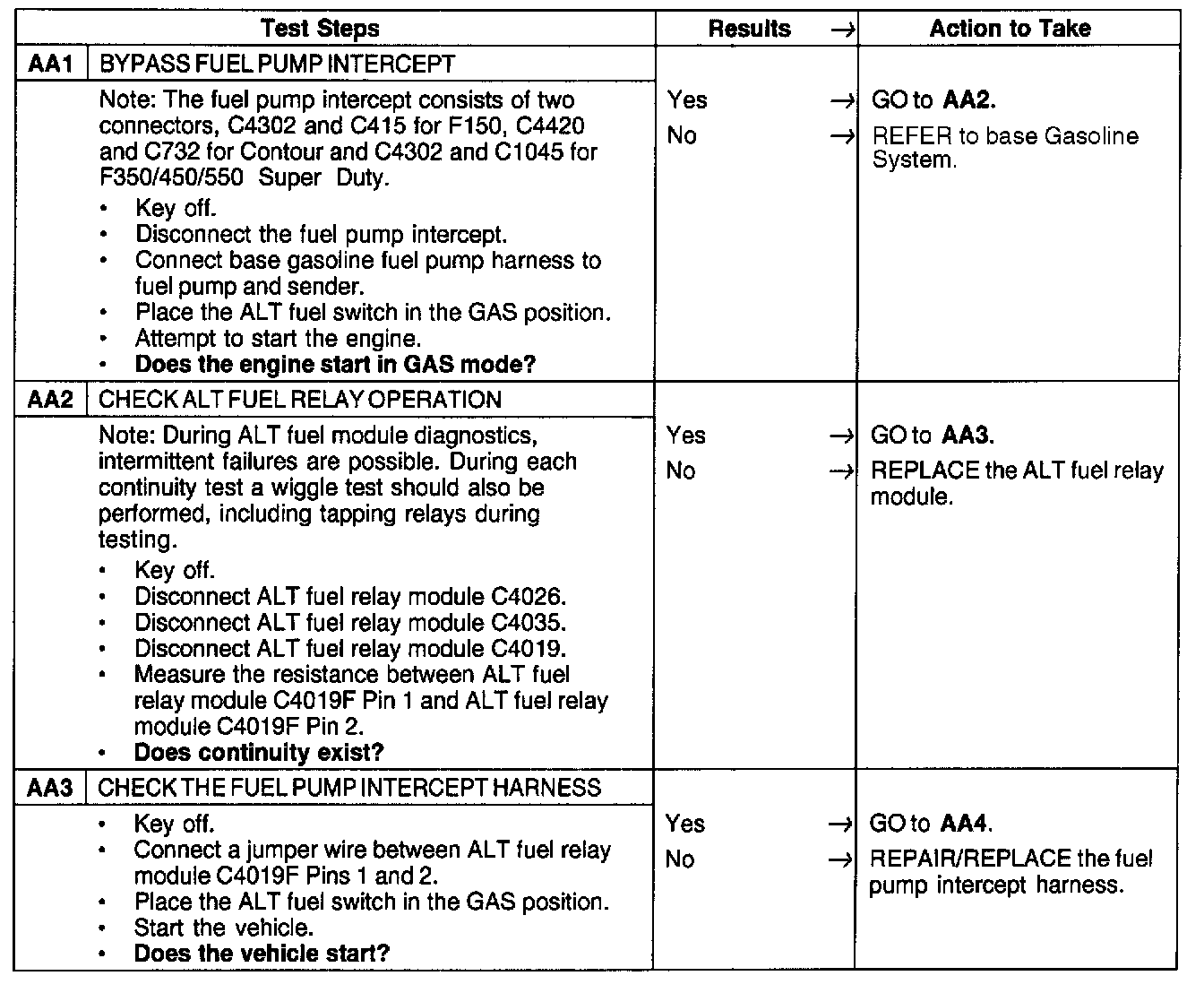

AA1 - AA3:

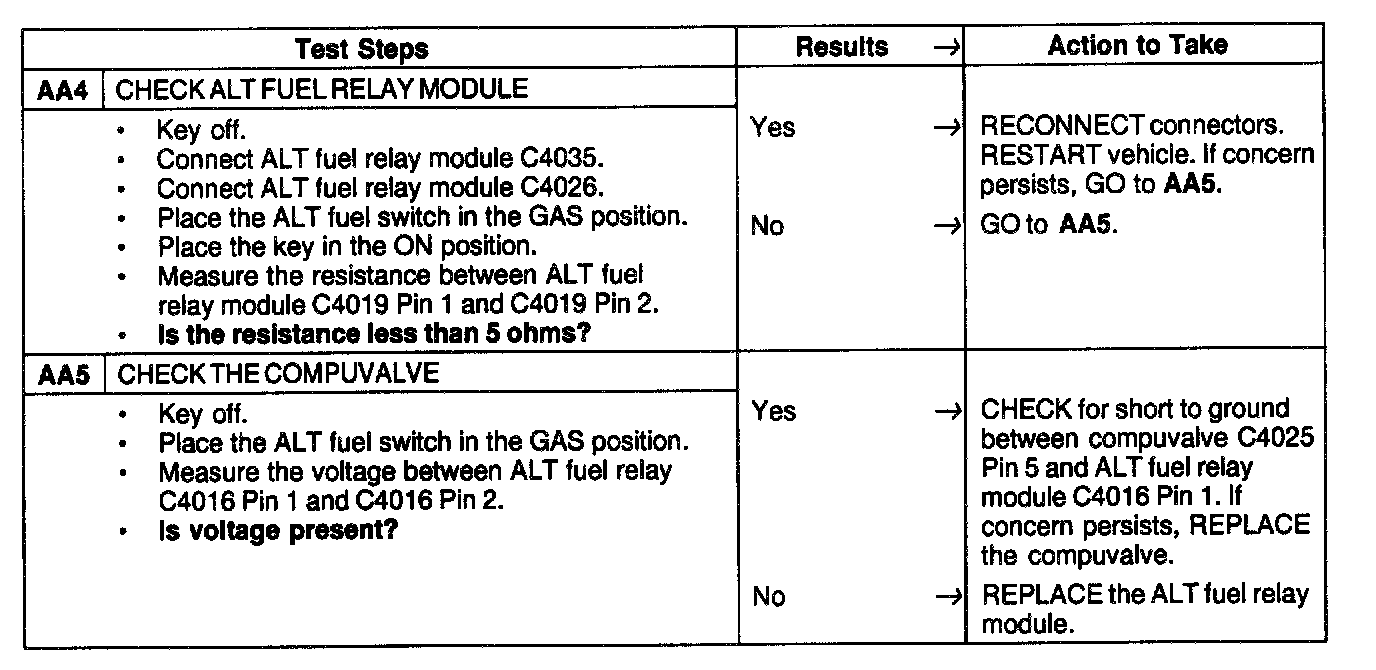

AA4 - AA5:






This pinpoint test is intended to diagnose only the following:
- Fuel pump intercept
- ALT fuel relay module
- Harness circuits
