Test AB: No Start - ALT Fuel Switch Indicator Is Off

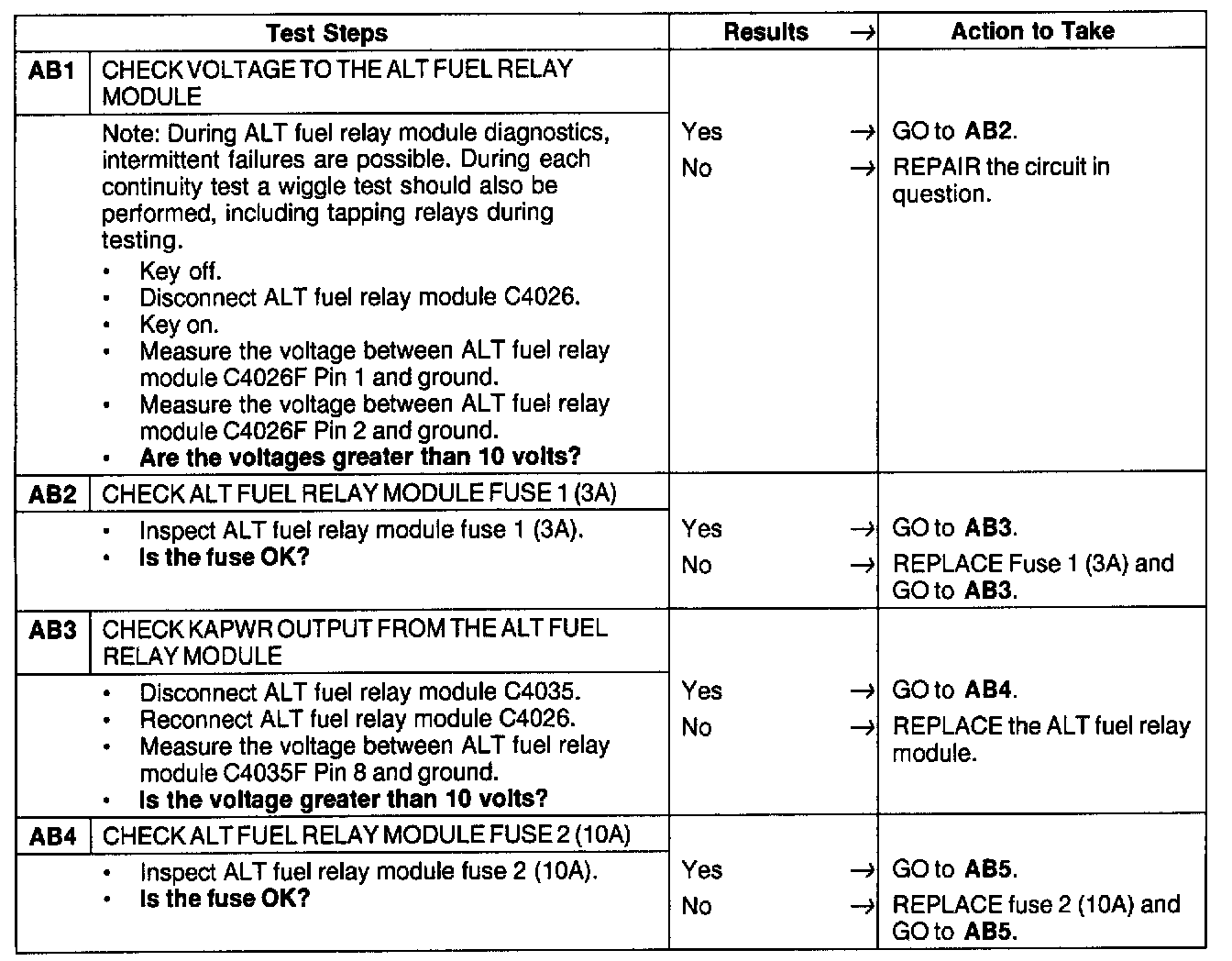

AB1 - AB4:
AB5 - AB6:
This pinpoint test is intended to diagnose only the following:
-
ALT fuel relay module -
Compuvalve -
Harness circuits
NOTE: If the vehicle is equipped with a dual LPG tank option, be sure to check ALT operation in both LPG positions of the
ALT/GAS switch.
