Brake Pedal Control Switch
Removal and Installation1. Remove the seat from the vehicle.
2. At the front underside of the seat cushion, disconnect the electrical connectors.
1 Power seat control.
2 Pedal position switch.
3. Pry off the recliner handle.
4. Remove the screw.

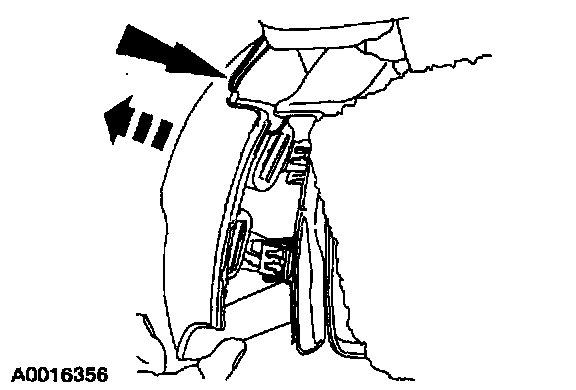

5. Carefully pull out the outer side shield releasing the two hidden clips (shown) to the inner side shield and the two hidden clips to the recliner mechanism.
6. Remove the outer side shield.
1 Carefully pull out on the side of the outer side shield releasing the clips to the inner side shield and one hidden clip at the side of the seat cushion frame.

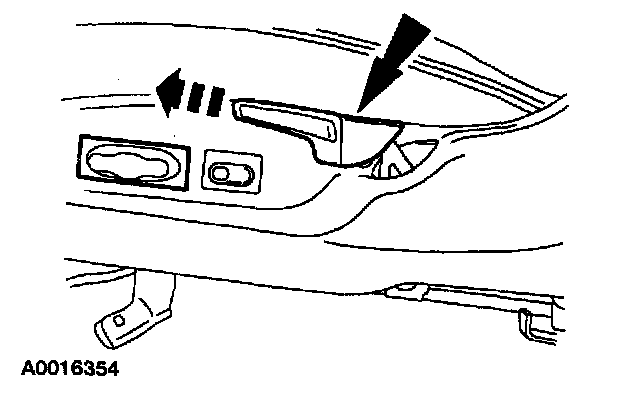

2 Carefully pull forward on the side shield releasing the hidden clip at the front of the seat cushion frame.
3 While routing the wiring harnesses out of the seat cushion frame, slide the side shield forward to clear the recliner handle and remove the outer side shield.
7. Disconnect the electrical connector and push the pedal position switch out of the side shield.
8. To install, reverse the removal procedure.
