Electrical Diagrams

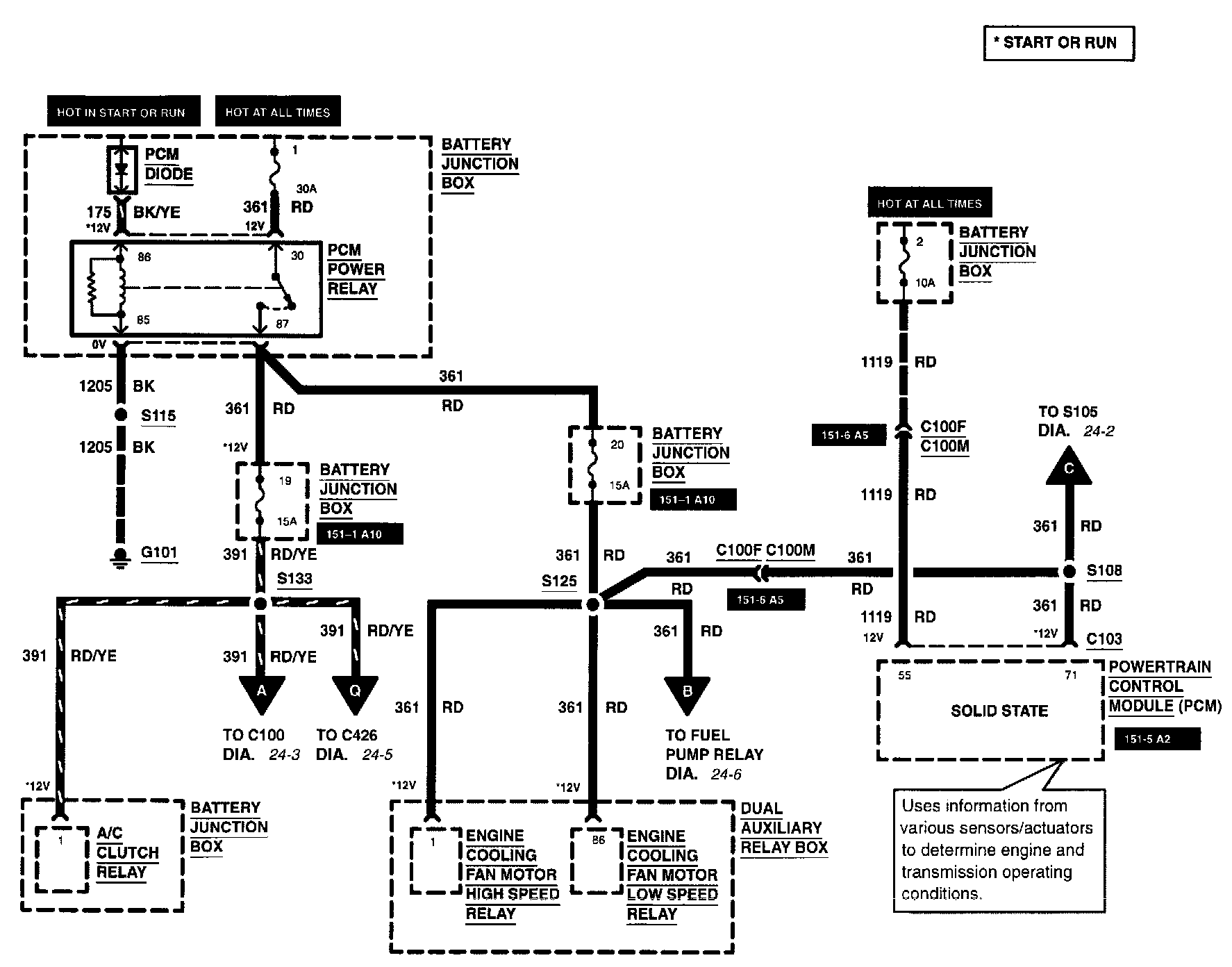

Diagram 24-1:

A/C Clutch Relay
Battery Junction Box
Dual Auxiliary Relay Box
Engine Cooling Fan Motor Low Speed Relay
Engine Cooling Fan Motor High Speed Relay
Fuse 1
Fuse 2
Fuse 19
Fuse 20
Powertrain Control Module
Powertrain Control Module Diode
Powertrain Control Module Power Relay

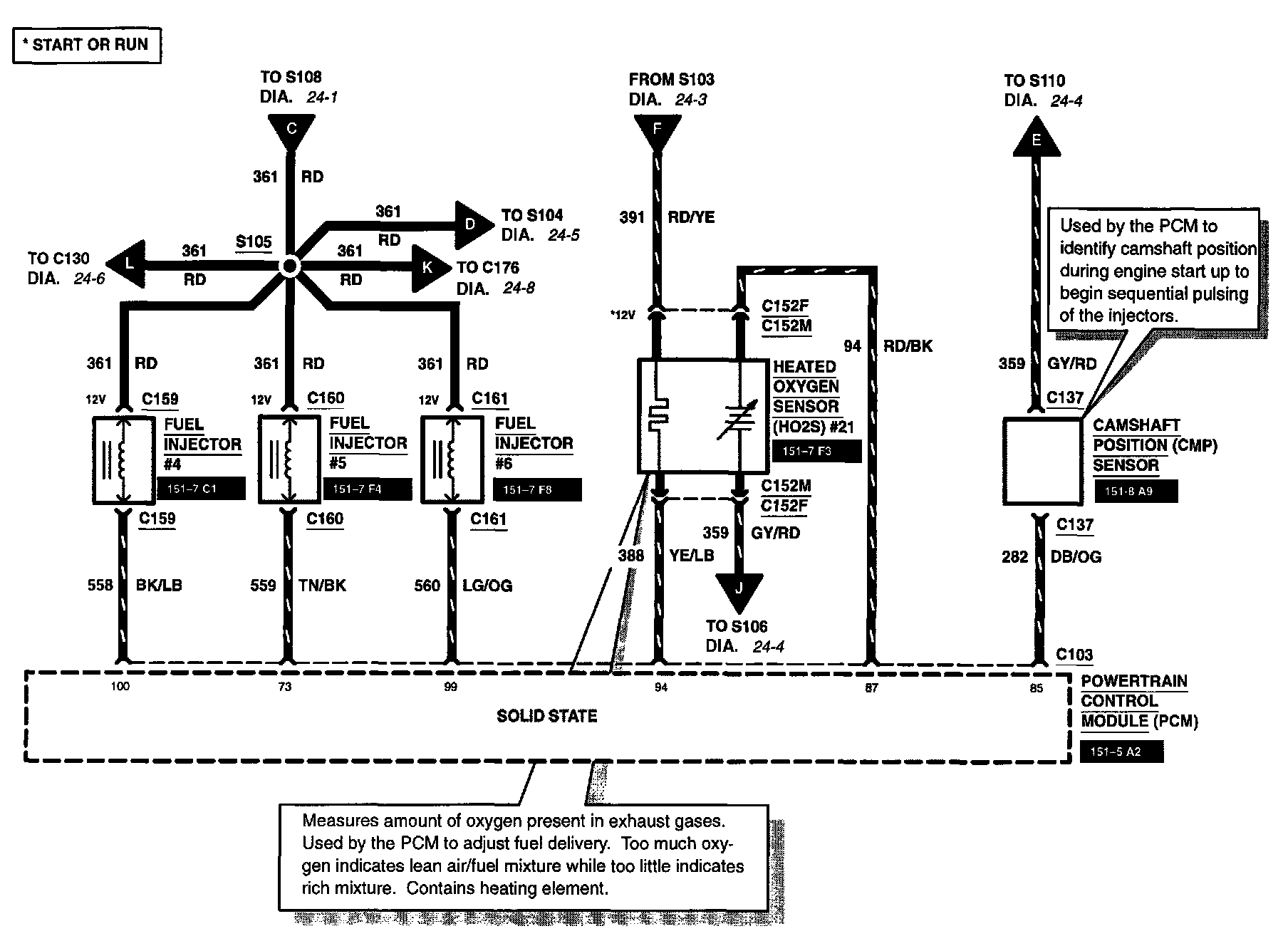

Diagram 24-2:

Camshaft Position Sensor
Fuel Injector #4
Fuel Injector #5
Fuel Injector #6
Heated Oxygen Sensor #21
Powertrain Control Module

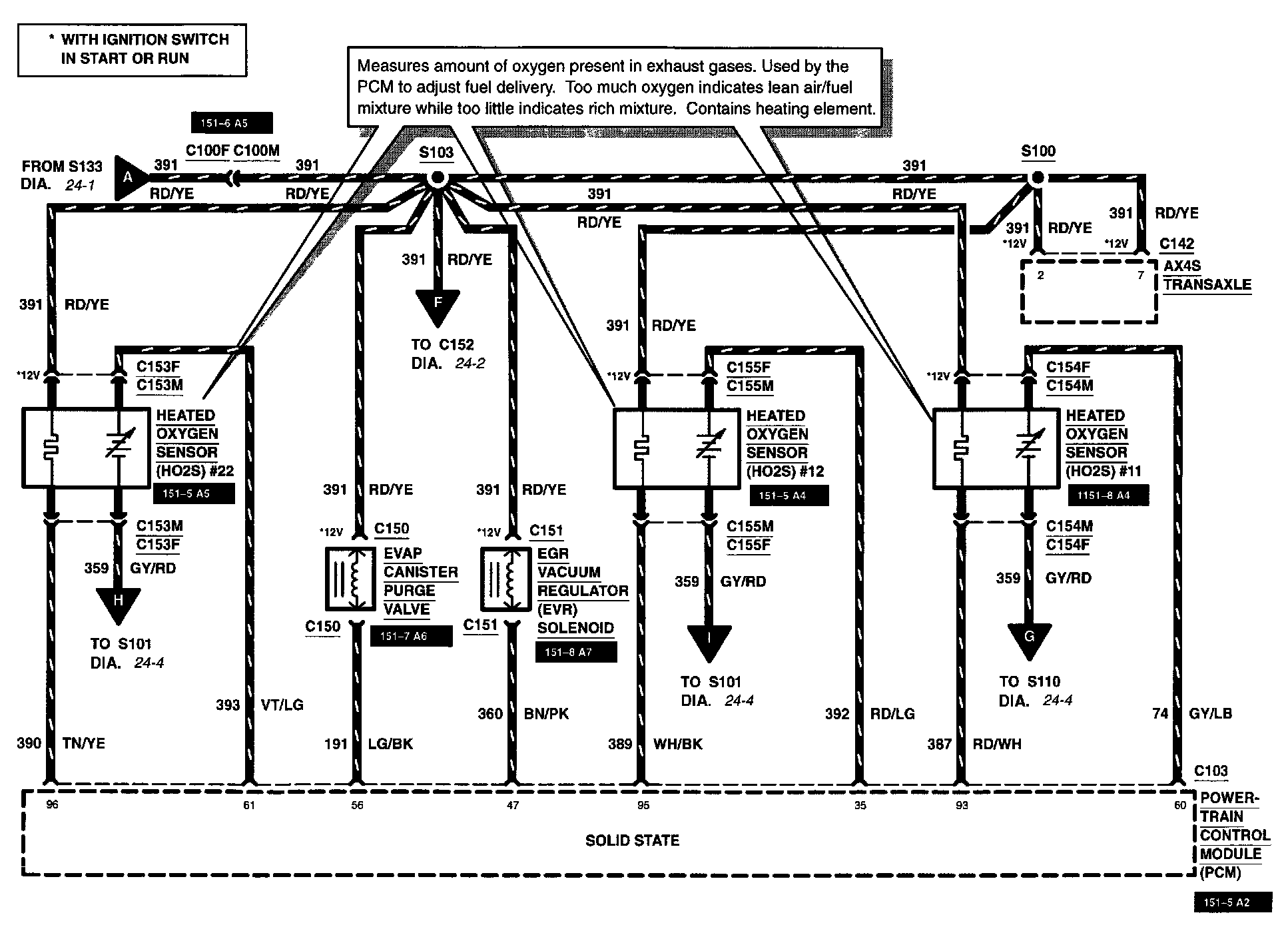

Diagram 24-3:

AX4S Transaxle
Evaporative Canister Purge Valve
EGR Vacuum Regulator Solenoid
Heated Oxygen Sensor #11
Heated Oxygen Sensor #12
Heated Oxygen Sensor #22
Powertrain Control Module

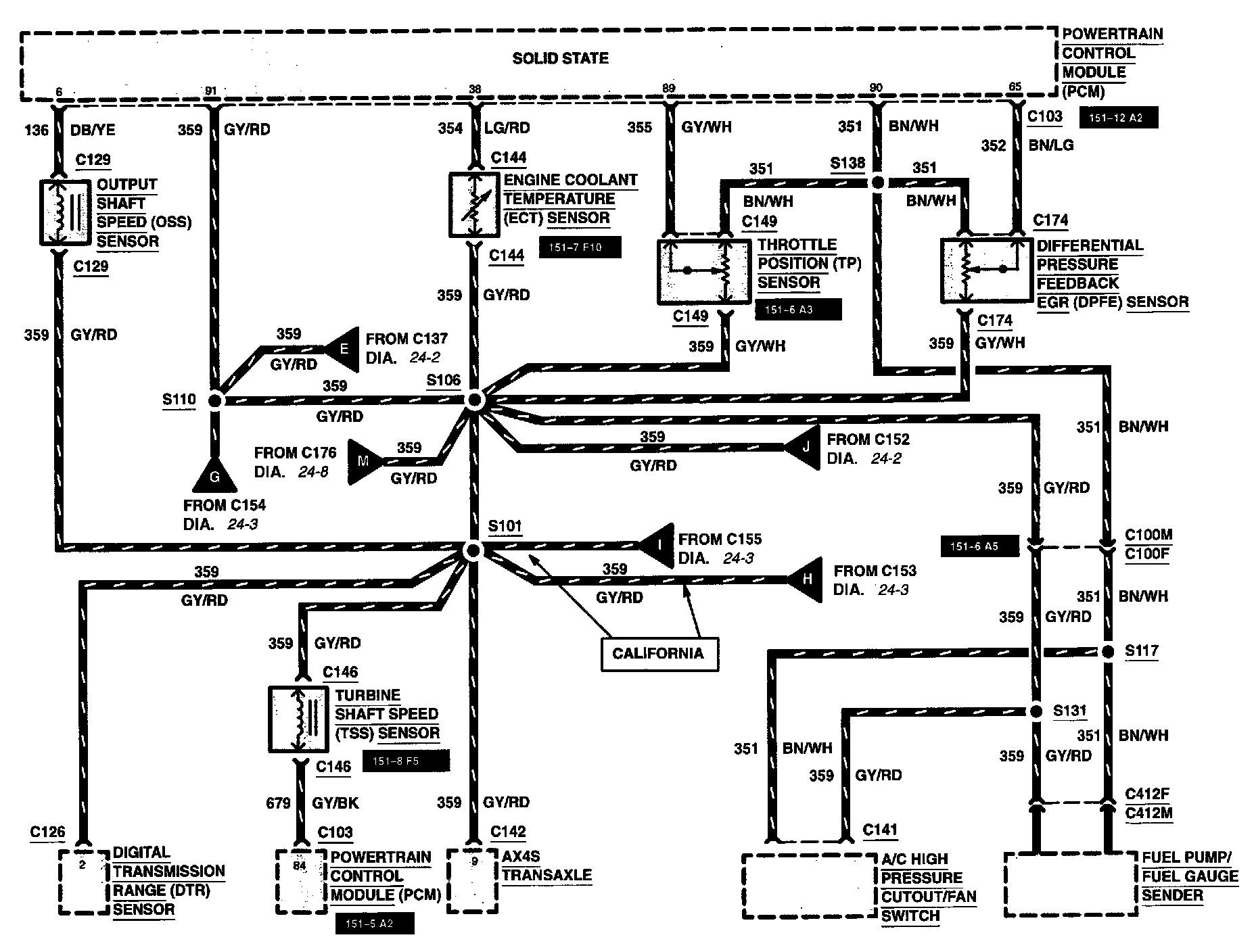

Diagram 24-4:

AX4S Transaxle
A/C High Pressure Cutout/Fan Switch
Differential Pressure Feedback EGR Sensor
Digital Transmission Range Sensor
Engine Coolant Temperature Sensor
Fuel Pump/Fuel Gauge Sender
Output Shaft Speed Sensor
Powertrain Control Module
Throttle Position Sensor
Turbine Shaft Speed Sensor

Diagram 24-5:

Crankshaft Position Sensor
Crankshaft Position Sensor Shield
Canister Vent Solenoid
Data Link Connector
Fuel Injector #1
Fuel Injector #2
Fuel Injector #3
Idle Air Control Valve
Powertrain Control Module

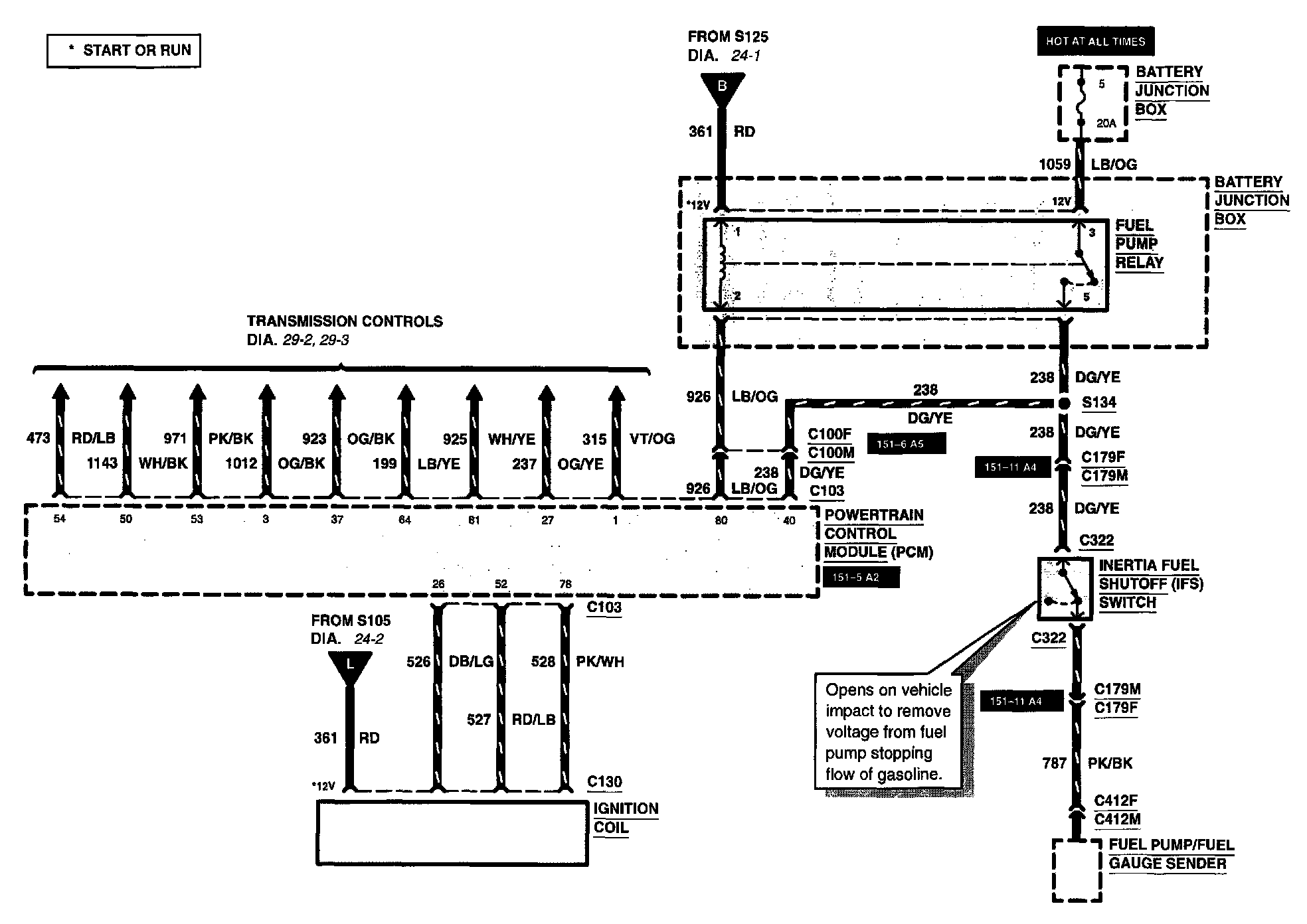

Diagram 24-6:

Battery Junction Box
Fuel Pump Relay
Fuel Pump/Fuel Gauge Sender
Fuse 5
Ignition Coil
Inertia Fuel Shutoff Switch
Powertrain Control Module

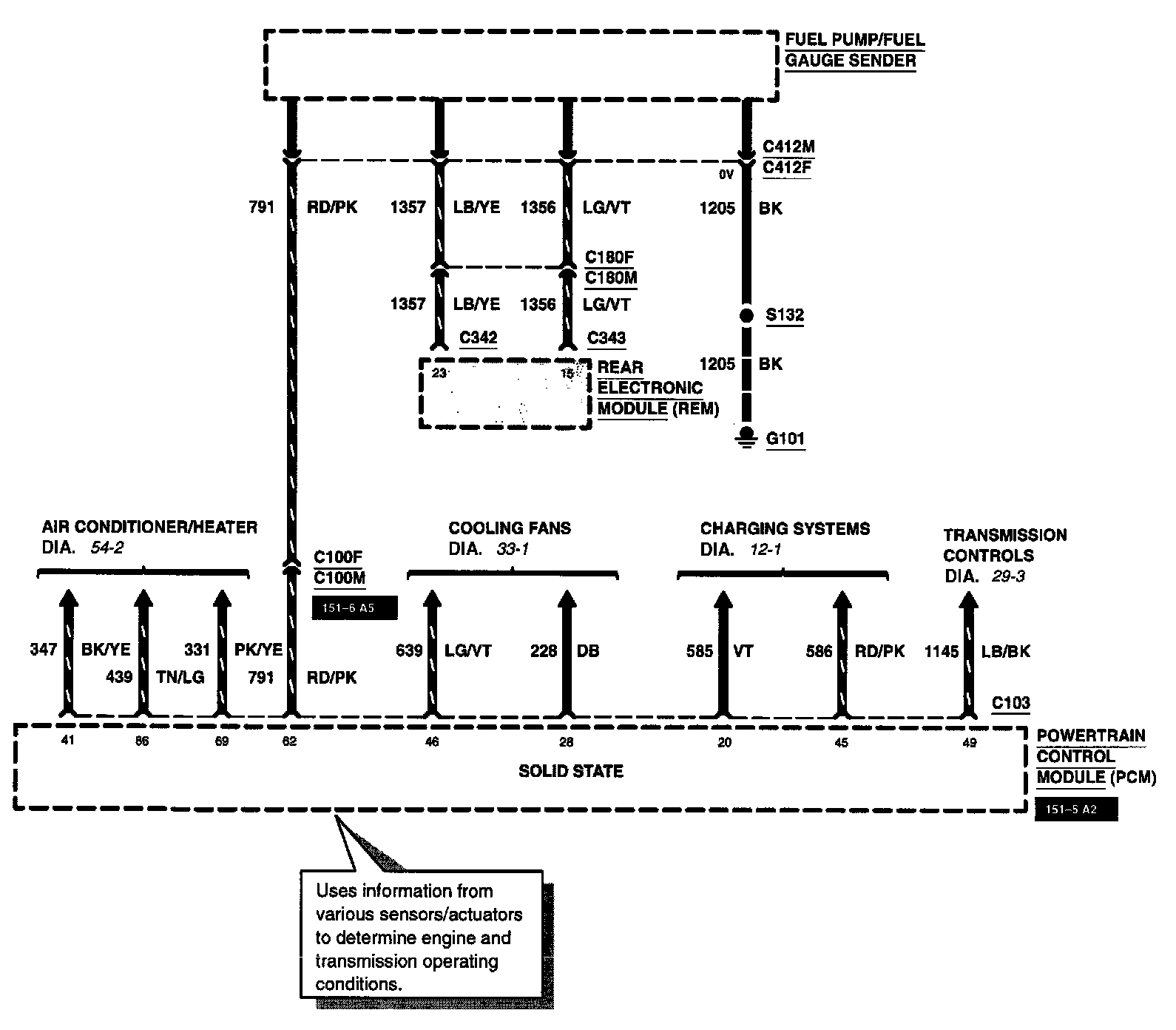

Diagram 24-7:

Fuel Pump/Fuel Gauge Sender
Powertrain Control Module
Rear Electronic Module

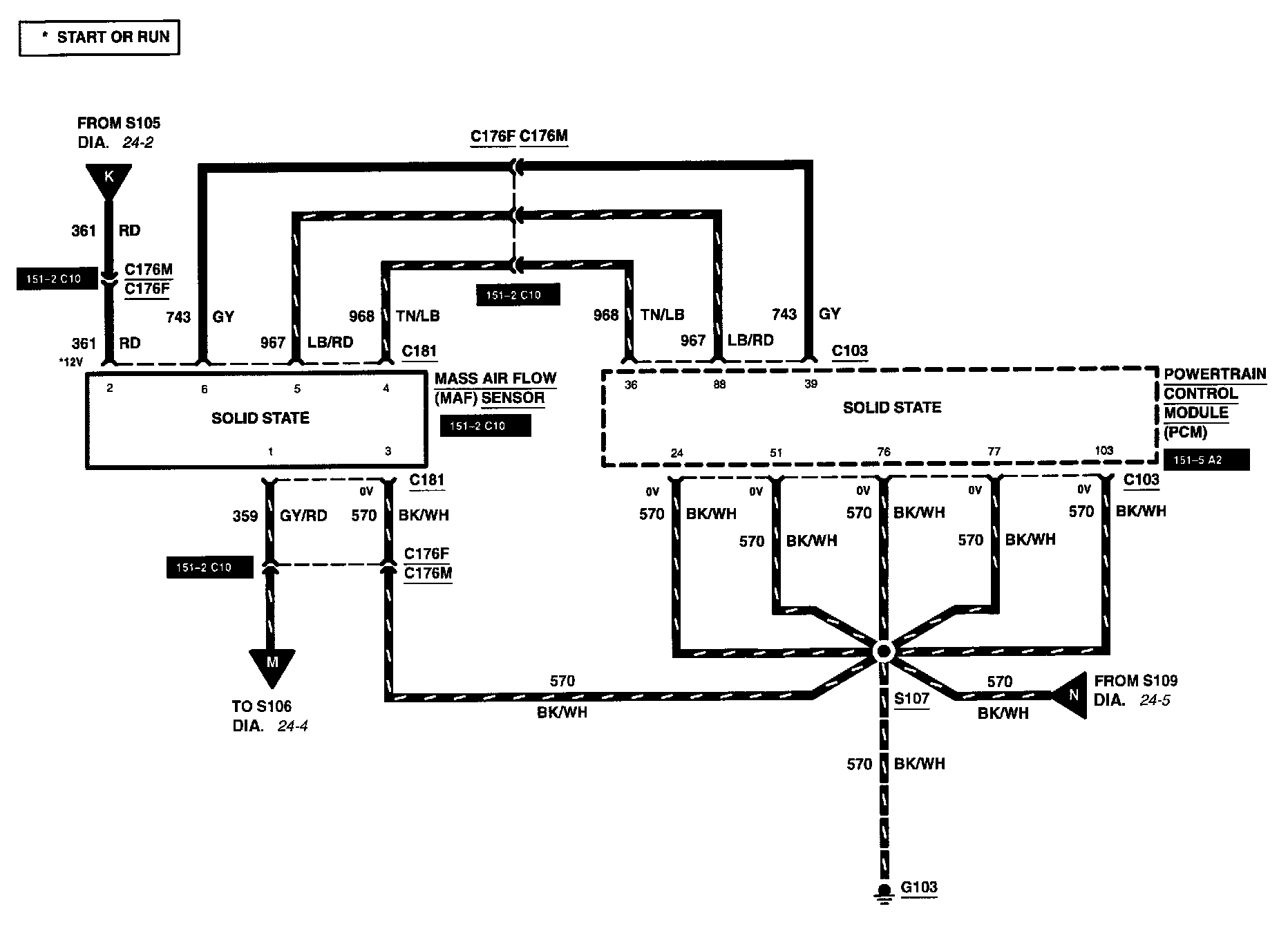

Diagram 24-8:

Mass Air Flow Sensor
Powertrain Control Module
