EGR Valve: Service and Repair
REMOVAL 1.

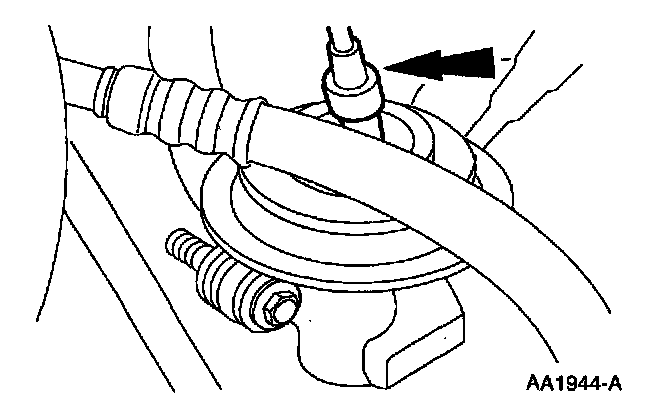

Disconnect the vacuum line from the
Exhaust Gas Recirculation (EGR) valve.
2.
Raise and support the vehicle. For additional information, refer to Maintenance/Service and Repair.
3.

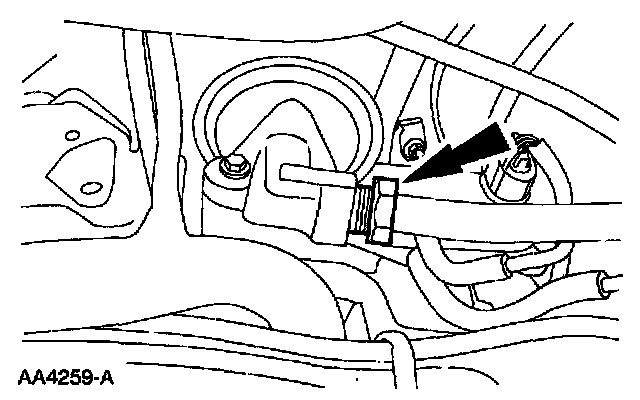

Disconnect the
EGR tube nut from the
EGR valve.
4.

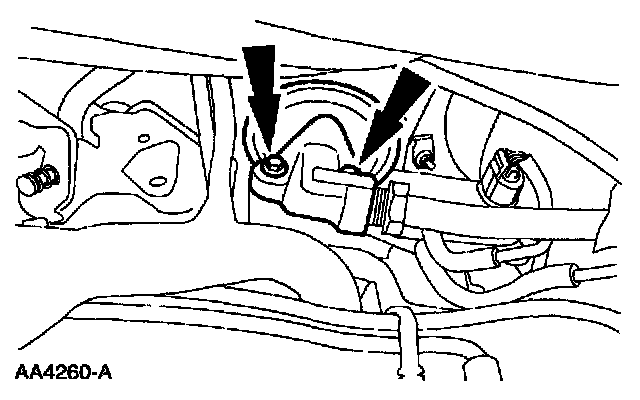

Remove the two bolts,
EGR valve and gasket.
INSTALLATION 1.

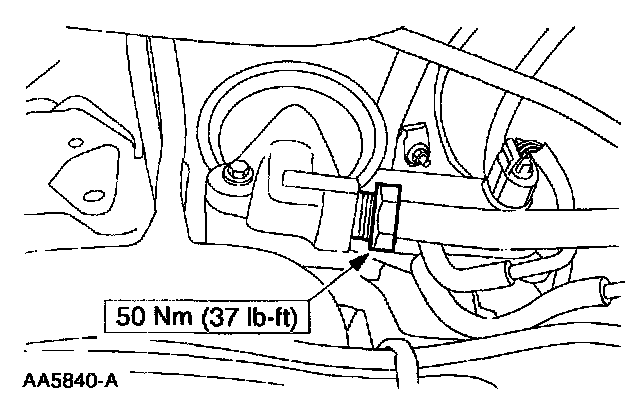

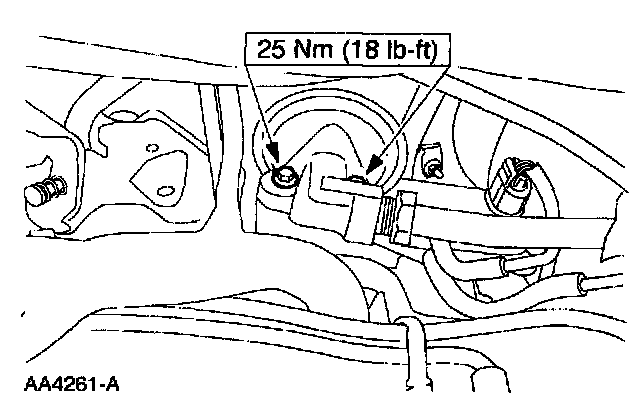

To install, reverse the removal procedure.
