Flex Plate: Service and Repair
Removal 1.
Disconnect the battery ground cable.
2.
Remove the transaxle.
3.

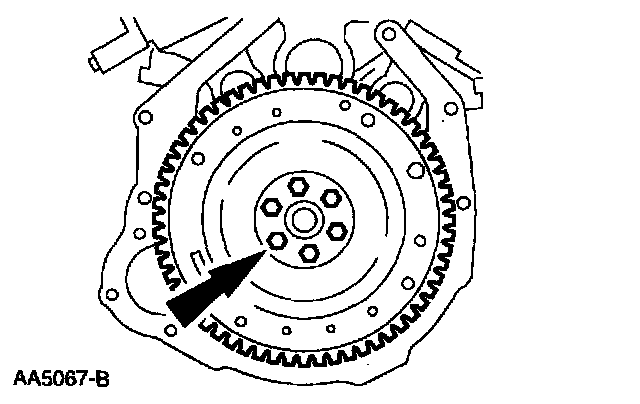

Remove the
flywheel.
^
Remove the bolts.
Installation 1.
Inspect the crankshaft flange.
2.
Install the
flywheel.
^

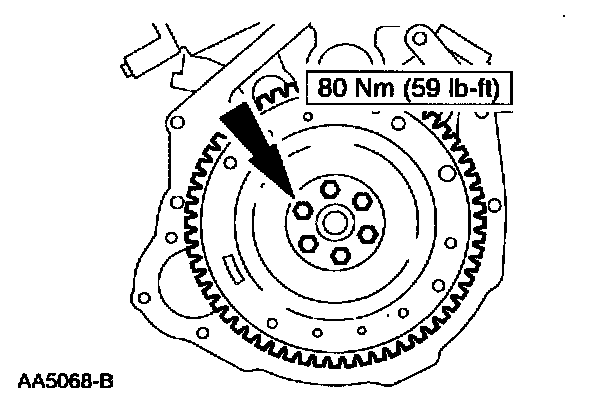

Position the
flywheel.
^
Install the six bolts.
3.
Install the transaxle.
4.
Connect the battery ground cable.
