Sensor, Front

Removal
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

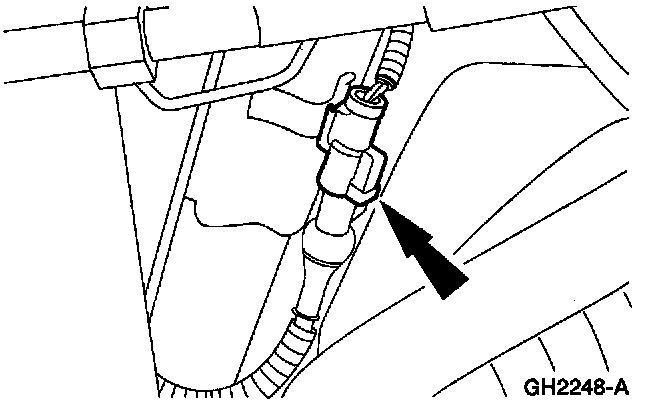

3. Disconnect the anti-lock brake sensor electrical connector.

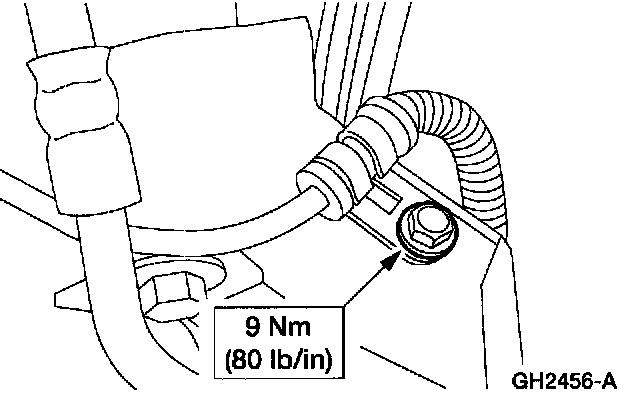

4. Remove the anti-lock brake sensor cable clip bolt from the front wheel knuckle.

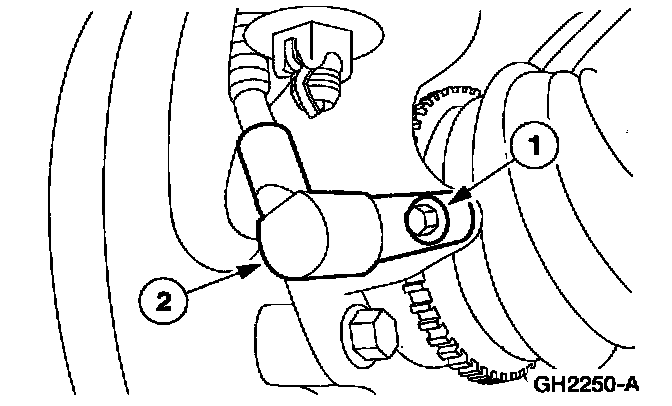

5. Remove the anti-lock brake sensor.
1. Remove the bolt.
2. Remove the anti-lock brake sensor.

Installation








1. Note: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn its strategy.

To install, reverse the removal procedure.
