System Diagram

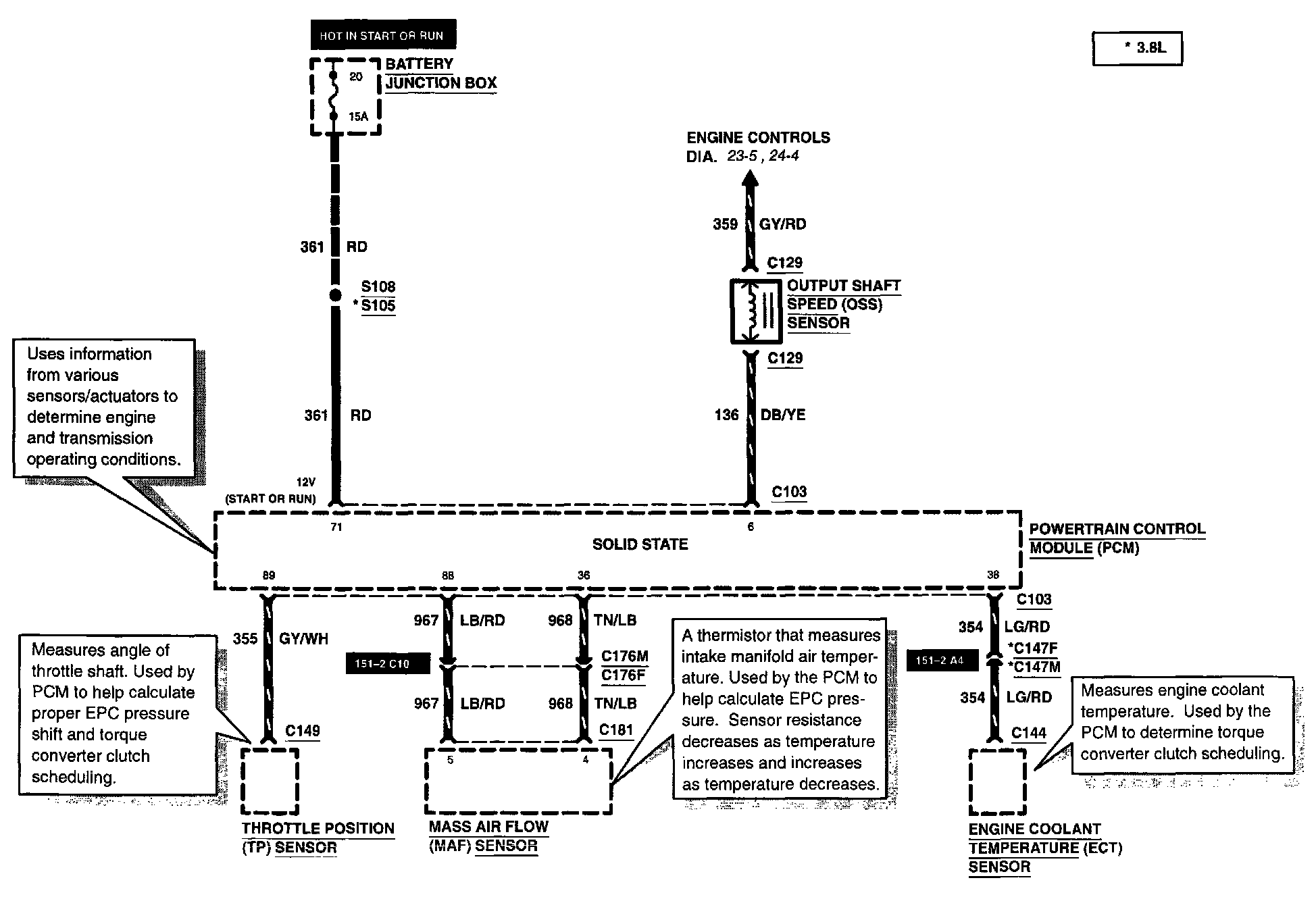

Diagram 29-1:







Battery Junction Box
Fuse 20
Engine Coolant Temperature Sensor
Mass Air Flow Sensor
Output Shaft Speed Sensor
Powertrain Control Module
Throttle Position Sensor

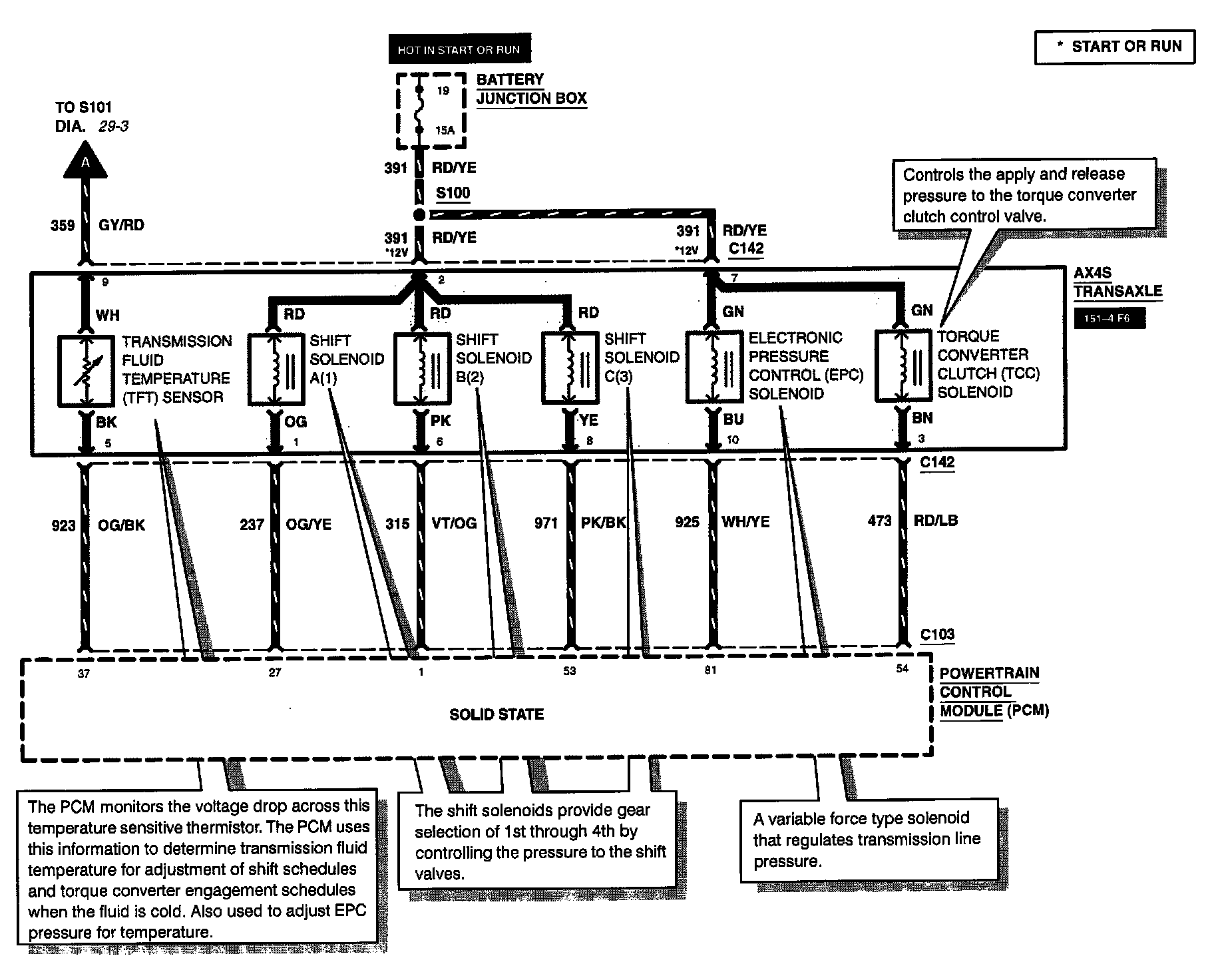

Diagram 29-2:







AX4S Transaxle
Battery Junction Box
Fuse 19
Electronic Pressure Control Solenoid
Powertrain Control Module
Shift Solenoid 1
Shift Solenoid 2
Shift Solenoid 3
Torque Converter Clutch Solenoid
Transmission Fluid Temperature Sensor

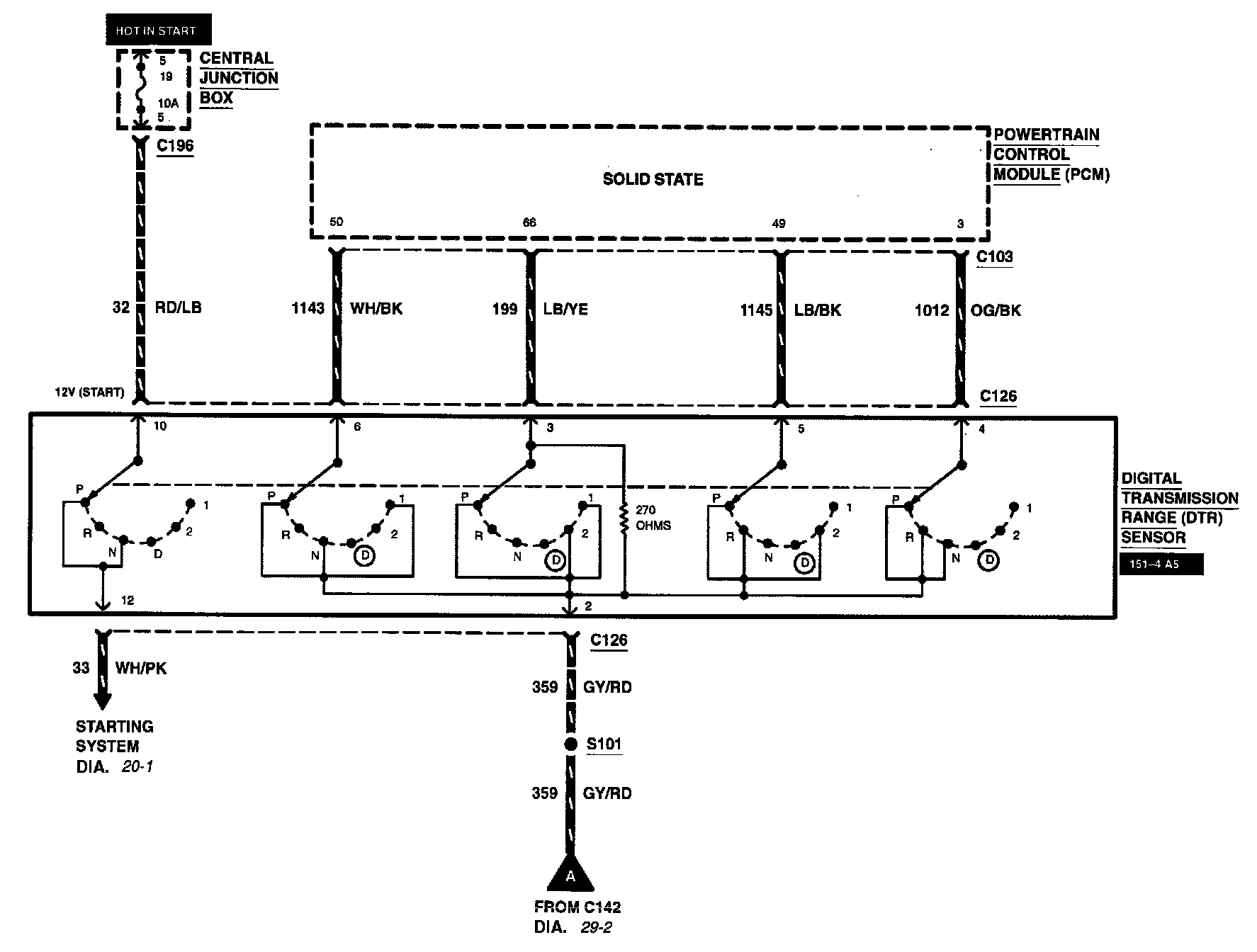

Diagram 29-3:







Central Junction Box
Digital Transmission Range Sensor
Fuse 5
Powertrain Control Module
