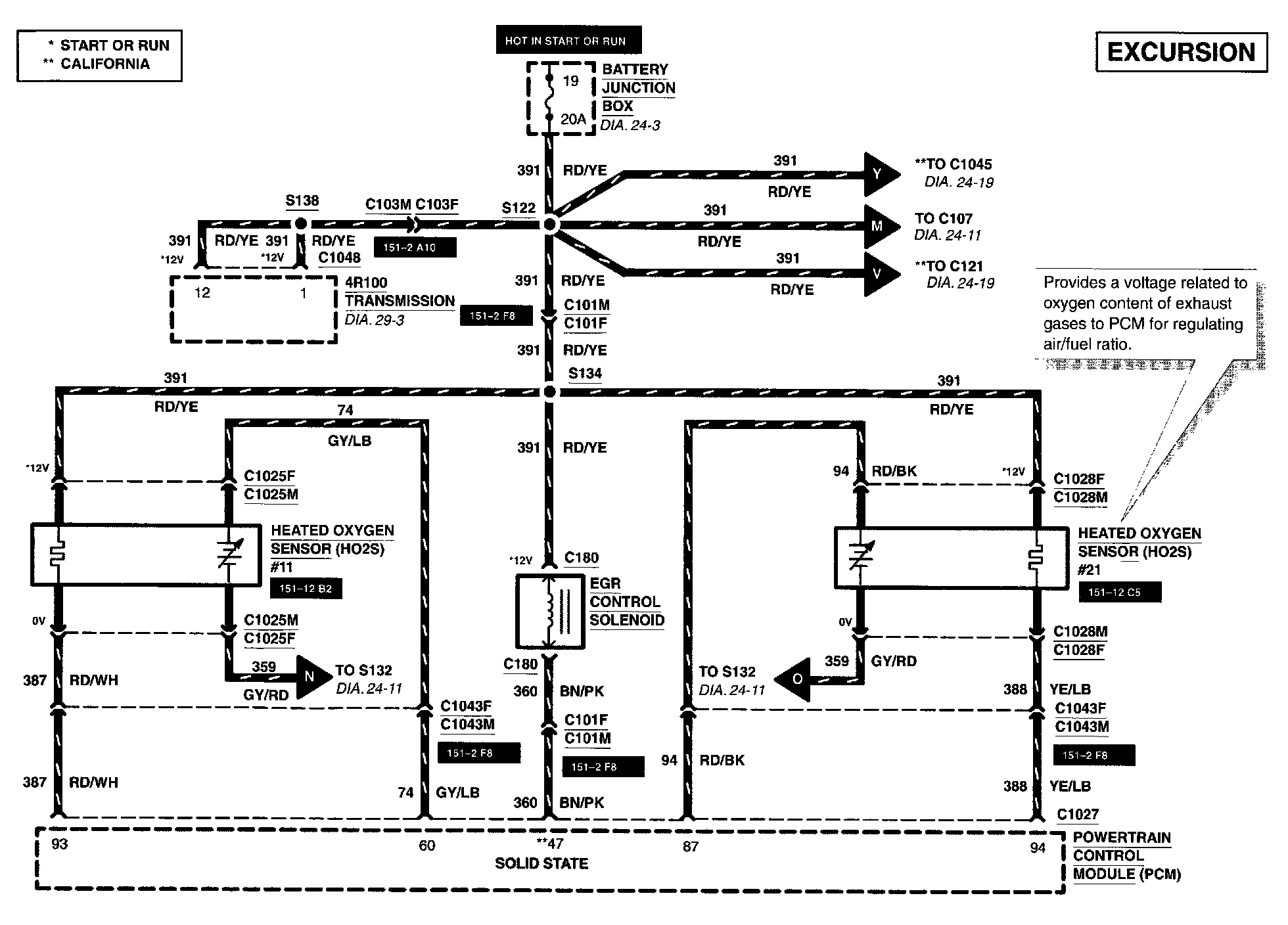

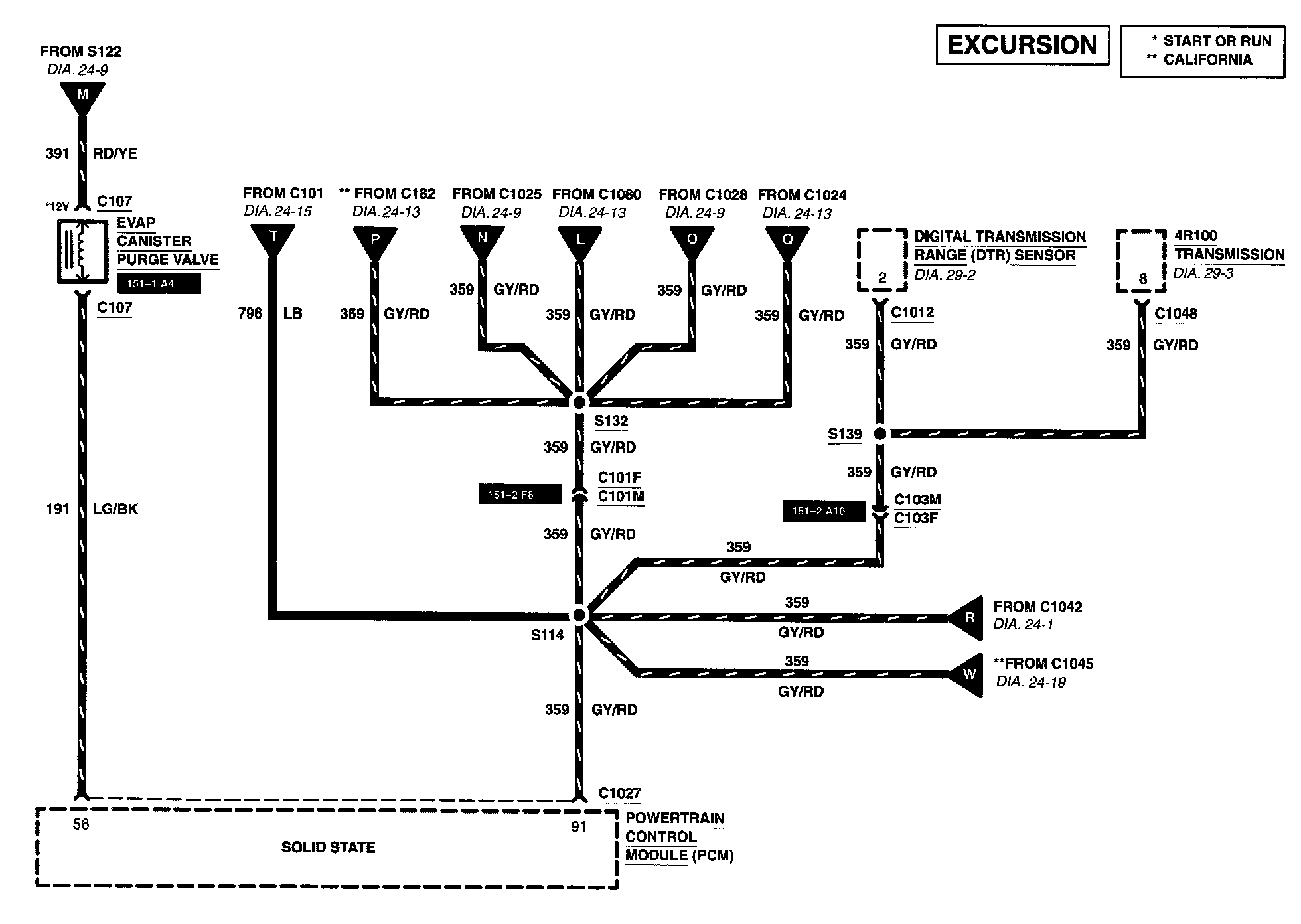

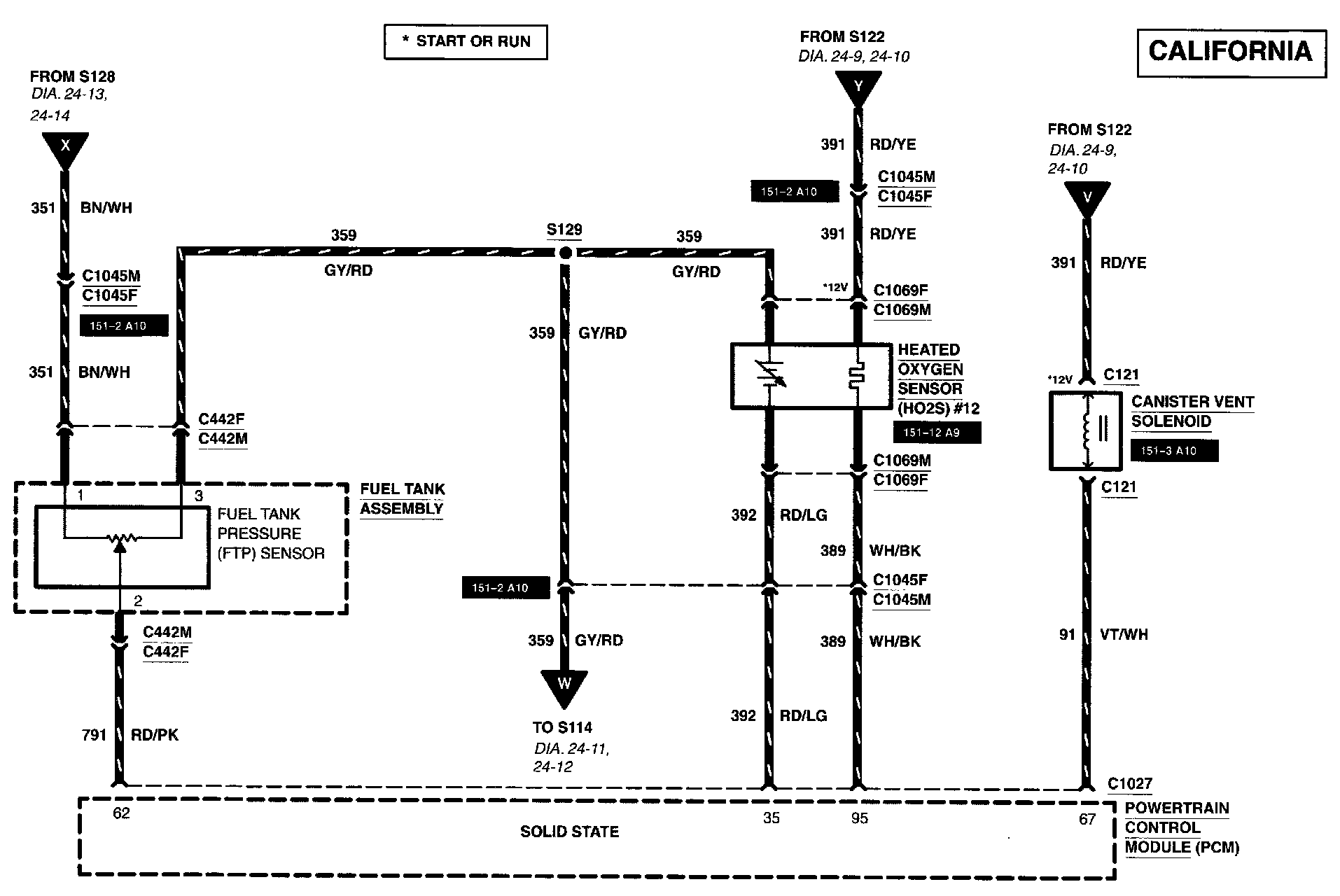

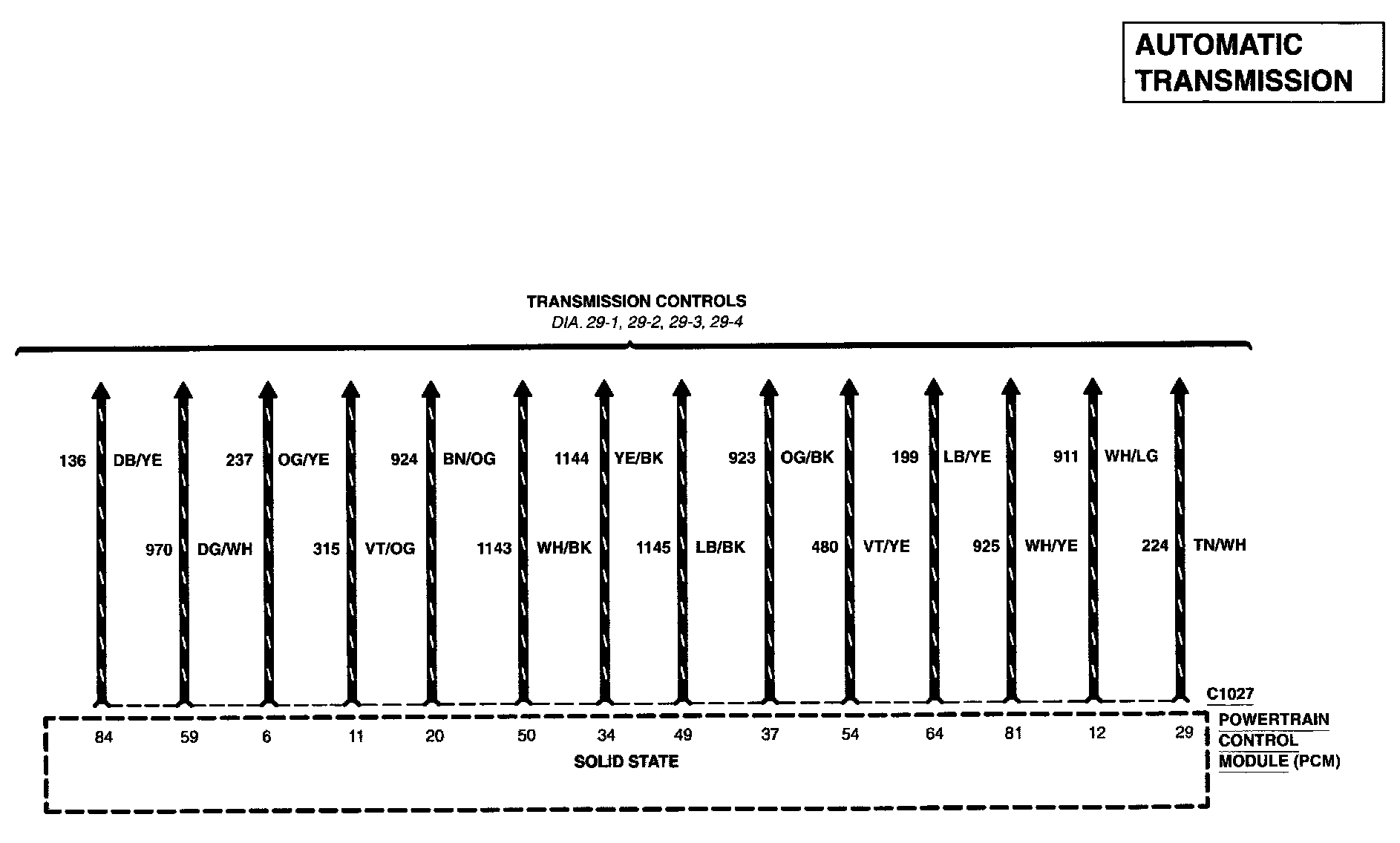

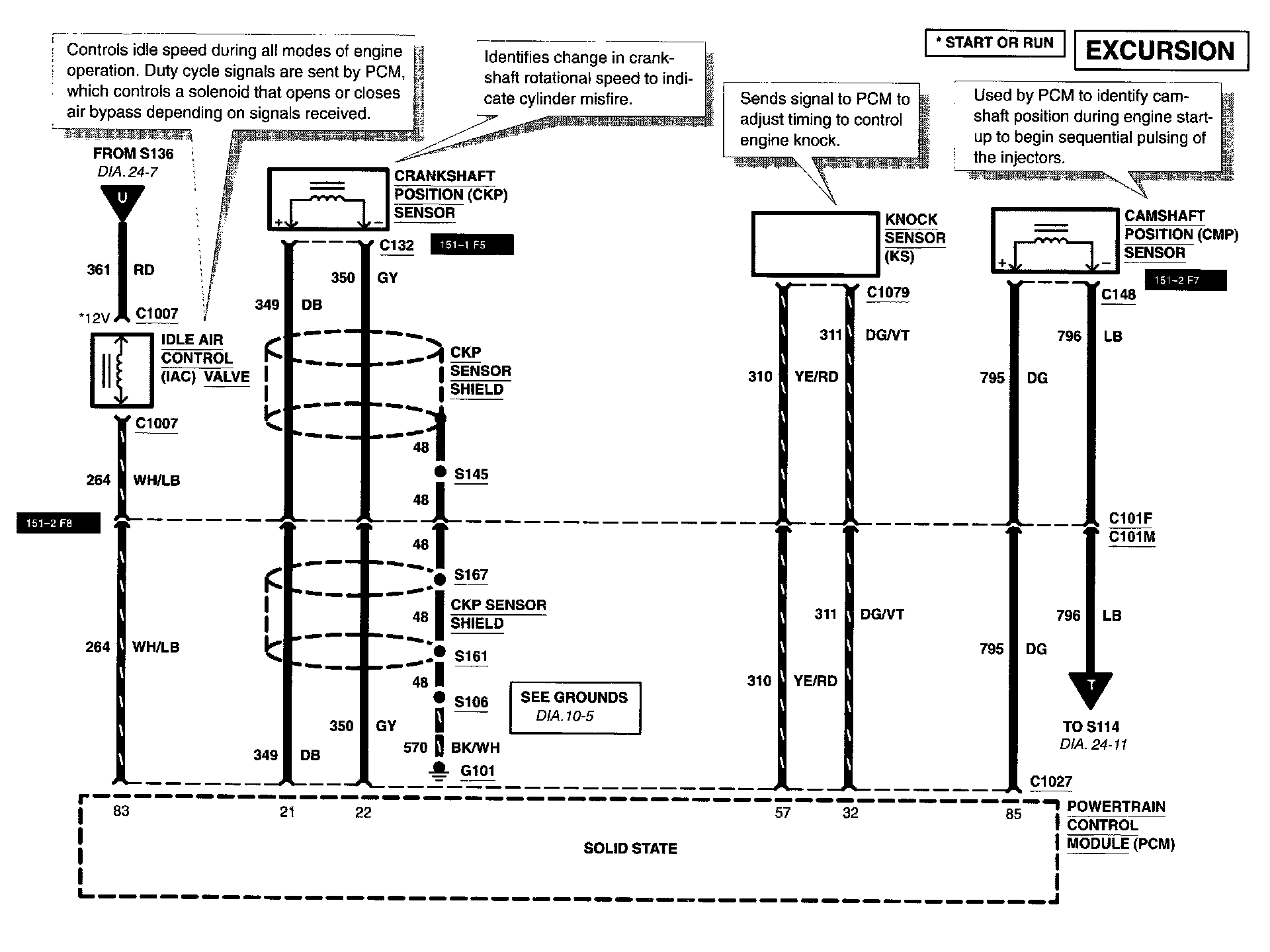

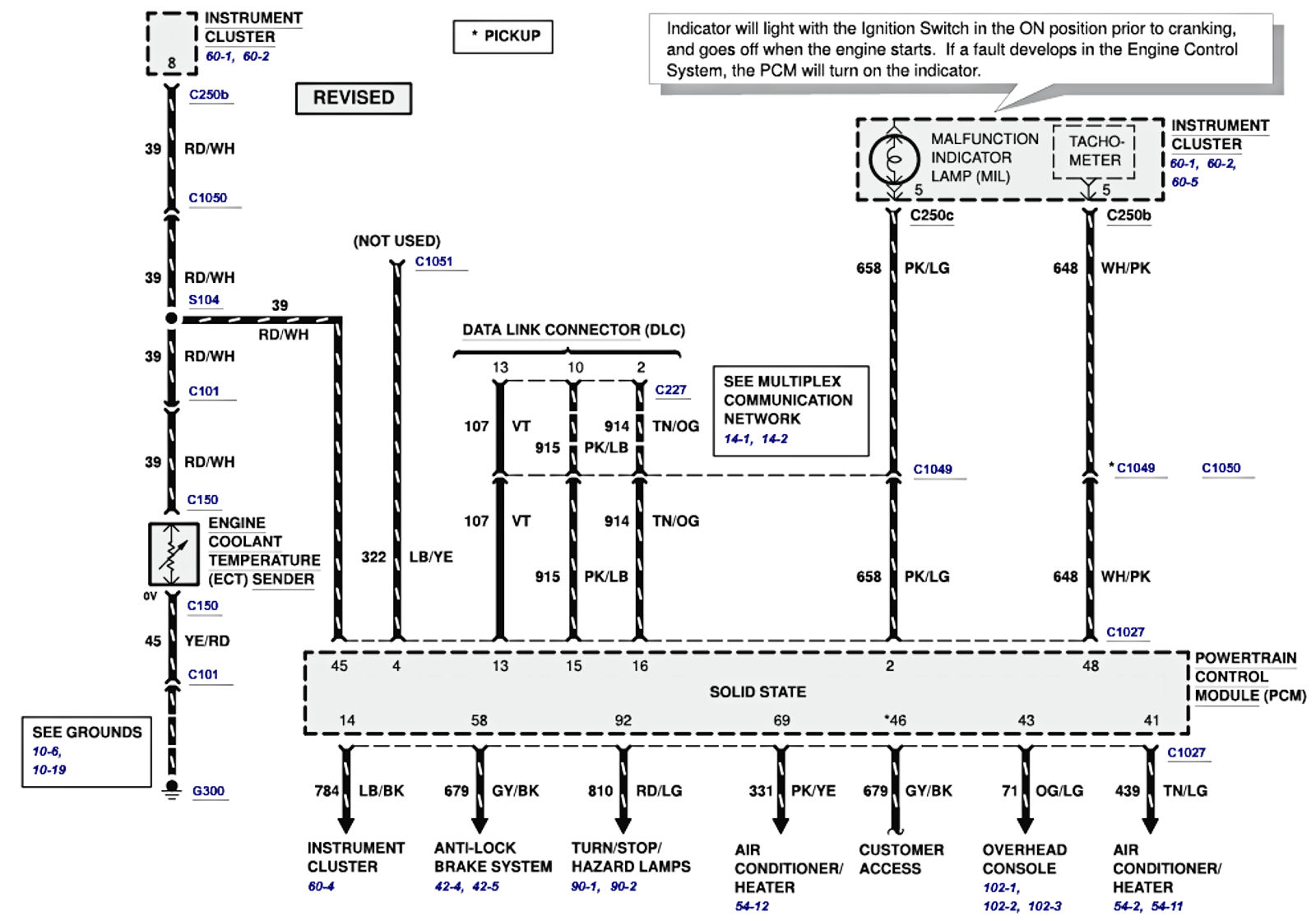

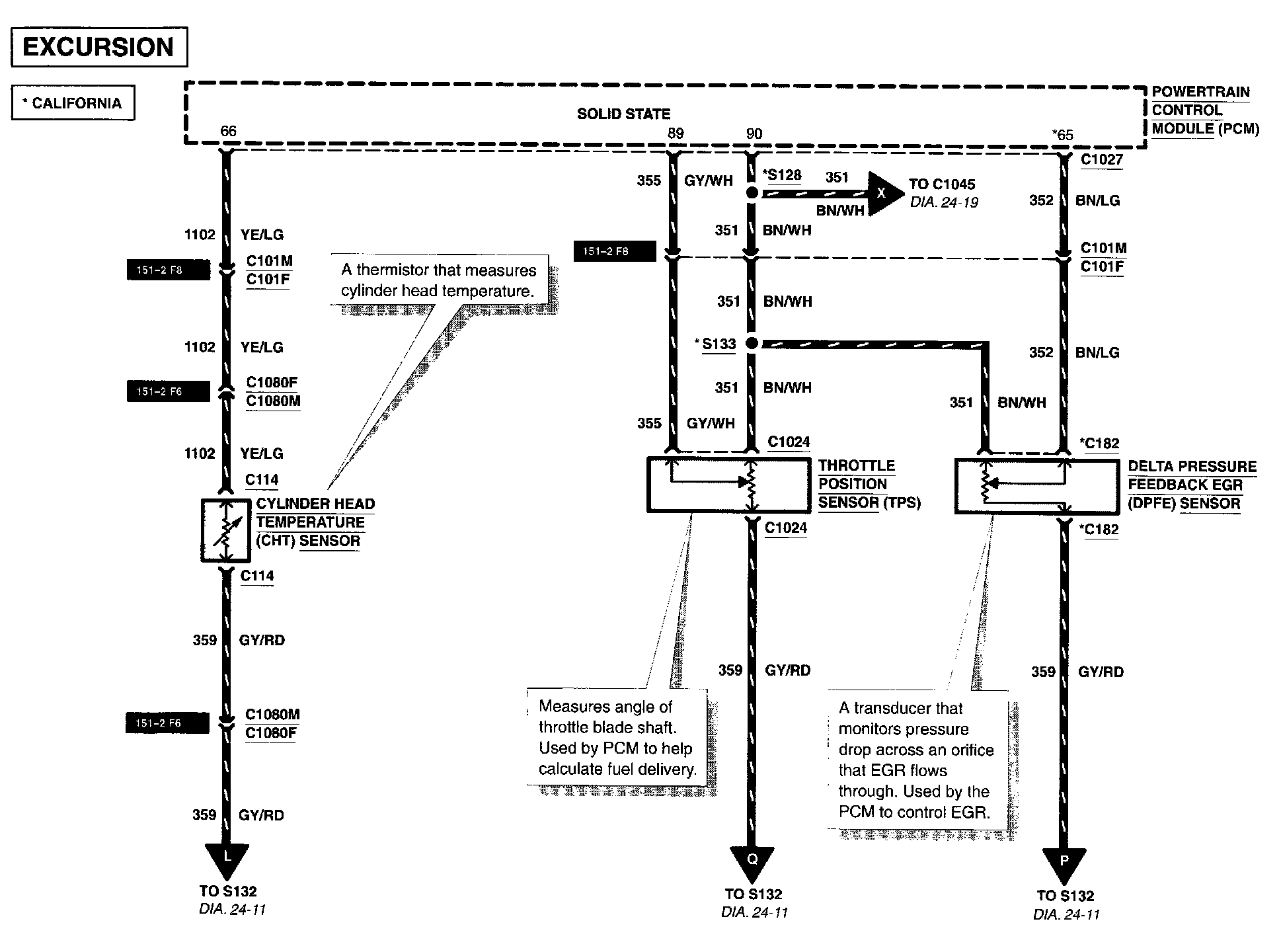

Powertrain Management: Diagrams

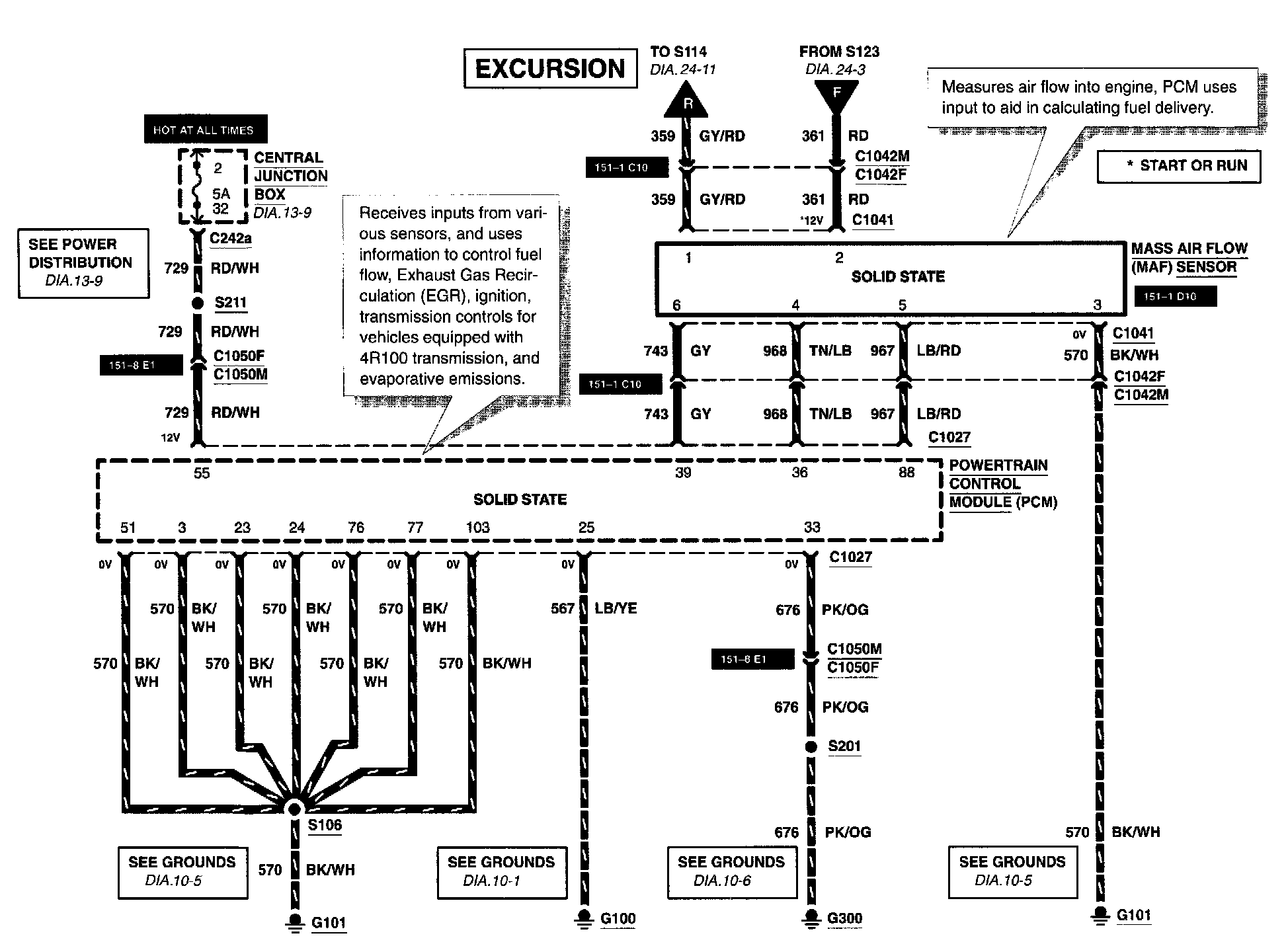

Diagram 24-1:

Central Junction Box
Fuse 2
Mass Air Flow Sensor
Powertrain Control Module

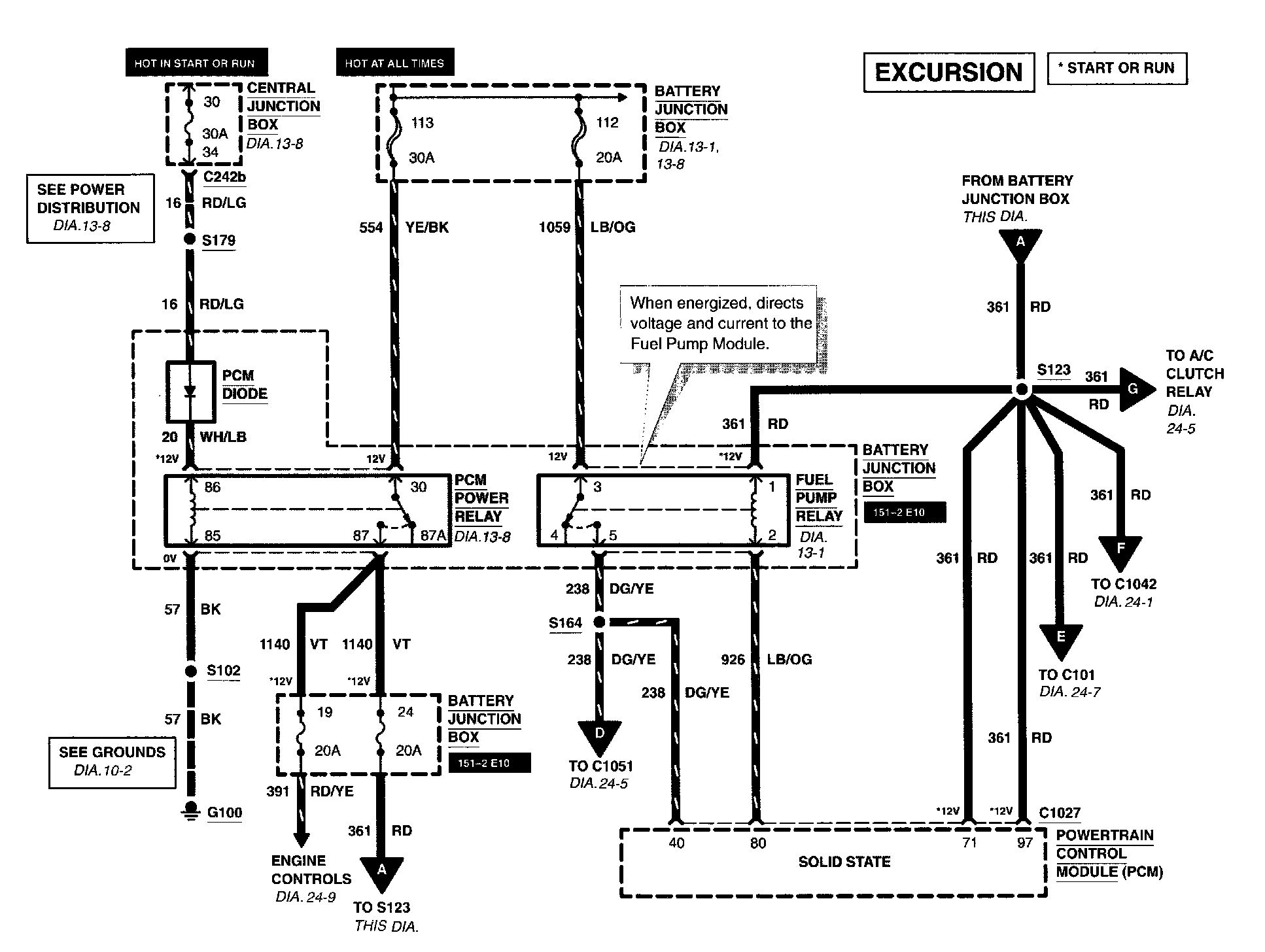

Diagram 24-3:

Battery Junction Box
Central Junction Box
Fuel Pump Relay
Fuse 19
Fuse 24
Fuse 30
Fuse 112
Fuse 113
PCM Diode
PCM Power Relay
Powertrain Control Module

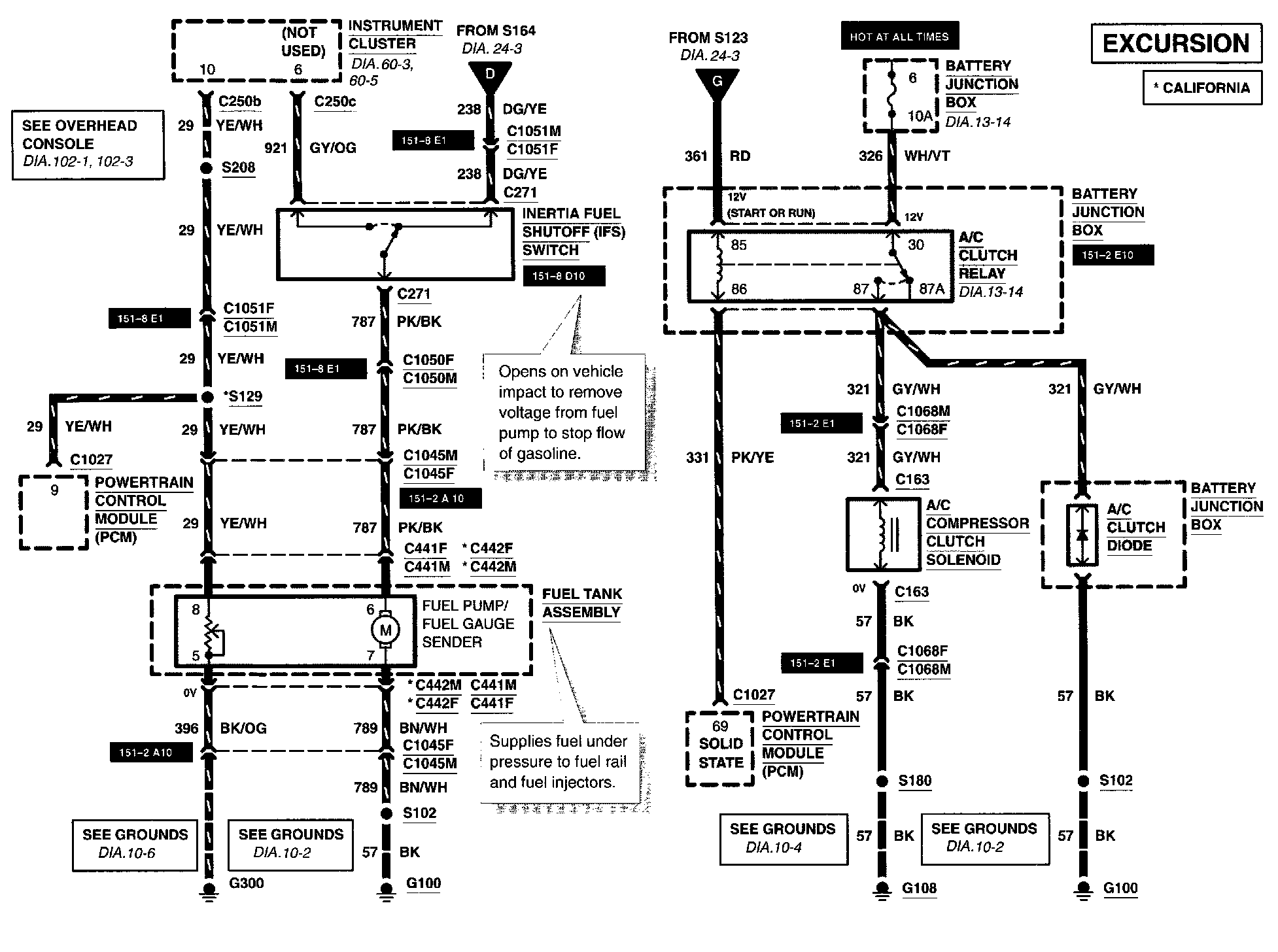

Diagram 24-5:

A/C Clutch Diode
A/C Compressor Clutch Solenoid
Battery Junction Box
Fuel Pump/Fuel Gauge Sender
Fuel Tank Assembly
Fuse 6
Inertia Fuel Shutoff Switch
Instrument Cluster
Powertrain Control Module

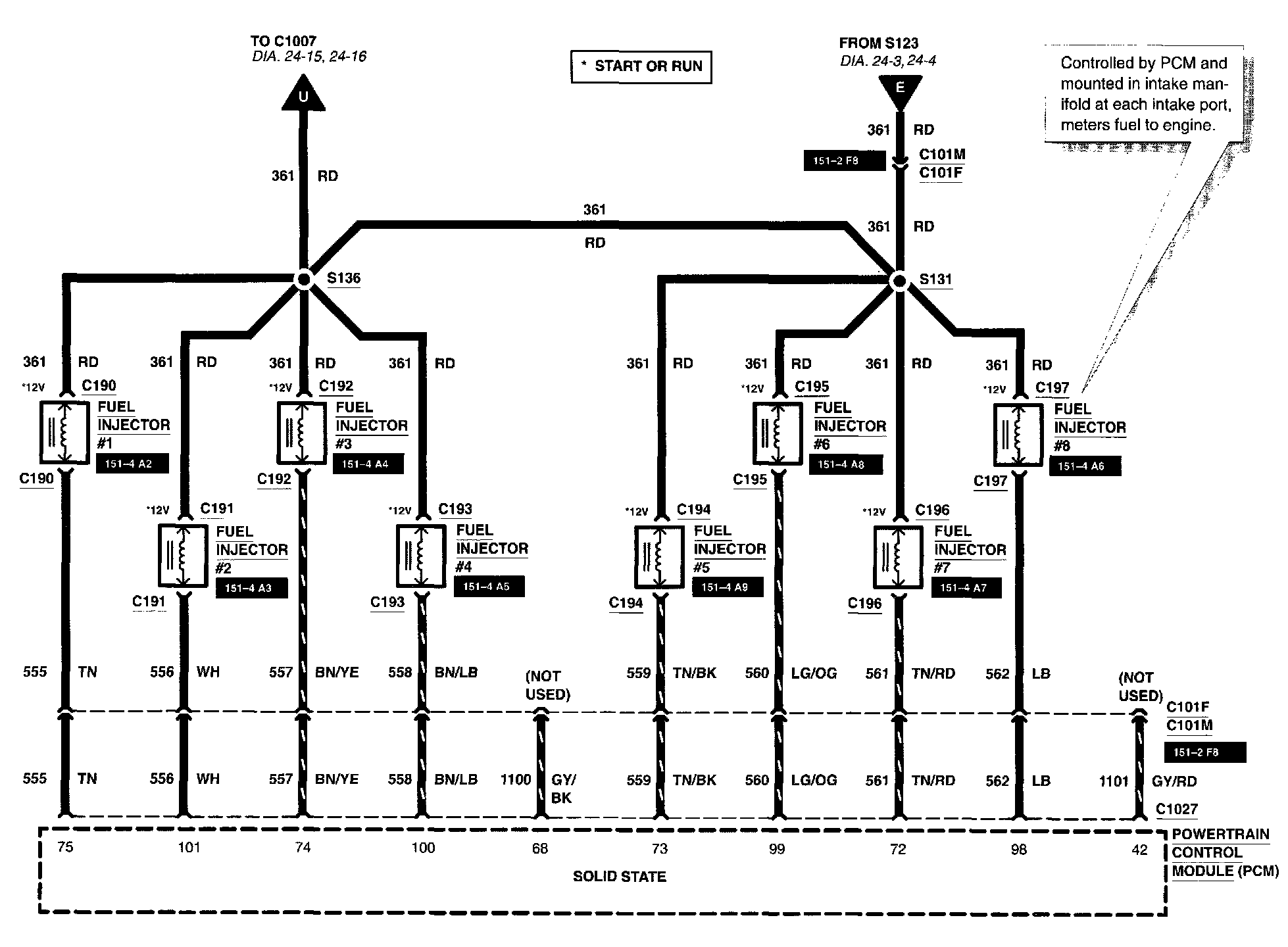

Diagram 24-7:

Fuel Injector #1
Fuel Injector #2
Fuel Injector #3
Fuel Injector #4
Fuel Injector #5
Fuel Injector #6
Fuel Injector #7
Fuel Injector #8
Powertrain Control Module

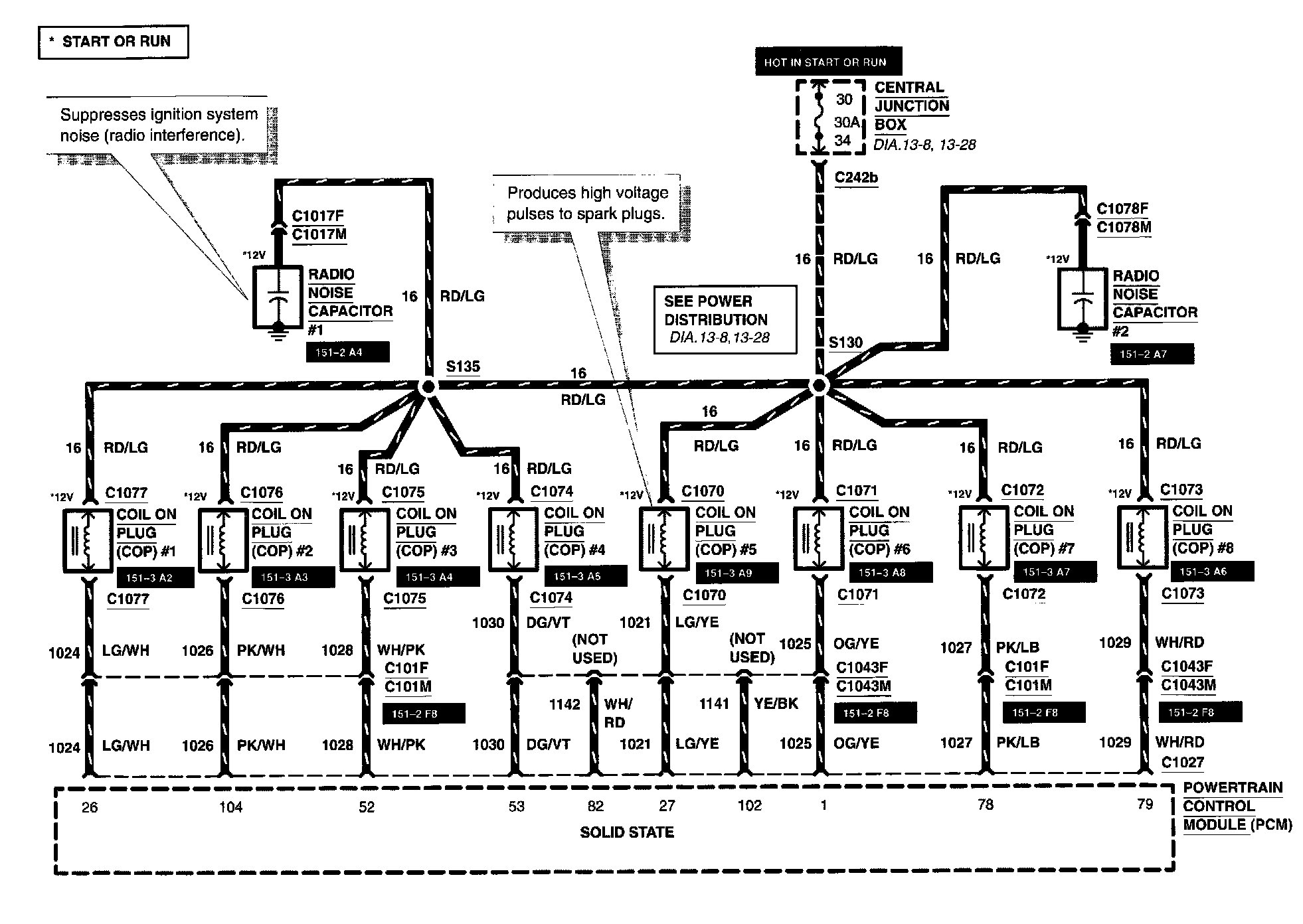

Diagram 24-8:

Central Junction Box
Coil On Plug #1
Coil On Plug #2
Coil On Plug #3
Coil On Plug #4
Coil On Plug #5
Coil On Plug #6
Coil On Plug #7
Coil On Plug #8
Fuse 30
Powertrain Control Module
Radio Noise Capacitor #1
Radio Noise Capacitor #2
