Symptom Chart 7 - AG



AG INTRODUCTION:

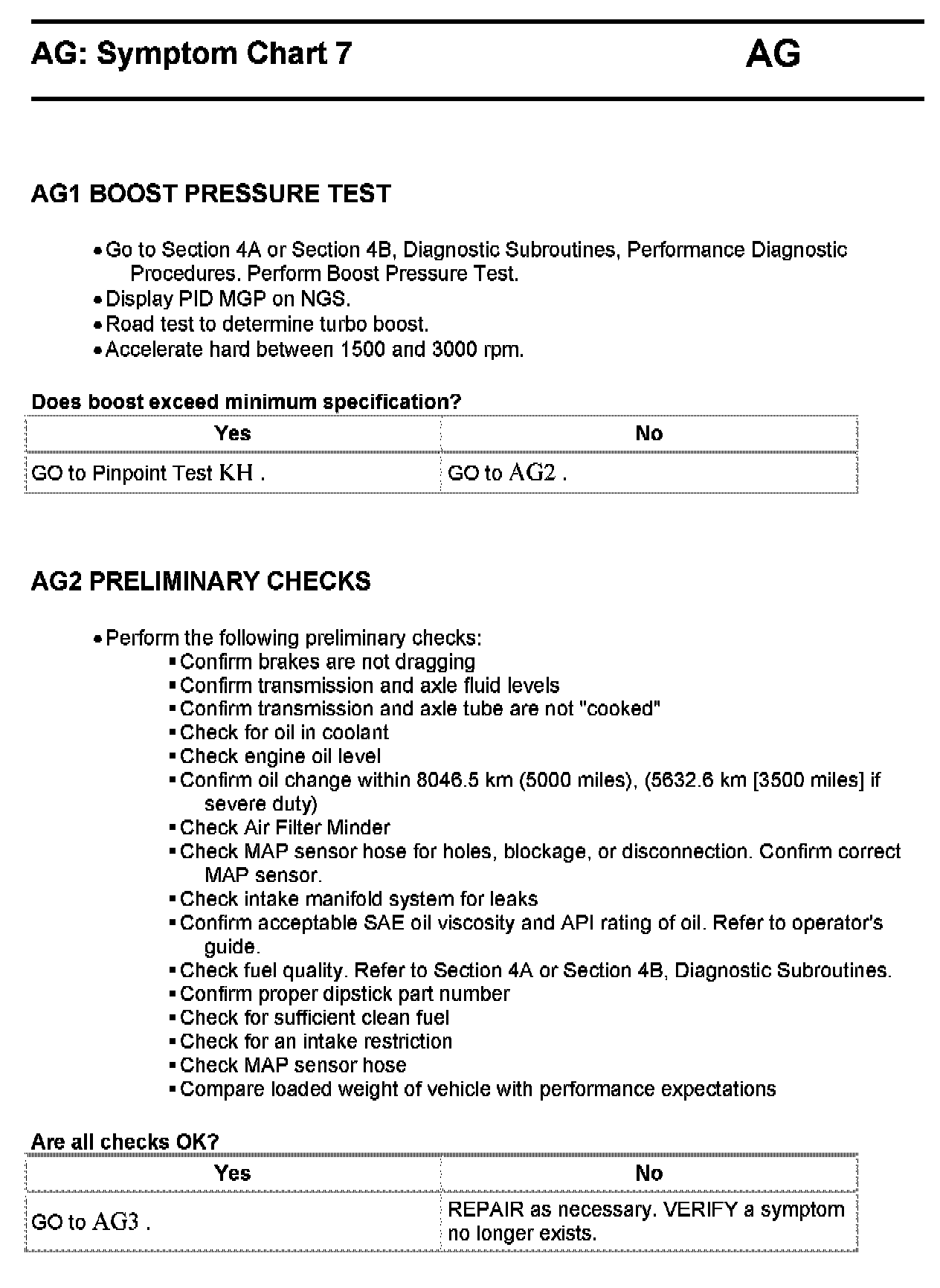

AG1 - AG2:

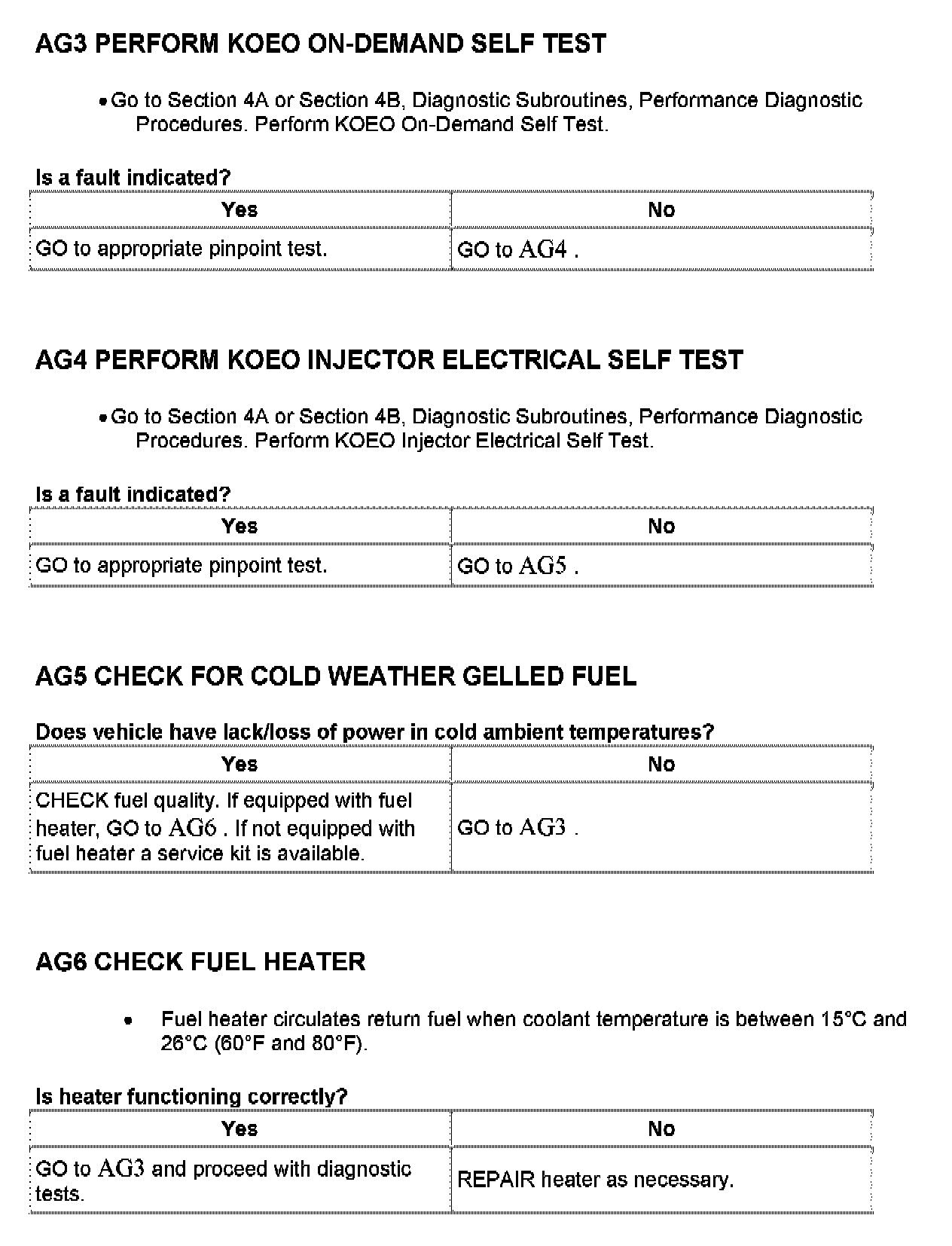

AG3 - AG6:

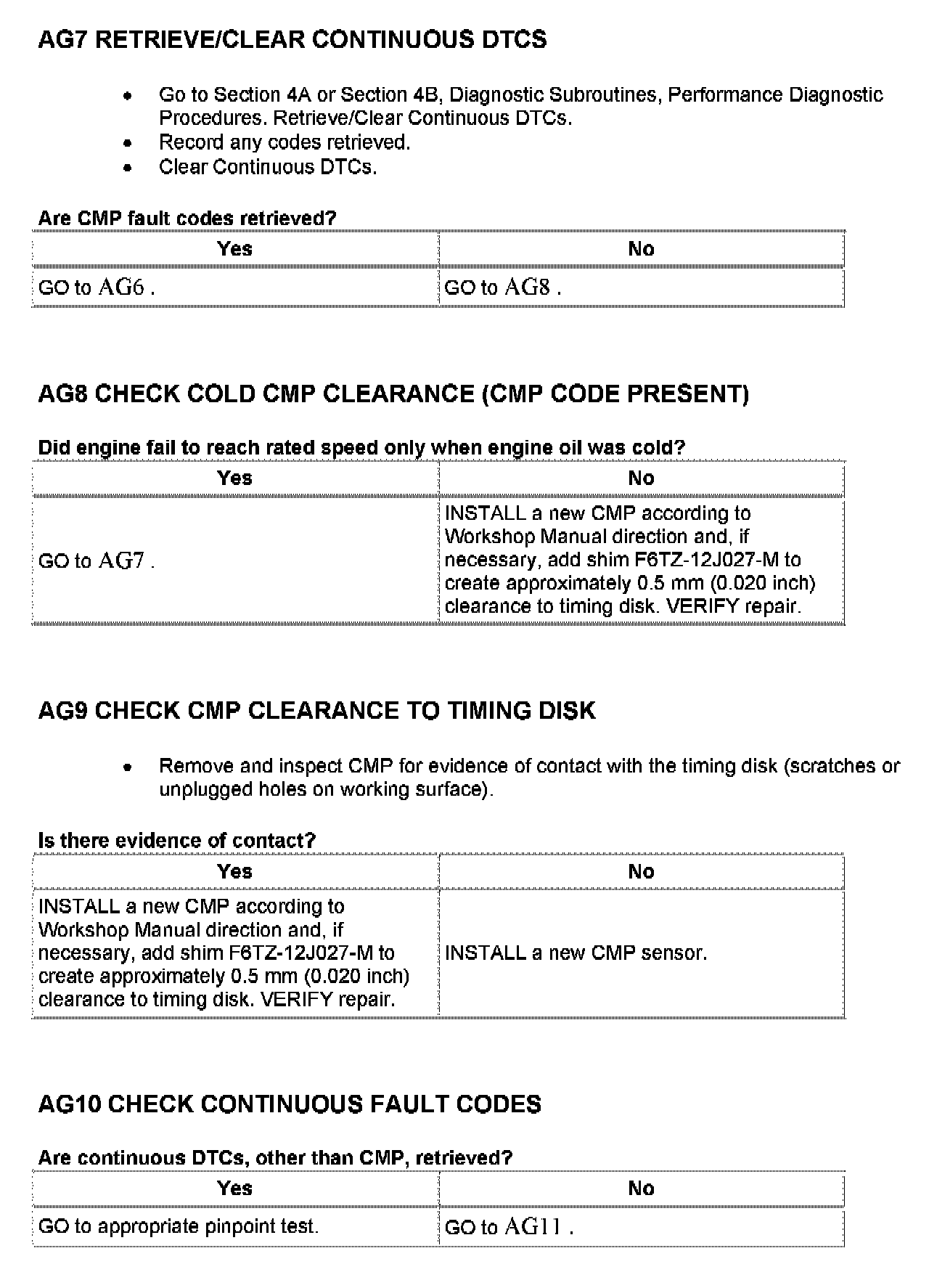

AG7 - AG10:

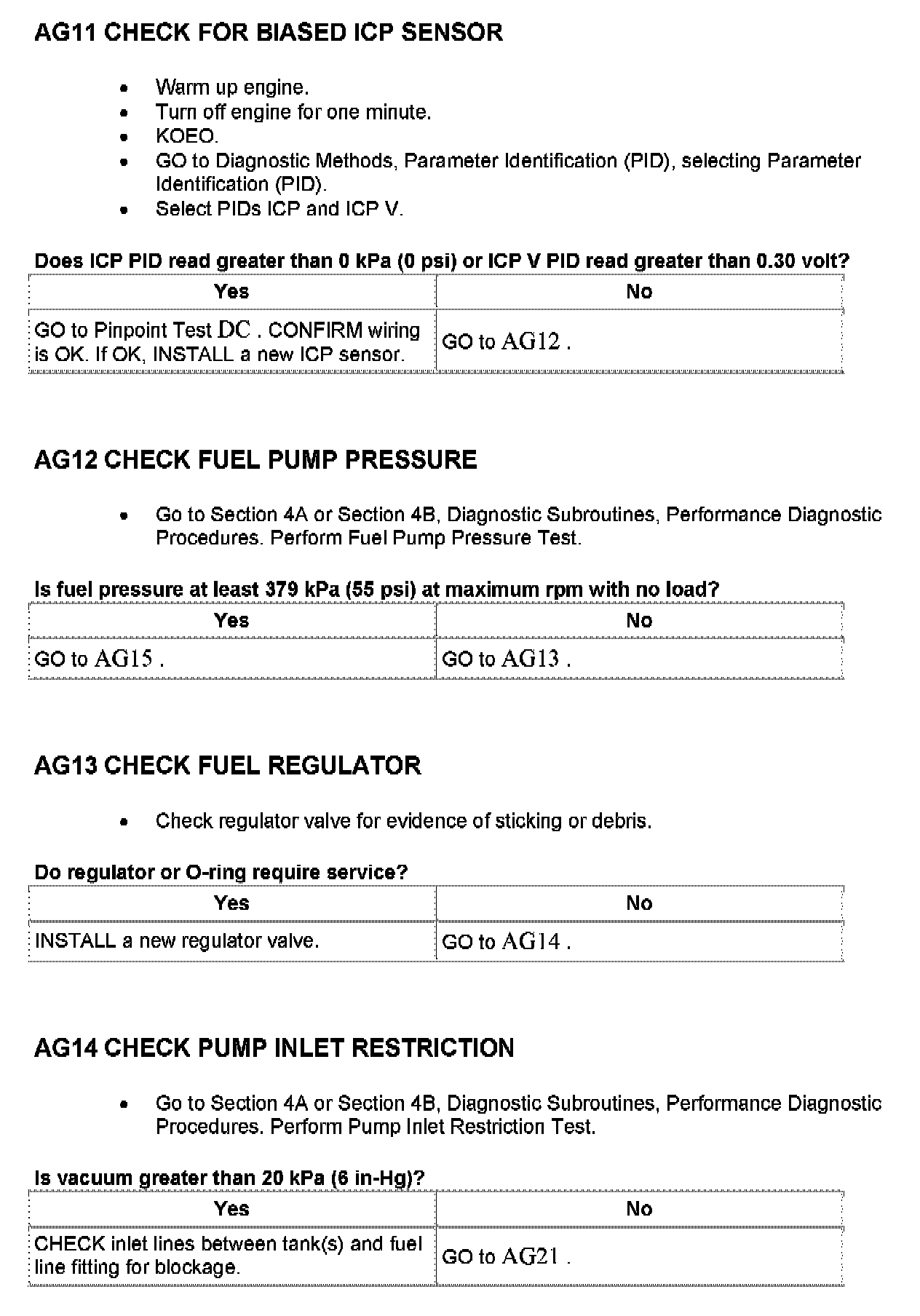

AG11 - AG14:

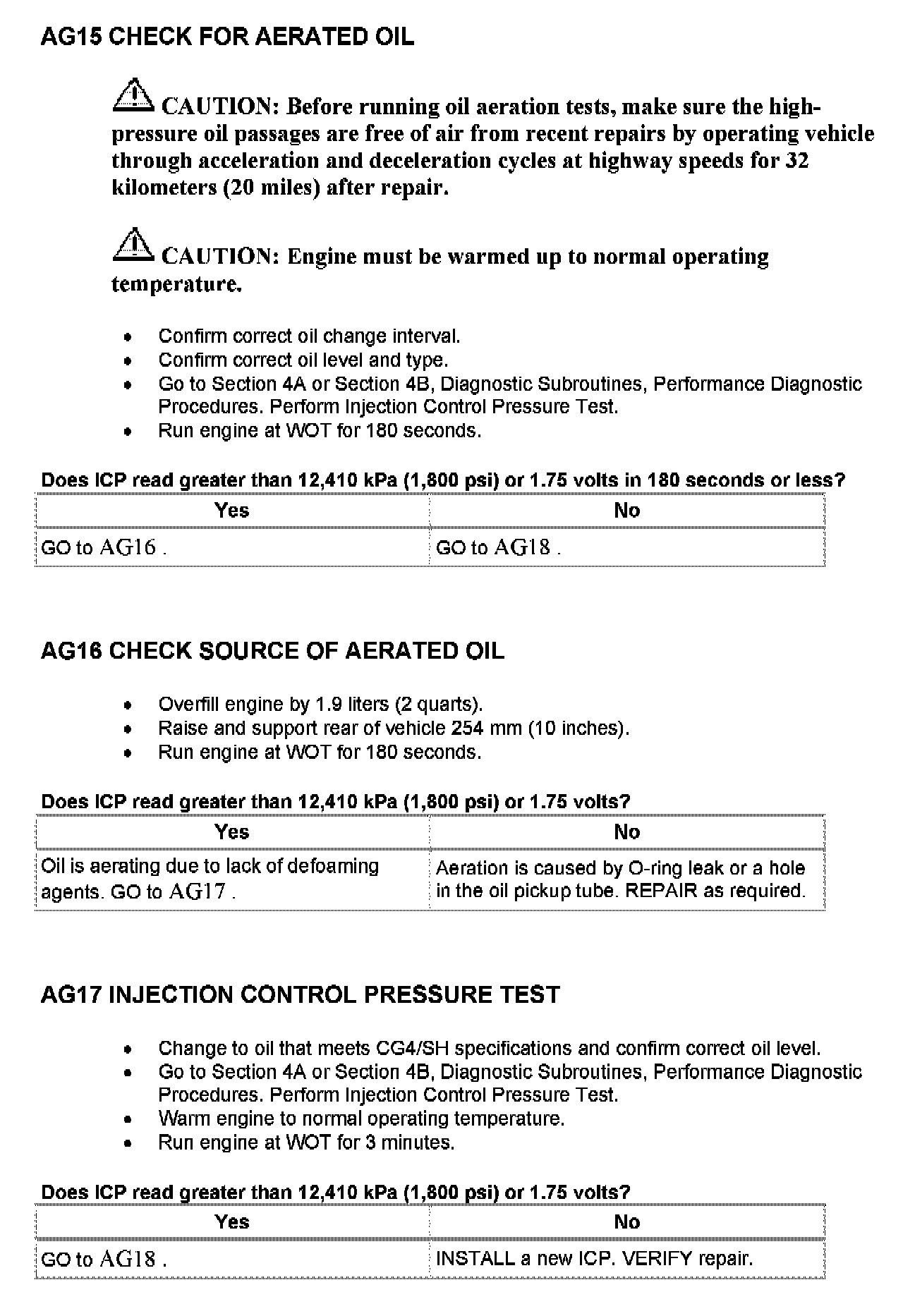

AG15 - AG17:

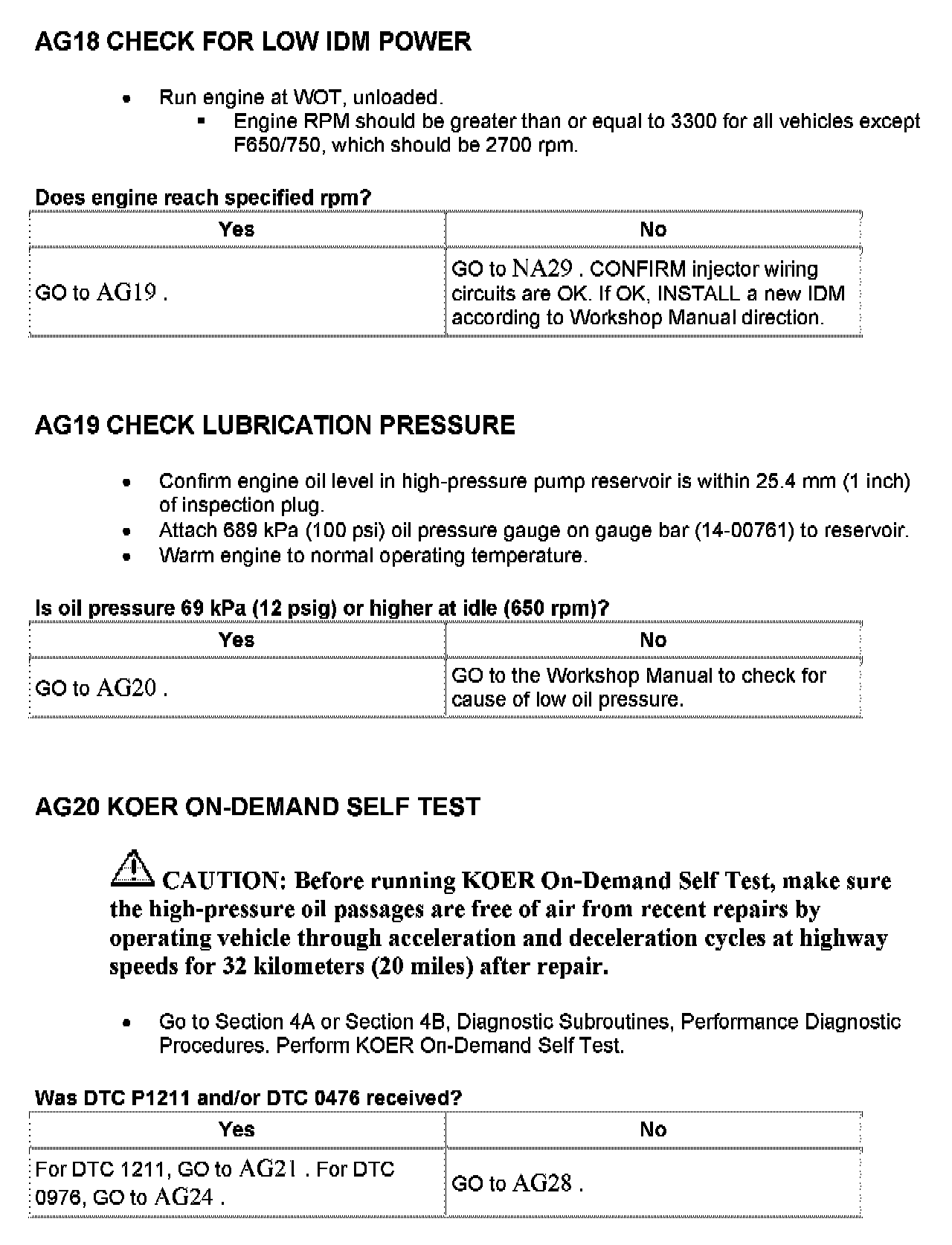

AG18 - AG20:

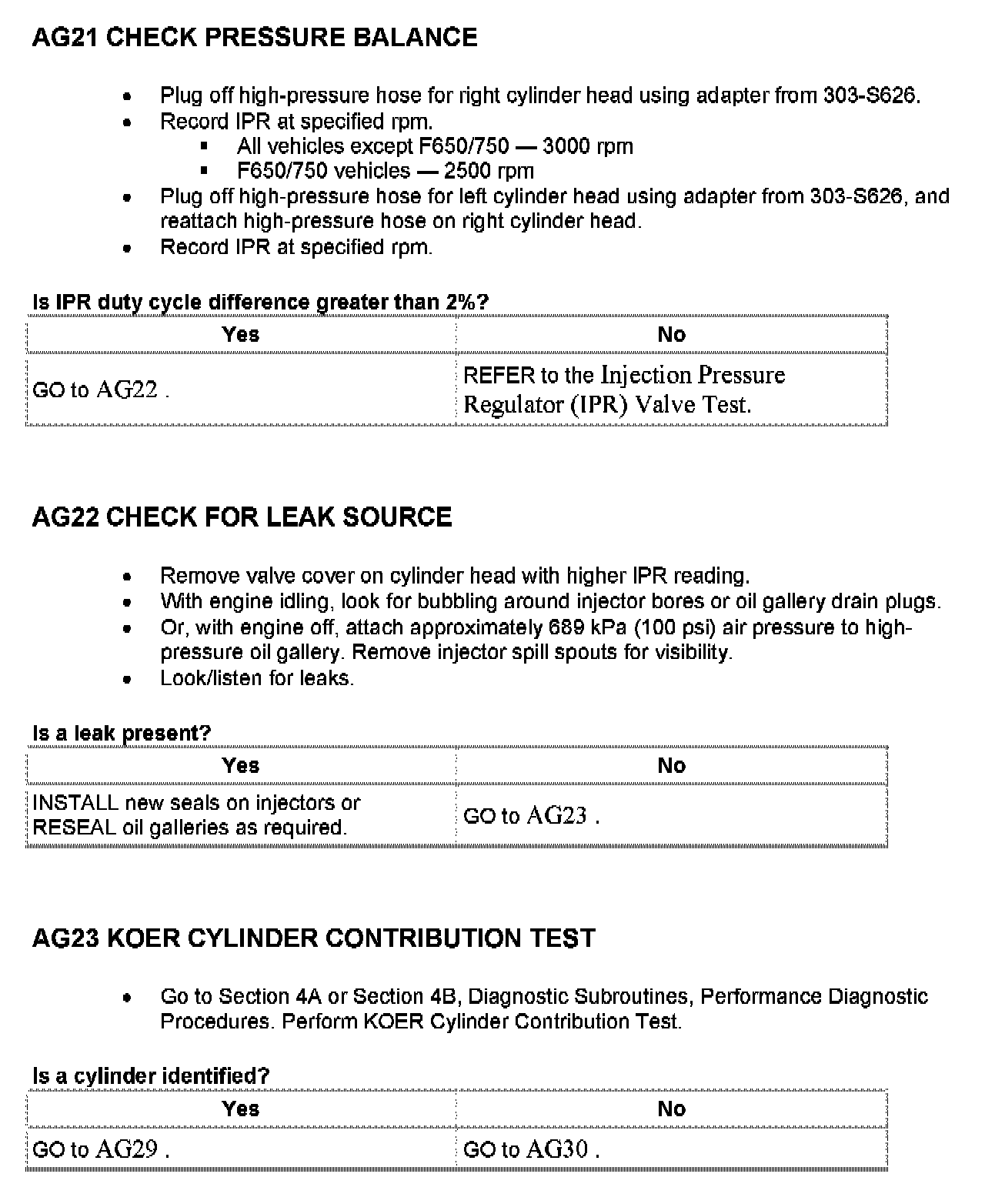

AG21 - AG23:

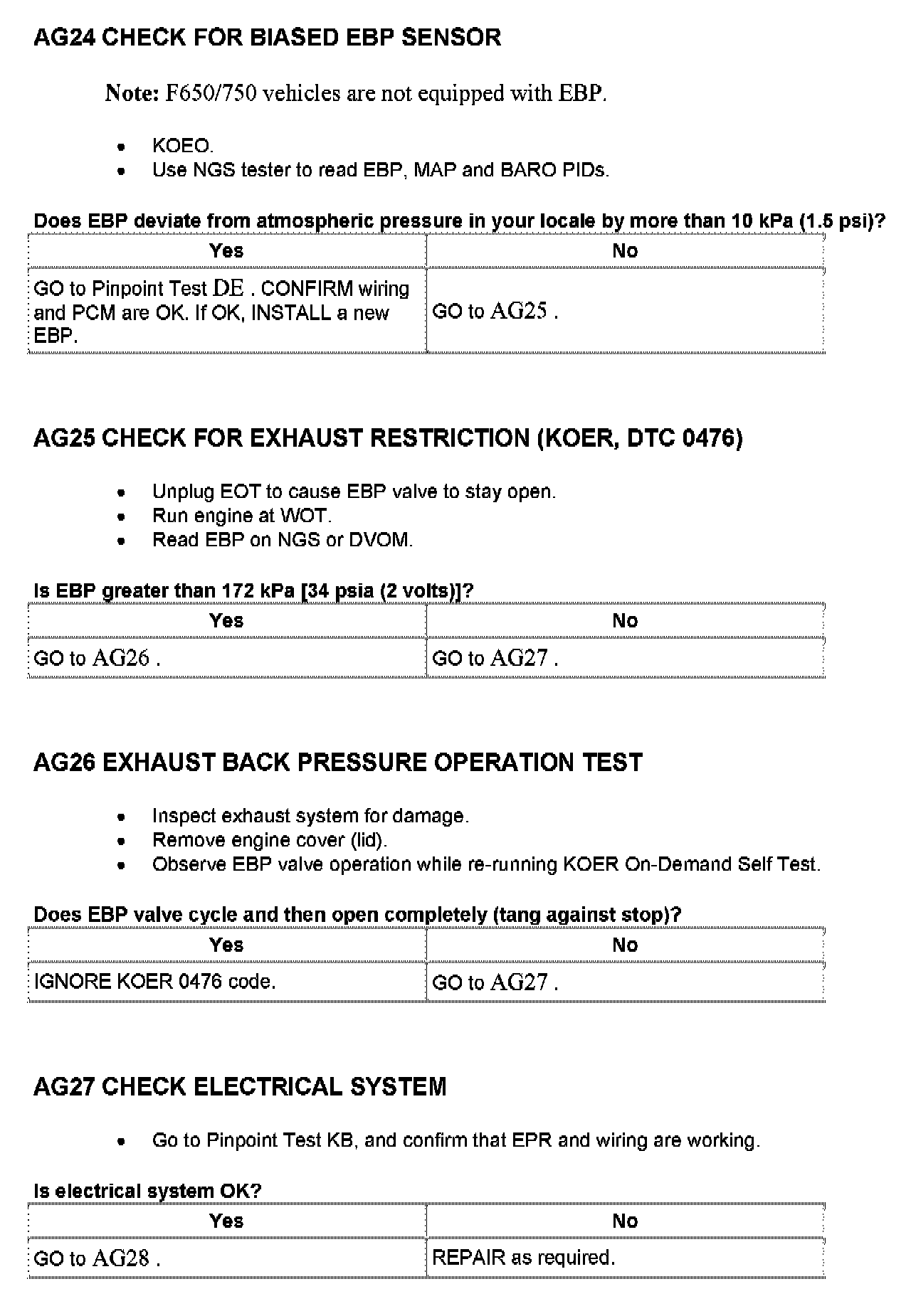

AG24 - AG27:

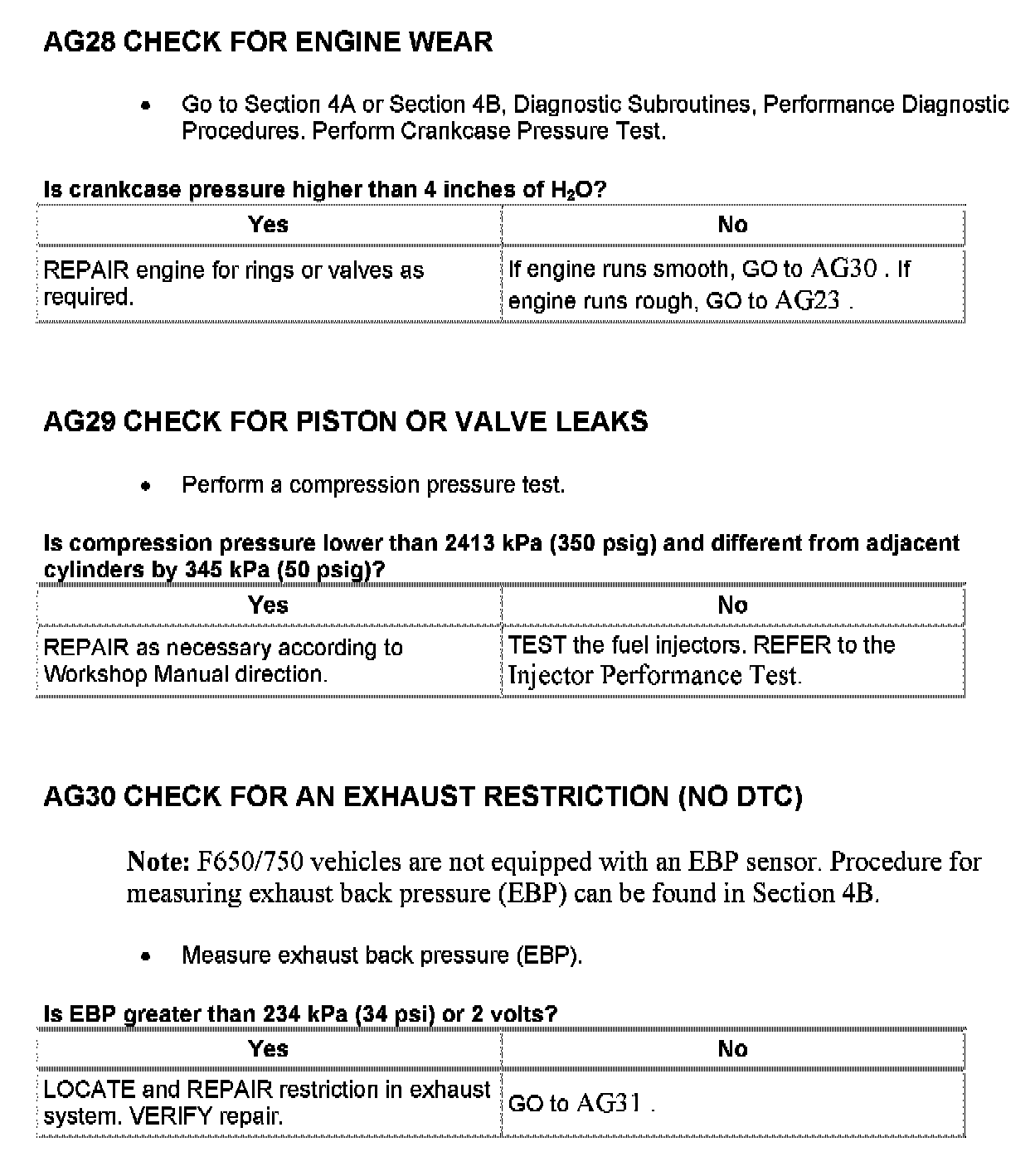

AG28 - AG30:

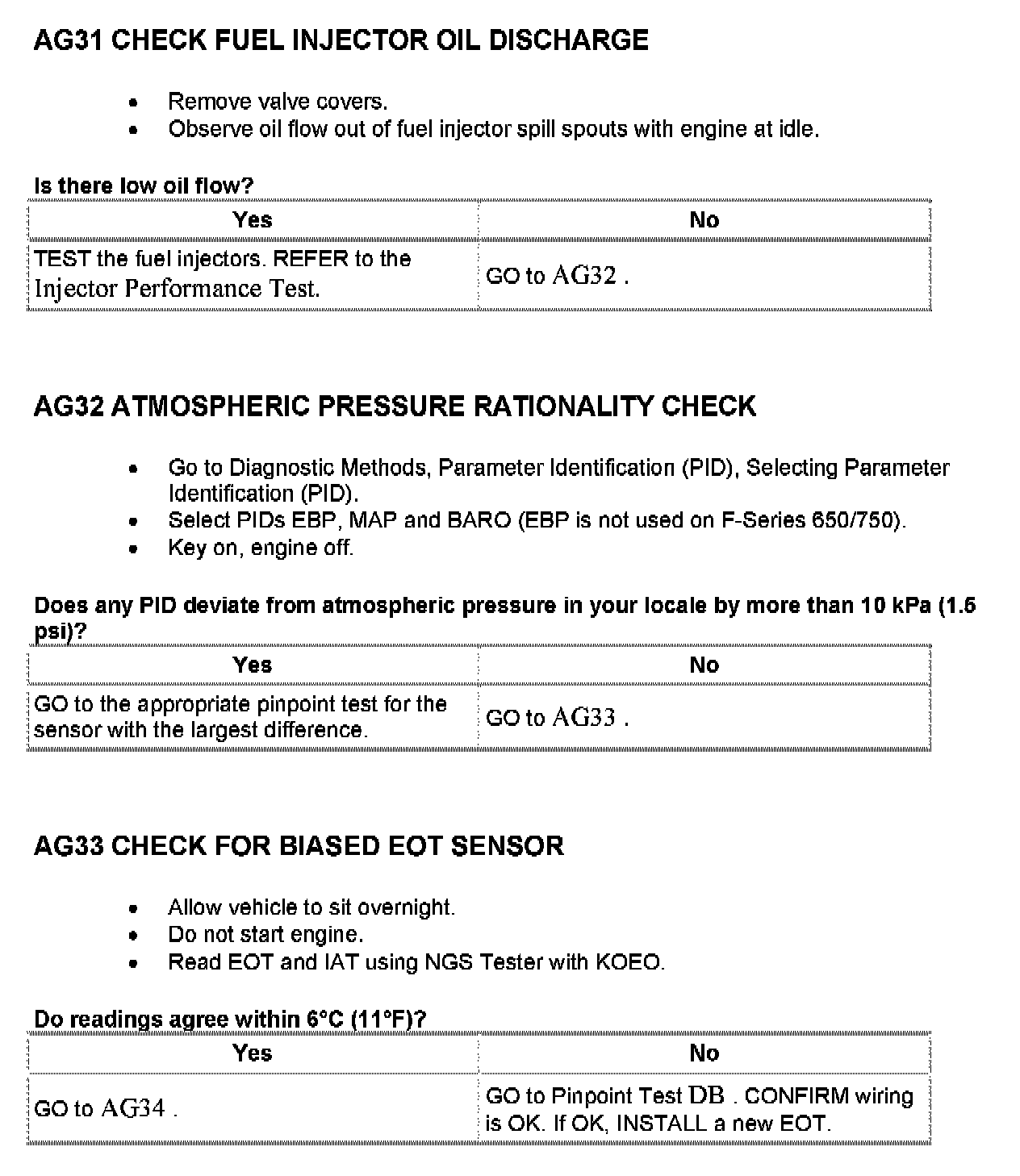

AG31 - AG33:





AG34:
