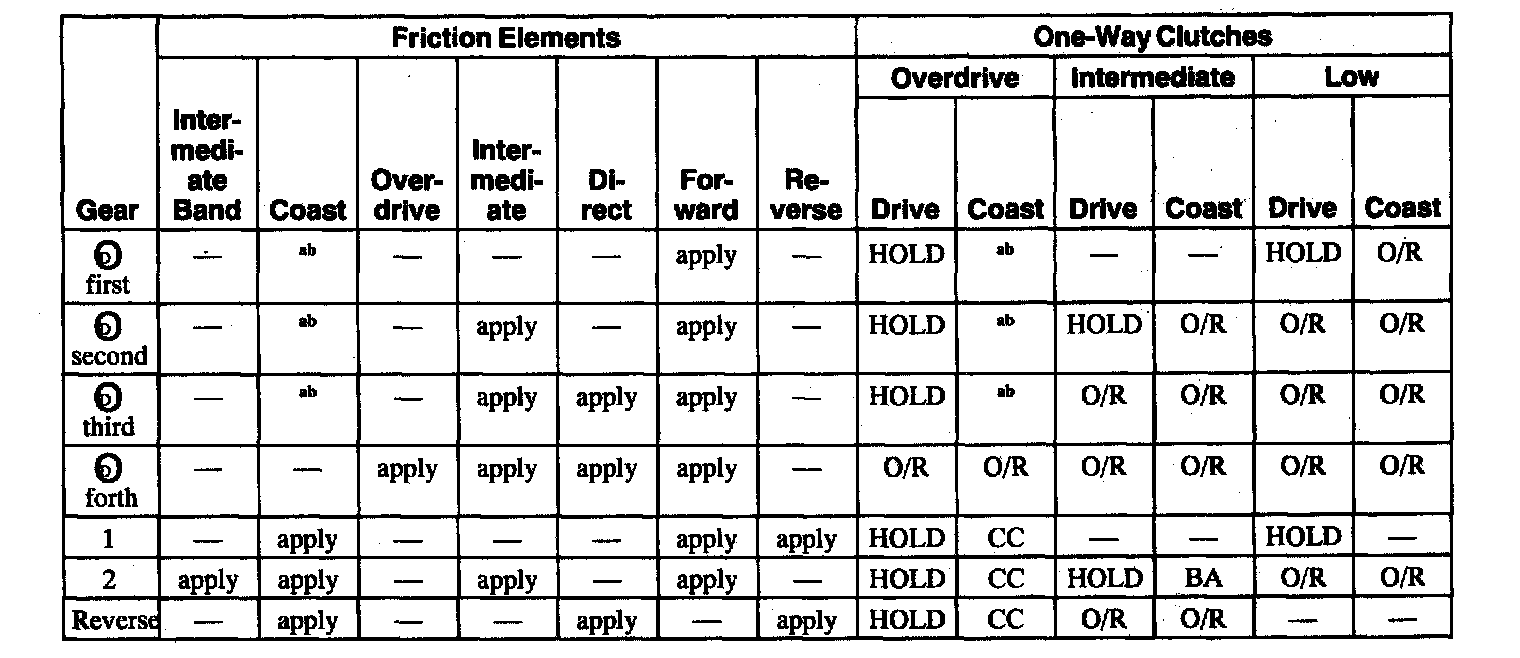

Band/Clutch Application Chart

Band/Clutch Application Chart





a. In (D) range the transmission control switch pressed, the coast clutch is applied and the overdrive one-way clutch is bypassed.
b. On certain applications in (D) range, the coast clutch solenoid and clutch is controlled by the PCM.

O/R-Overrunning
CC-Coast Friction Clutch Applied
BA-Band Applied
