Front Cross-Member: Service and Repair

Transmission Support Crossmember

Removal

1. Raise and support the vehicle.

2. CAUTION: Use a suitable transmission jack to support the transmission

Remove the nuts and bolts.

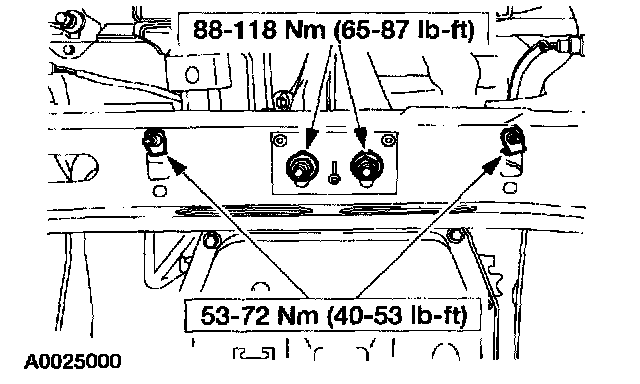

1. Remove the transmission mounting nuts.
2. Remove the heat shield-to-transmission support crossmember bolts.

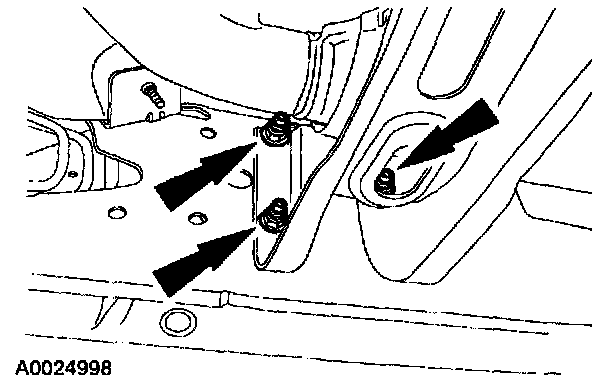

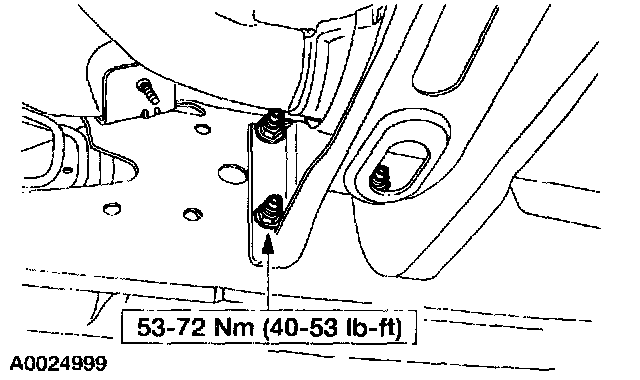

3. Remove the six transmission support crossmember nuts (three per side).

Installation

1. Follow the removal procedure in reverse order.
