Pinpoint Test Notes

PINPOINT TESTS - AIR BAG AND SAFETY BELT PRETENSIONER SUPPLEMENTAL RESTRAINTS SYSTEM (SRS)

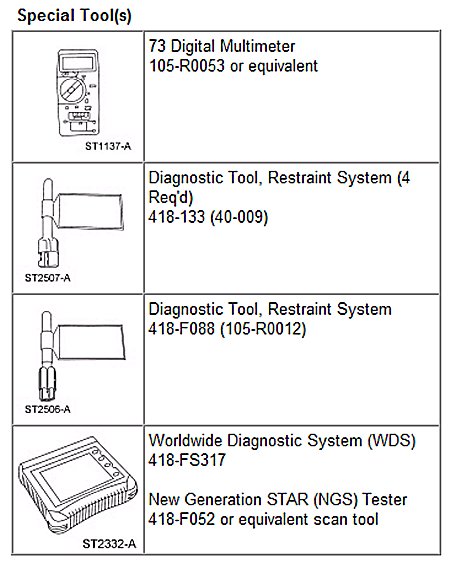

Special Tool(s)

Special Tool(s):

Do not perform any pinpoint test unless directed by the symptom chart.

Restraint System Diagnostic Tool Warning

WARNING: This tool is for restraint system service only. Remove from vehicle prior to road use. Failure to remove could result in injury and possible violation of vehicle safety standards.
