Automatic Transmission

DETAILED DIAGRAMS

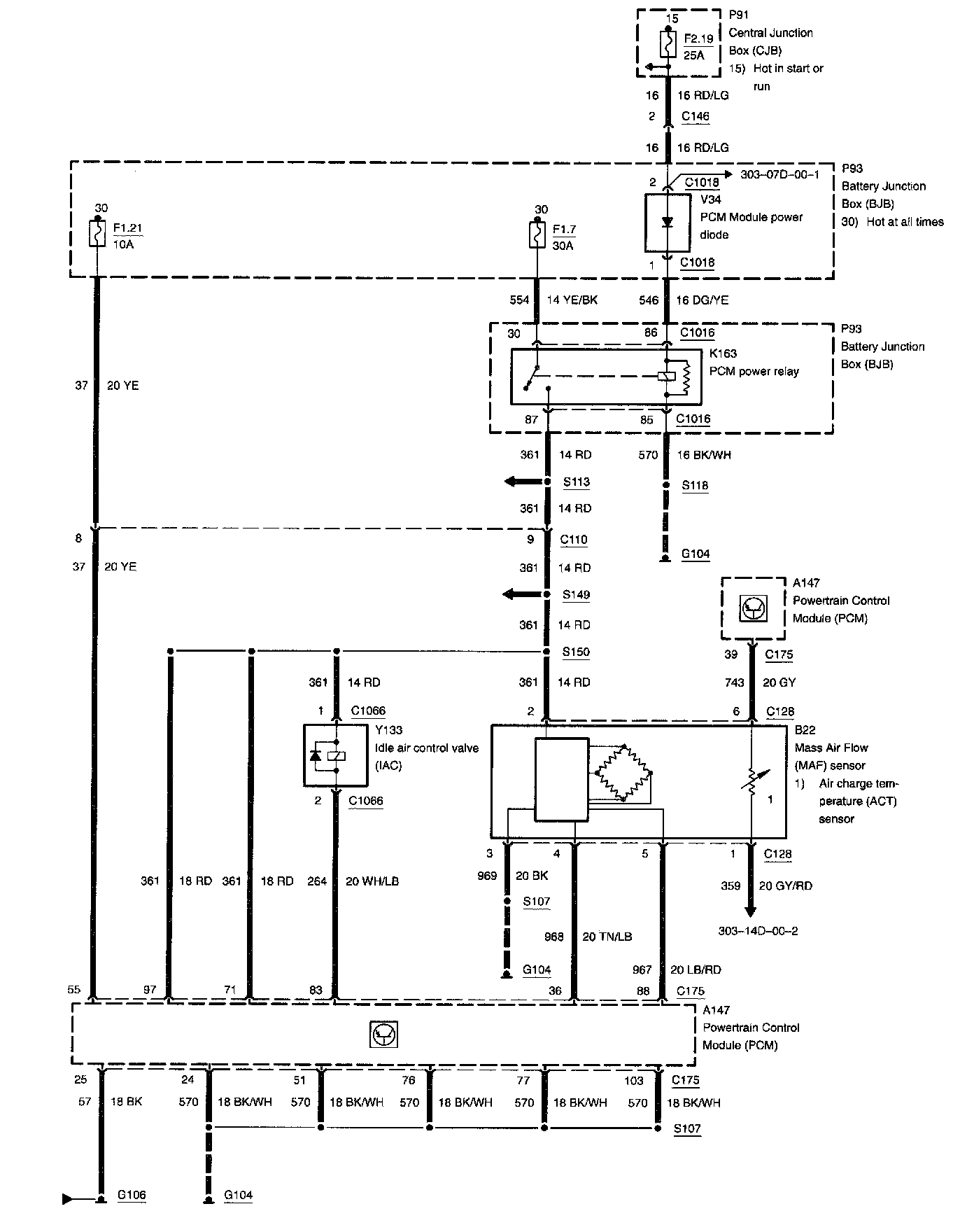

Diagram 303-14d-00-1:







Air Charge Temperature Sensor
Battery Junction Box
Central Junction Box
Idle Air Control Valve
Mass Air Flow Sensor
Powertrain Control Module Power Diode
Powertrain Control Module Power Relay
Powertrain Control Module

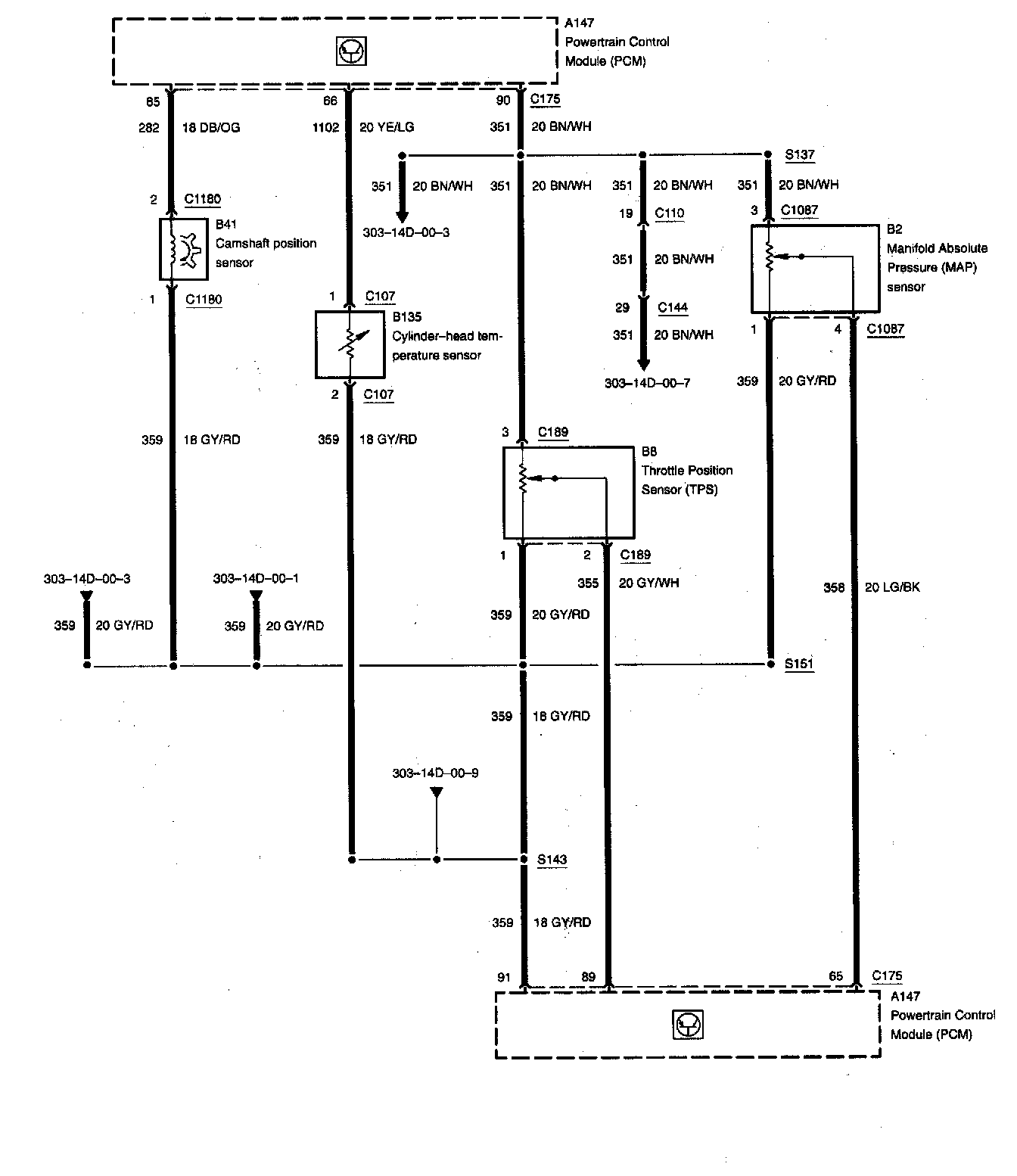

Diagram 303-14d-00-2:







Camshaft Position Sensor
Cylinder Head Temperature Sensor
Manifold Absolute Pressure Sensor
Powertrain Control Module
Throttle Position Sensor

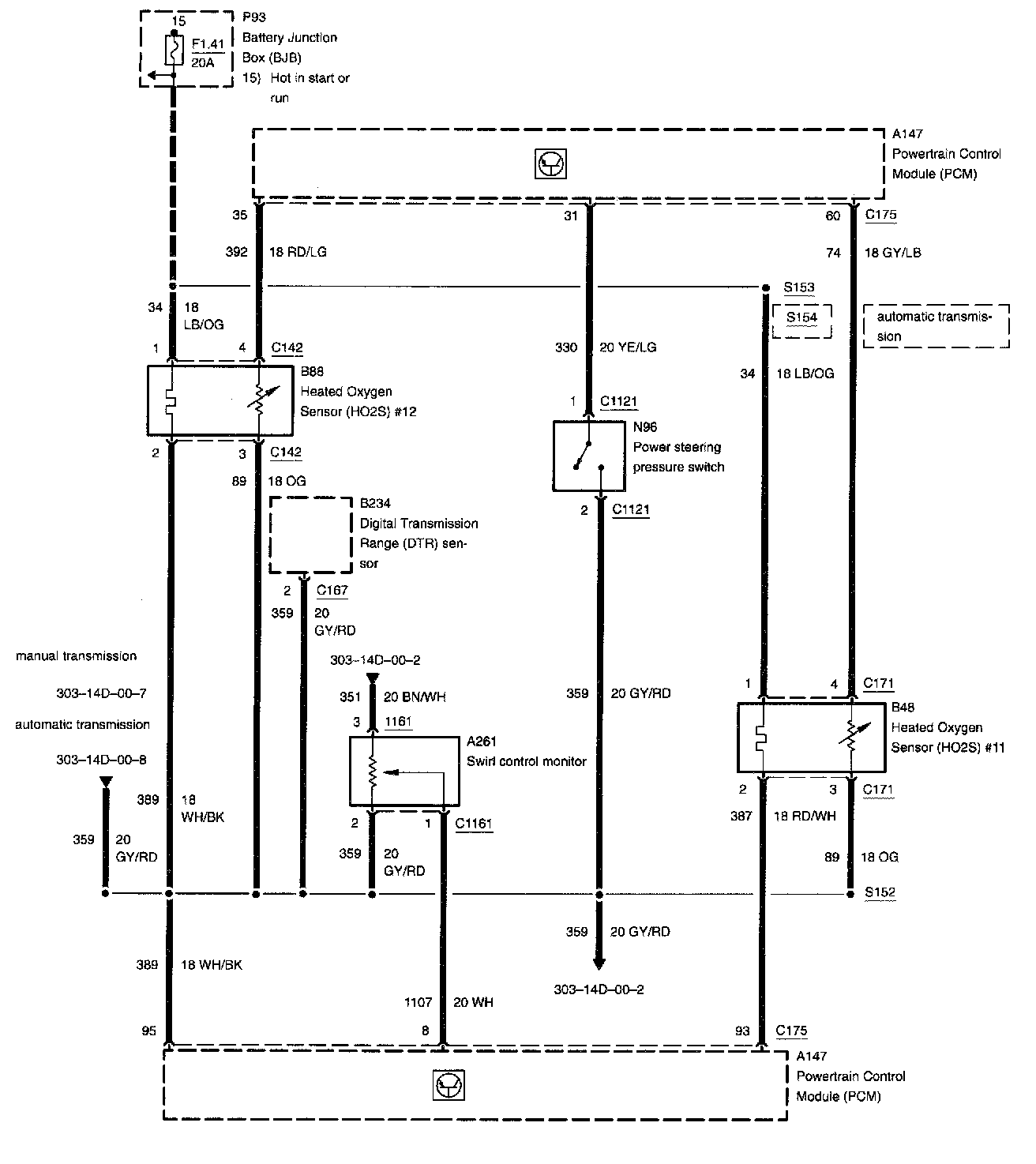

Diagram 303-14d-00-3:







Battery Junction Box
Digital Transmission Range Sensor
Heated Oxygen Sensor #11
Heated Oxygen Sensor #12
Power Steering Pressure Switch
Powertrain Control Module
Swirl Control Monitor

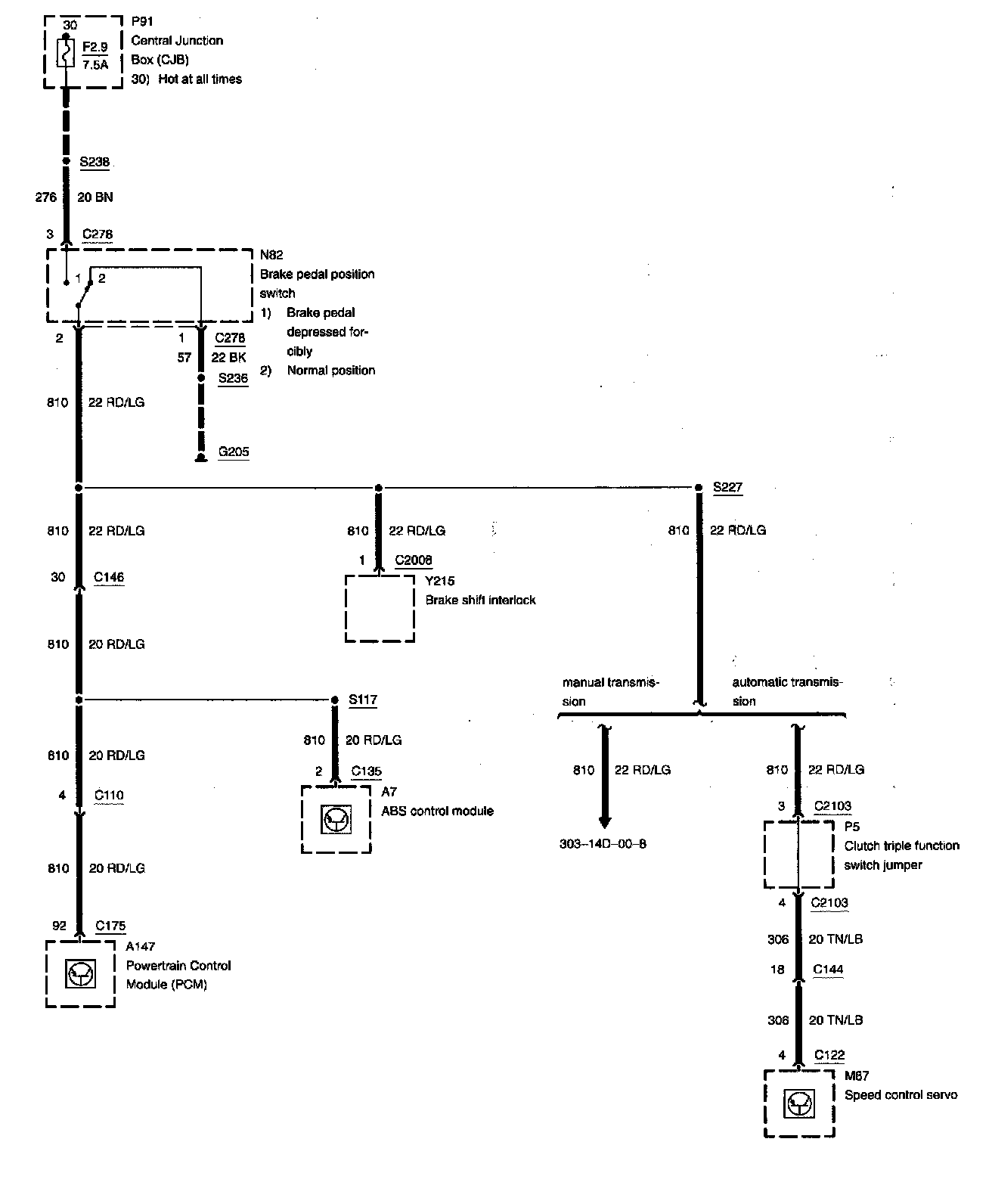

Diagram 303-14d-00-4:







Anti-Lock Brake System Control Module
Brake Pedal Position Switch
Brake Shift Interlock
Central Junction Box
Clutch Triple Function Switch Jumper
Powertrain Control Module
Speed Control Servo

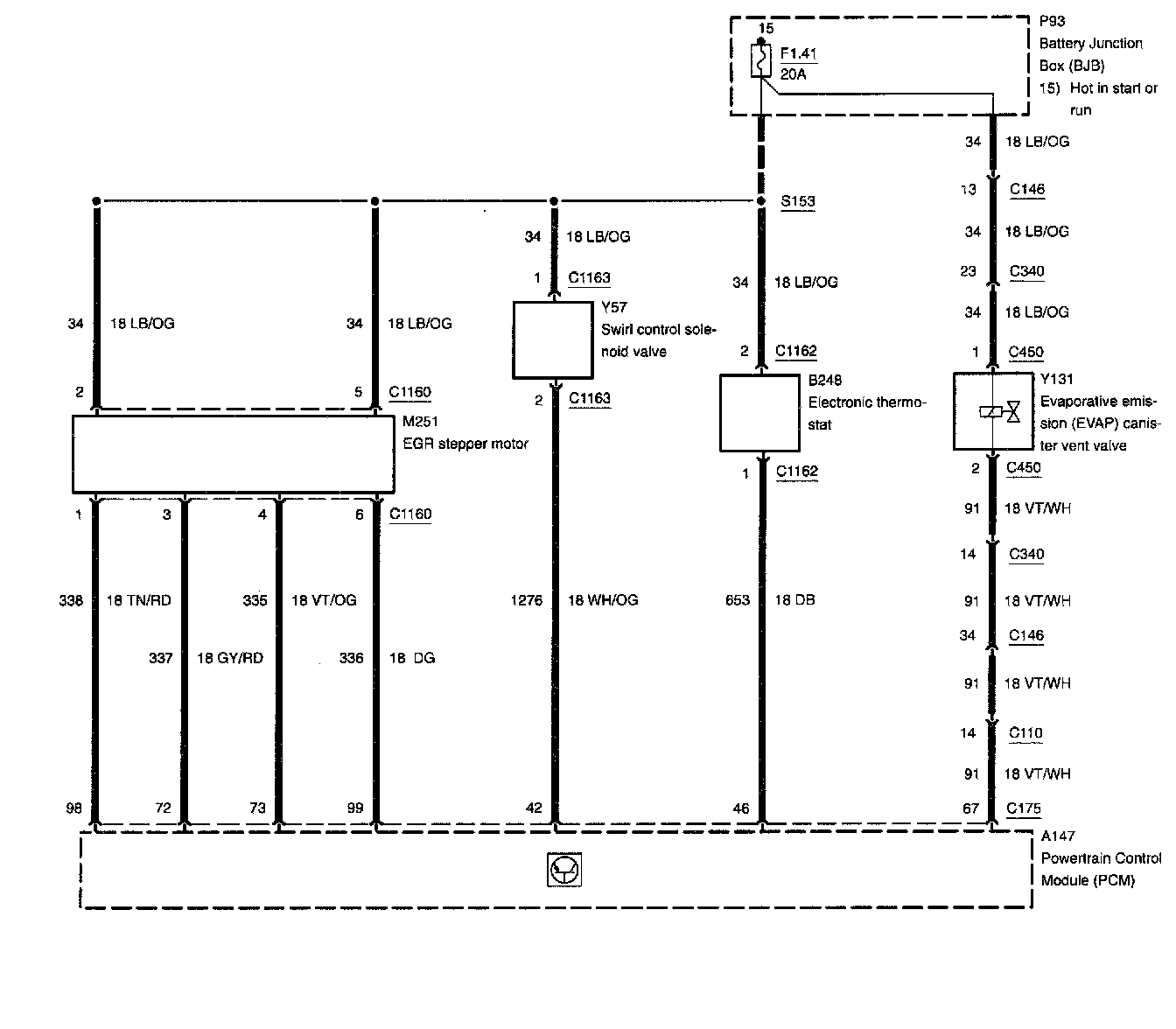

Diagram 303-14d-00-5:







Battery Junction Box
EGR Stepper Motor
Electronic Thermostat
Evaporative Emission Canister Vent Valve
Powertrain Control Module
Swirl Control Solenoid Valve

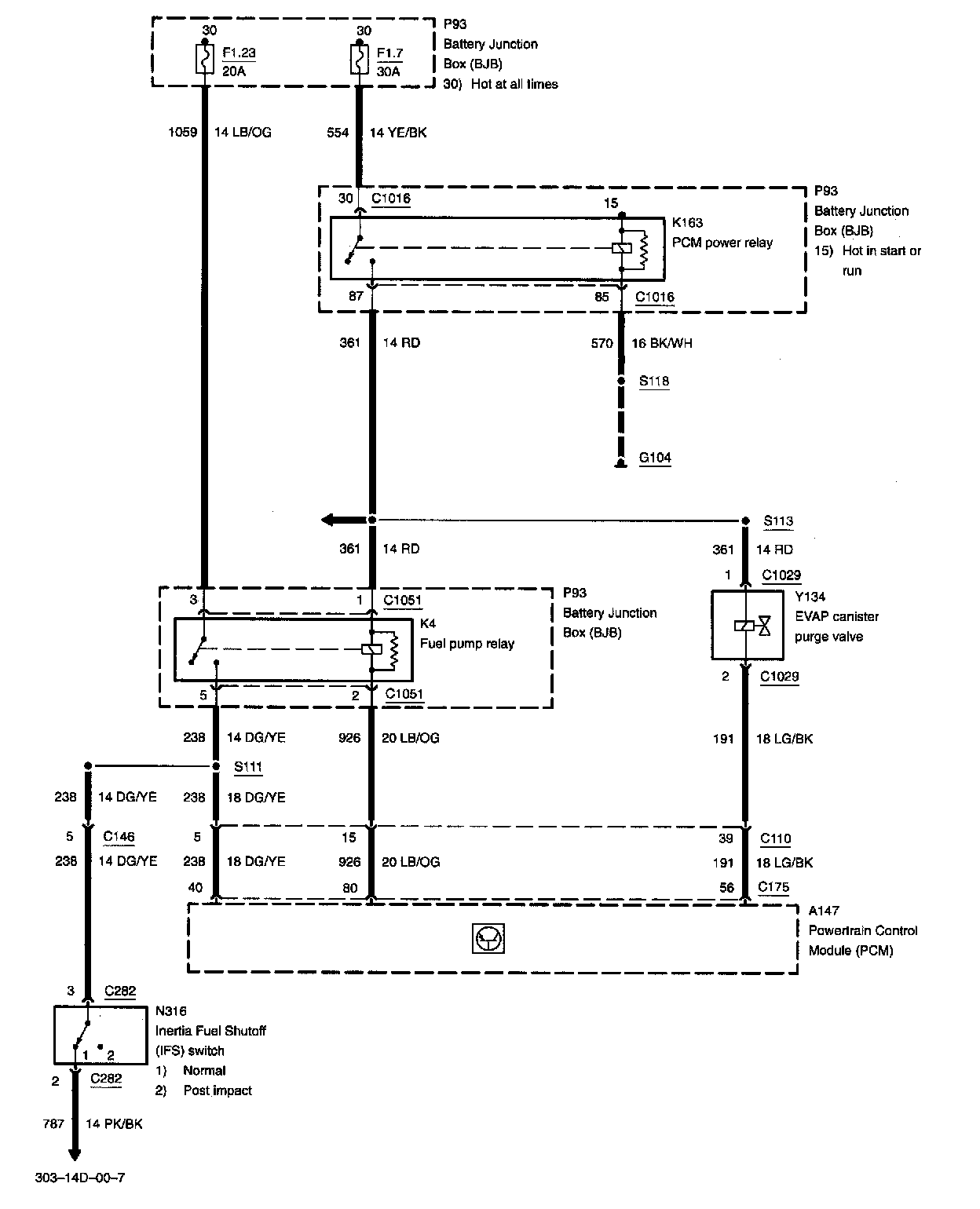

Diagram 303-14d-00-6:







Battery Junction Box
EVAP Canister Purge Valve
Fuel Pump Relay
Inertia Fuel Shutoff Switch
Powertrain Control Module Power Relay
Powertrain Control Module

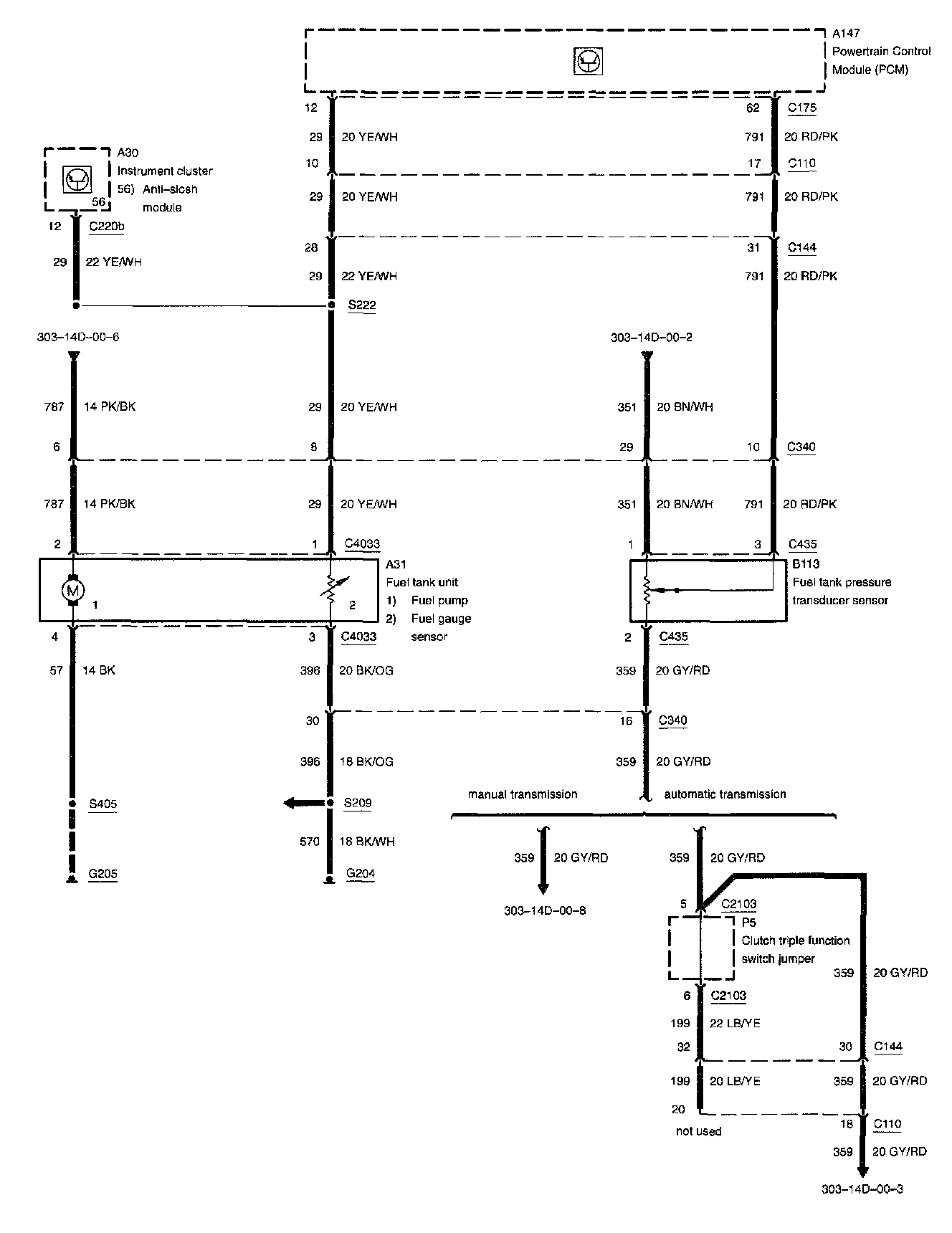

Diagram 303-14d-00-7:







Clutch Triple Function Switch Jumper
Fuel Gauge Sensor
Fuel Pump
Fuel Tank Pressure Transducer Sensor
Fuel Tank Unit
Instrument Cluster
Powertrain Control Module



Diagram 303-14d-00-9:







5R44E Transmission
Intermediate Shaft Speed Sensor
Output Shaft Speed Sensor
Powertrain Control Module
