Test Y: No Communication With the Restraints Control Module

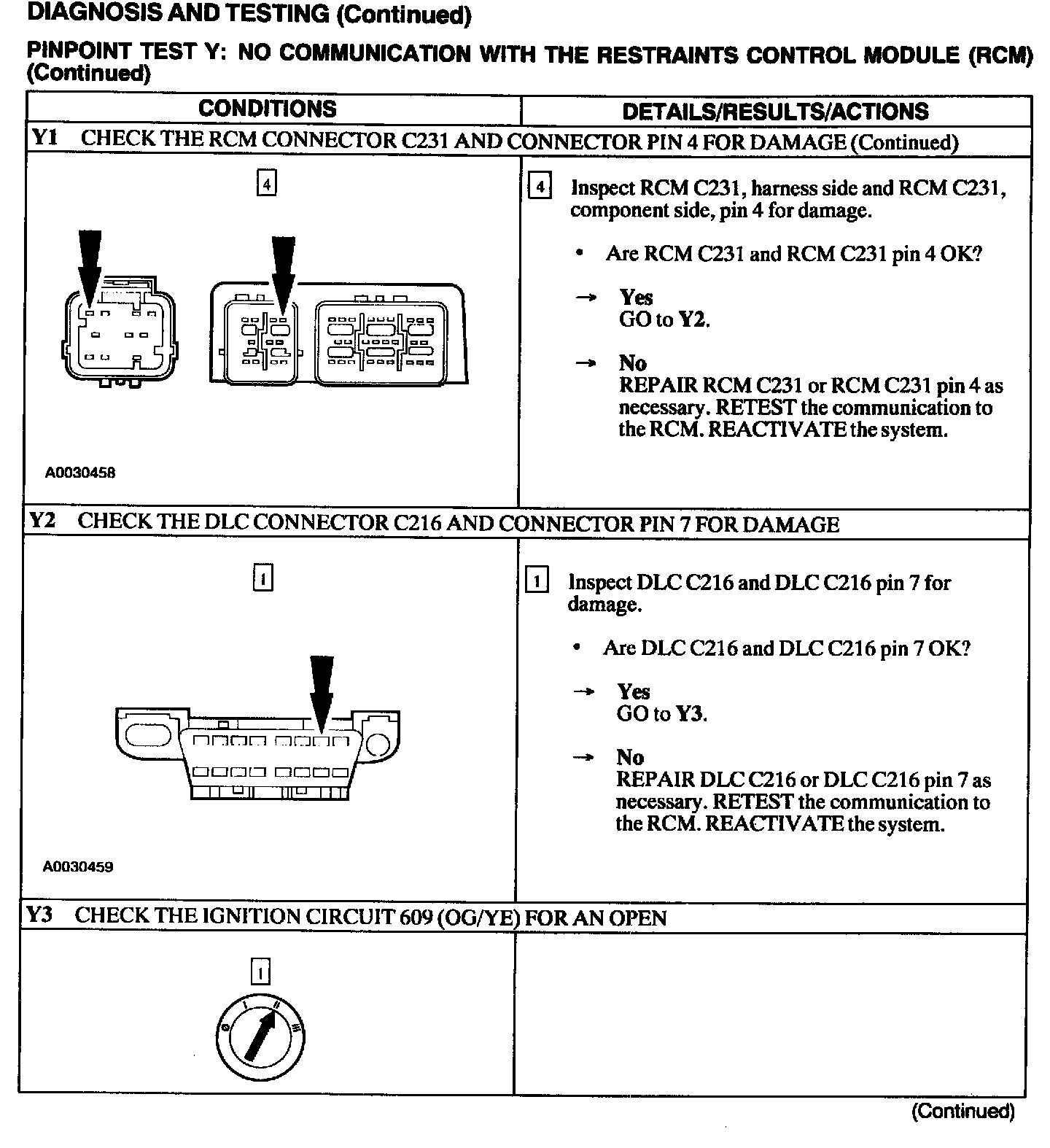

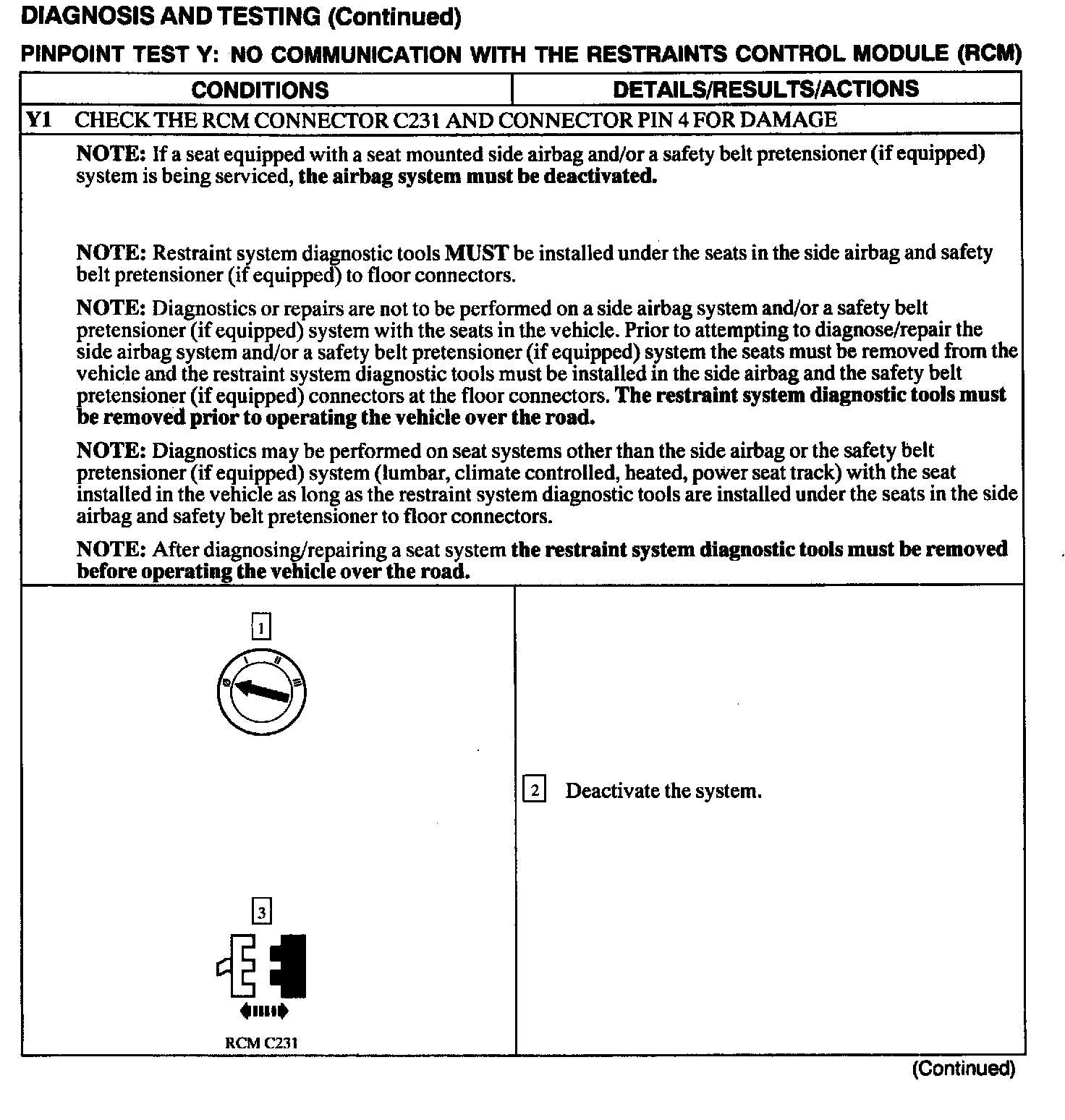

Y1:
Y1 - Y3:

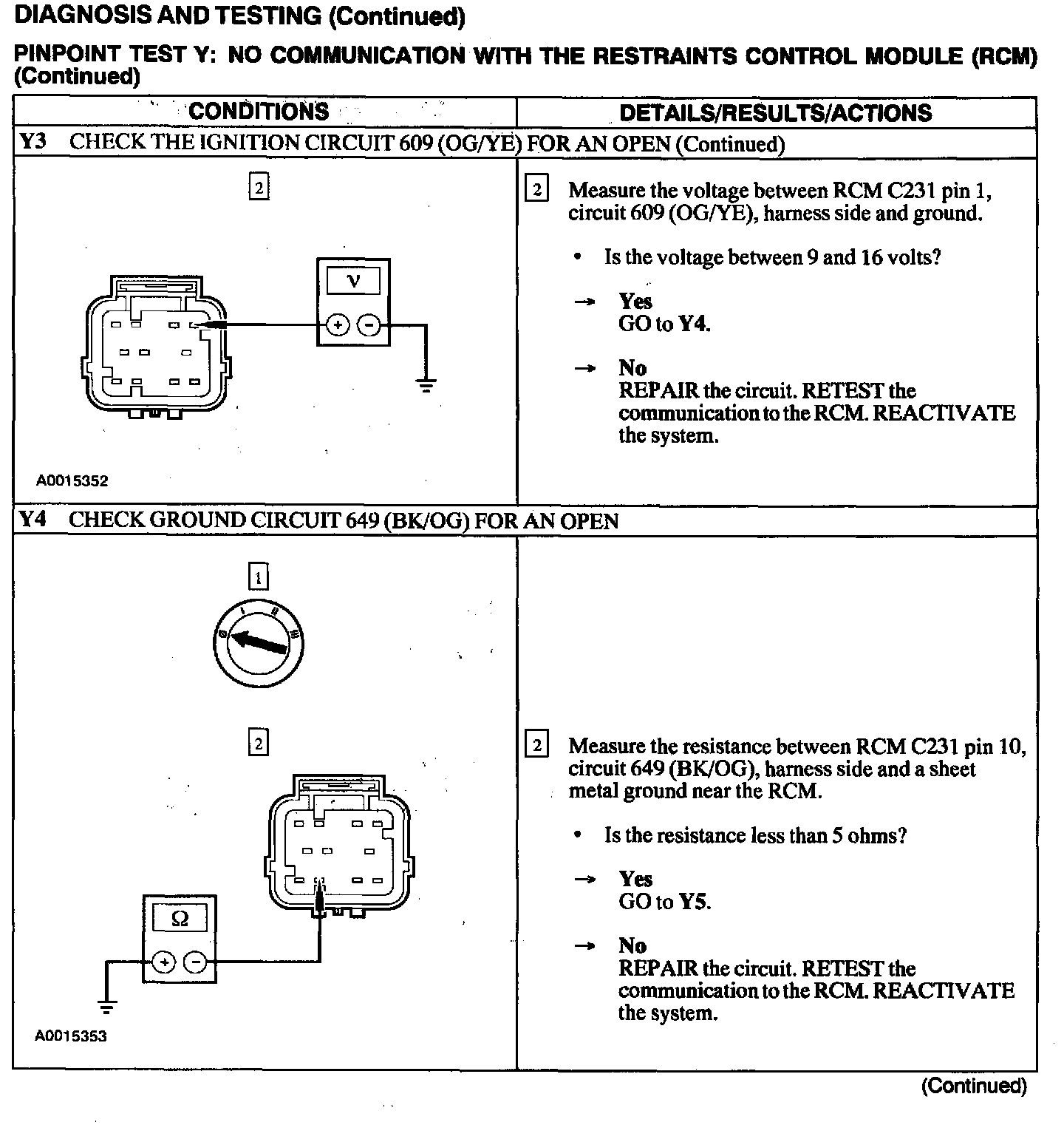

Y3 - Y4:

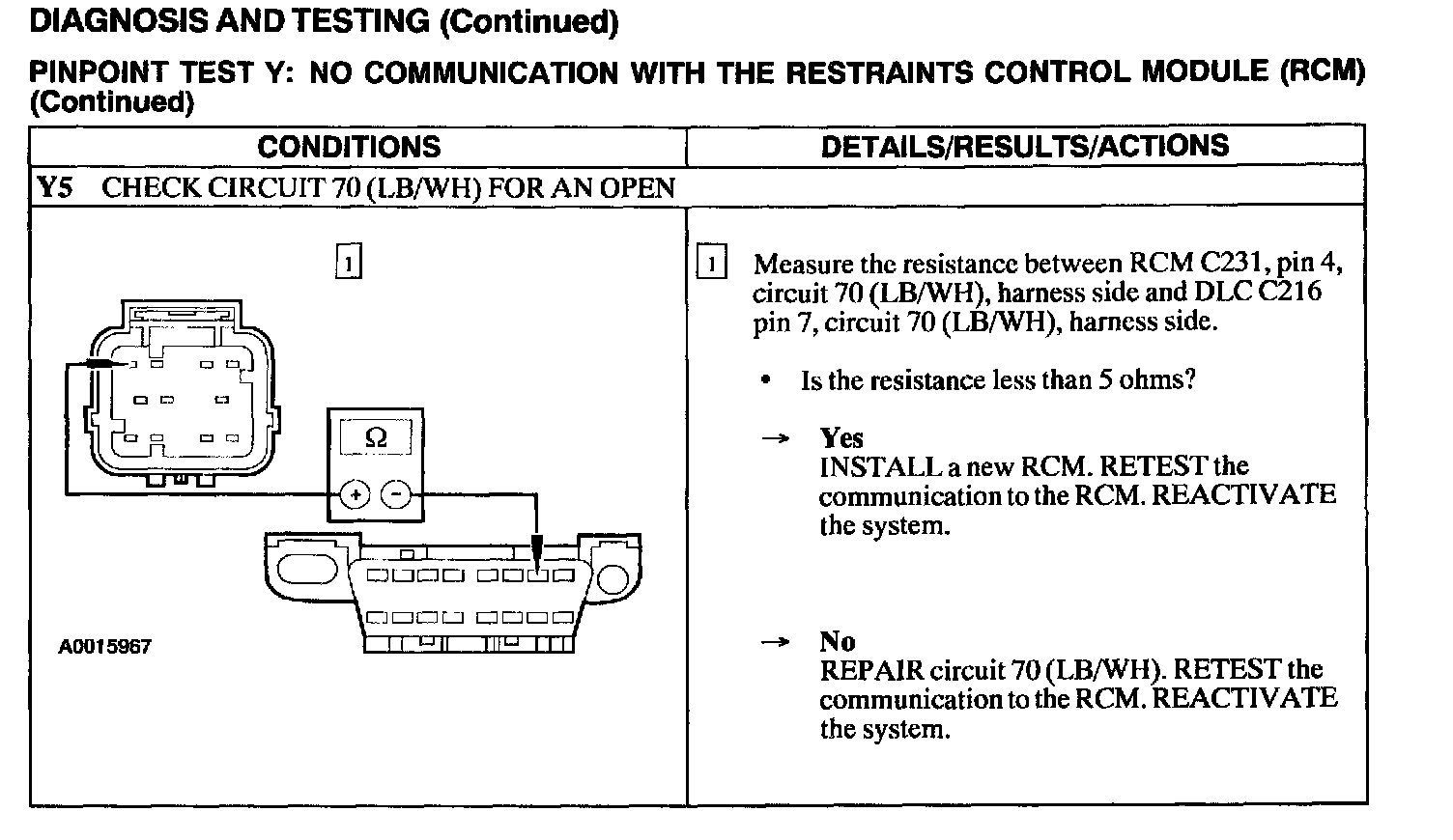

Y5:
Normal Operation The scan tool communicates with the
Restraints Control Module (RCM) monitors through the data link connector pin 7, 70 (LB/WH).
Possible Causes A no communication with the
RCM fault can be caused by:
^
Wiring, terminals, or connectors.
^
A faulty Data Link Connector
(DLC).
^
A faulty
RCM.
