EGR Tube: Service and Repair
REMOVAL 1.
Remove the engine cover.
2.

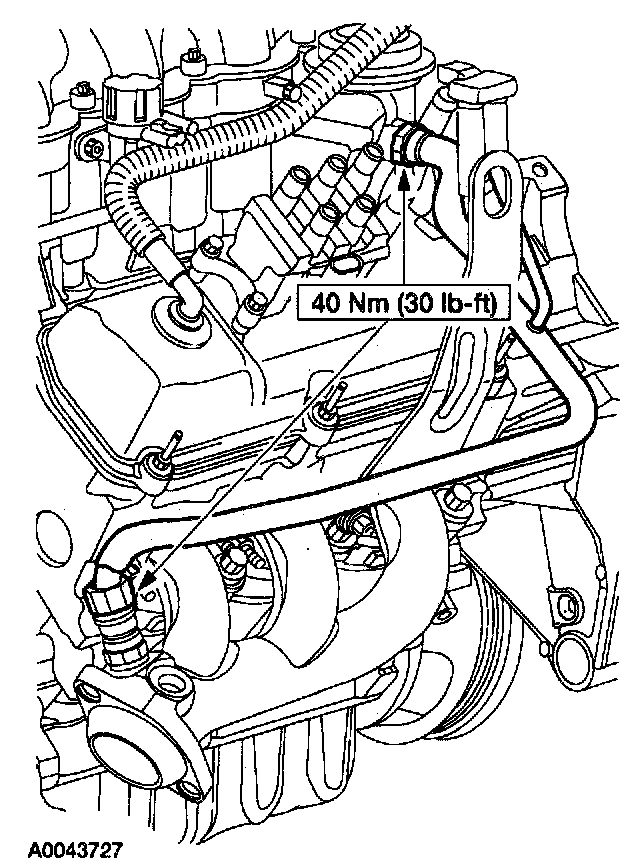

Remove the
Exhaust Gas Recirculation (EGR) valve tube.
^
Disconnect and remove the differential pressure feedback sensor.
^
Disconnect the EGR valve tube fittings.
^
Remove the EGR valve tube.
INSTALLATION 1.
To install, reverse the removal procedure.
