System Specifications

Rear Drive Axle/Differential - Dana 60 and 70

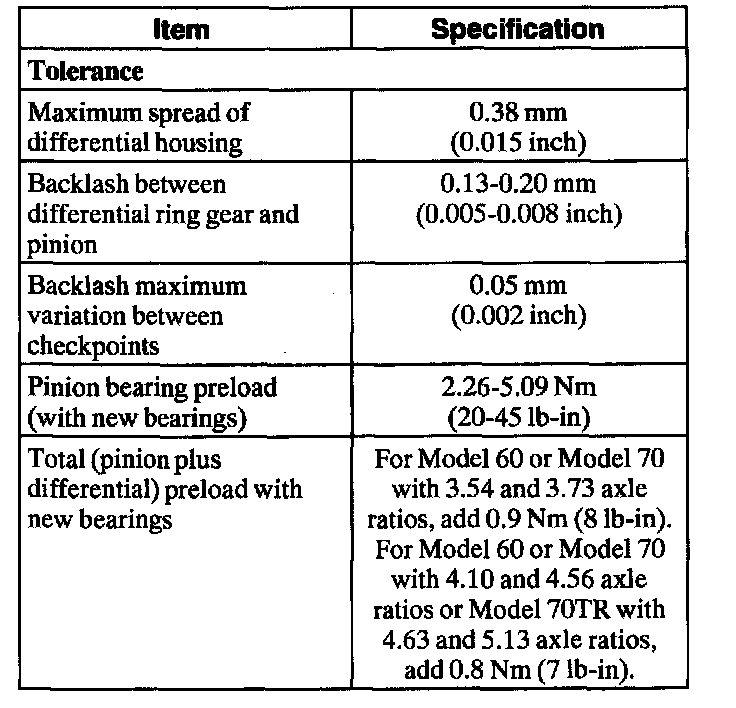

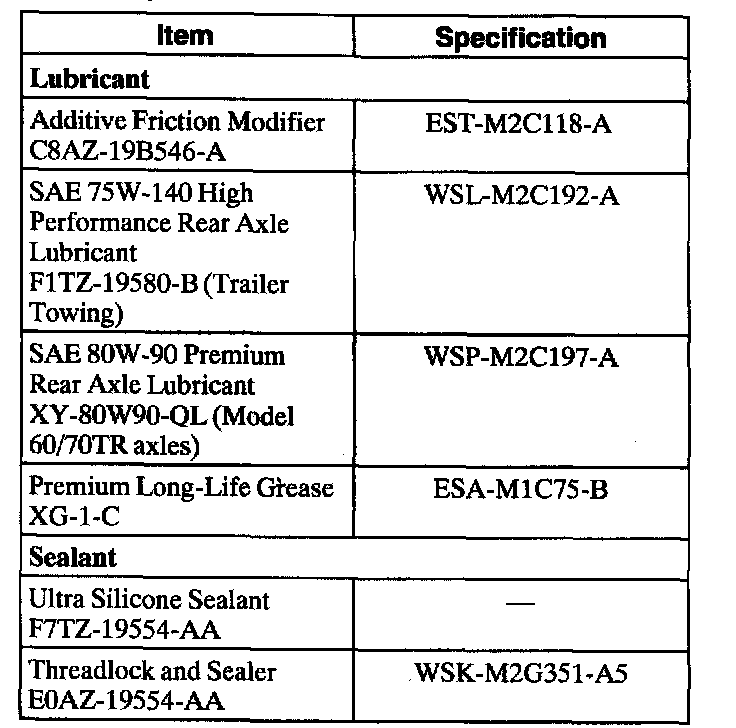

General Specifications

a For a complete refill on model 60 axles equipped with a limited-slip differential, add 21 C.L. (7 ounces) of additive friction modifier C8AZ-19B546-A or equivalent meeting ford specification EST-M2C118-A.
b For axles subject to frequent trailer towing, particularly in a hot or hilly area, Sue SAE 75W-140 High Performance Rear Axle lubricant F1TZ-19580-B or equivalent meeting ford specification WSL-M2C192-A. For all other applications, use SAE 80W-90 Premium Rear Axle lubricant XY-80W90-QL or equivalent meeting ford specifications WSP-M2C197-A.
c For a complete refill on model 70 axles equipped with a limited-slip differential, add 0.163l (5.5 ounces) of additive friction Modifier C8AZ-19B546-A or equivalent meeting ford specification EST-M2C118-A

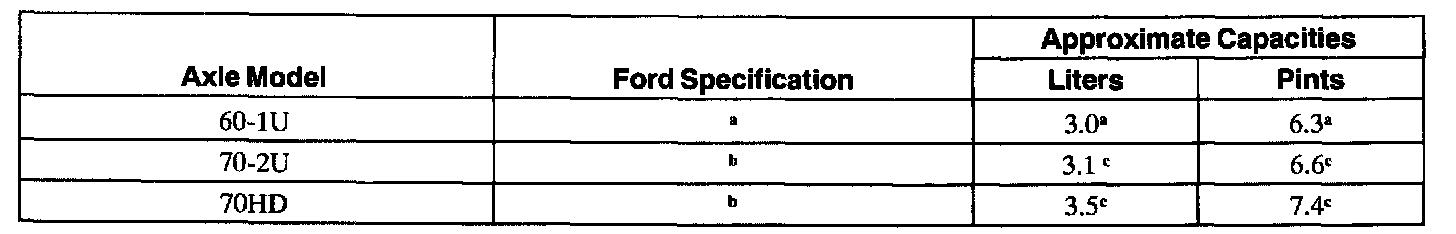

Axle Lubricant Capacity

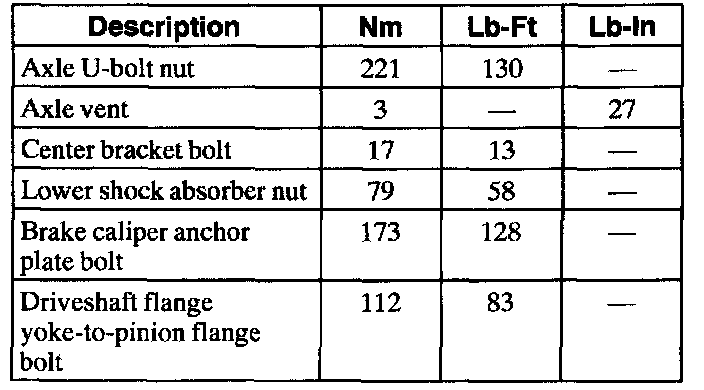

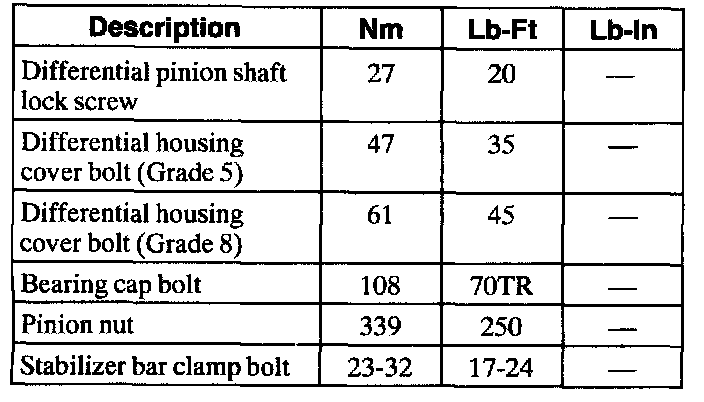

Torque Specifications

Rear Drive Axle/Differential - Ford 8.8-Inch Ring Gear





General Specifications

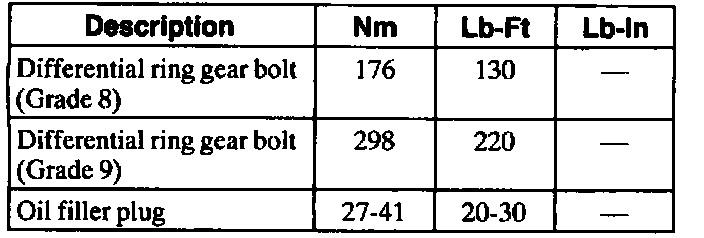

Torque Specifications

Rear Drive Axle/Differential - Ford 9.75-Inch Ring Gear








General Specifications

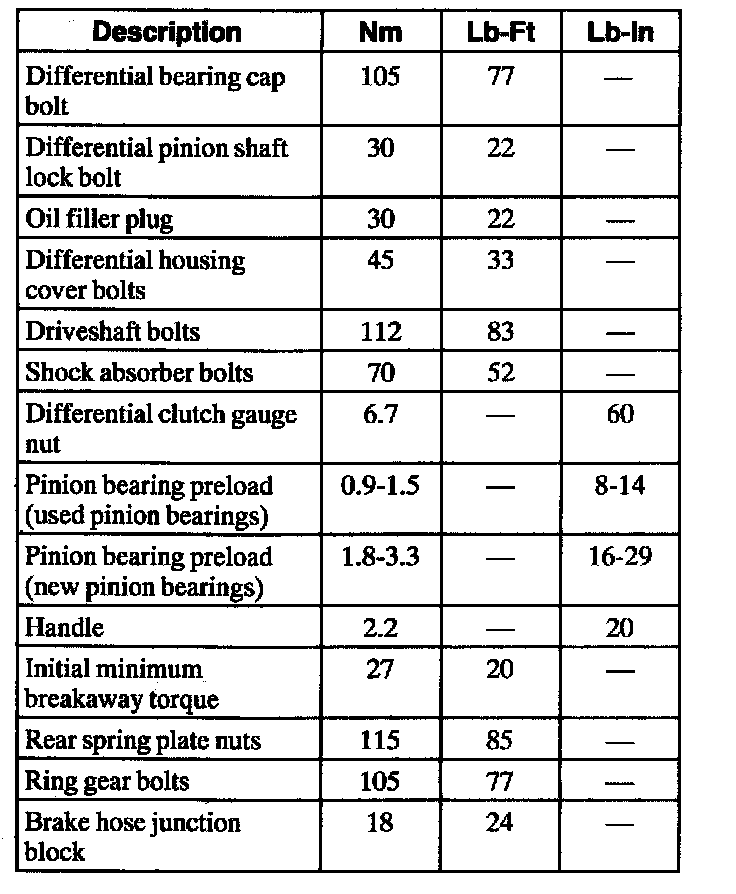

Torque Specifications
