Test G: Memory Seat Is Inoperative

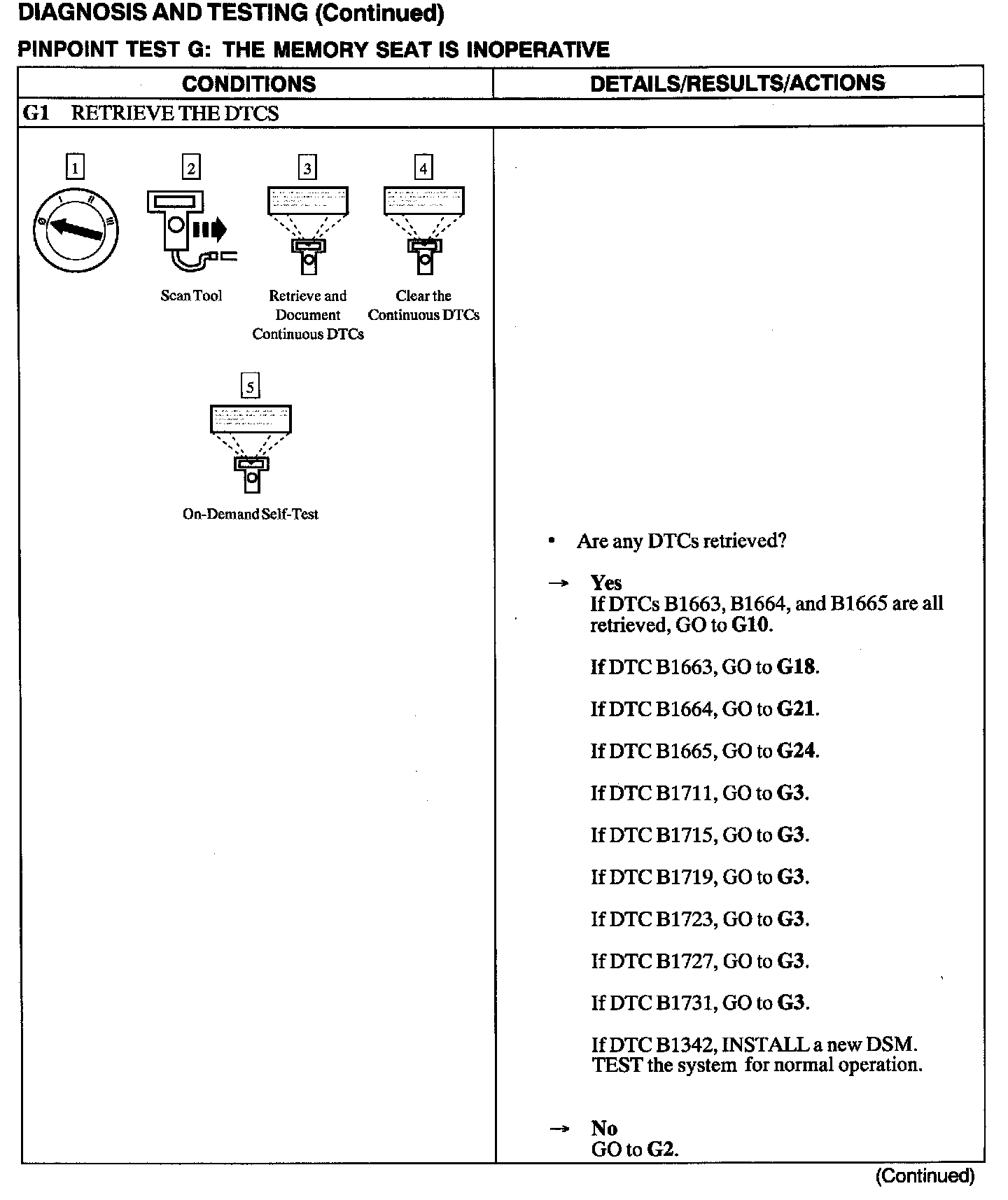

G1:

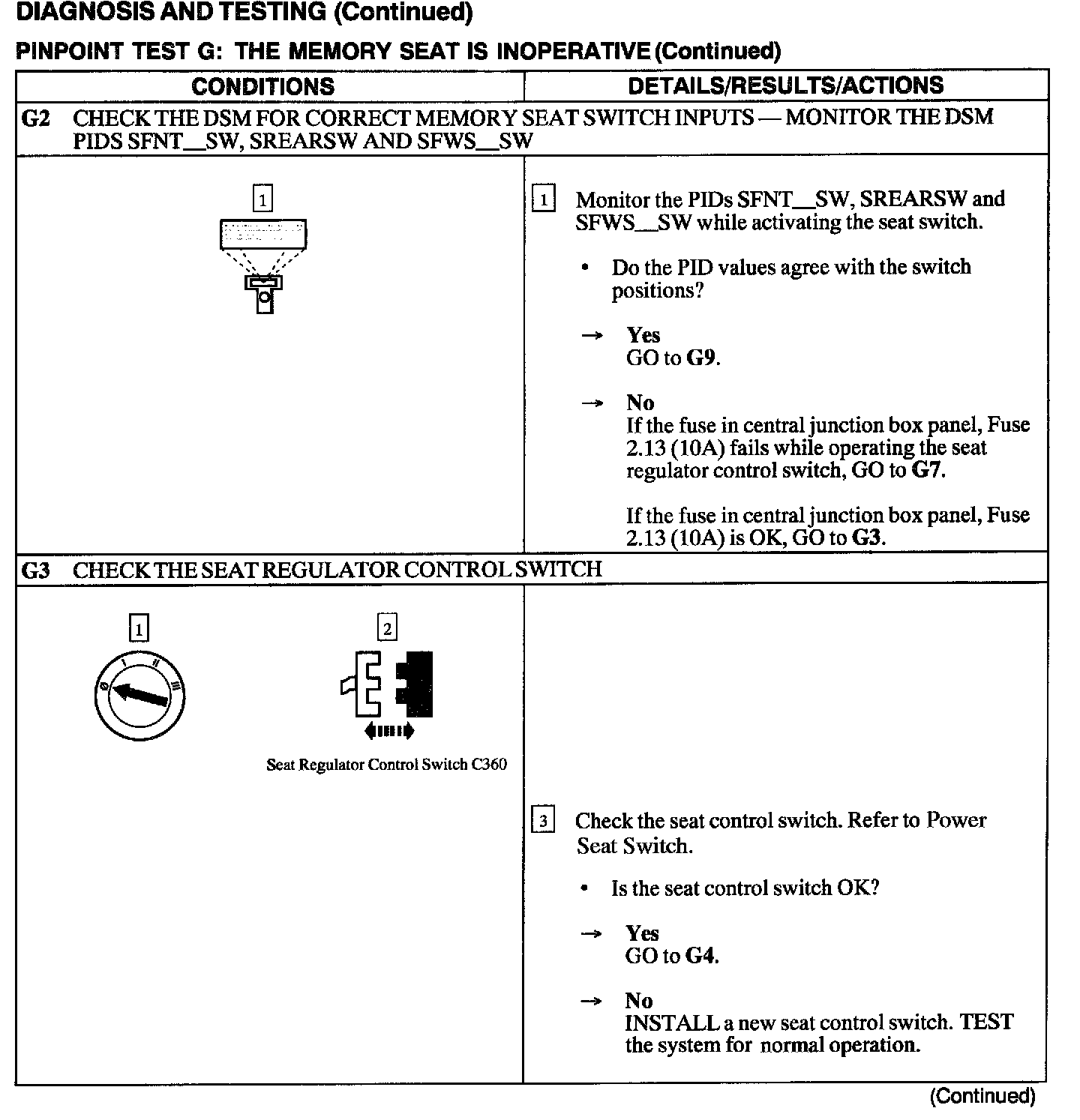

G2 - G3:

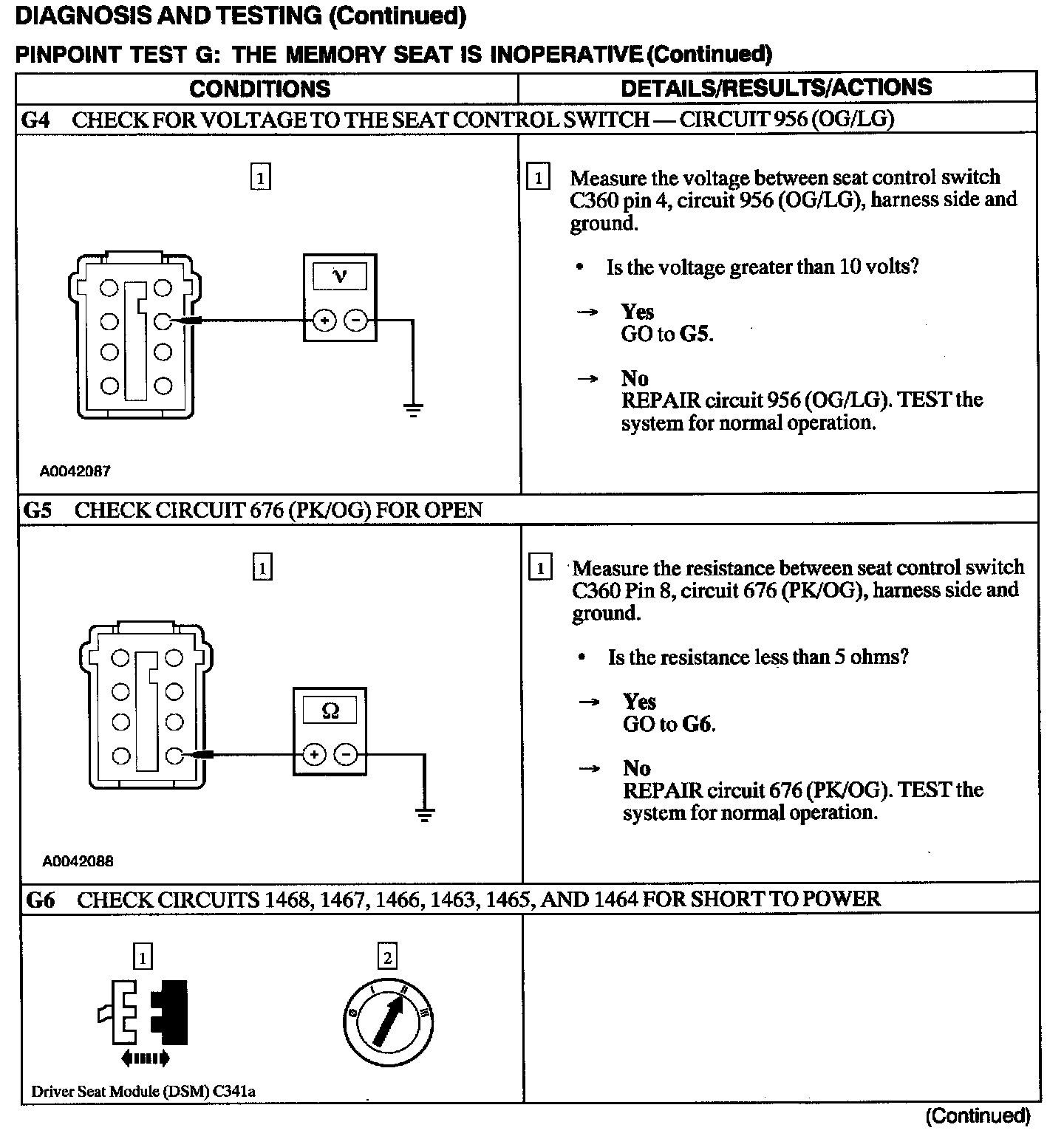

G4 - G6:

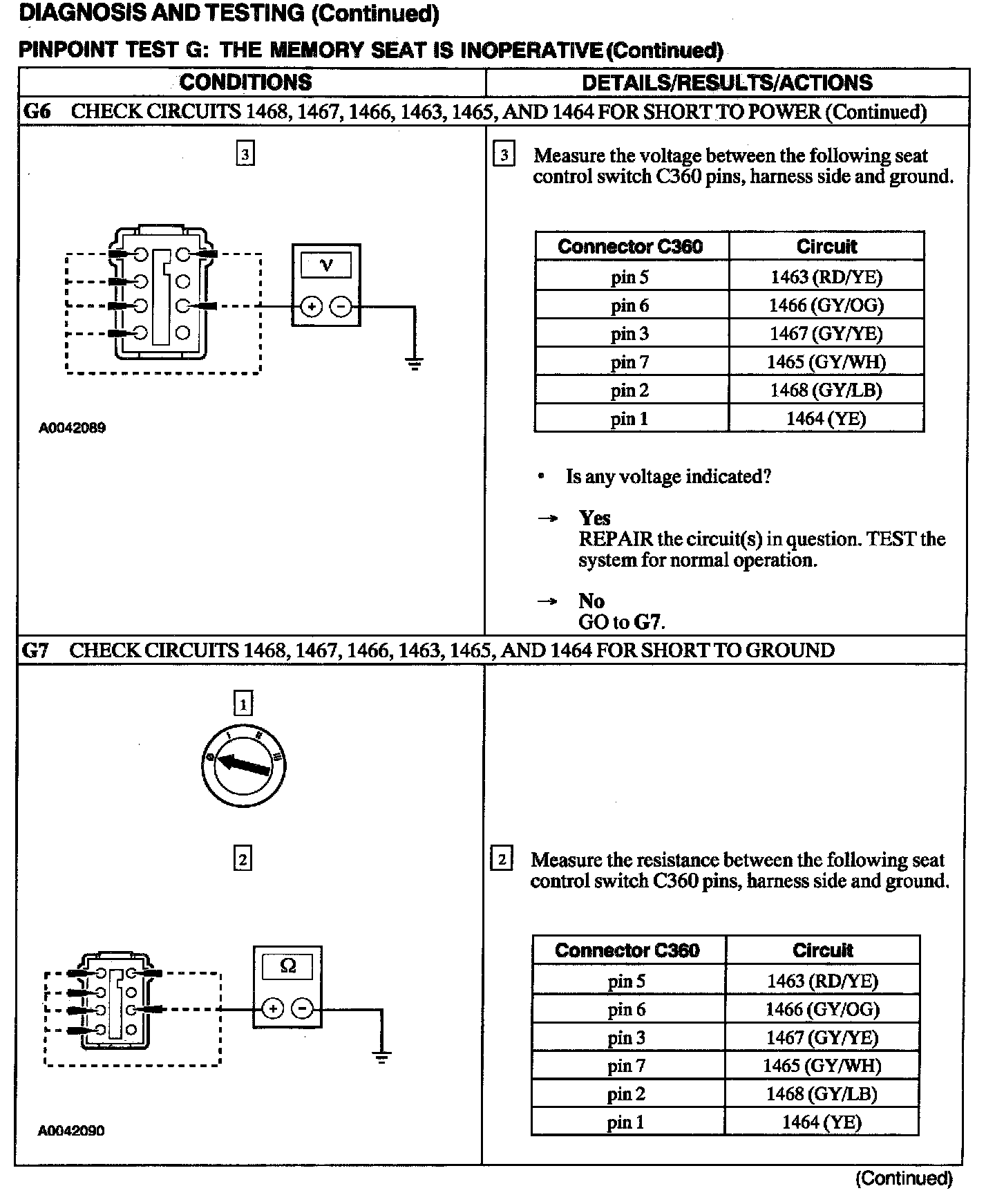

G6 - G7:

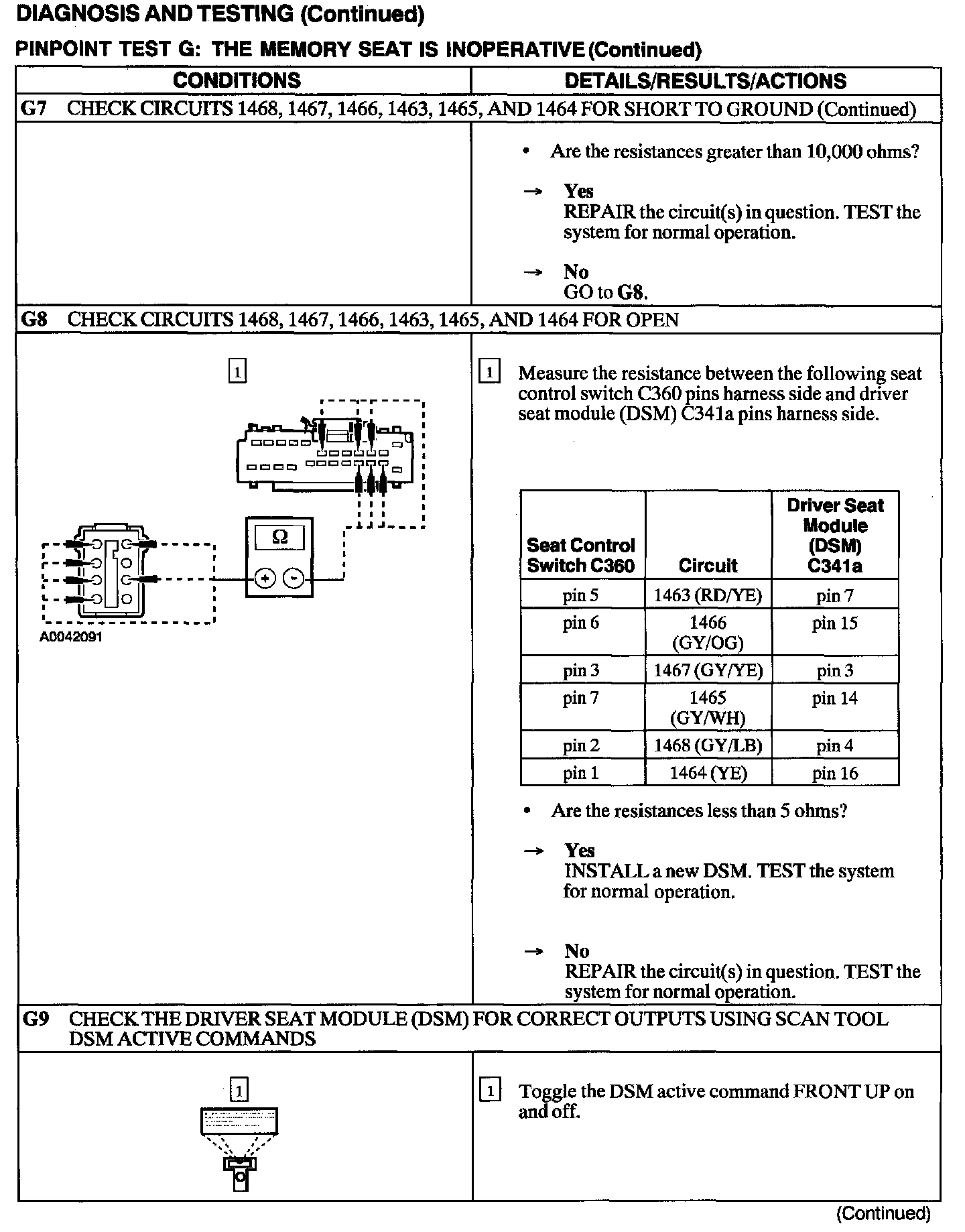

G7 - G9:

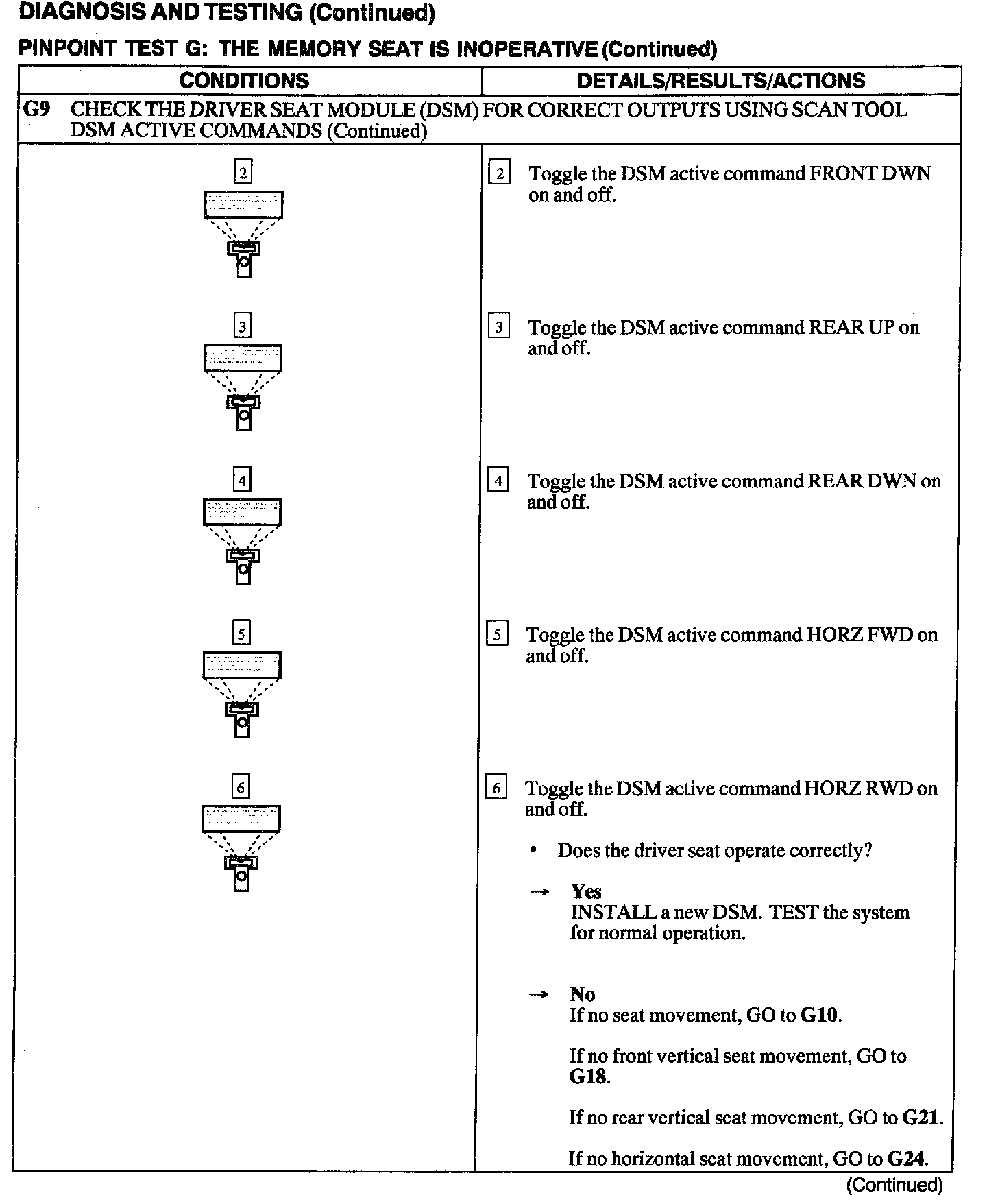

G9:

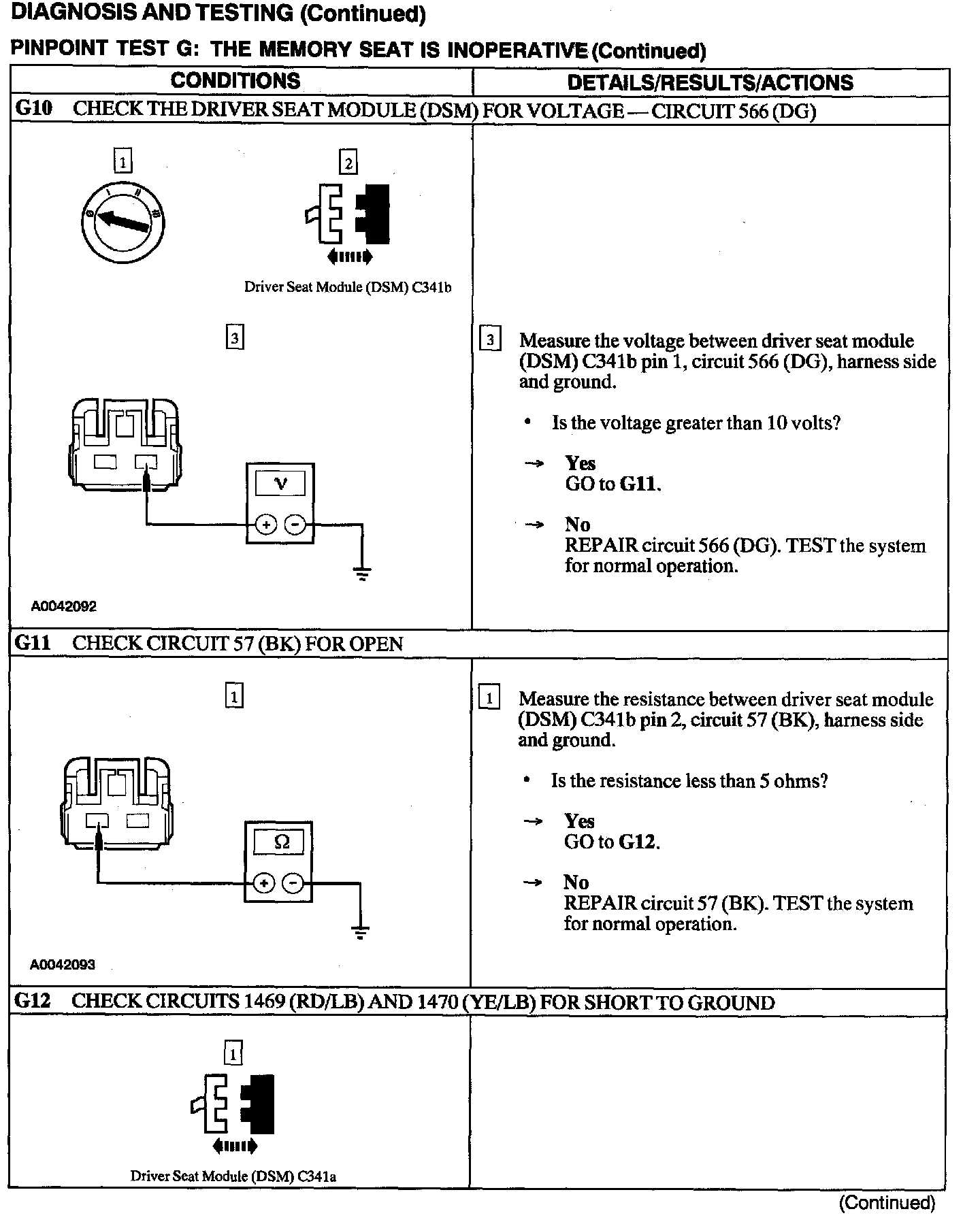

G10 - G12:

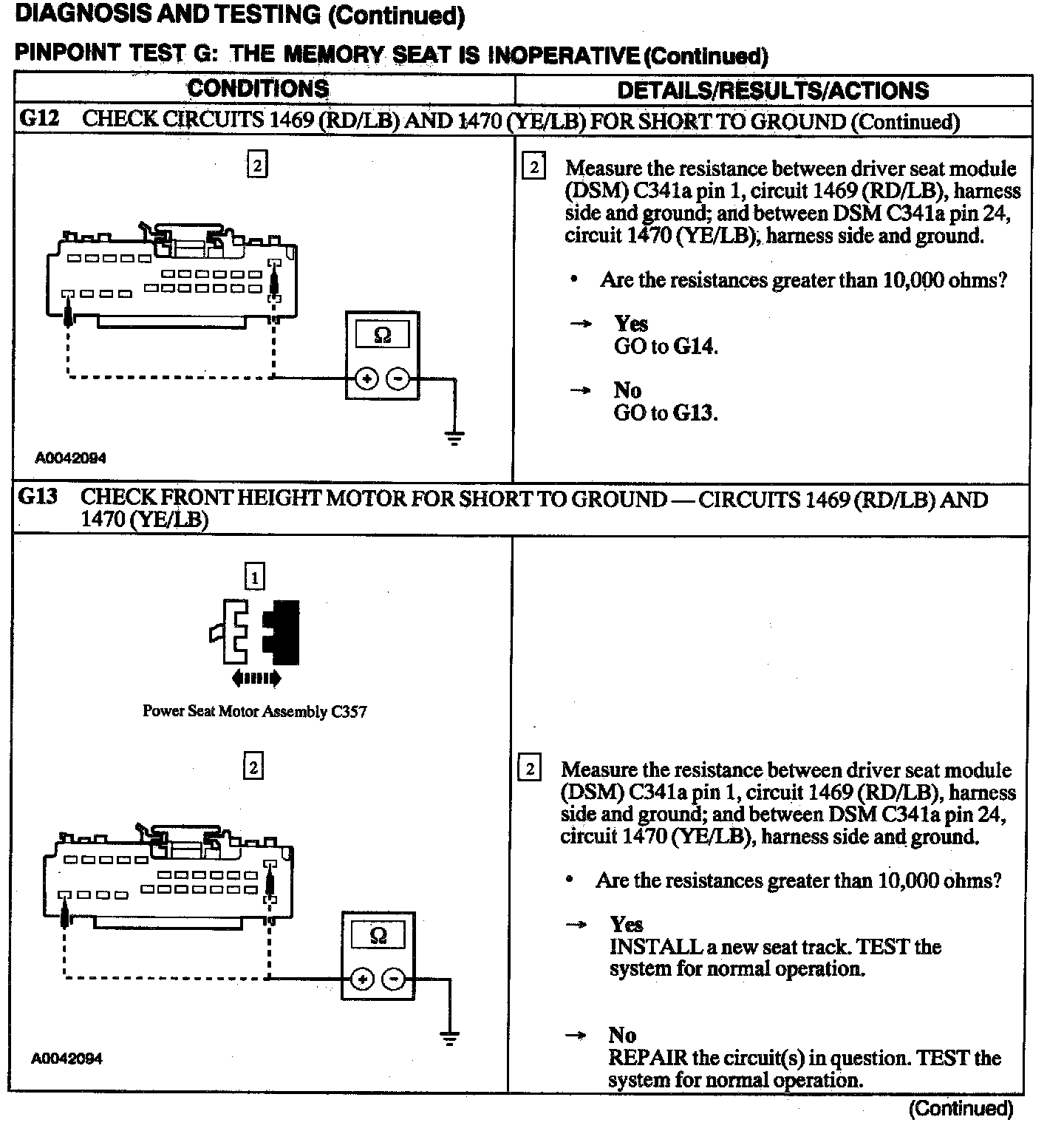

G12 - G13:

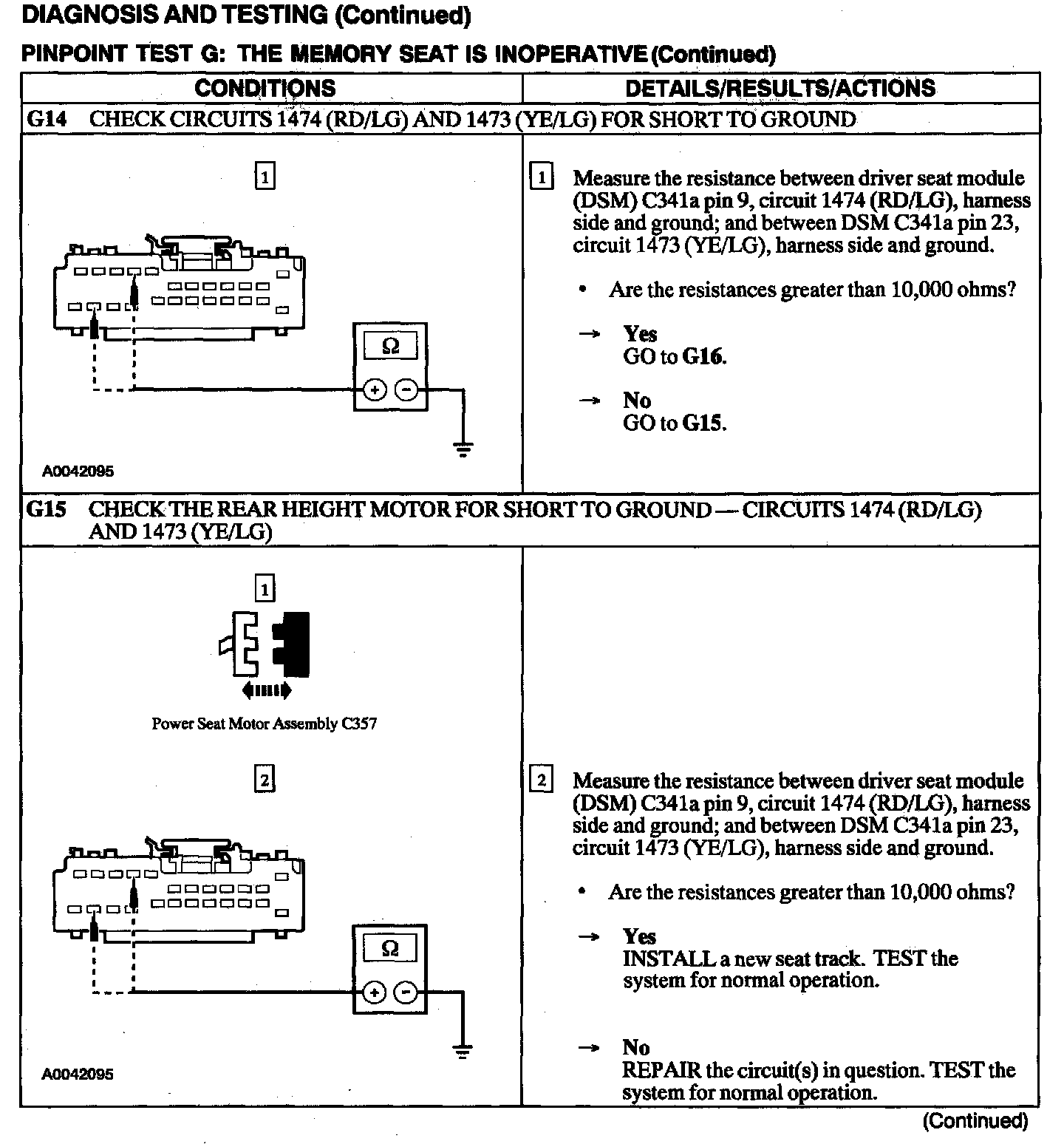

G14 - G15:

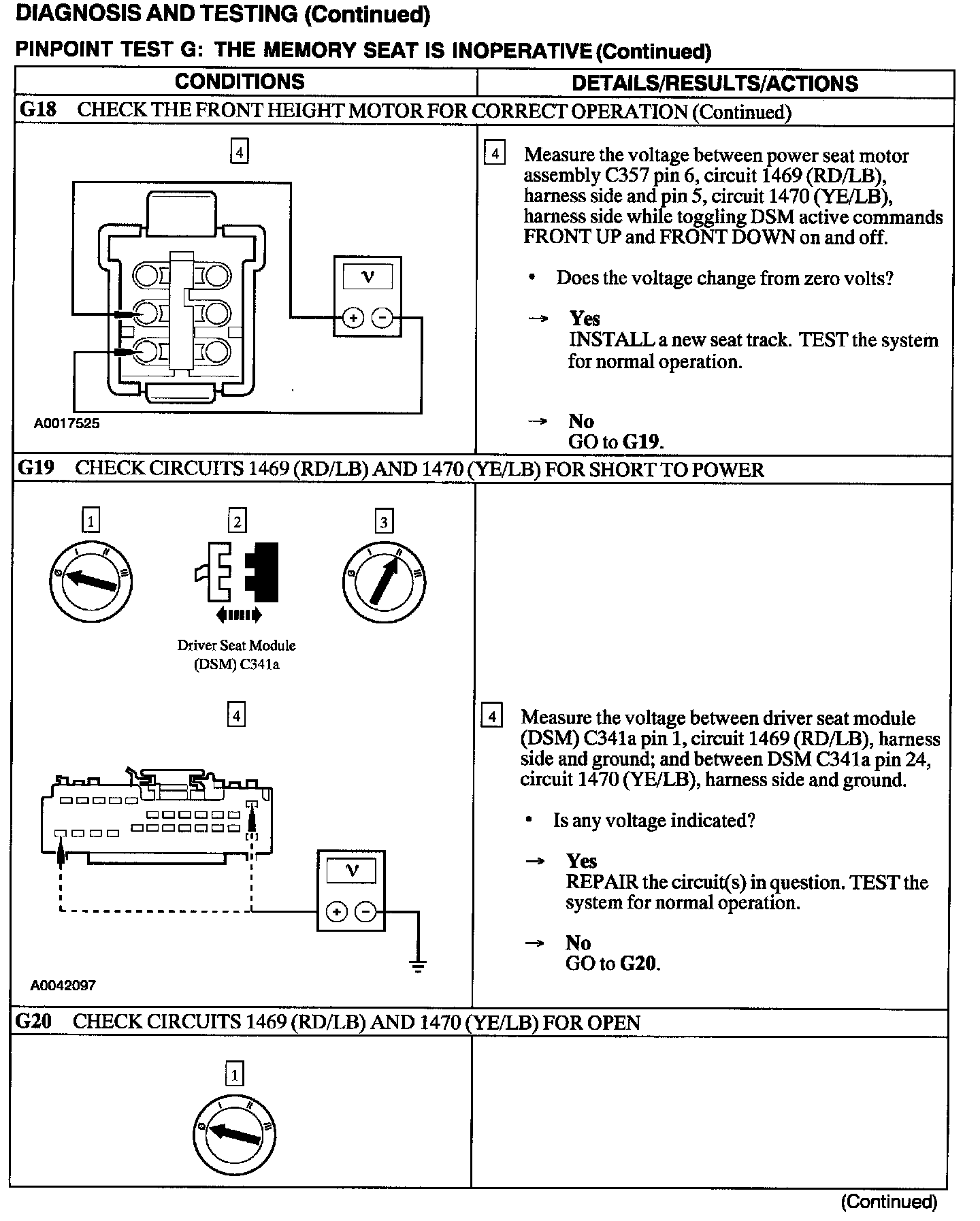

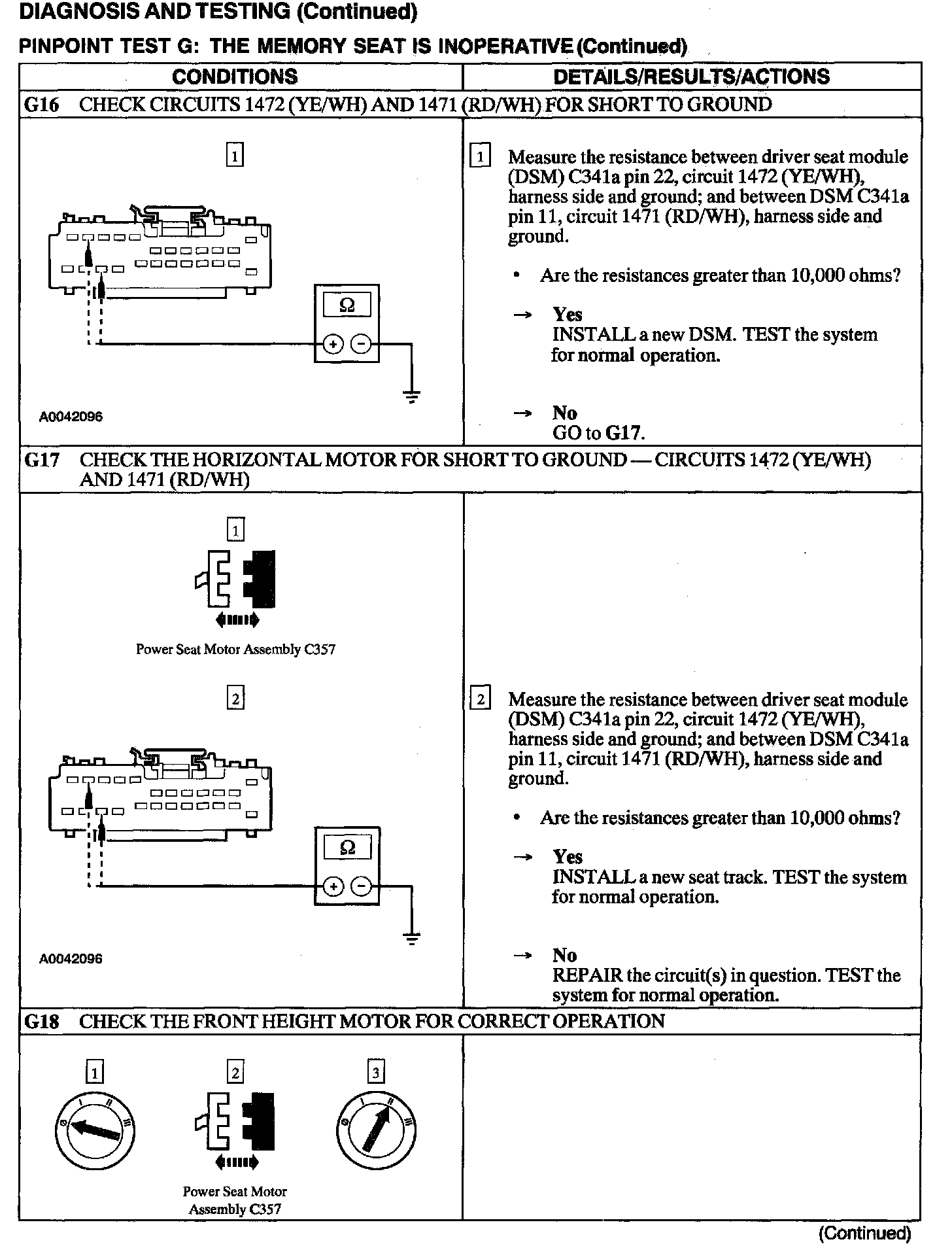

G16 - G18:






G18 - G20:

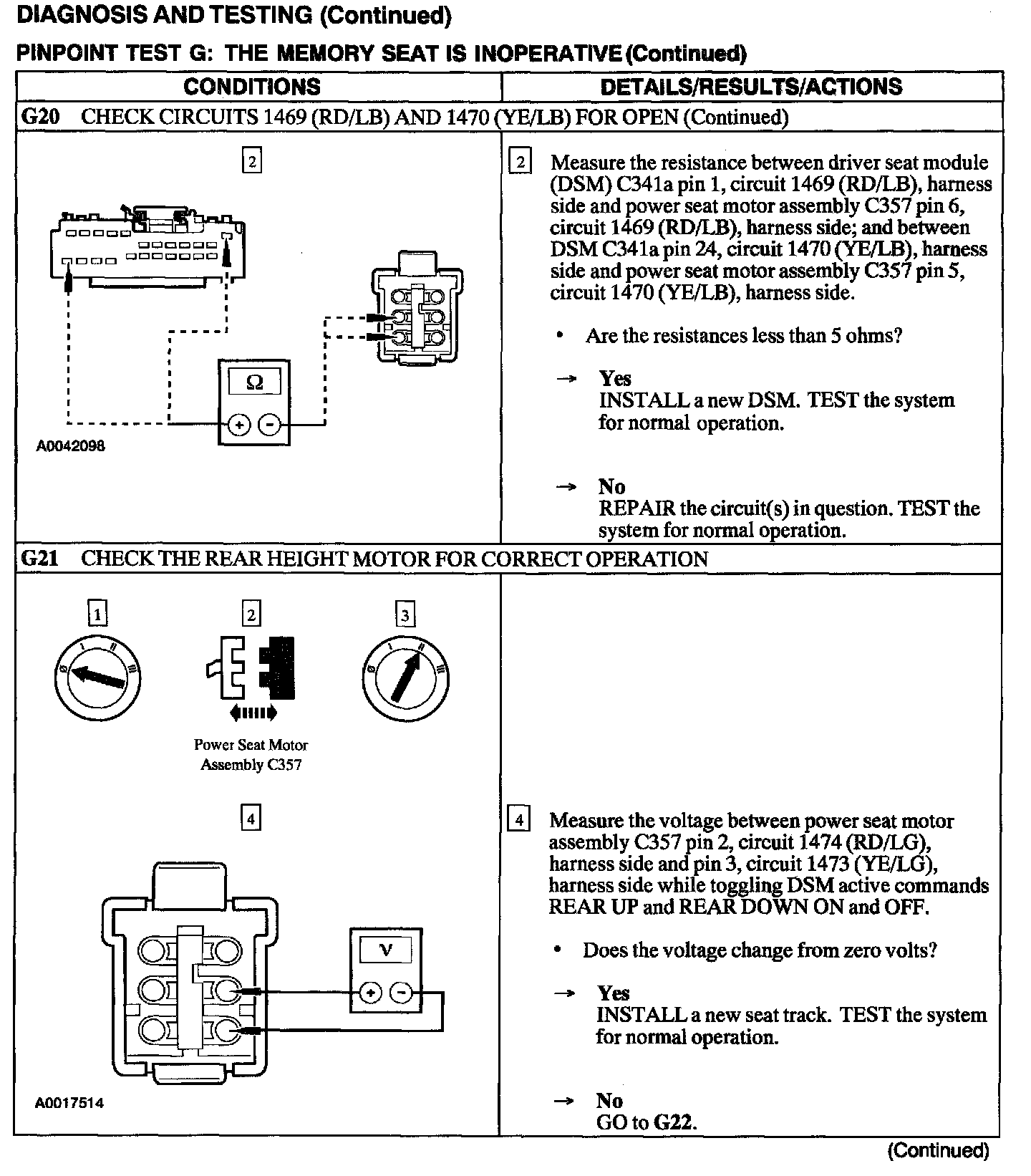

G20 - G21:

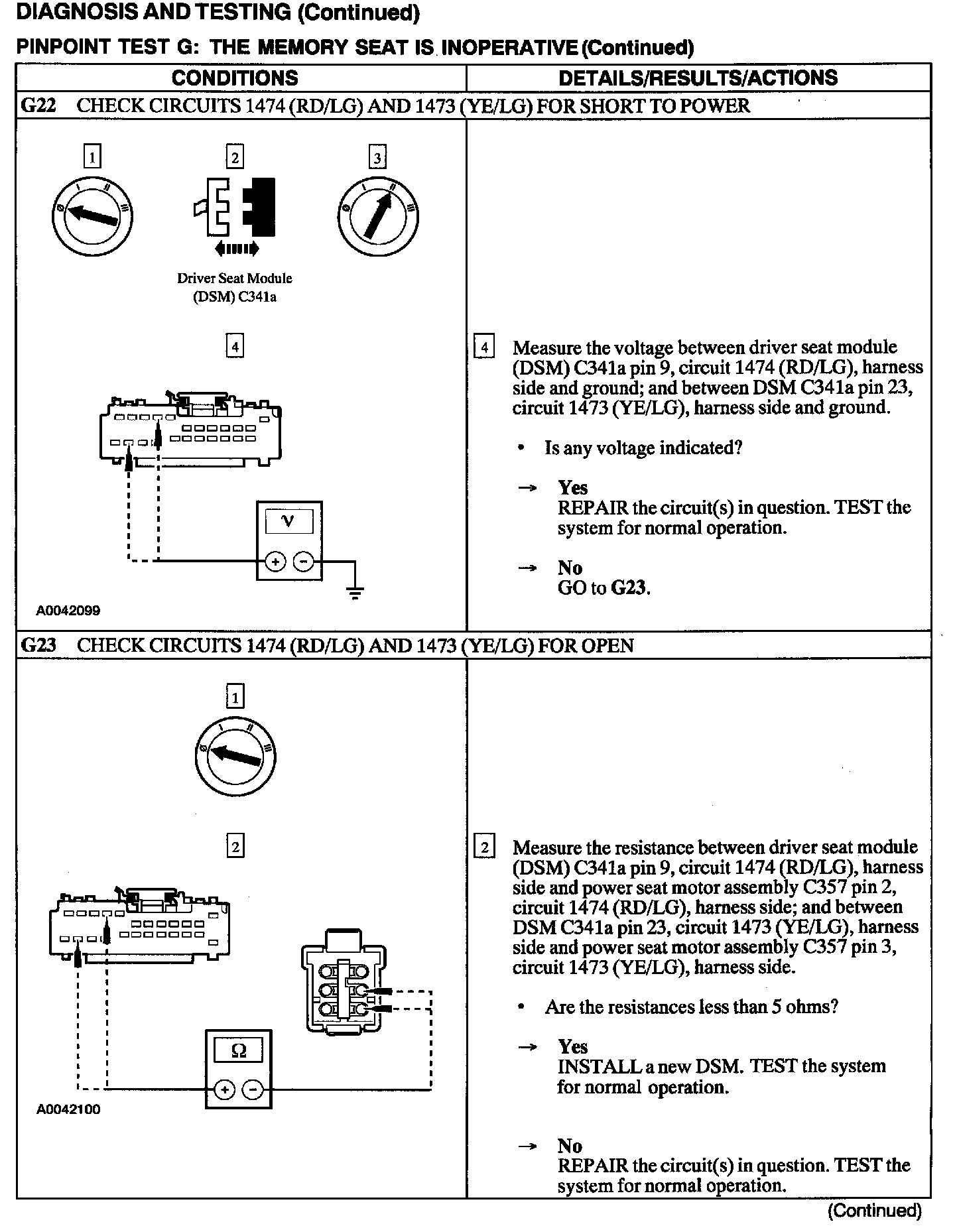

G22 - G23:

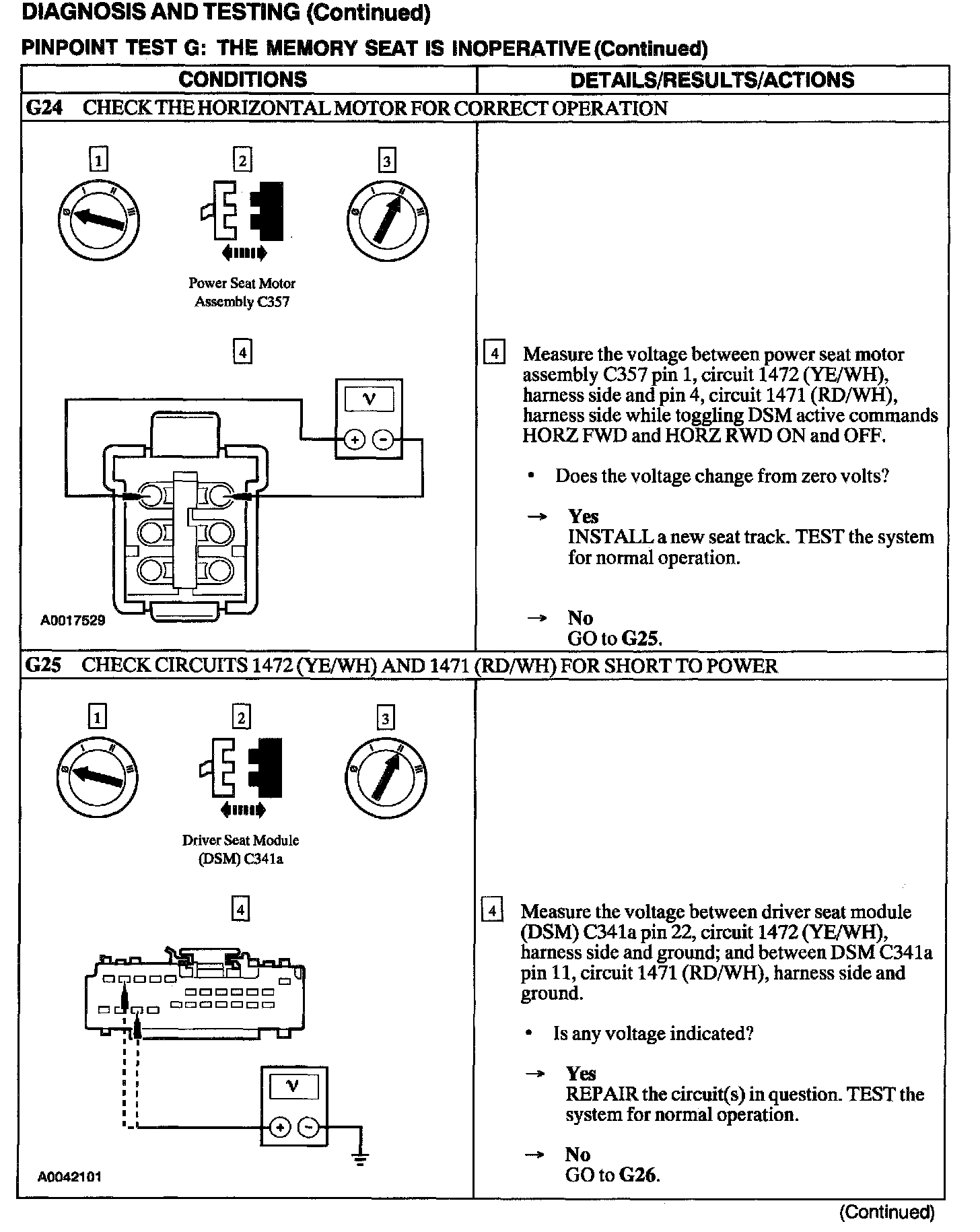

G24 - G25:

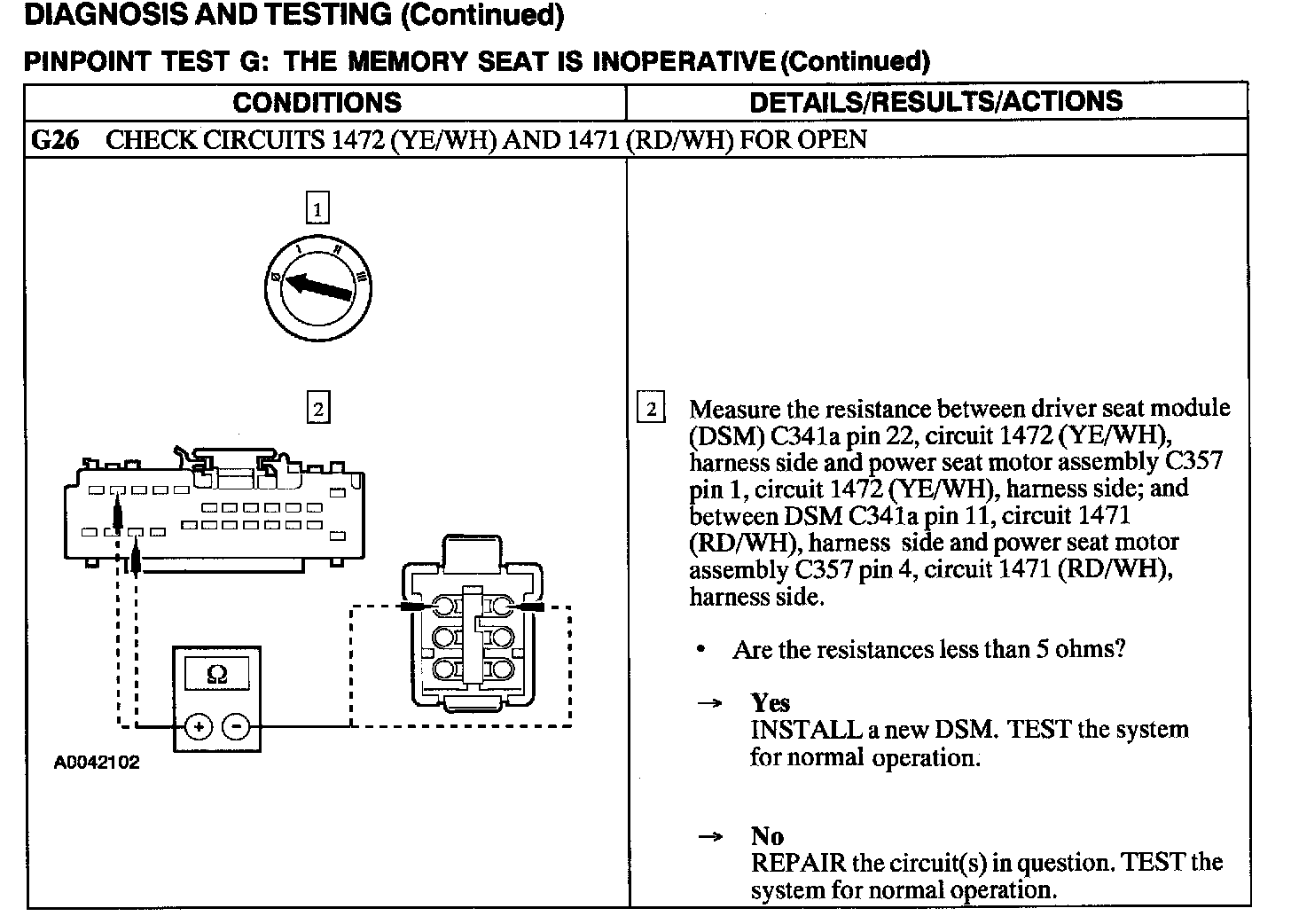

G26:
