Rear Drive Axle Differential - Dana 80

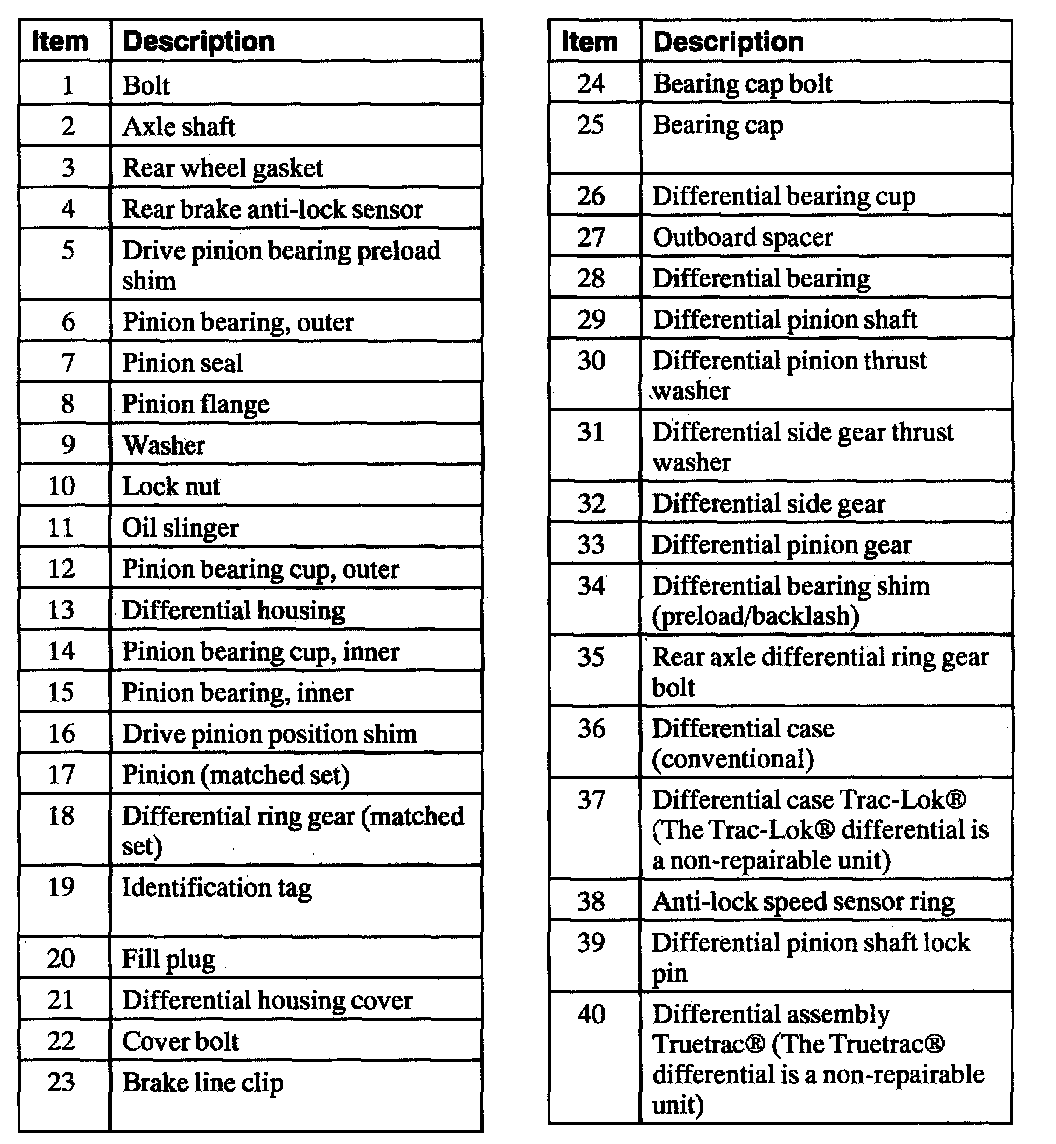

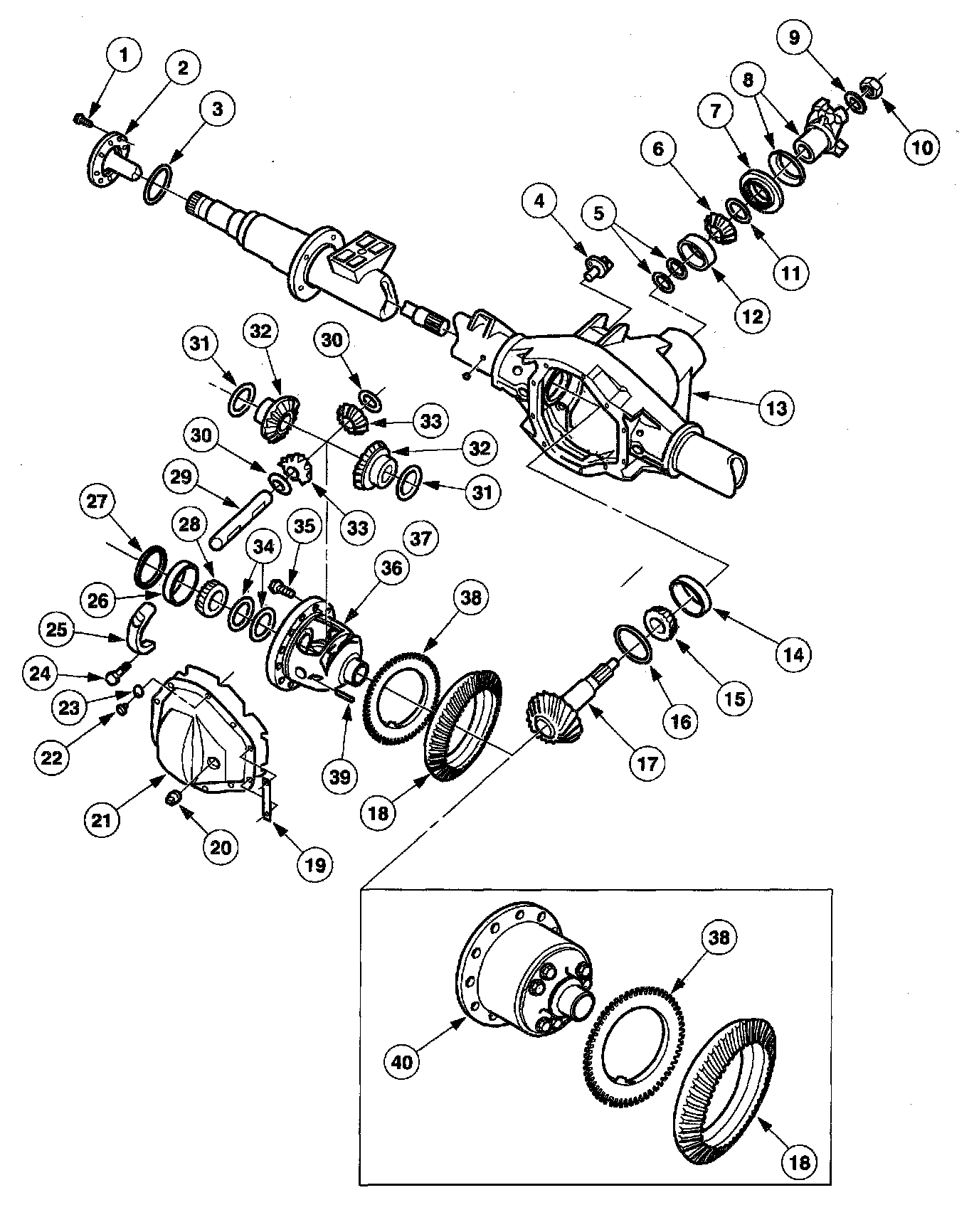

Rear Drive Axle and Differential Dana Model 80, Full-Floating Rear Axle, Disassembled View NOTE: Unless noted, the procedures apply to the conventional differential, Trac-Lok differential, and Truetrac differential, though most of the illustrations used in the procedures show the conventional differential.
