LH

Exhaust Manifold - LH

Removal
1. Remove the air cleaner outlet tube.
2. Raise and support the vehicle.

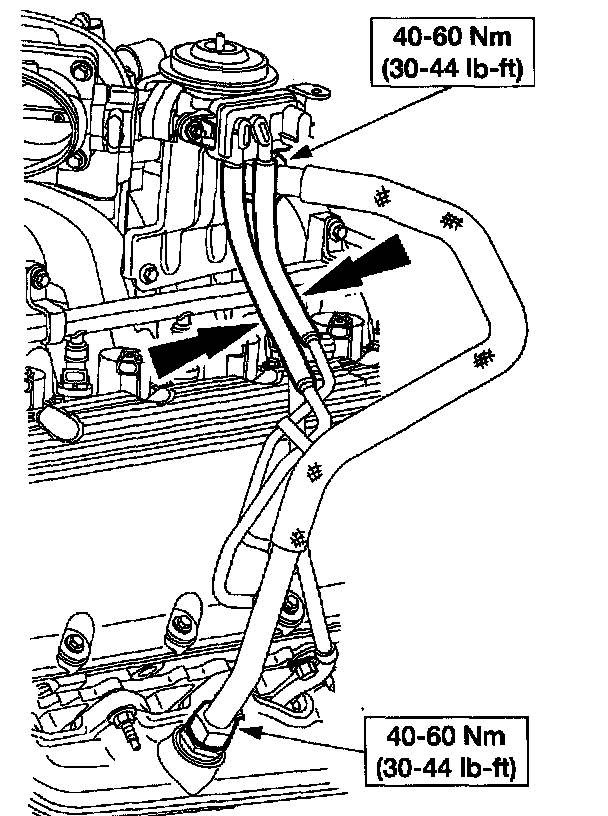

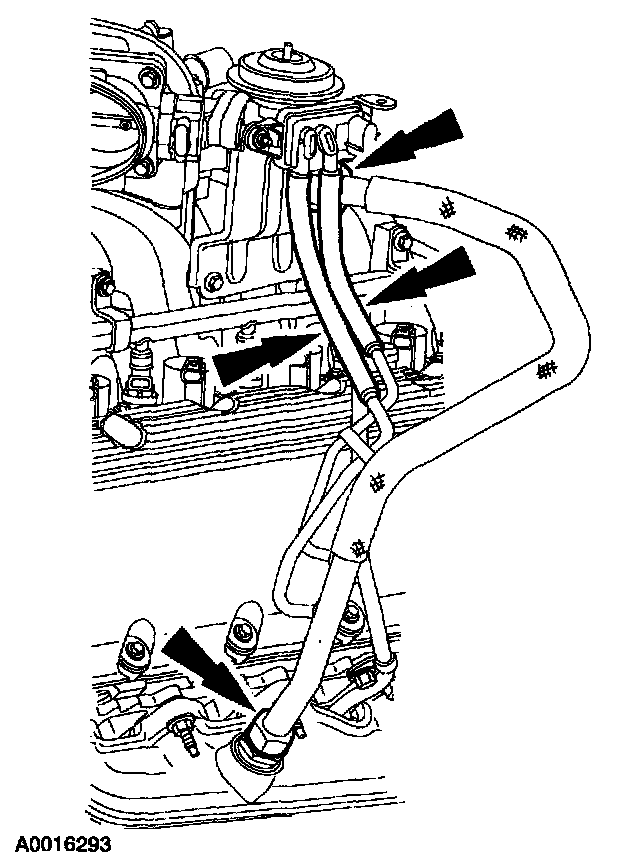

3. If equipped, disconnect the EGR-to-exhaust manifold tube lower fitting.

4. Remove the nuts.
5. Lower the vehicle.

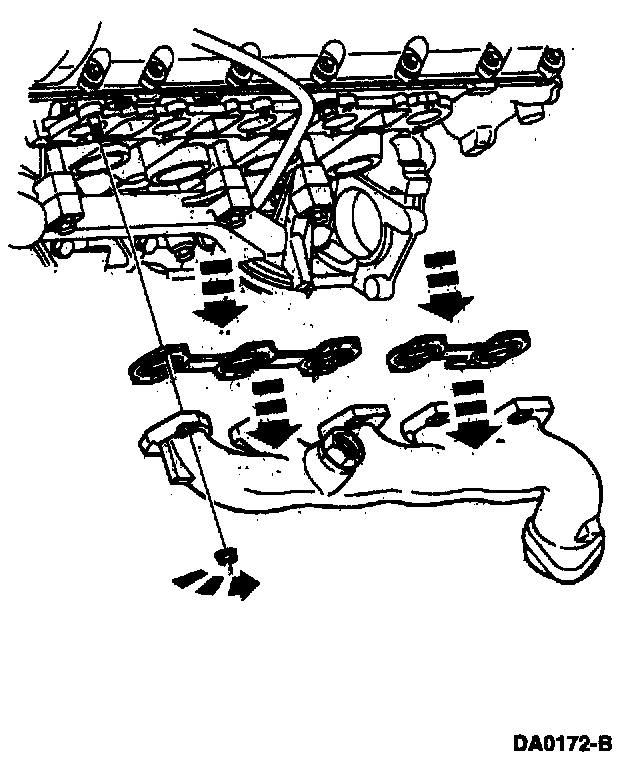

6. Remove the exhaust manifold nuts and the exhaust manifold. Discard the exhaust manifold gaskets.
7. Clean and inspect the exhaust manifold.

Installation

Exhaust Manifold Bolt Sequence:

1. To install, reverse the removal procedure.
